Price:$199.00 - $350.00

Quantity:


Product Overview

Description



Our service






Our Aim :
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Committed to Quality&Quality control (QC) system&ISO9001
Satisfaction Guaranteed.
Fast Response time Guaranteed.
A Wide Spectrum Of Skills & Experience.

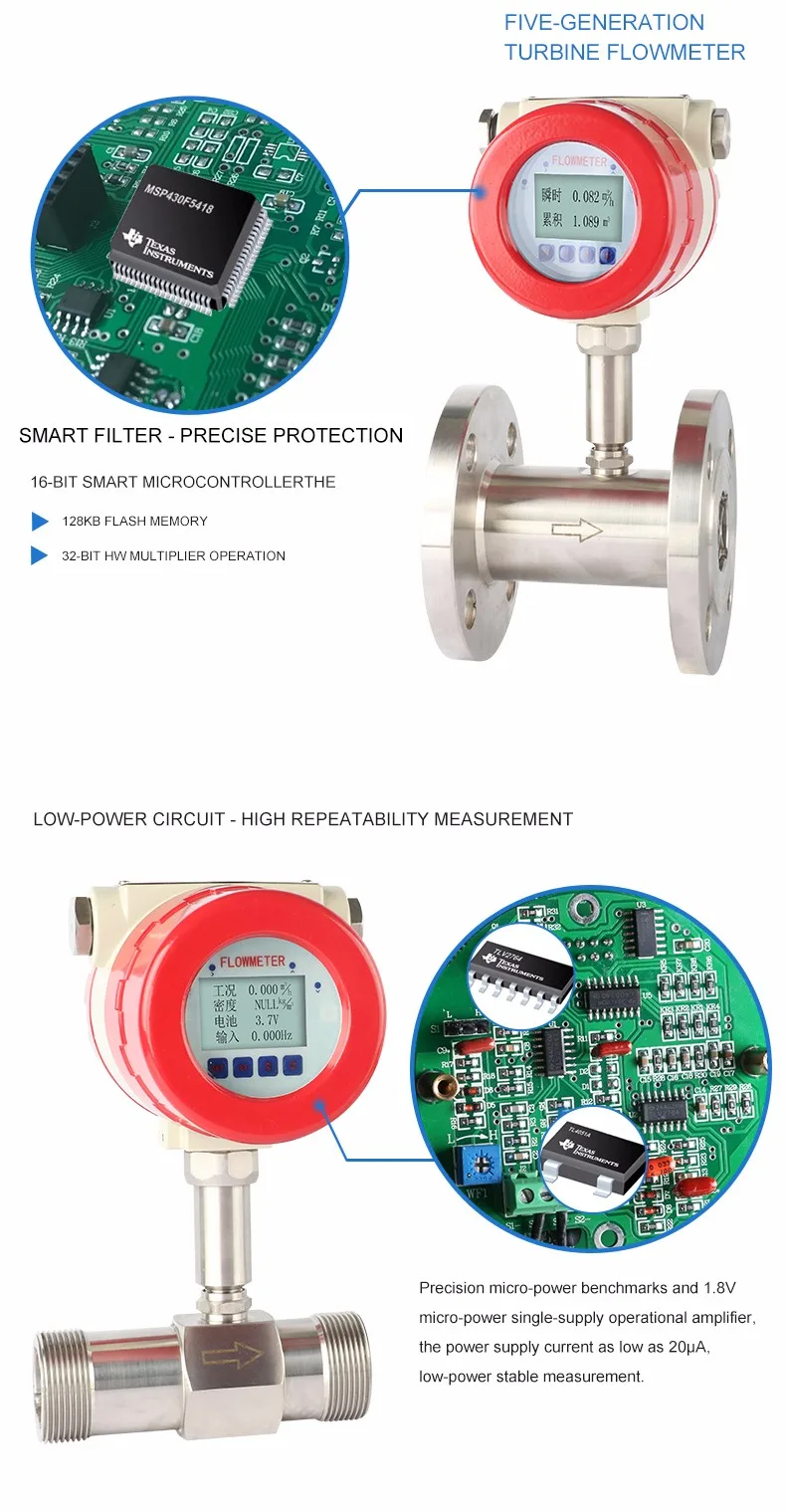

Product Show

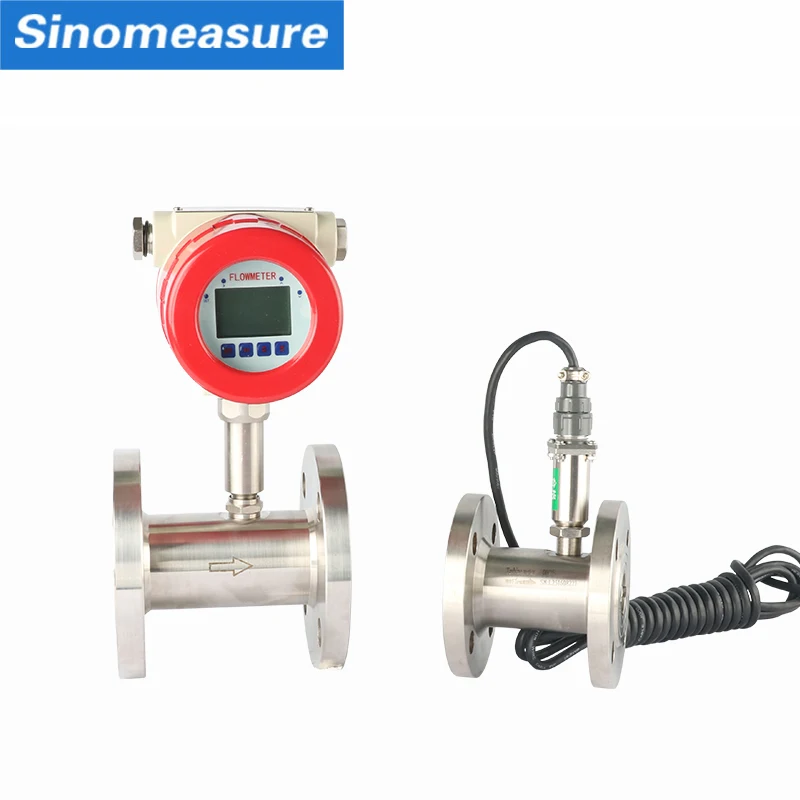

Product Introduction :

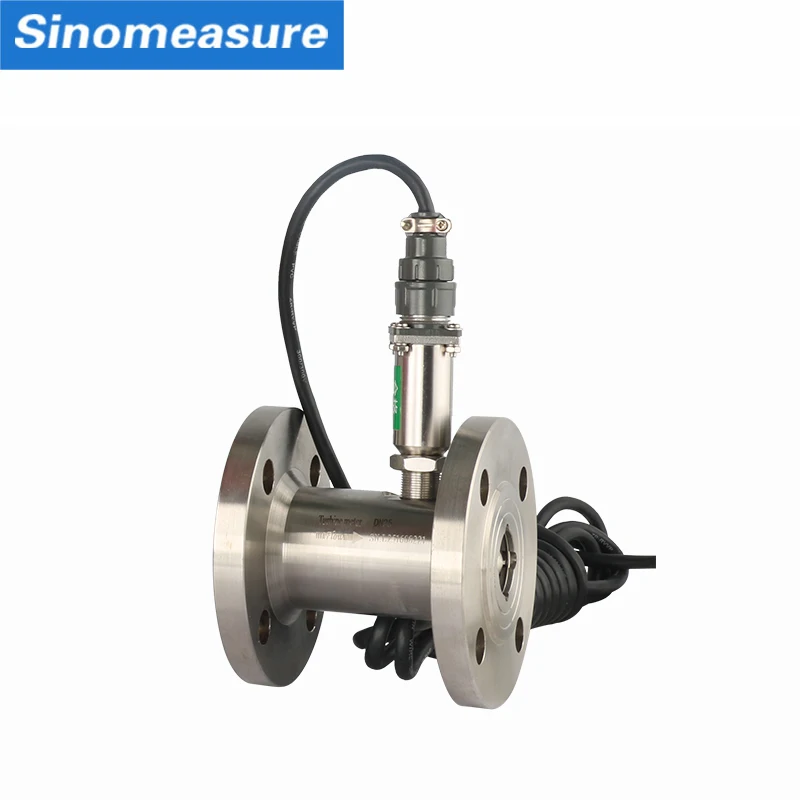

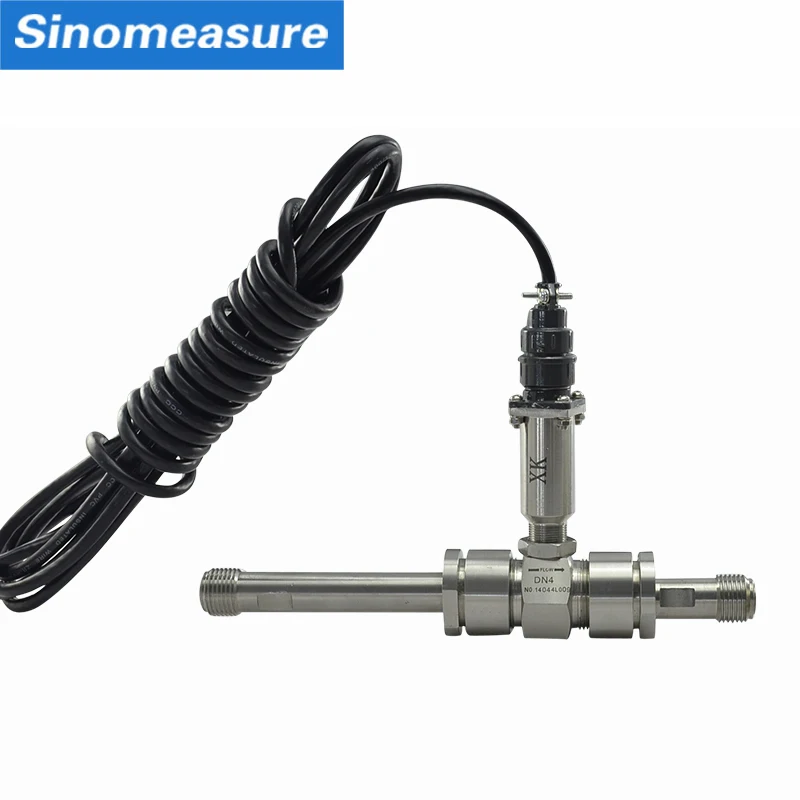

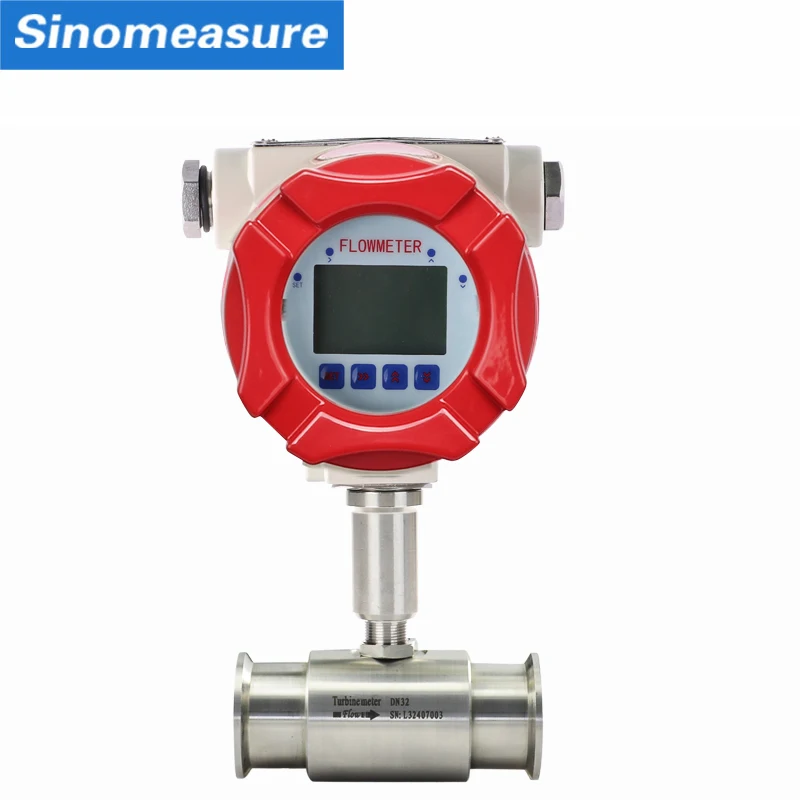

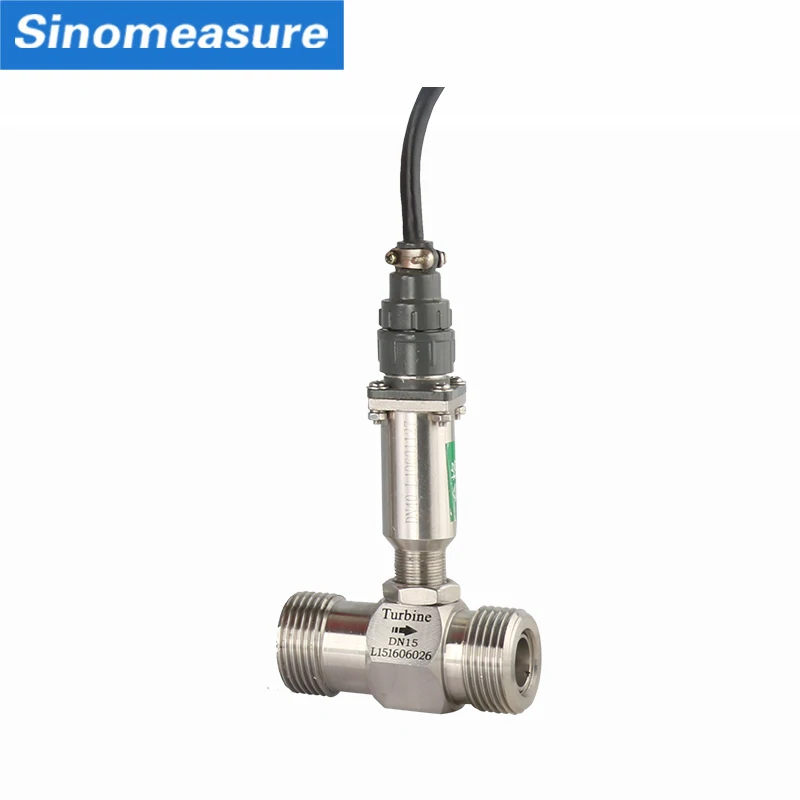

SIN-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.


Specification:



Measure medium:
liquid (water, liquefied petroleum gas, refined oil, light crude oil, organic liquid, inorganic liquid and other fiber, particulate impurities Of liquid)
Nominal diameter:
DN4 -- DN200mm
Measurement accuracy:
0.2, 0.5, 1.0 (preferred)
Medium viscosity:
less than 5 × 10-6m2 / s (for the liquid with >5 × 10-6m2 / s , the flowmeter needs to be calibrated before using)
Nominal pressure:
1.0Mpa; 1.6Mpa; 2.5Mpa; 4.0Mpa; 6.3Mpa
Medium temperature:
-20 ℃ ~ +120 ℃ (stainless steel measuring tube)
Environmental conditions:
Ambient temperature: -20 ℃ ~ +60 ℃; Relative humidity: 5% to 95%; Atmospheric pressure: 86kPa ~ 106kPa;
Power supply:
3.6V lithium battery; 12VDC; 24VDC;
Output signal:
three-wire pulse output, two-wire 4-20mA output
Ingress protection :
IP65 (IP67, IP68 );


Turbine flowmeter flow table:



diameter  (mm）
Normal flow range（m3/h)
Extended flow range（m3/h)
Installation method
and Pressure level
DN4
0.04-0.25
0.04-0.4
Thread installation,6.3Mpa
DN6
0.1-0.6
0.06-0.6
Thread installation,6.3Mpa
DN10
0.2-1.2
0.15-1.5
Thread installation,6.3Mpa
DN15
0.6-6
0.4-8
Thread installation,6.3Mpa
DN20
0.8-8
0.45-9
Thread installation,6.3Mpa
DN25
1.0-10
0.5-10
Thread installation,6.3Mpa
DN32
1.5-15
0.8-15
Thread installation,6.3Mpa
DN40
2.0-20
1-20
Thread installation,6.3Mpa
DN50
4.0-40
2-40
Flange installation,2.5Mpa
DN65
7.0-70
4-70
Flange installation,1.6Mpa
DN80
10-100
5-100
Flange installation,1.6Mpa
DN100
20-200
10-200
Flange installation,1.6Mpa
DN125
25-2500
13-250
Flange installation,1.6Mpa
DN150
30-300
15-300
Flange installation,1.6Mpa
DN200
80-800
40-800
Flange installation,1.6Mpa




Product descripation












Related Products










Q: Is there any stock?
A: Yes,we have materials in stock to help you to get the samples as soon as we can
Q: How to track my Order?
A: After shipped, we will email you the tracking number.You can check the shipping status of your order on the website.
Q: How about warranty ?
A: Warranty: 12 months, Lifetime maintenance
Q: How about after-sales service?
A : We are 24 hours online, if you have any problem,pls contact us directly.
Q: Any discount?
A : For bulk purchase or distribution agents, we will apply the best price for you,If we have any promotions, we will post in store and send you an email to inform you.
