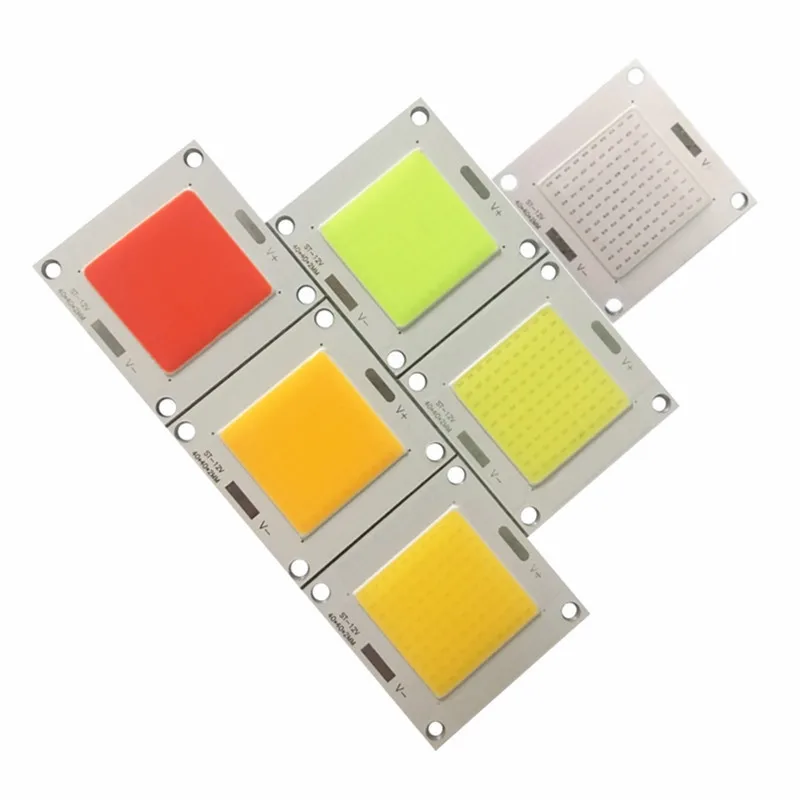

4040mm 50W COB LED chip 12V flip technology for DIY light flood lamp

Product Overview

Description



4040mm 50W COB LED chip 12V flip technology for DIY light flood lamp

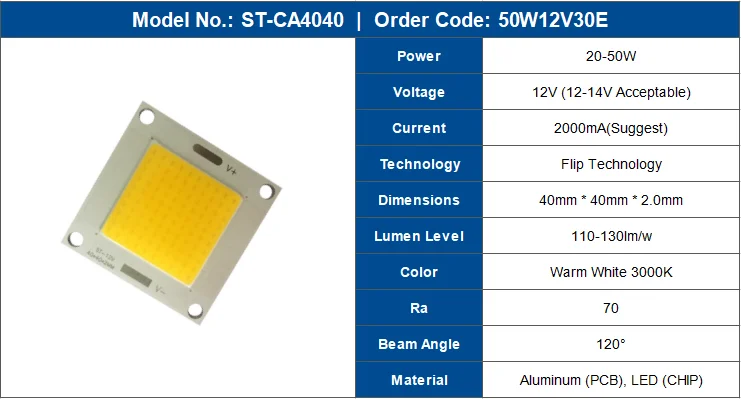

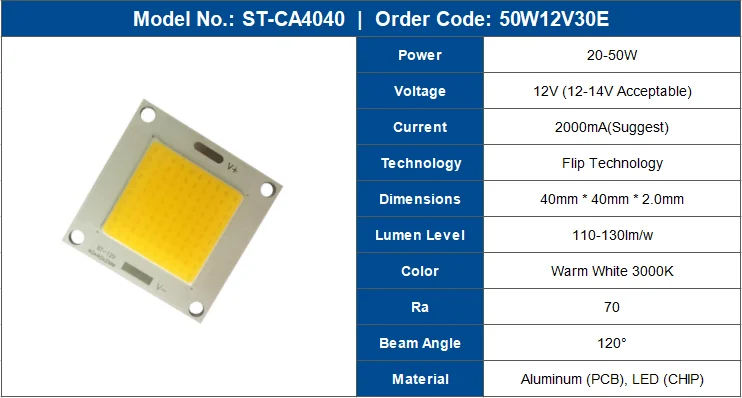

Module Number	size	Parameters	Color (CCT)	Luminous Efficacy (lm/w)
cob flip chip	40*40*2.0mm	20-50W 12-14V, 2000mA	3000/6000K (1800-20000K can be customized)	110-130LM/W
cob flip chip			RED (Phosphor Type)	40-60LM/W
cob flip chip			GREEN (Phosphor Type)	90-110LM/W
cob flip chip			BLUE	20-30LM/W
cob flip chip			AMBER (1800-2000K)	90-110LM/W

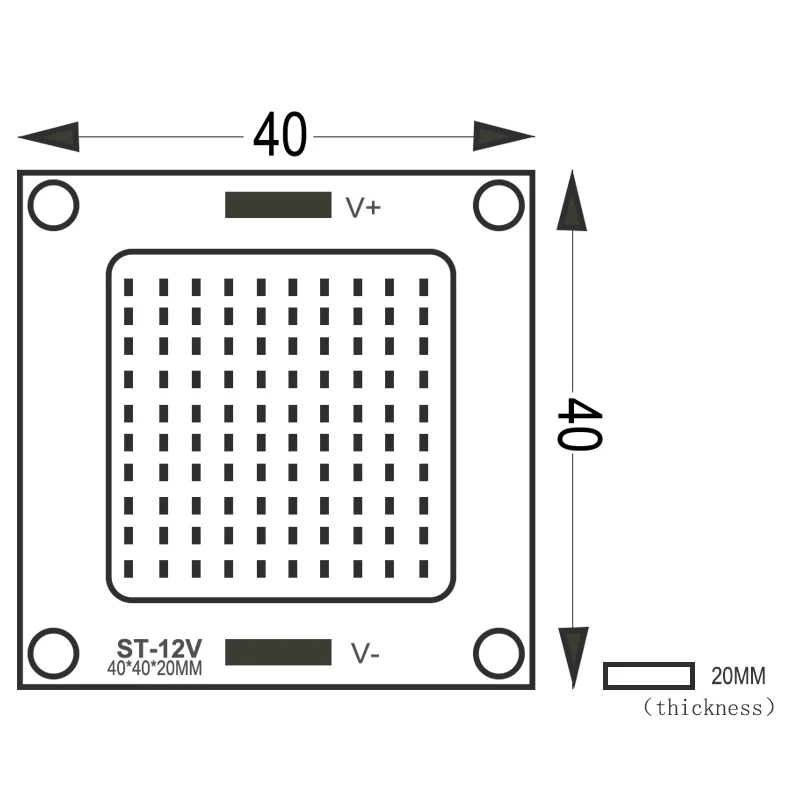

Dimension

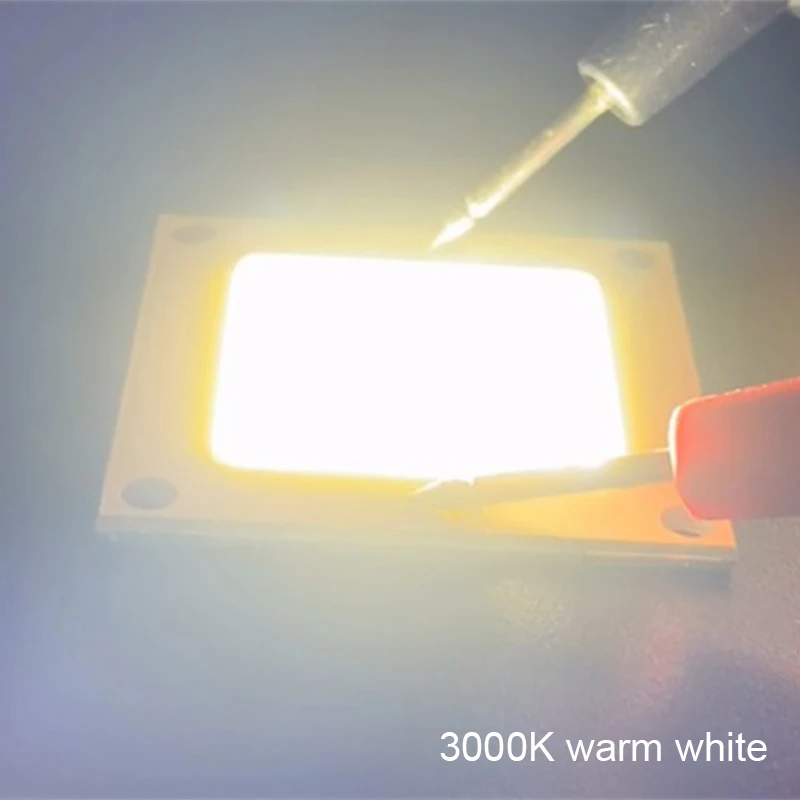

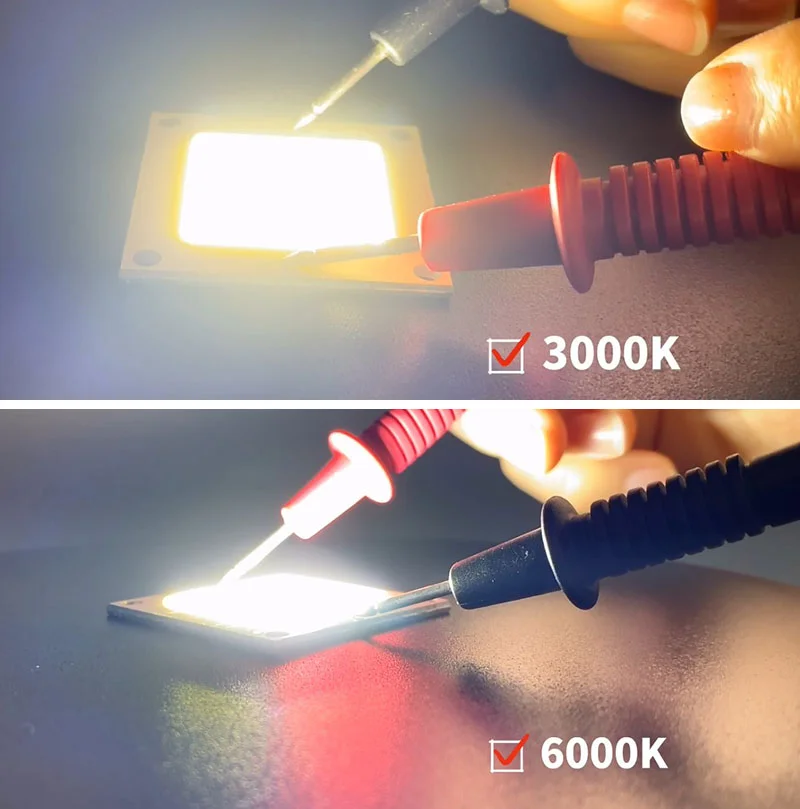

Testing Show



Buyer Show



COB LED chip widely used on portable food light, wall garden ligh, work light, camera light,  any batteries & solar panel applications, or DC output customized applications.

Q1. Can I have a sample order for cob led chip?

A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Do you have any MOQ limit for flip chip led?

A:10 pcs for samples to check is acceptable.

Q3. How do you ship the goods and how long does it take to arrive?

A:We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.

Q4. How to proceed an order for the 12v cob chip led?

A:Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q5. Is it OK to print my logo on this flip chip led?

A:Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for cob led chip?

A:Yes, we offer 2 years warranty to our 12v cob chip led.
