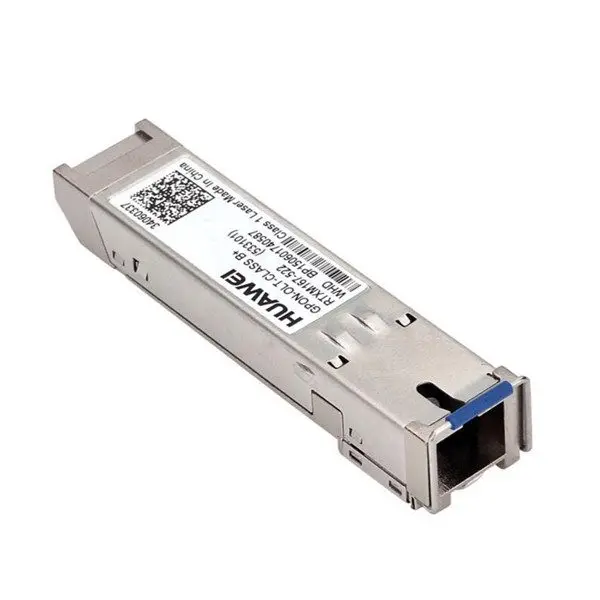

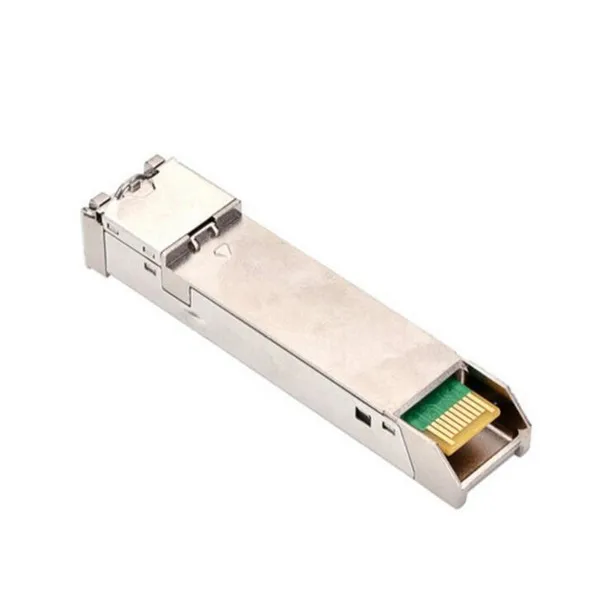

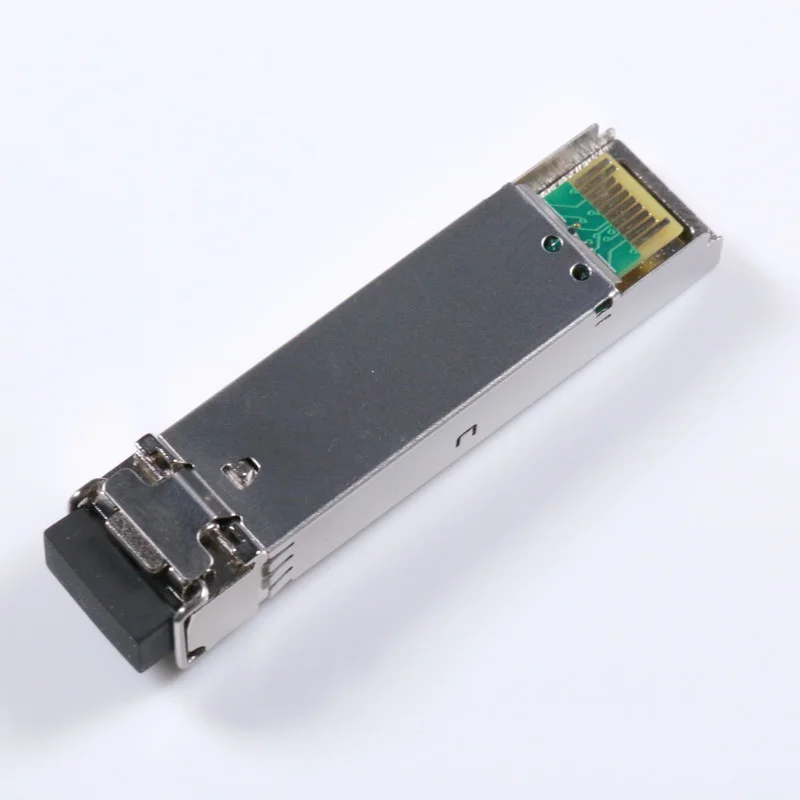

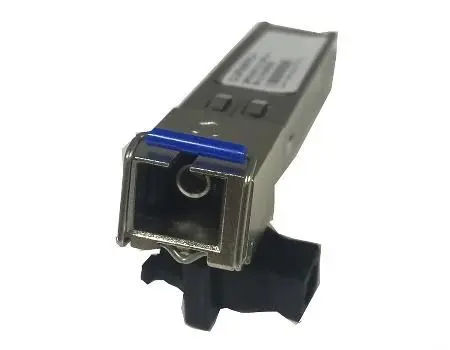

Huawei GPON OLT C++ SFP is inserted in service board like GPFD GPBD GPBH GPHF etc and provides one or more transceiver module slot. It provides a full range of optical transceivers, such as SFP+ (SFP Plus) transceiver, X2 transceiver, XENPAK transceiver, XFP transceiver, SFP (Mini GBIC) transceiver, GBIC transceiver, CWDM/DWDM transceiver, 40G QSFP+ & CFP, 3G-I video SFP, WDM Bi-Directional transceiver and PON transceiver.
Product Features:
1. SFP with SC/PC Connector Transceiver 2. 1490 nm DFB Tx with isolator 3. 1310 nm APD Rx 4. Digital diagnostics SFP-8472 Compliant 5. 2488 Mbps continuous mode Transmission 6. 1244 Mbps Burst mode receiver Data Rate 7. RX Fast Burst Mode Detection 8. Operation case temperature: 0~70°C 9. Class C++ link budget 10. Comply with ITU-T G984.2 Amendment 1
Applications:
Data services Voice services Video services Monitoring service FTTH
Type
C++ Module
C+ Module
B+ Module
Description
One-fiber bi-directional optical module, class C++
One-fiber bi-directional optical module, class C+
One-fiber bi-directional optical module, class B+
Operating Wavelength
Tx: 1490 nm
Tx: 1490 nm
Tx: 1490 nm
Rx: 1310 nm
Rx: 1310 nm
Rx: 1310 nm
Encapsulation Type
SFP
SFP
SFP
Port Rate
Tx: 2.488Gb/s
Tx: 2.49 Gbit/s
Tx: 2.49 Gbit/s
Rx: 1.244Gb/s
Rx: 1.24 Gbit/s
Rx: 1.24 Gbit/s
Minimum Output Optical Power
6.00 dBm
3.00 dBm
1.50 dBm
Maximum Output Optical Power
10.00 dBm
7.00 dBm
5.00 dBm
Maximum Receiver Sensitivity
-35.00 dBm
-32.00 dBm
-28.00 dBm
Optical Connector Type
SC/UPC
SC/PC
SC/PC
Optical Fiber Type
Single-mode
Single-mode
Single-mode
Reach
20.00 km
20.00 km
20.00 km
Overload Optical Power
-15.0 dBm
-12.0 dBm
-8.0 dBm
Extinction Ratio
8.2 dB
8.2 dB
8.2 dB
