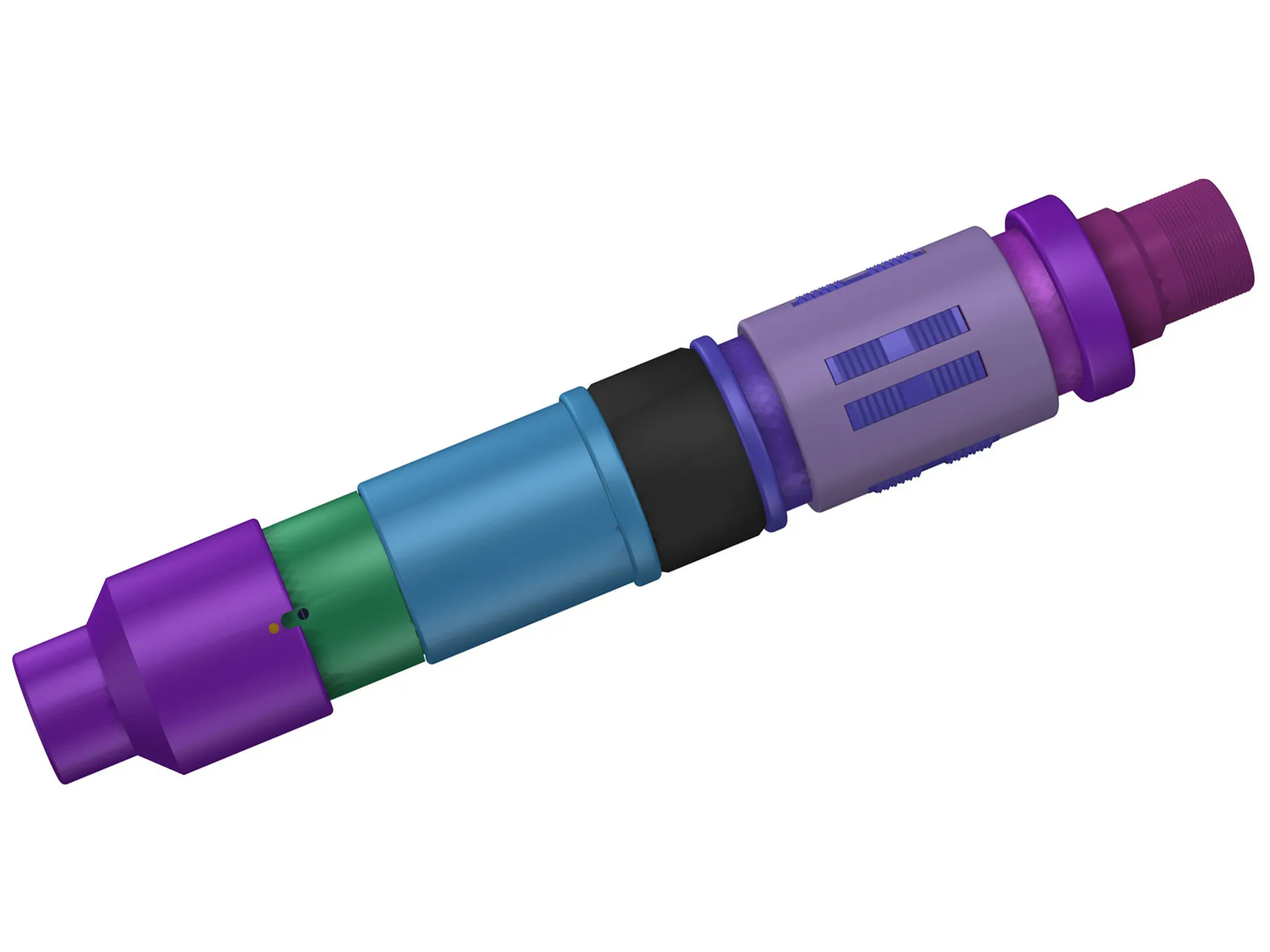

Y221 Packer and Y221M Packer means,Professional drilling, downhole tools
- Category: >>>
- Supplier: RUGAO YAOU IMPORT & EXPORT TRADE CO. LTD
Share on (1600119939927):
Product Overview
Description
Products Description
This packer is designed for the well separated zone water injection, high pressure water injection and protection of the casing, which consists of washover valve assembly, seal assembly, latch mechanism and unsetting mechanism. It pushes series twin pistons hydraulically to compress the rubber tube, which is swelled radically as a result of large and tranquil thrust, and it is mechanically locked meanwhile, as forces the rubber tube always in the operating mode. When needing well cleanout, pressure up on the upper casing of the packer (generally greater than 0.5Mpa) until the washover valve is opened so as to accomplish the well cleanout. Upon water injection, the washover valve is closed for the tubing pressure is above the casing pressure, so each layer is separated and accordingly achieve the aim of separated zone water injection. While unsetting, pick up the tubing by 0.5m, nipple down the hanger, connect tubing pup joint, and then set down the tubing so as to unset

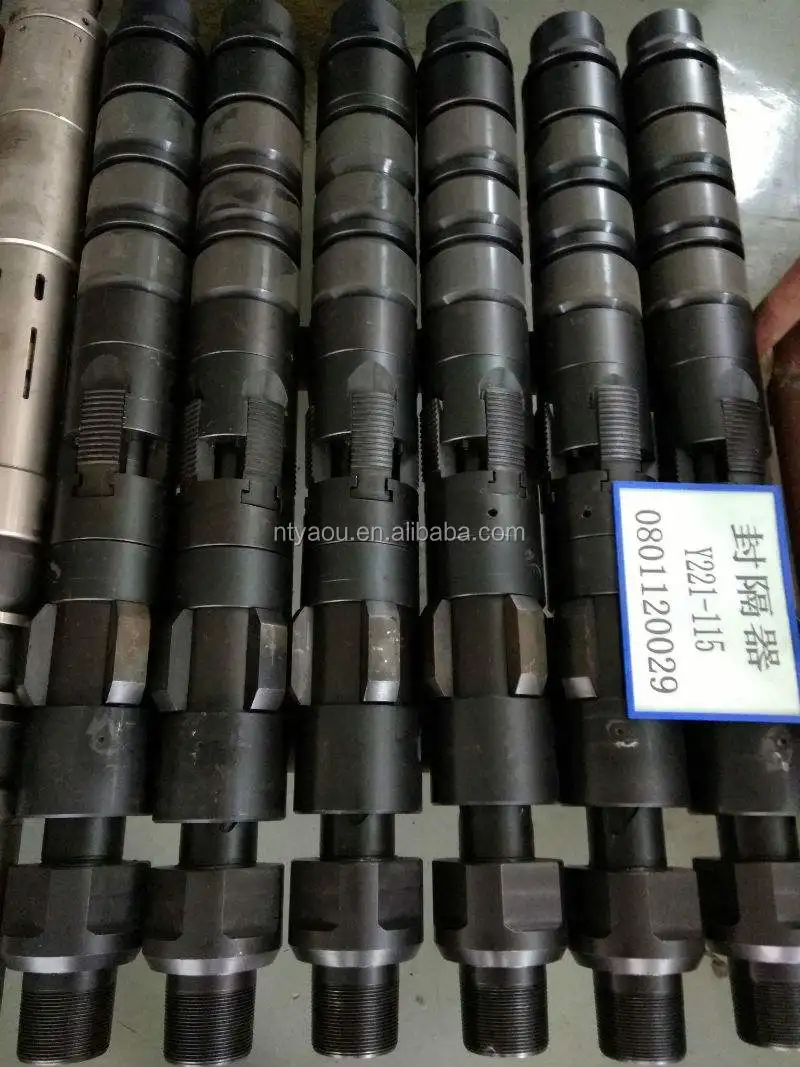

Packer Y221
Application and classification:
Packer Y221 can be widely used for zonal injection, extraction, leak finding, squeeze, acid treatment and well texting.
According to the structure is divided into: Y221 Packer and Y221M Packer means including hydraulic anchor
According to whether including the wash over function is divided into: F means including the well-flushing function
According to the Max OD is divided into: Y221-80,Y221-95,Y221-110,Y221-112 and
Y 221-114
Packer Y221
Application and classification:
Packer Y221 can be widely used for zonal injection, extraction, leak finding, squeeze, acid treatment and well texting.
According to the structure is divided into: Y221 Packer and Y221M Packer means including hydraulic anchor
According to whether including the wash over function is divided into: F means including the well-flushing function
According to the Max OD is divided into: Y221-80,Y221-95,Y221-110,Y221-112 and
Y 221-114
Technical parameters Specification | Maximum diameter mm | Path mm | Working pressure M Pa | Operating Temperature °C | Block force closure KN | Length mm | Tubes |
Y221-80 | 80 | 32 | 25 | 120 | 80-120 | 967 | 86 |
Y221-95 | 95 | 48 | 25 | 120 | 80-120 | 985 | 101-105 |
Y221-112 | 112 | 50 | 35 | 120 | 80-120 | 1154 | 118-121 |
Y221-114 | 114 | 50 | 35 | 120 | 80-120 | 1177 | 121-124 |
Y221M-110 | 110 | 44 | 35 | 120 | 80-120 | 1406 | 118-121 |
Y221M-110 | 110 | 44 | 35 | 120 | 80-120 | 1406 | 118-124 |
Y221M-110F | 110 | 44 | 35 | 120 | 80-120 | 1557 | 118-121 |
Y221M-114 | 114 | 48 | 35,50 | 120,150 | 80-120 | 1360 | 121-124 |
Y221M-114F | 114 | 48 | 35 | 120 | 80-120 | 1515 | 121-124 |
Y221-114(no-anchor) | 114 | 55 | 35 | 120 | 80-120 | 977 | 121-124 |

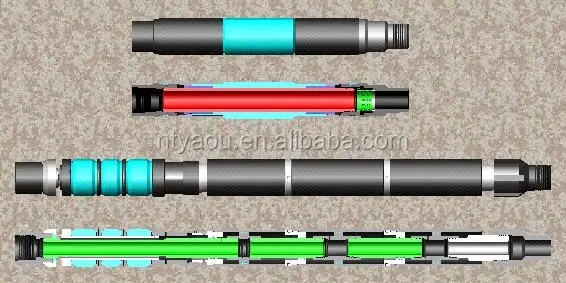

Structure and working principle.
Feature:
1, High pressure-resistance, good-sealing, good -tightness, stable, secure.
2, Setting securely, operate simply and unsealing
3, Setting and unsealing repeatedly
Keeping the above mentioned characteristics of the company, we also carry out the following improvement:
1. Hydraulic anchor use stainless steel materials, which effectively prevent the phenomenon hydraulic anchor claw rust and not back happened because of long time, poor water quality in the sealing process.
2. Glue tube material are made of import modified hydrogenated butadiene acrylonitrile rubber vulcanization, which has the characteristics: high temperature resistance, anti-aging, resistance to high pressure difference. Once uncured after a long time in seal compression, the recovery is good.
3, Anchor claw and slip are set with hard alloy, which increased the bite of casing ability; it is suitable for different styles.
4. Slip and slip bowl are combined with wedge, which makes set or unsealing easy.
5. Center tube is designed with internal the sand controls scream so that it is easy to be recovery.
6 Sealing slip has been made surface carburized quenching with 20 watts Cr M n Ti, so that tube is easy to get stuck and hard to break down.
The design of packer is scientific; Production processing technology is controlled strictly, good performance characteristics.
API casing external packer
1.oil expansion packer
2.hydraulic packer
Feature:
1, High pressure-resistance, good-sealing, good -tightness, stable, secure.
2, Setting securely, operate simply and unsealing
3, Setting and unsealing repeatedly
Keeping the above mentioned characteristics of the company, we also carry out the following improvement:
1. Hydraulic anchor use stainless steel materials, which effectively prevent the phenomenon hydraulic anchor claw rust and not back happened because of long time, poor water quality in the sealing process.
2. Glue tube material are made of import modified hydrogenated butadiene acrylonitrile rubber vulcanization, which has the characteristics: high temperature resistance, anti-aging, resistance to high pressure difference. Once uncured after a long time in seal compression, the recovery is good.
3, Anchor claw and slip are set with hard alloy, which increased the bite of casing ability; it is suitable for different styles.
4. Slip and slip bowl are combined with wedge, which makes set or unsealing easy.
5. Center tube is designed with internal the sand controls scream so that it is easy to be recovery.
6 Sealing slip has been made surface carburized quenching with 20 watts Cr M n Ti, so that tube is easy to get stuck and hard to break down.
The design of packer is scientific; Production processing technology is controlled strictly, good performance characteristics.
API casing external packer
1.oil expansion packer
2.hydraulic packer
Marketing Campaign
Details Images

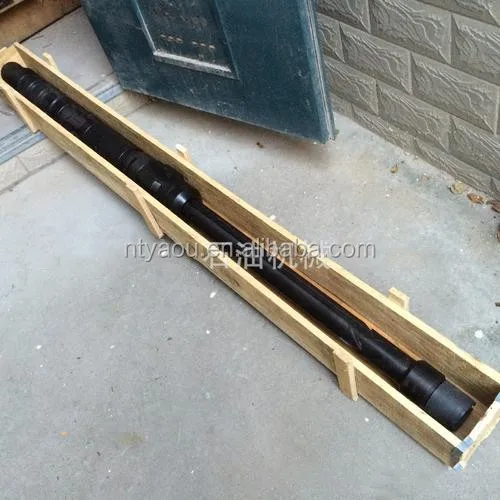

Product packaging
