High Luminous Original Samsung Mid Power White 2835 SMD LED Chip LM281B Pro LM281B LM281BA LM282B LM283B LM283BS LM286B

Product Overview

Description

High Luminous Original Samsung Mid Power White 2835 SMD LED Chip LM281B+ Pro LM281B+ LM281BA+ LM282B+ LM283B+ LM283BS+ LM286B+









Features & Benefits

• 0.2 / 0.5 / 0.9 Watt class middle power LED

• Standard form factor for design flexibility (2.8 × 3.5mm)









Product Description





Type	Wattage	Forward Voltage	Luminous Flux	Luminous Efficacy	Condition

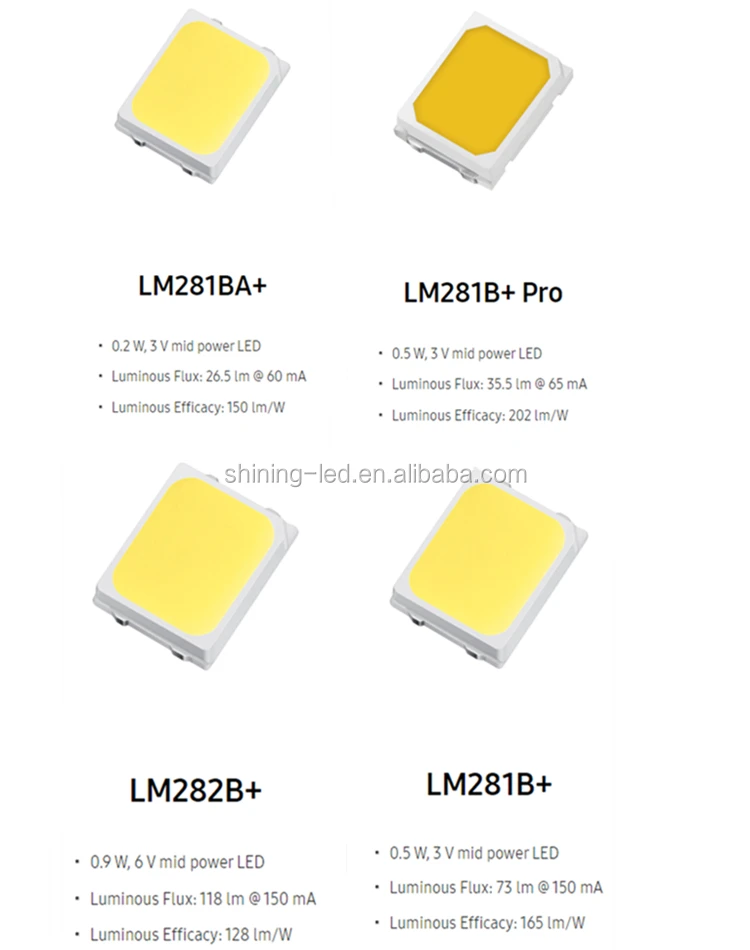

LM281B+ Pro	0.5 W	3.0 V	35.5 lm	202 lm/W	5000K, 65 mA, 25°C
LM281B+	0.5 W	3.0 V	73 lm	165 lm/W	5000K, 150 mA, 25°C
LM281BA+	0.2 W	3.0 V	26.5 lm	150 lm/W	5000K, 60 mA, 25°C
LM282B+	0.9 W	6.0 V	118 lm	128 lm/W	2700K, 150 mA, 25°C

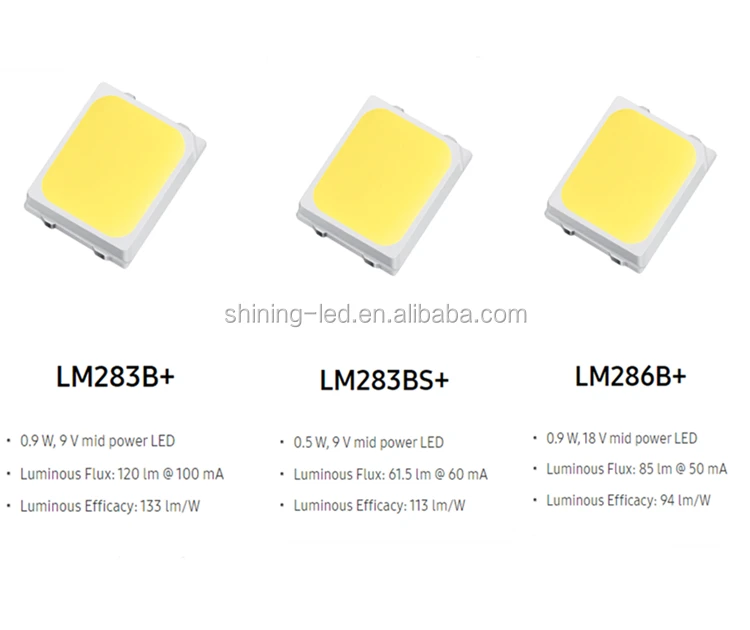

LM283B+	0.9 W	9.0 V	120 lm	133 lm/W	2700K, 100 mA, 25°C
LM283BS+	0.5 W	9.0 V	61.5 lm	113 lm/W	2700K, 60 mA, 25°C
LM286B+	0.9 W	18.0 V	85 lm	94 lm/W	2700K, 50 mA, 25°C

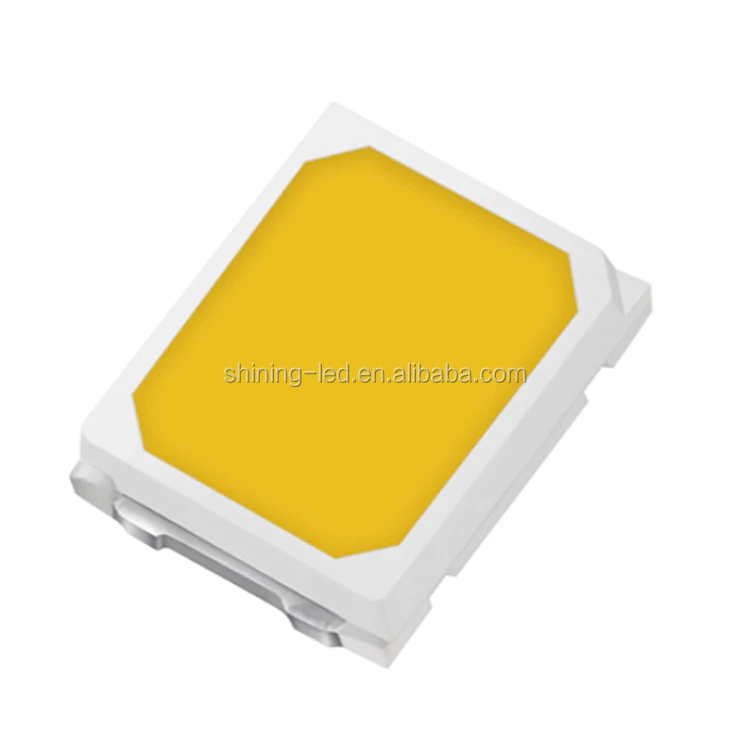

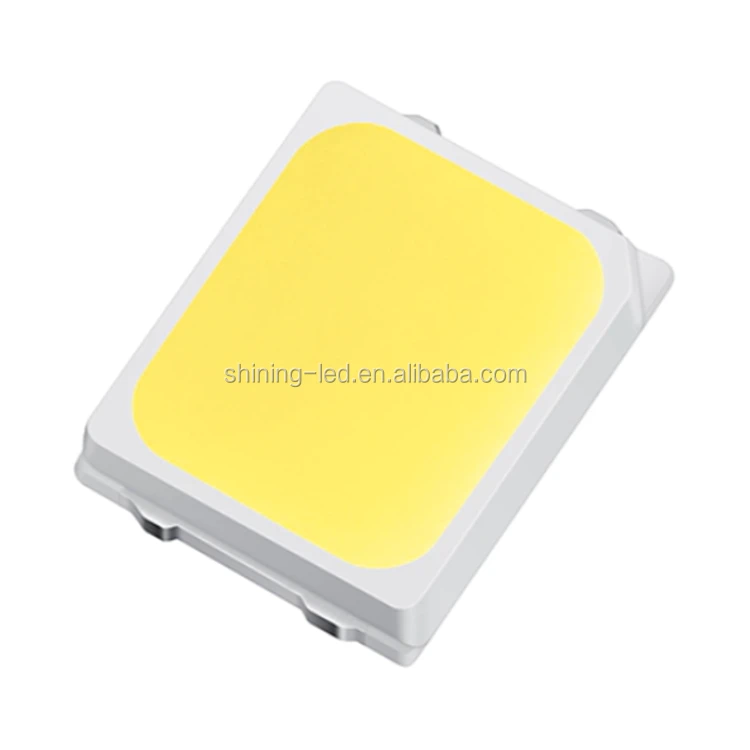

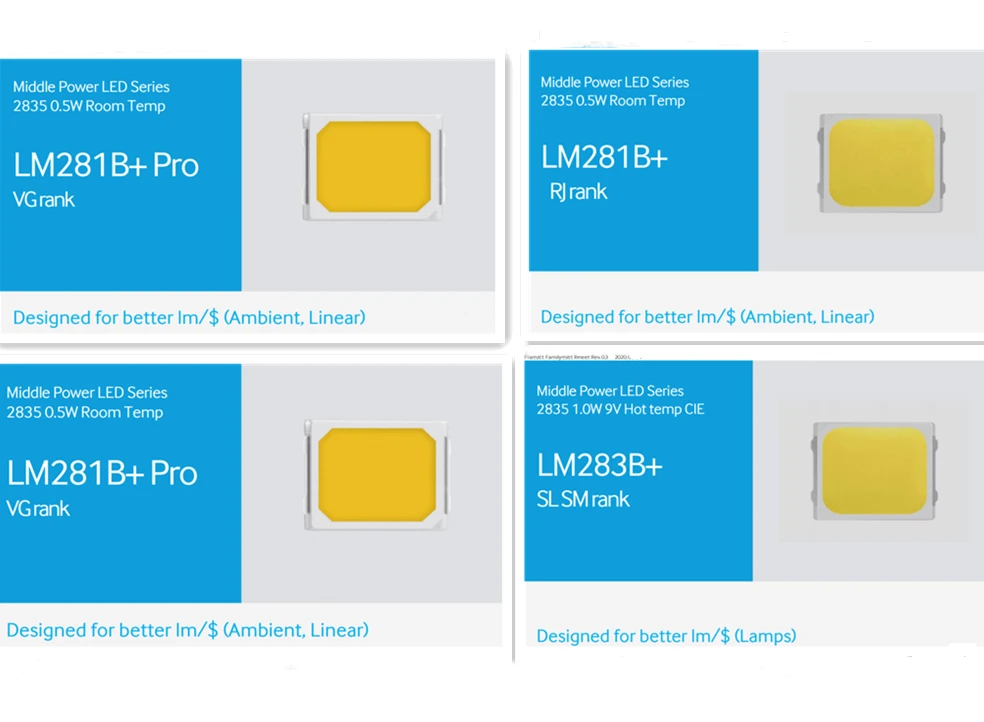

Product Picture

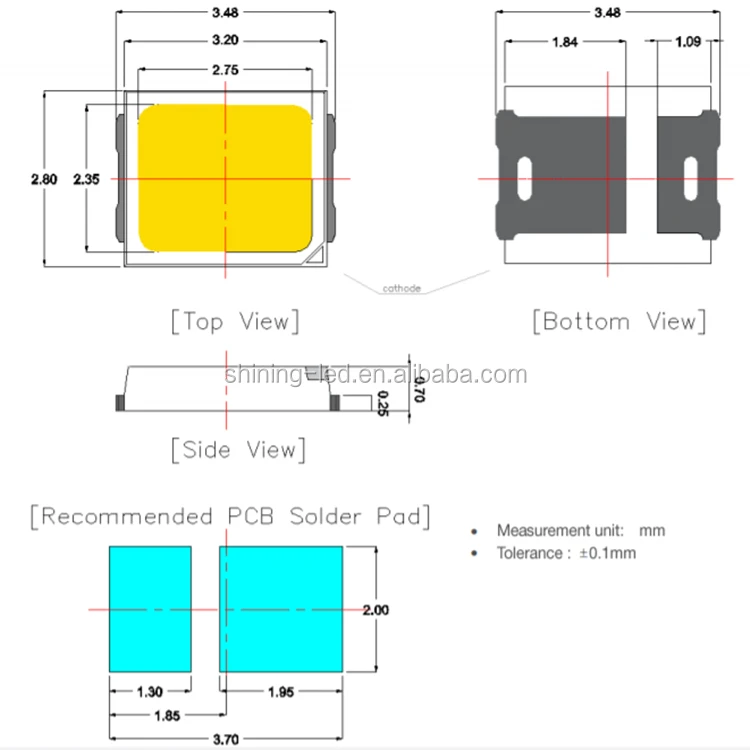

Outline Drawing & Dimension











Notes:

1. This LED has built-in ESD protection device(s) connected in parallel to LED chip(s).

2. Ts point and measurement method:

         1)  Measure one point at the cathode pad, if necessary remove PSR of PCB to reach Ts point.

         2)  All pads must be soldered to the PCB to dissipate heat properly, otherwise the LED can be damaged.





Precautions:

1) Pressure on the LEDs will influence to the reliability of the LEDs. Precautions should be taken to avoid strong       pressure on the LEDs. Do not put stress on the LEDs during heating.

2) Re-soldering should not be done after the LEDs have been soldered. If re-soldering is unavoidable, LED`s          characteristics should be carefully checked before and after such repair.

3) Do not stack assembled PCBs together. Since materials of LEDs is soft, abrasion between two PCB                     assembled with LED might cause catastrophic failure of the LEDs

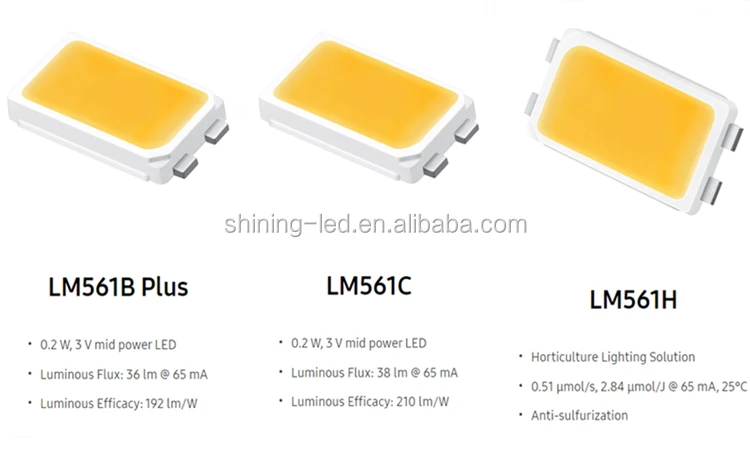

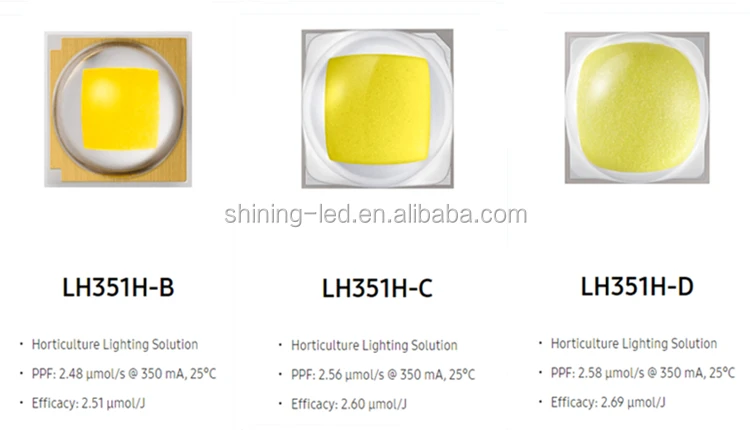

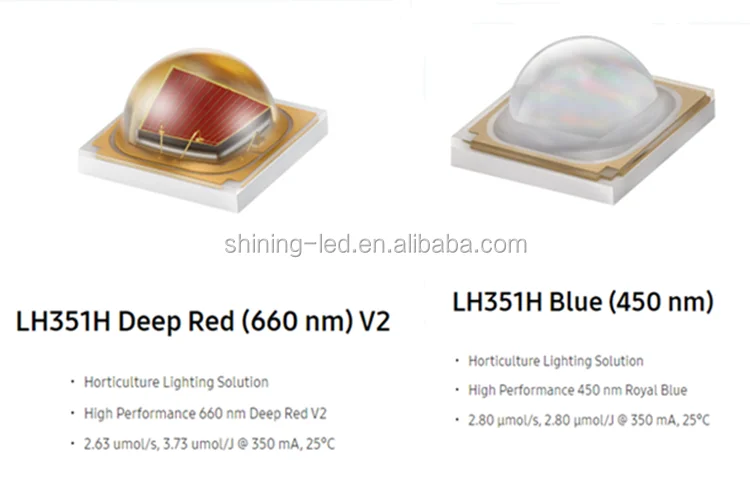

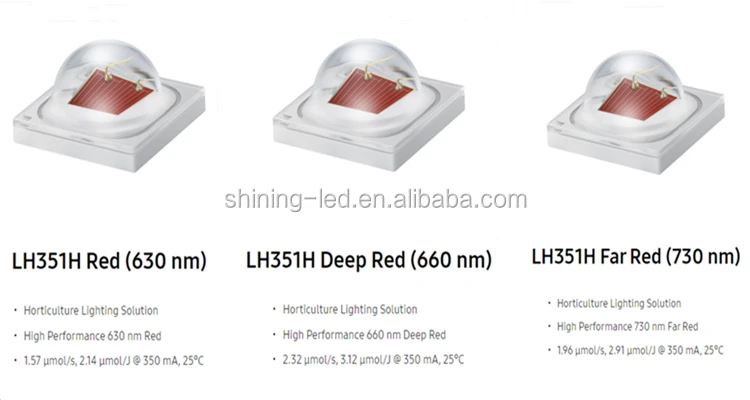

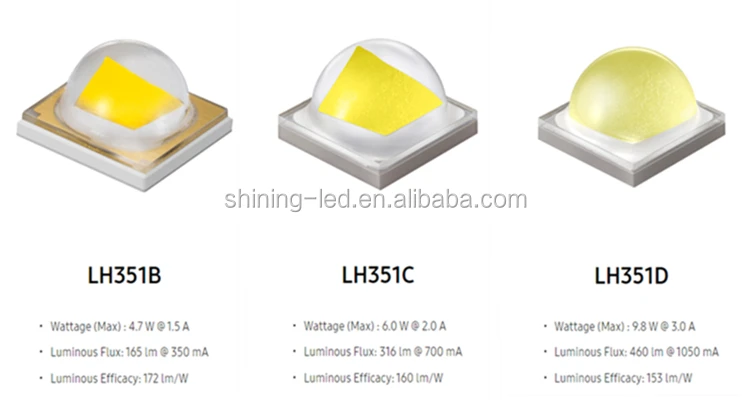

Other samsung LEDs
