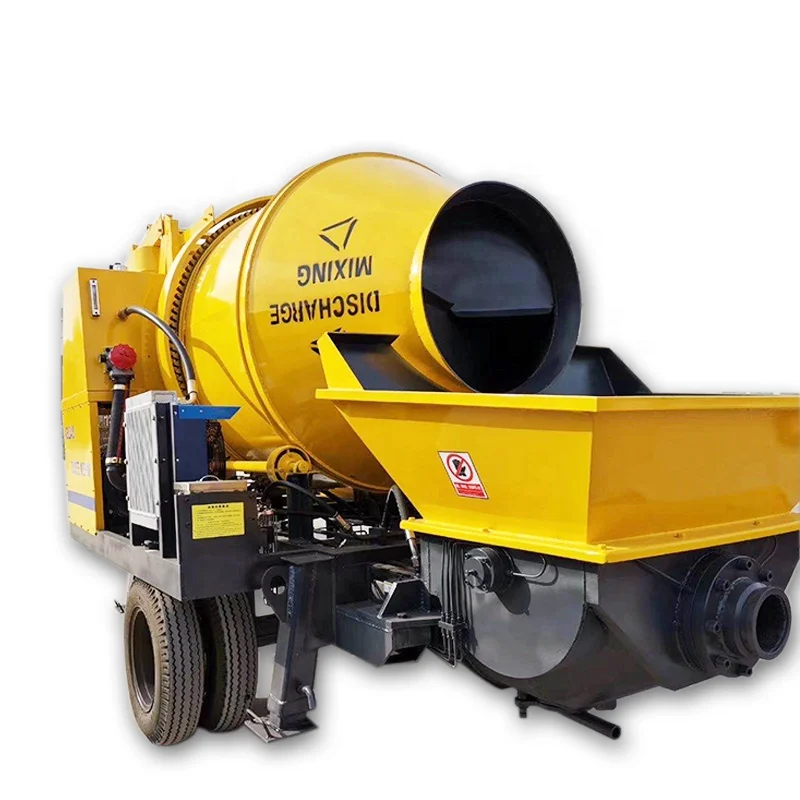

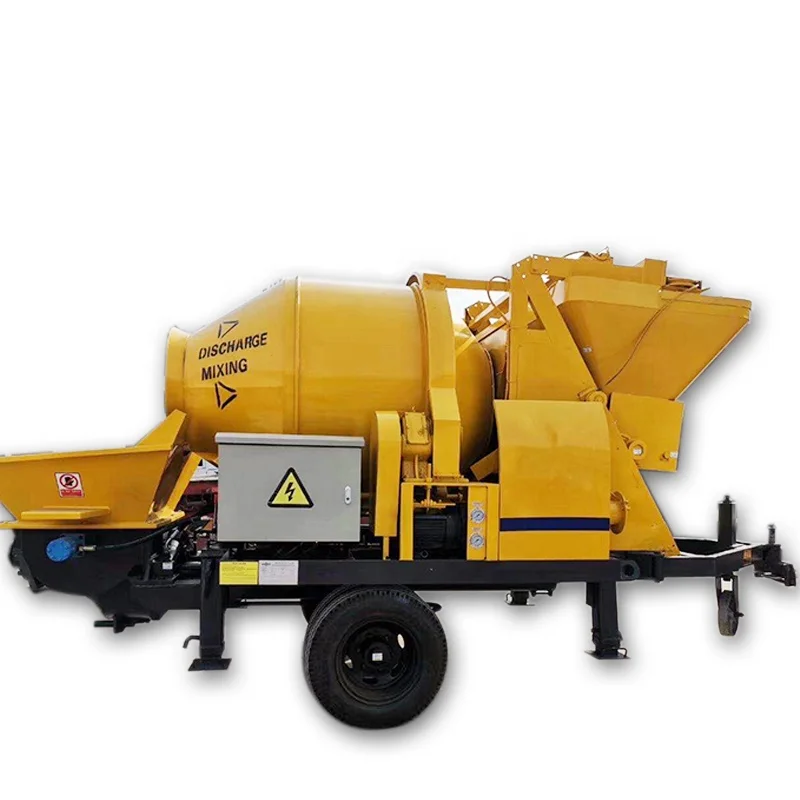

Portable JBS30 Mini concrete mixer pump trailer mobile 30m3/h electrical concrete mixer pump for sale
Portable JBS30 Mini concrete mixer pump trailer mobile 30m3/h electrical concrete mixer pump for sale
Portable JBS30 Mini concrete mixer pump trailer mobile 30m3/h electrical concrete mixer pump for sale
Portable JBS30 Mini concrete mixer pump trailer mobile 30m3/h electrical concrete mixer pump for sale

Portable JBS30 Mini concrete mixer pump trailer mobile 30m3/h electrical concrete mixer pump for sale

Share on (1600125294778):


Price:

Quantity:


Product Overview

Description



Products Description

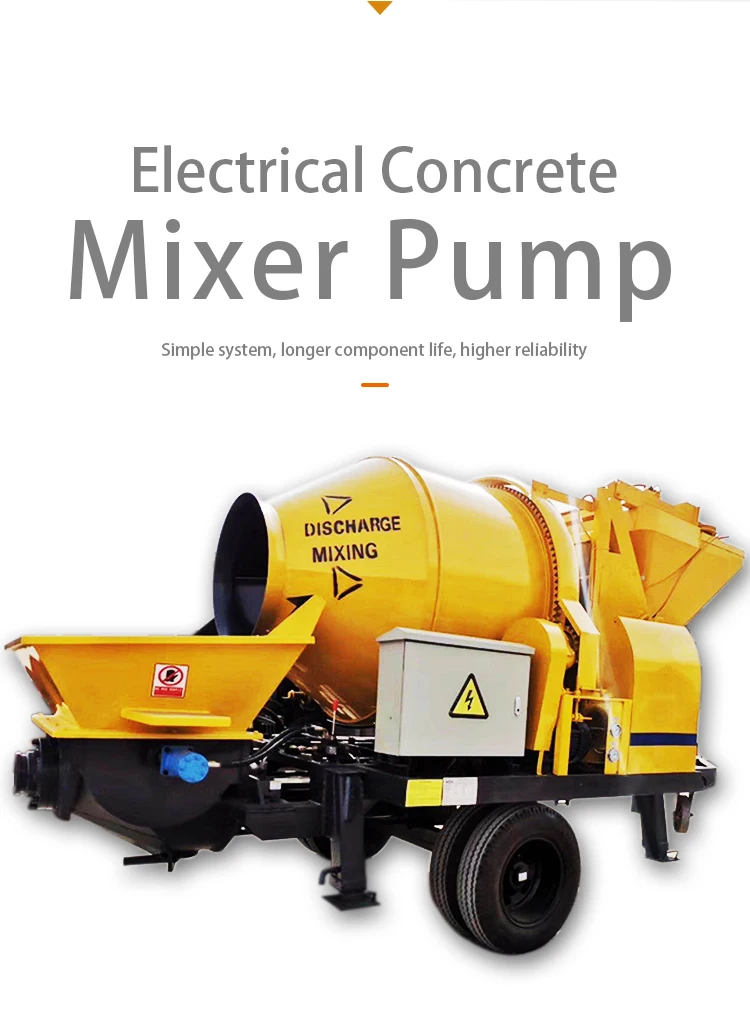

Electrical Concrete Mixer Pump
JBS series trailer mounted mobile electrical concrete mixer pump is combines the concrete mixer and concrete pump together, achieving integration of pump station. It is most suitable for the houses and commercial buildings , bridges, water conservancy, power and communication for which the sites are scattered and on-site mixing is required.




Product Specifications


Items
320L
JBS30-10-37
JBS40-10-45






Whole performance of machine
Max. theoretical concrete output
30m3/h
40m3/h
Mixer Max feeding volume
500L
500L
Mixer Max discharge volume
350L
450L
Max.concrete pumping pressure
10MPa
10MPa
Distribution valve type
S Valve
S Valve
Concrete pump cylinder diameter*stroke
Ф140*845mm
Ф180*1100mm
Hopper capacity* Feeding height(L*mm)
400*1100
550*1100
Outlet diameter
Ф100mm
Ф150mm



Power system
Hoist motor power
5.5kw
5.5kw
Mixing motor Power
4.5kw
4.5kw
Water pump motor power
0.55kw
0.55kw
Rated power
37kw
45kw
Rotate speed
1480r/min
1480r/min



Hydraulic system
Hydraulic Circuit type
Open circuit
Open circuit
Pumping system oil pressure
28MPa
28MPa
Distribution system oil pressure
14MPa
14MPa
Mixing system oil pressure
6MPa
6-8MPa
Hydraulic oil tank capacity
350L
750L




Other parameters
Max transportation Distance Vertical/ Horizontal
120/500mm
120/500mm
Max. aggregate diameter
20mm
40mm
Inner diameter of conveying pipe
Ф100mm
Ф125mm
Dimensions (length*width*height) mm
4200*2300*2600
4400*2300*2600
Total weight
4200kg
4500kg

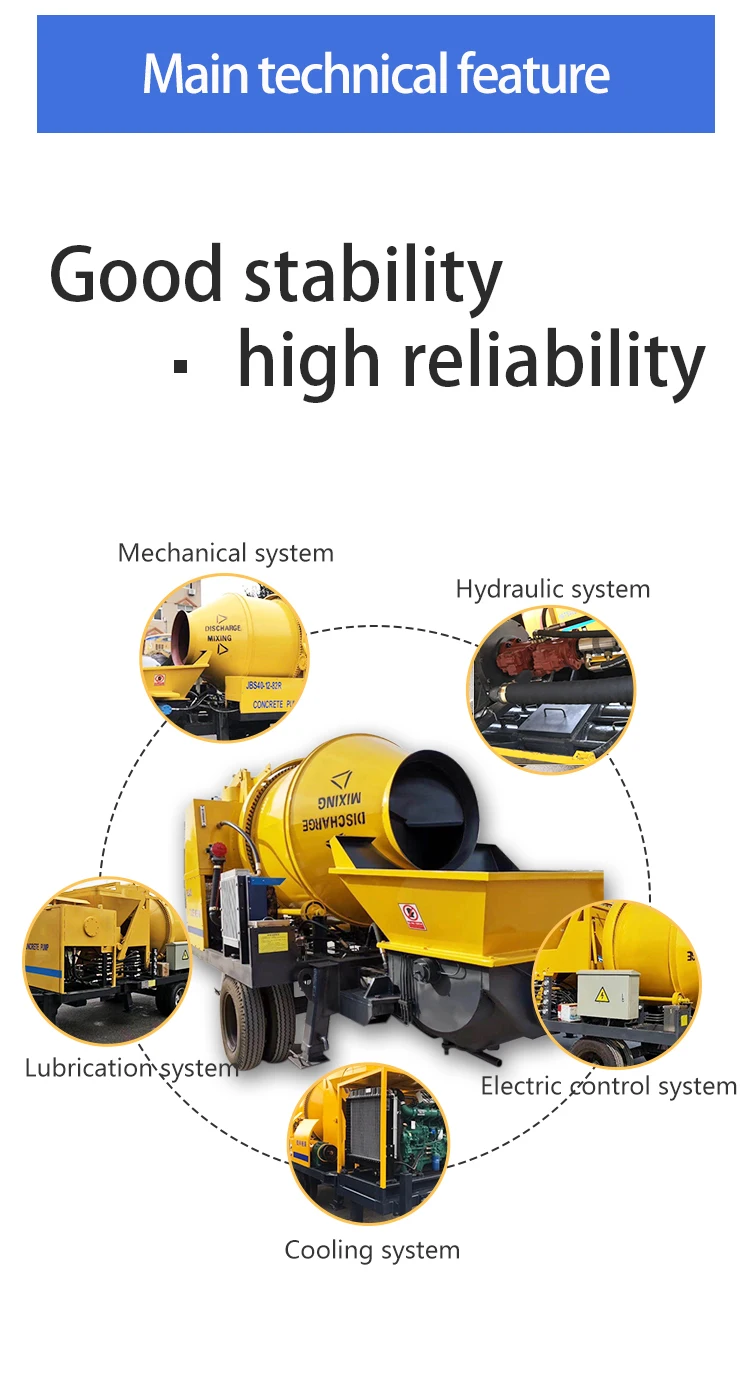

Product Features

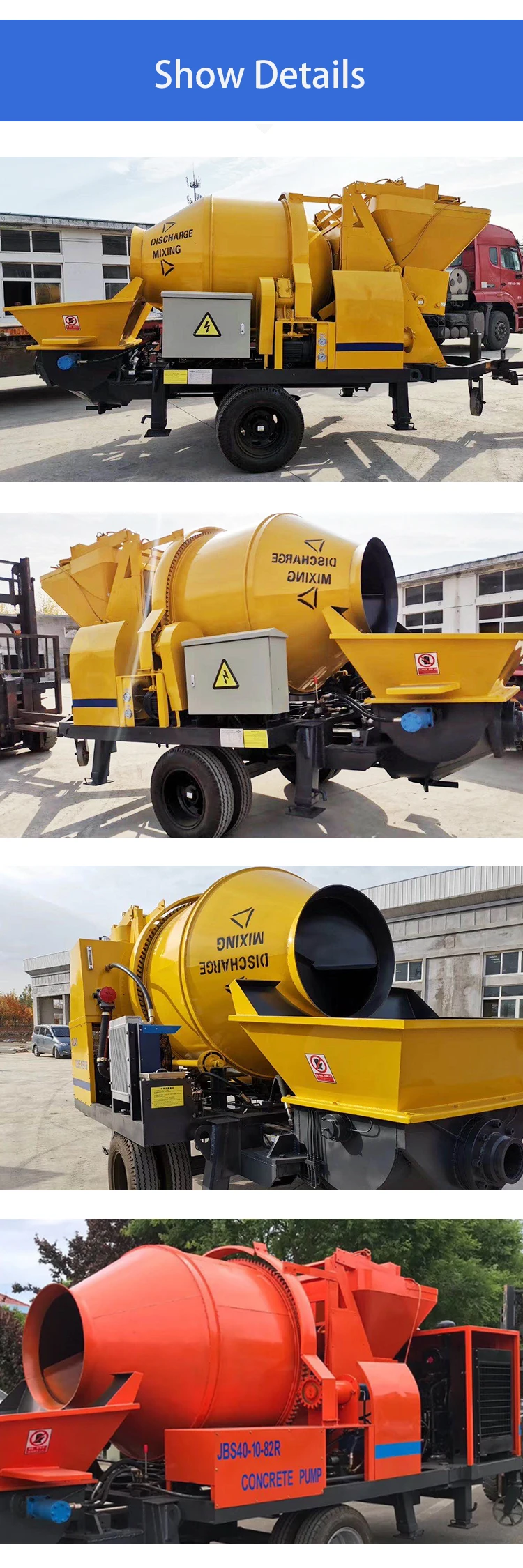

Details Images




Related Products






Company Profile


Our Services:
*Professional Design Team:
We have a professional designer team, most of them have more than 10 years experience.
*One-stop Service:
We support our customers in comprehensive aspects like Design Service, Production, Package, Delivery, Installation, Pre-sale service and After-sales services.
*Quality Assurance:
With advanced technology, production lines equipped with imported machines, as well as experienced workers, we supply the products with high quality.
During production,we will keep taking photos for your check which can make you know the production progress.






FAQ


1)Q: Are you a trader or manufacturer?
A: We are the heavy machinery manufacturer with our own factory, welcome you to visit our factory any time.
2)Q:What is the minimum order?
A: 1 unit.
3)Q: How about the price?
A: We quote as low as possible for any customer, and discount can be given according to quantity.
4)Q: What’s your delivery time?
A: It depends on your order quantity. Normally,15-30 days
5)Q:How to install our products?
We can provide detailed installation video/pictures, or send engineers team.
6)Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
