Refrigeration AC service special tools Electromagnetic valve Model HV solenoid valve 3/8 1 3/8 DC24V Solenoid Valve
- Category: Solenoid Valves >>>
- Supplier: Guangzhou Zhigao Freeze Equipment Co. Ltd.
Share on (1600129199209):
Product Overview
Description
Product Description

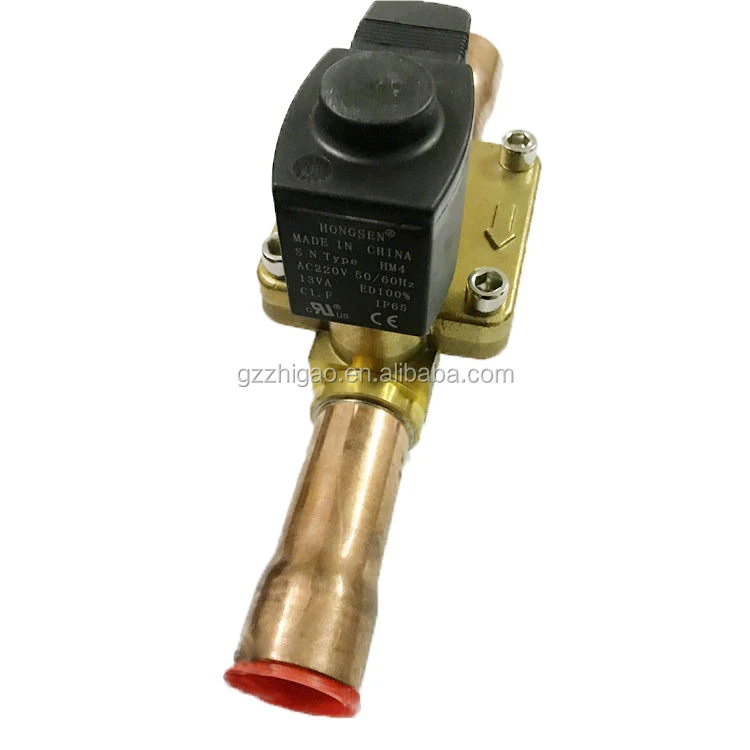

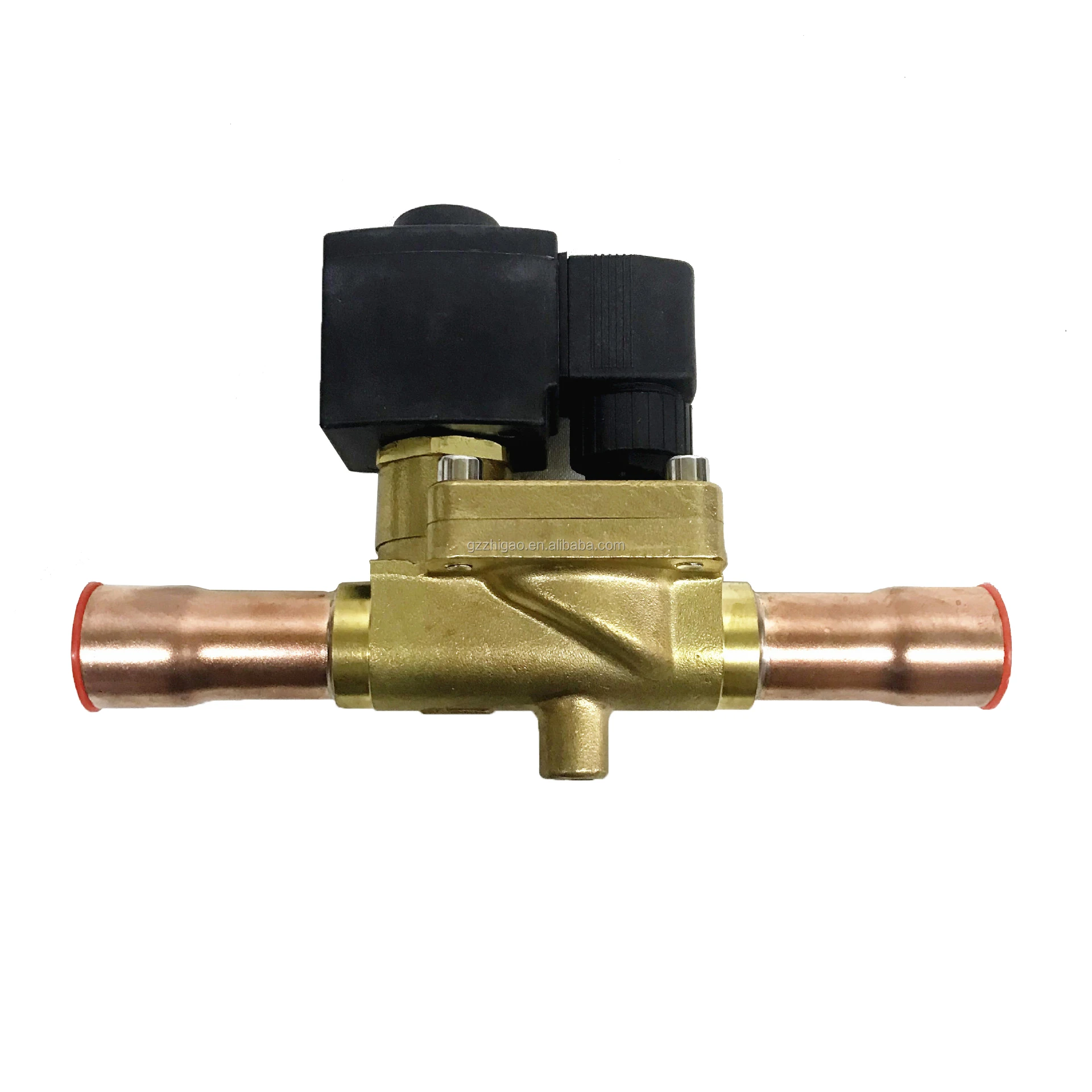

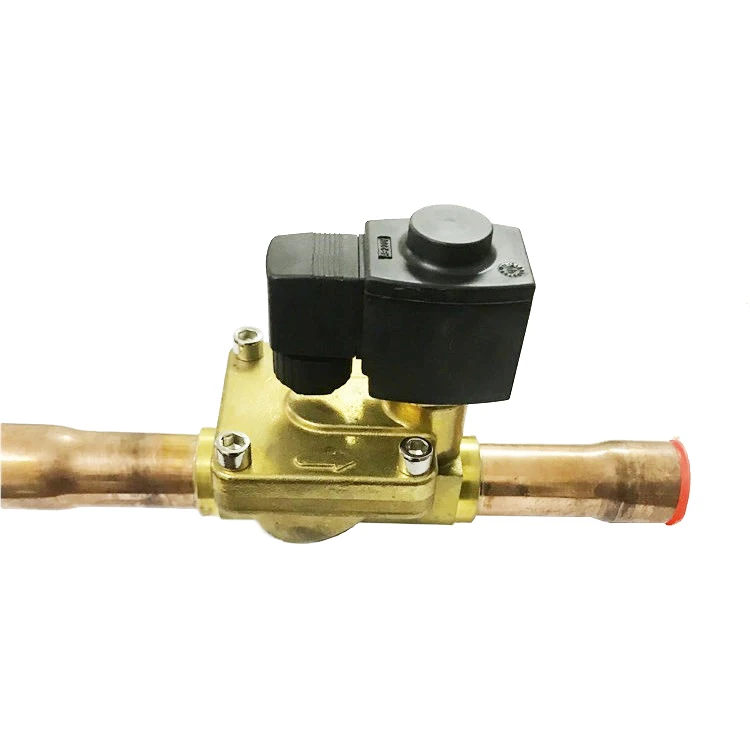

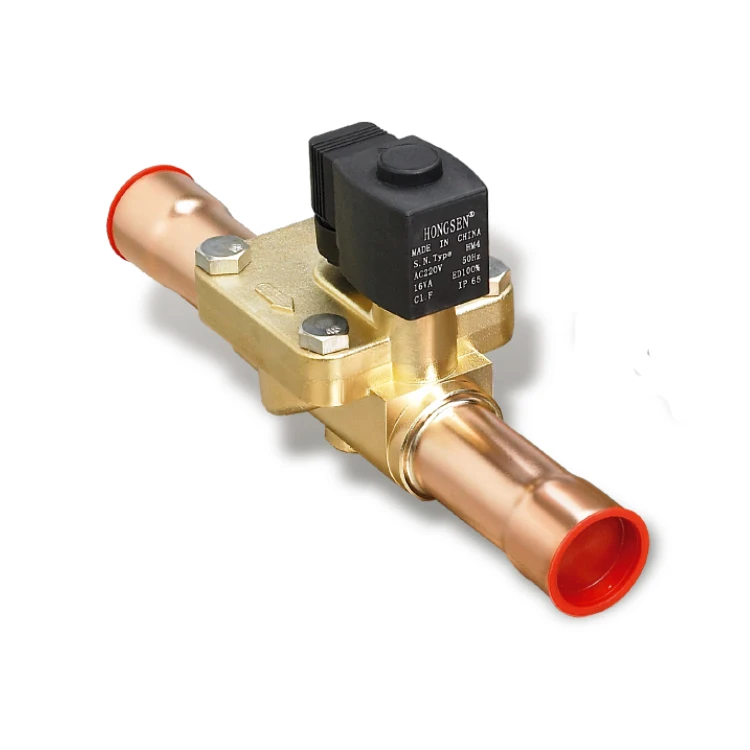

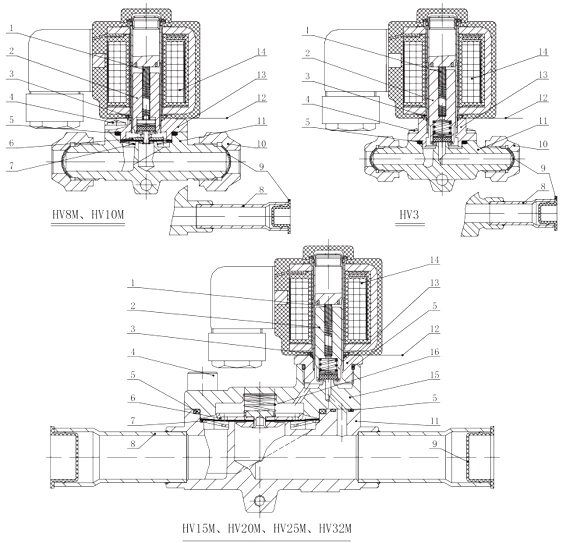

*Model HV solenoid valve is a one-step on/off or two-step on/off solenoid valve, which is applicable to one-way flow.
* Model HV solenoid valve is used on the piping of liquid, suction gas or hot air on the freezing, cold storage and air conditioner units.
* The valve seat and seals of Model HV solenoid valve have excellent sealing performance.
* Model HV solenoid valve could be supplied with coils of varied voltage.
* Model HV solenoid valve could be supplied in assembly or in separate components, that is, the valve body and the coil could be supplied separately.
* The valve seat and seals of Model HV solenoid valve have excellent sealing performance.
* Model HV solenoid valve could be supplied with coils of varied voltage.
* Model HV solenoid valve could be supplied in assembly or in separate components, that is, the valve body and the coil could be supplied separately.

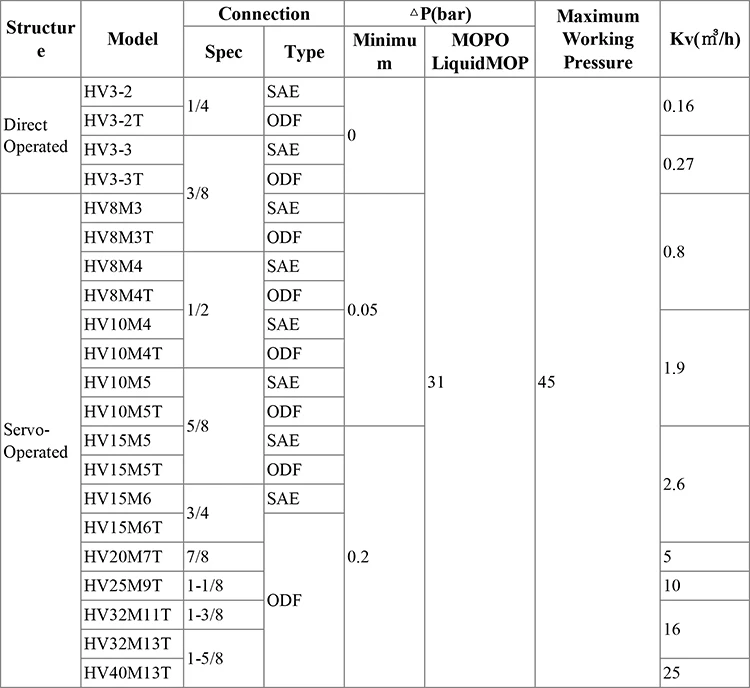

Specification
Applicable Refrigerants: | HCFC、HFC and related medium viscosity ≤2° E lubricant oil | ||||
Applicable Medium Temperature: | -30~+105℃ | ||||
Coil Application Ambient Temperature | -40℃~+65℃ | ||||
Coil Standard Voltage | AC380V、220V、110V、24V/50、60Hz,DC24V | ||||
Coil Allowable Voltage Fluctuation | +10%~-10% | ||||
Coil Connection | Standard 3-wire insert connector | ||||

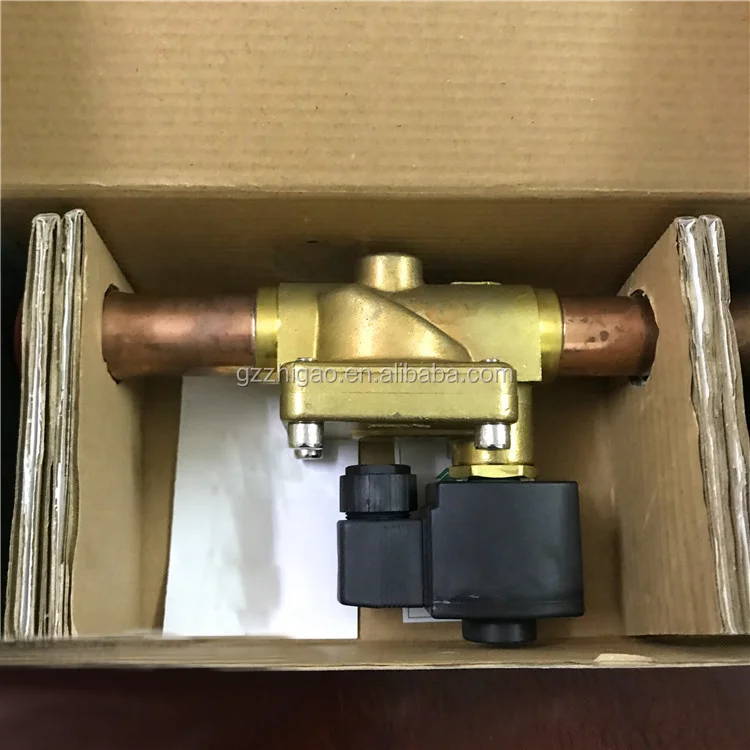

Details Images
