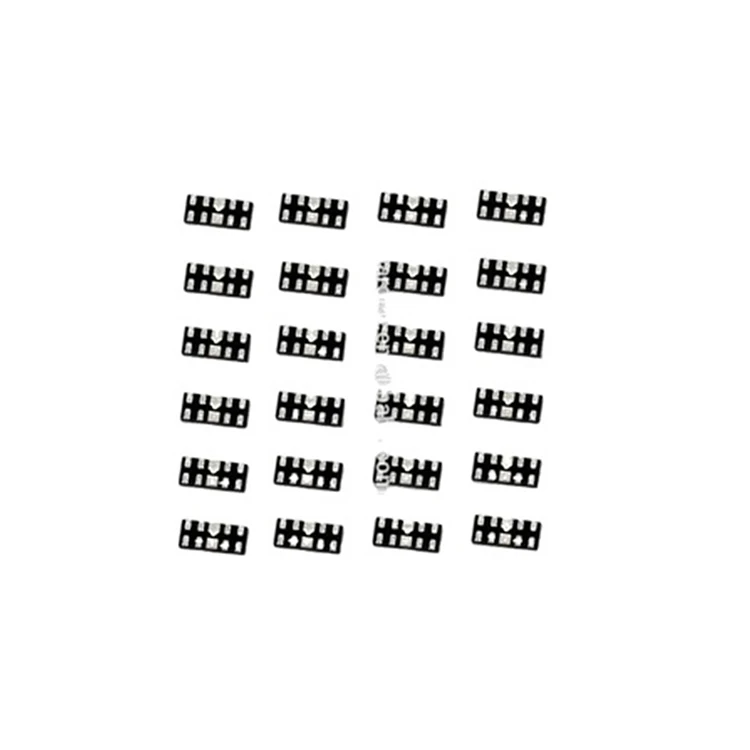

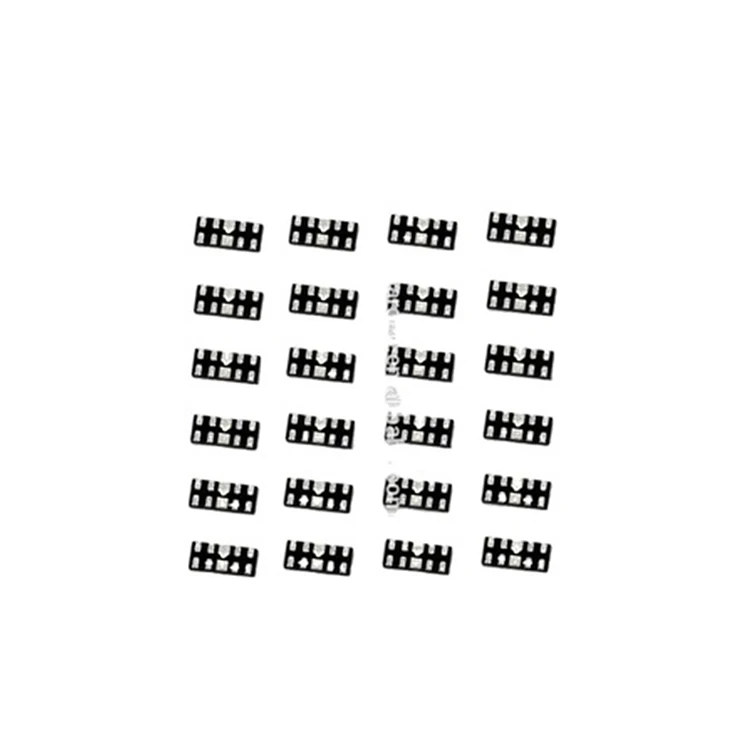

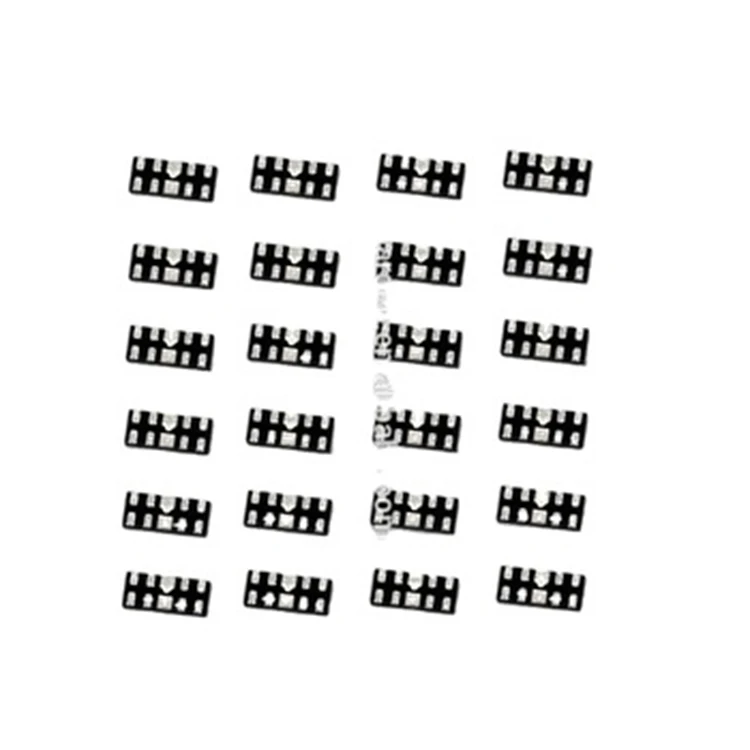

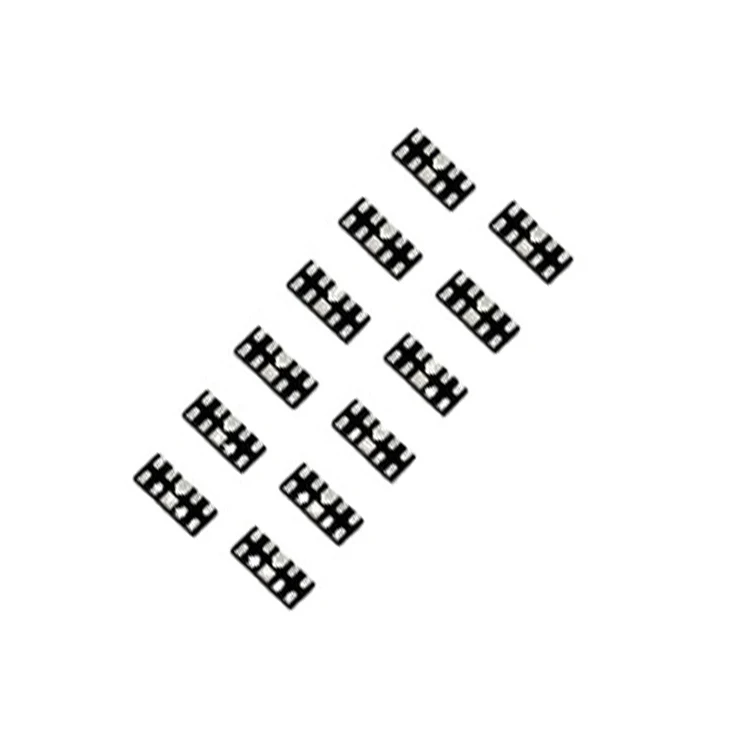

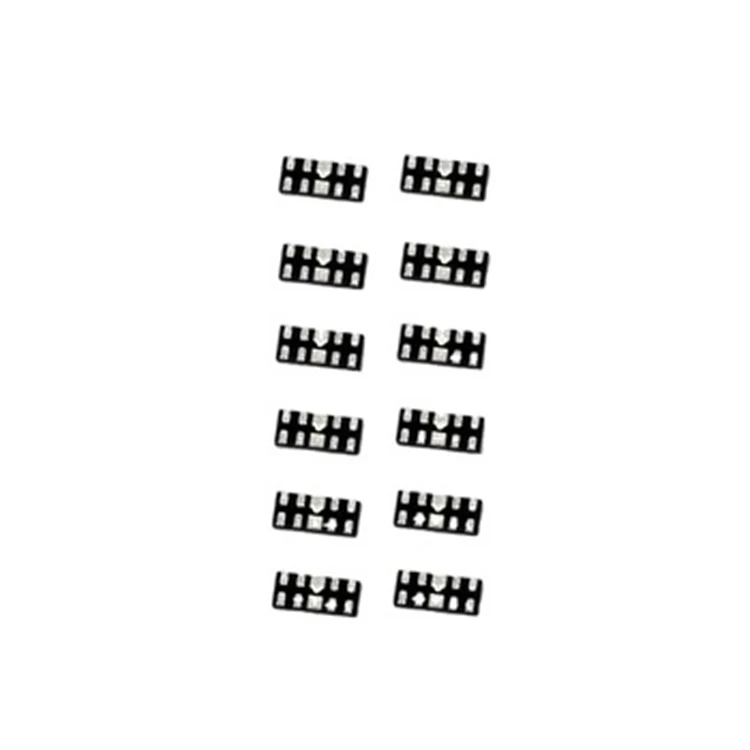

New and Original Digital and analog signal lines protecting ESD TVS depilacion alternator fiber laser diodes

Product Overview

Description



TVS Diodes for ESD Protection


Product Description

Boarden ESD TVS are designed to protect voltage sensitive components from ESD. Excellent clamping capability,
low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. This series
has been specifically designed to protect sensitive components which are connected to data and transmission lines
from overvoltage caused by ESD(electrostatic discharge), and EFT (electrical fast transients).



Features

• Stand-off voltage: 2.5 – 36V.


• Transient protection for each line according to
  IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
  IEC61000-4-4 (EFT): 40A - 5/50ns


• Small factor for easy layout


• Capacitance: CJ = 0.3pF min.


• Low leakage current: IR = 1nA min.


• Low clamping voltage.


• Solid-state silicon technology


• RoHS compliant

Applications

• USB 2.0 and USB 3.0


• HDMI 1.3 and HDMI 1.4


• SIM Card


• Cellular Handsets


• Mobile Wear


• Wireless Communication


• IEEE 1394


• Portable Electronics


• Notebooks

I-V Curve Characteristics

Electrical Characteristics (TA=25°C unless otherwise noted)













Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.

Q2: Do you provide free samples ?
A2: Yes,free sample can be provided if can provide the end user's project information and the estimated production date.

Q3: How about the quality?
A3: We have the best professional engineer and strict QA

and QC system.

Q4: How’s the package?
A4: Normally are cartons, but also we can pack it according

to your requirements.

Q5: How’s the delivery time?
A5: It depends on the quantity you need, 1-25 days usually.
