cheap price 150 ton portable hydraulic track link pin press
US $350.00-$850.00
Rubber track chassis/rubber track undercarriage/Lawn Mower Machinery with Rubber Track Chassis
- Category: >>>
- Supplier: Shanghai Kymoon Rubber Co. Ltd.
Share on (1600132378505):
Product Overview
Description

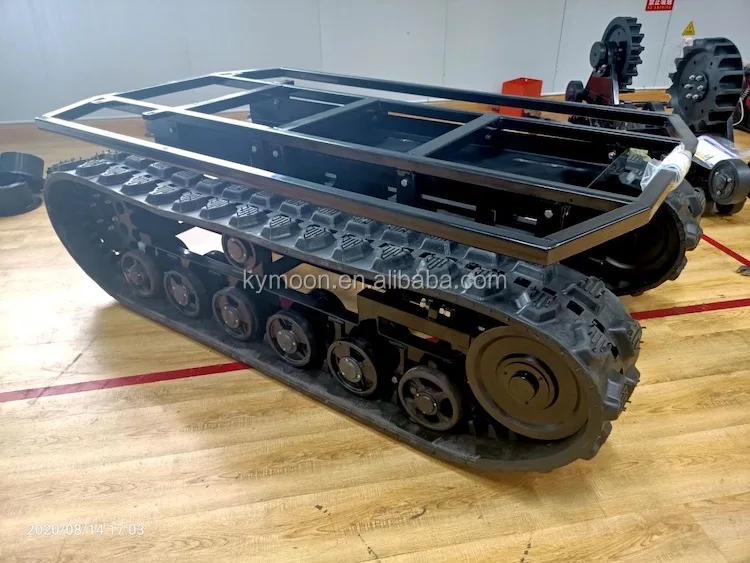

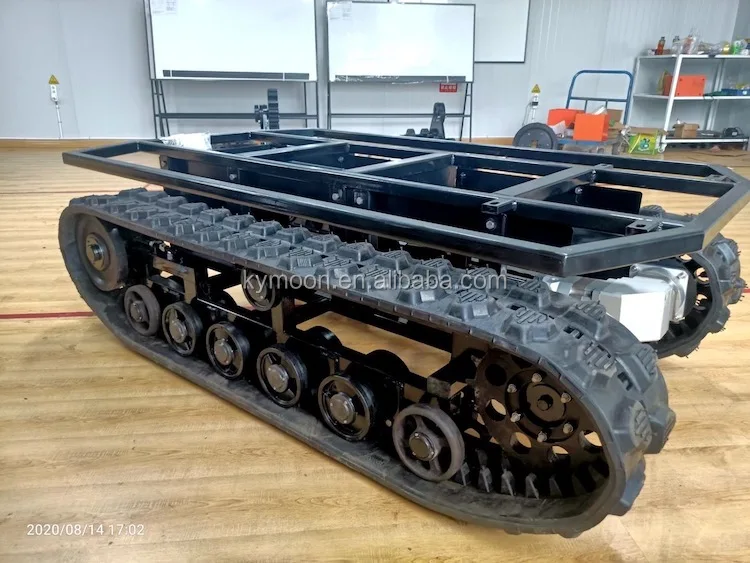

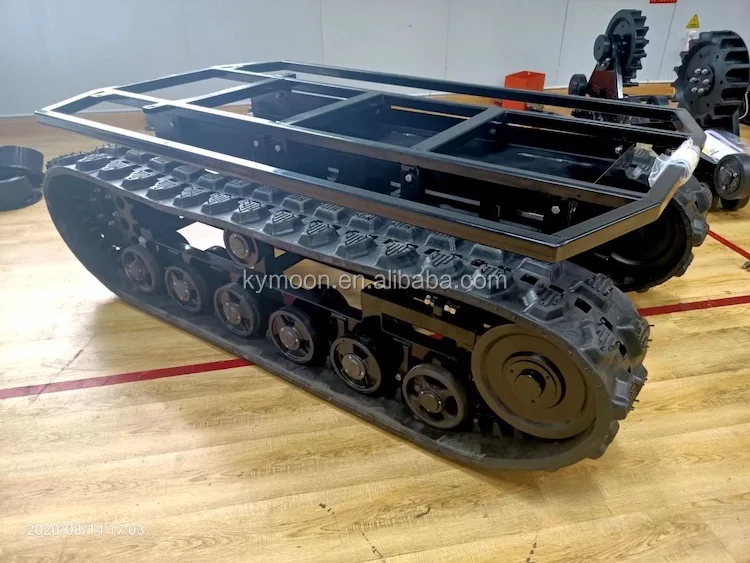

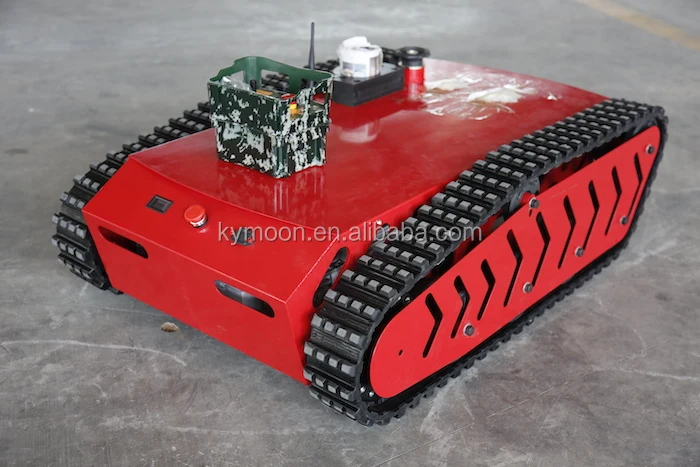

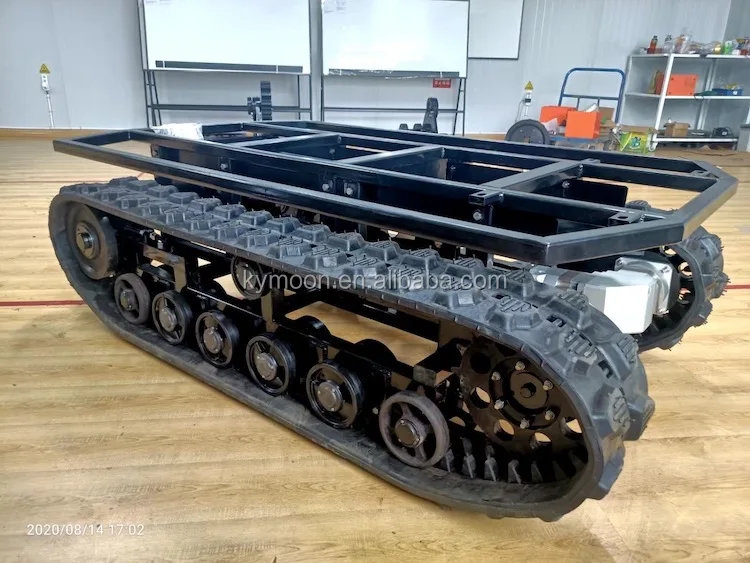

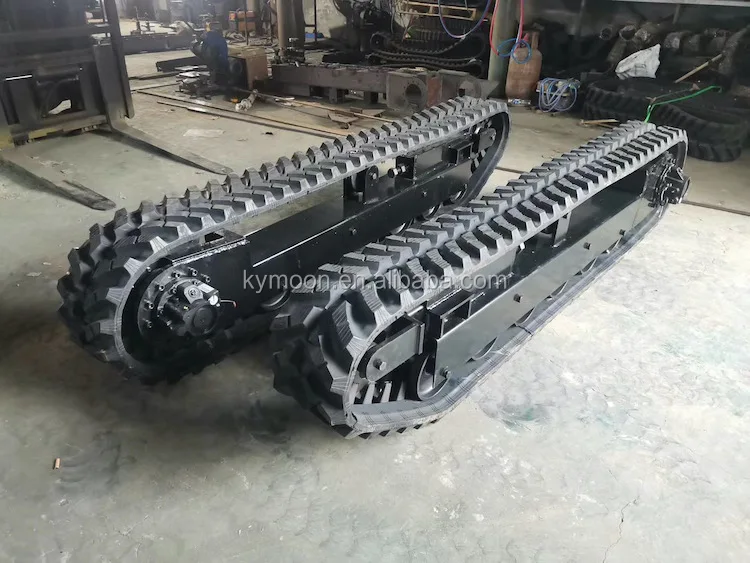

We have developed various tracked undercarriage systems and the load capacity is from 0.5 ton to 20 ton. It has been widely applied in drilling machines (core drill, horizontal directional drilling rig, belt engineering drill, and engineering rig), engineering machines, mining, colliery, agricultural and gardening machines. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs.
Below is our small size, for big size,please kindly contact us
Small size rubber track undercarriage chassis platform | |||||||||
Model | Length | Width | Height | Sprocket Diameter | Rubber Track Model/Width | Rubber Track Link | Weight | Load-bearing Weight | frame |
KCM-40 | 540mm | 545mm | 150mm | 140mm | 40/40mm | 27 | 26.5kg | 50kg | Aluminum Alloy Bracket |
KCM-50 | 810mm | 377mm | 165mm | 99mm | KCMDG-50/50mm | 75 | 50kg | 100kg | Stainless Steel Bracket |
KCM-76 | 940mm | 550mm | 210mm | 200mm | KCM-A/76mm/KCM-B/60mm | 138/84 | 24.15kg | 150kg | Aluminum Alloy Box |
KCM-100 | 700MM | 520MM | 240MM | 197MM | KCM-A/100mm | 40 | 95kg | 100kg | Aluminum Alloy Box |
KCM-70 | 590mm | 530mm | 250mm | 172mm | KCM-70/70mm | 28 | 17.85kg | 100kg |
|
KCM-70 | 800MM | 570MM | 300MM | 195.7MM | KCM-70/70mm | 43 | 44kg | 150kg | Aluminum Alloy Box |
KCM-70 | 1010MM | 540MM | 410MM | 195.7MM | KCM-70/70mm | 54 | 106kg | 150kg | Aluminum Alloy Box |
KCM-100 | 640mm | 520mm | 260mm | 212mm | KCM-A/ 100mm | 36 | 46kg | 75kg | Square Tube Bracket |
