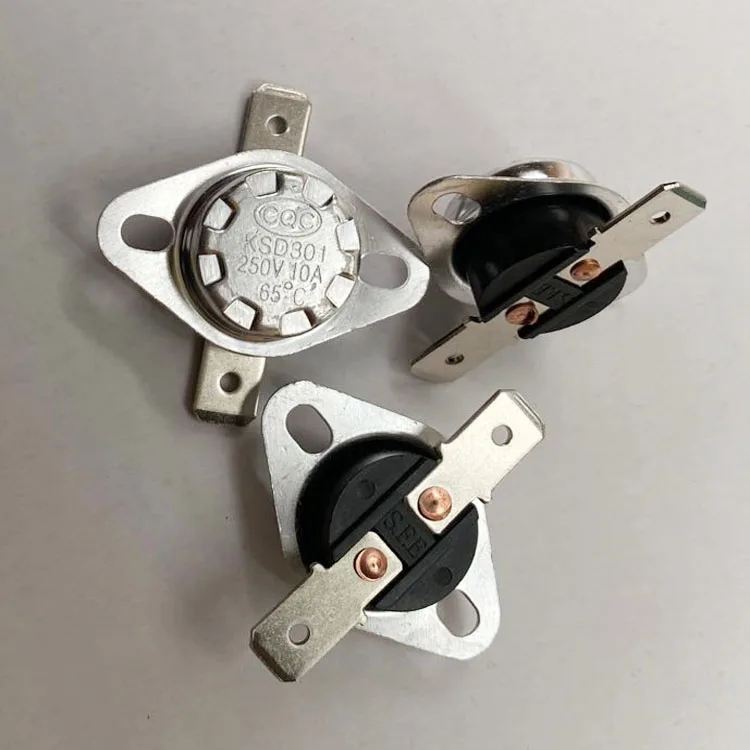

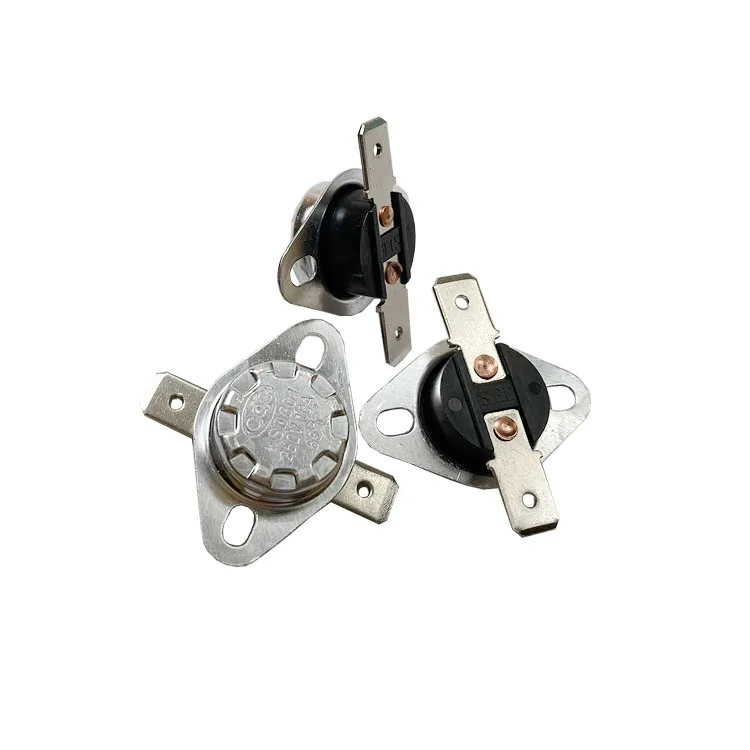

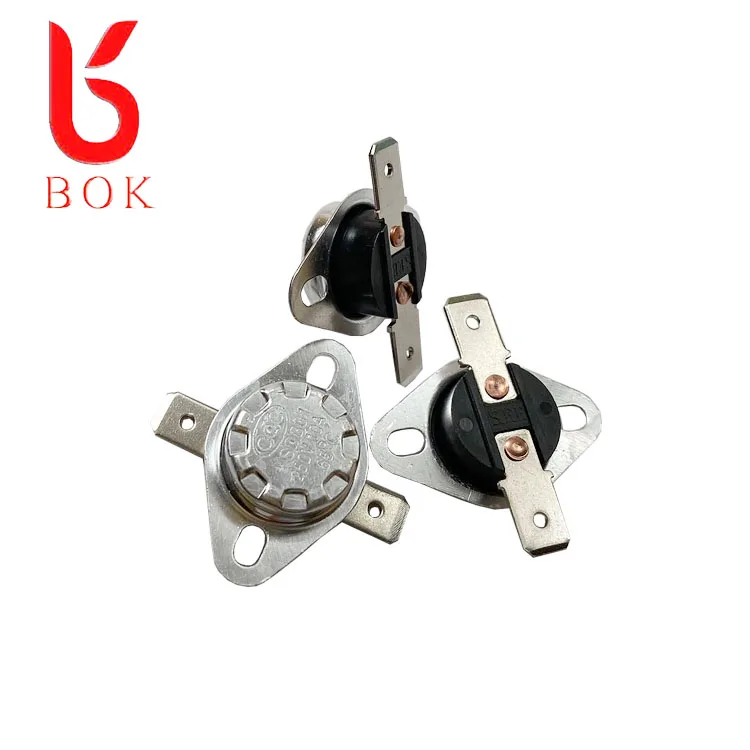

KSD301/302 bimetal thermostat 50c 10A normally closed flat foot fixed ring thermal switch over temperature switch
KSD301/302 bimetal thermostat 50c 10A normally closed flat foot fixed ring thermal switch over temperature switch
KSD301/302 bimetal thermostat 50c 10A normally closed flat foot fixed ring thermal switch over temperature switch
KSD301/302 bimetal thermostat 50c 10A normally closed flat foot fixed ring thermal switch over temperature switch

KSD301/302 bimetal thermostat 50c 10A normally closed flat foot fixed ring thermal switch over temperature switch

Share on (1600136459144):


Price:$0.15 - $0.16

Quantity:


Product Overview

Description



Products Description






Product Name
Bimetal thermostat
Model
KSD301
Body material
Bakelite
Switch type
 normally closed / normally open
Electrical parameters
AC250V 50-60Hz 10A/15A/20A/25A
Operating temperature range
0~150℃
Life
≥100000 (times)
Action temperature error
±3℃/5℃
Reset temperature error
±15℃
Product certification
CQC, TUV


CODE
OPEN TEMP
RESET TEMP
CODE
OPEN TEMP
RESET TEMP
40
40±5°C
≥30°C
95
95±5°C
80±5°C
45
45±5°C
≥33°C
100
100±5°C
82±5°C
50
50±5°C
≥35°C
105
105±5°C
85±5°C
55
55±5°C
42±6°C
110
110±5°C
90±5°C
60
60±5°C
48±5°C
115
115±5°C
95±5°C
65
65±5°C
48±5°C
120
120±5°C
100±5°C
70
70±5°C
55±5°C
125
125±5°C
102±5°C
75
75±5°C
60±5°C
130
130±5°C
105±5°C
80
80±5°C
65±5°C
135
135±5°C
108±5°C
85
85±5°C
70±5°C
140
140±5°C
110±5°C
90
90±5°C
75±5°C
145
145±5°C
110±5°C










product description.
KSD301 series products are thermostats that use bimetallic pieces as temperature sensing elements. When the appliance is working normally, the bimetals are in a free state and the contacts are in a closed state. When the temperature reaches the operating temperature, the bimetals will generate internal stress when heated Act quickly to open the contacts and cut off the circuit, thus controlling the temperature. When the appliance cools down to the reset temperature, the contacts close automatically and resume normal operation.
