New design 21.5 inch IP67 Stainless Steel Android All in one Industrial Panel PC
- Category: >>>
- Supplier: Shenzhen E-See Technology Co. Ltd.Shenzhen Ltd.
Share on (1600139253561):
Product Overview
Description
Product Description

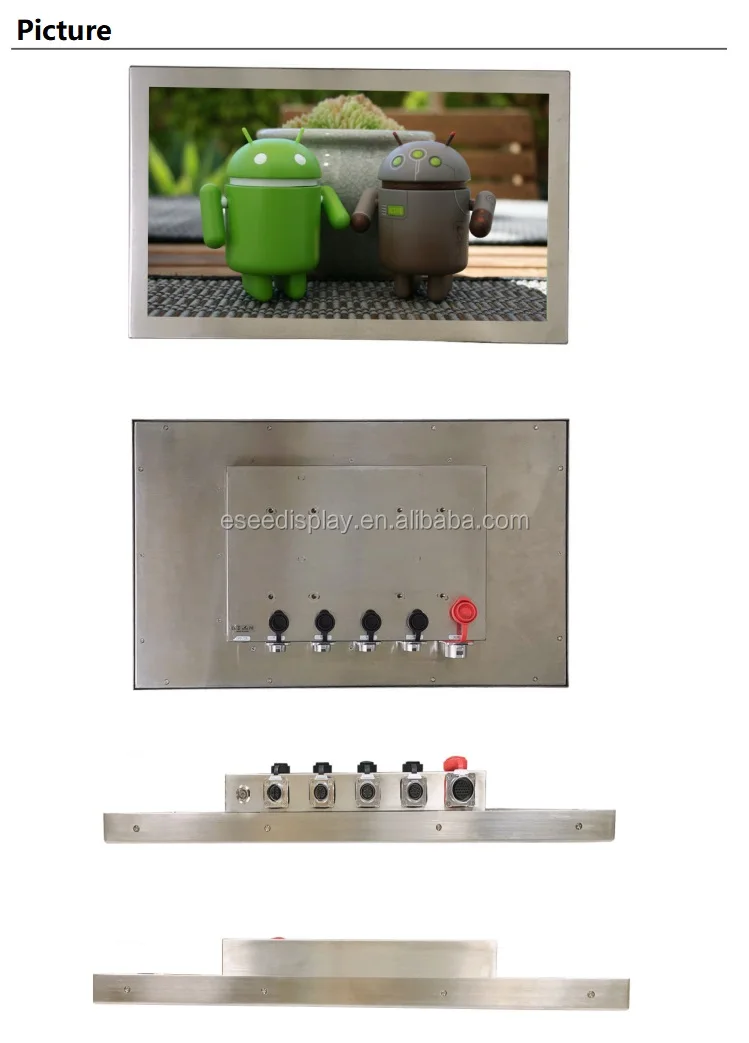

New design 21.5 inch IP67 Stainless Steel Android All-in-one Industrial Panel PC (APC-S215-IP67-RT)
Adopt Rockchip RK3288 quad-core chip ARM solution, hardware decoding H.265 HD video, support 4K ultra HD output;
Onboard DDR3 2GB memory, 8GB storage motherboard;
Design features: the whole machine SUS304 stainless steel/IP67 dustproof and waterproof/corrosion and wear resistance/sturdy and durable;
The whole machine adopts NEMA4/IP65 waterproof and dustproof grade combined with a fanless energy-saving and silent design. The case is made of SUS304 stainless steel, which makes the case more resistant to corrosion, abrasion, impact and vibration;
21.5-inch 16:9 display ratio, 1920*1080 HD resolution, A+ perfect industrial LCD display;
Adopting Taiwan's EETI solution resistive touch screen, with good stability, high accuracy, and not afraid of dust, water vapor, oil, etc., suitable for use in various harsh environments (multi-point capacitive touch screen is optional);
DC 12V power input (DC 24V or 9-36V wide voltage input is optional);
Rich IO interfaces, free to connect to external devices, 1*USB, 1*RS232, 1*HDMI, 1*RJ45, 1*DC IN;
Operating System: Support Android 5.1/8.1.
Technical parameters
Host parameter | CPU | Rockchip RK3288 1.8GHz quad-core (RK3399 2.0GHz six-core optional) |
Graphics card | Mail-764 GPU graphics display core | |
RAM | Onboard DDR3 2GB (4G optional) | |
storage | 8GB onboard (maximum support 64GB) | |
The internet | 1*RJ45 10M/100M adaptive; 1*WIFI | |
operating system | Android5.1/8.1 version | |
Structural parameters | Special performance | High temperature corrosion resistance, strong anti-interference, stable and durable |
Structure material | Whole machine metal shell, aluminum flat wire drawing panel + cold-rolled aluminum box | |
Case color | SUS304 material itself (black can be sprayed) | |
Installation method | Support VESA bracket installation (such as wall-mounted, desktop, standing) | |
Display parameters
| Size | 21.5 inch 16:9 display ratio |
Resolution | 1920*1080 | |
Brightness | 400cd/m^2 (optional 1000cd/m^2 visible brightness under sunlight) | |
Other parameters | Contrast ratio: 3000:1 (Typ.); Viewing angle: 89/89/89/89 (Typ.) (CR≥10) (left and right up and down) | |
Touch parameter | Touch type | EETI solution + resistive touch screen (capacitive touch screen optional) |
Specifications | Click life ≥ 5 million times; touch force ≤ 45g~250g | |
Material quality | Material: ITO glass; surface hardness≥3H; | |

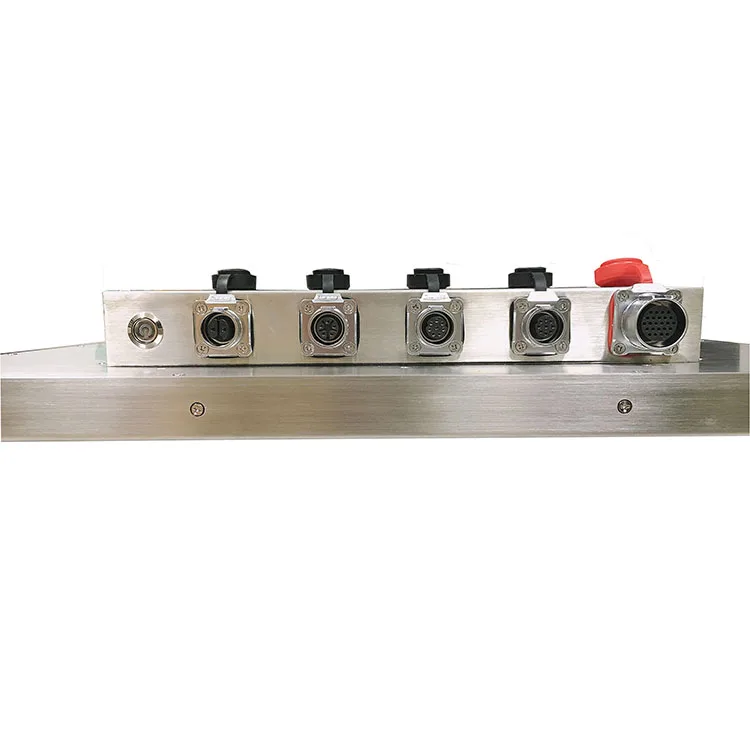

Interface parameters | I/O interface | 1*USB, *RS232, 1*HDMI, 1*RJ45, 1*DC IN |
Optional interface | WIFI/GPIO/RS485 (optional) | |
Environmental parameters | Operating temperature | 0℃~50℃ |
storage temperature | -20℃~60℃ | |
Relative humidity | 10~90%, no condensation | |

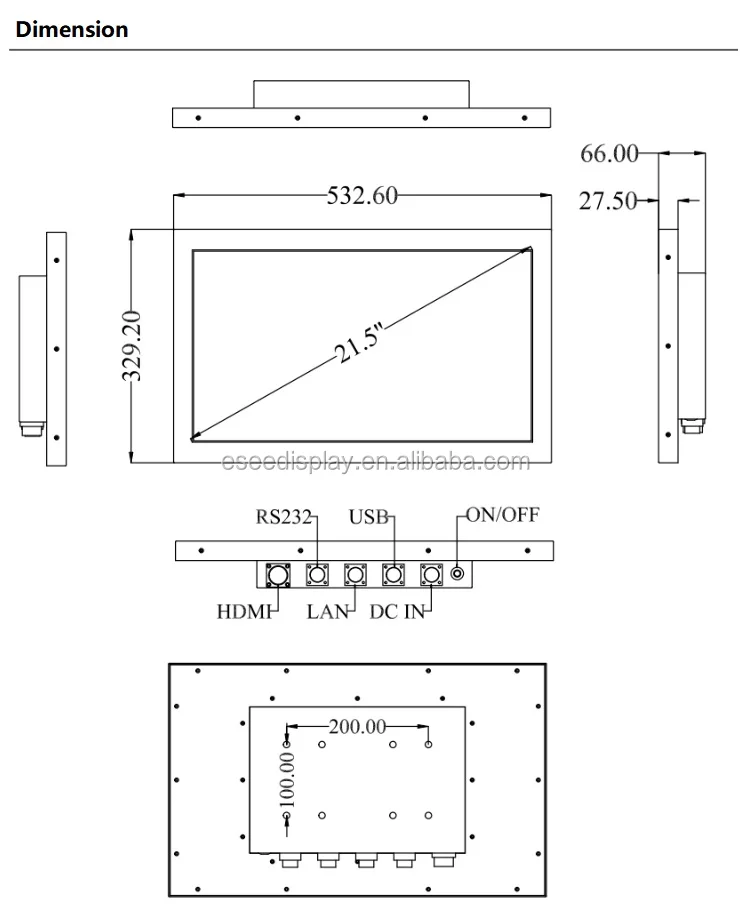

Dimensions | physical dimension | 532.6*329.2*66mm |
Installation size | 200*100mm/100*100mm (VESA bracket installation) | |
Power support | DC power supply | DC 12V power input |
Shipping accessories | Standard | 12V 5A adapter + AC power cord + corresponding interface aviation plug wiring + wall bracket |
Warranty | 12 months (longer warranty time optional) warranty | |
