High Quality RS485/RS422/RS232 Industrial Control Signals Twisted Shielded Flexible Wire 2Core 0.3 Cable Electrical Wires Cables

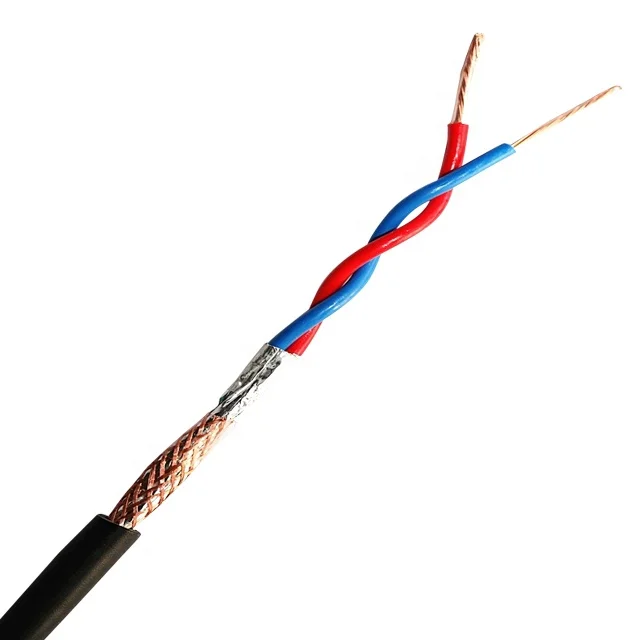

Product name:

Twisted pair shielded wire

Product model:

RVVPS 2*0.3

Product Description:

Conductor:

16/0.15 BC, thin copper wire stranded soft conductor structure;

Insulation:

 PVC new material, ID1.7, insulation color: red, blue;

Pair twist:

1 pair;

Shield:

aluminum foil + braided pure copper wire mesh 80/0.08 BC;

Sheath:

black new material PVC, OD5.1, extrusion type;

Logo:

 printing meter;

Packing:

100 meters

Product Usage:

Twisted-pair shielded wire is suitable for power control signal transmission. The core adopts a twisted-pair structure, which has strong interference suppression capability. It is especially suitable for the transmission of RS485/RS422/RS232 industrial control signals, also called "RVSP" or "RVPS";

Control cable of medium-speed ball machine and high-speed ball machine;

Industrial bus communication control cable (refrigeration/air conditioning/computer communication);

Intelligent building control system shielding control cable;

M-BUS network signal cable;

Industrial control system wiring cable...

Product size/100 meters:

30*30*6cm

product weight:

5.4 kg

Product Model:

Rvvps 2*0.3mm2 / Rvvps 2*0.5mm2 / Rvvps 2*0.75mm2 / Rvvps 2*1.0mm2 / Rvvps 2*1.5mm2 / Rvvps 2*2.5mm2.

Rvvps 2*2*0.3mm2 / Rvvps 2*2*0.5mm2 / Rvvps 2*2*0.75mm2 / Rvvps 2*2*1.0mm2 / Rvvps 2*2*1.5mm2 / Rvvps 2*2*2.5mm2.

Rvvps 3*2*0.3mm2 / Rvvps 3*2*0.5mm2 / Rvvps 3*2*0.75mm2 / Rvvps 3*2*1.0mm2 / Rvvps 3*2*1.5mm2 / Rvvps 3*2*2.5mm2.

Rvvps 4*2*0.3mm2 / Rvvps 4*2*0.5mm2 / Rvvps 4*2*0.75mm2 / Rvvps 4*2*1.0mm2 / Rvvps 4*2*1.5mm2 / Rvvps 4*2*2.5mm2.
