Product Overview

Description

Super Fine Powder Laboratory Planetary Grinding Mixer Machine Planetary Mill Planetary Miller

Laborytory Micro Powder Laboatory Wet And Dry Capacity Manufacturers Mini Grinding Machines Small Ball Mill For Laboratory



Lab planetary ball mill for super fine powder grinding

Application

   Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.

Instruction:

    MITR Planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanomaterail,R&D of new product and small batch production for high tech materials. The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device of obtaining micro-particle research samples used for research and development institute,collages and universities,enterprise laboratory(Four samples can be obtained at the same time in each experiment). The samples could be ground under vacuum state with using the vacuum ball mill jars.

Technical parameter

Name	Planetary ball mill
Model	YXQM-2L(Oil seal mute)
Field of Application	Pharmaceuticals, food, geology, metallurgy, agriculture, glass, ceramics, aviation chemicals, biology, materials, lithium power, electronics, plants, biology and so on.
Feed Material	Medium or low hardness, hard, brittle, fibrous, viscous.
Size Reduction Principle	Crushing, grinding, mixing, homogenization, alloying
Main Disk Structure	Planetary main disk gear invades and reinforces in lubricating oil, noise isolation treatment
Standard	CE
Electrical Description	100-120V/200-240V AC ,50-60Hz, 1PH (0.75KW)
Material Feed Size	< 5 mm  soil<10 mm
Final Fineness	< 100 nm
Batch Size / Feed Quantity	4 x 500 ml
Grinding Jar Sizes	50 ml /100 ml / 250 ml / 500 ml

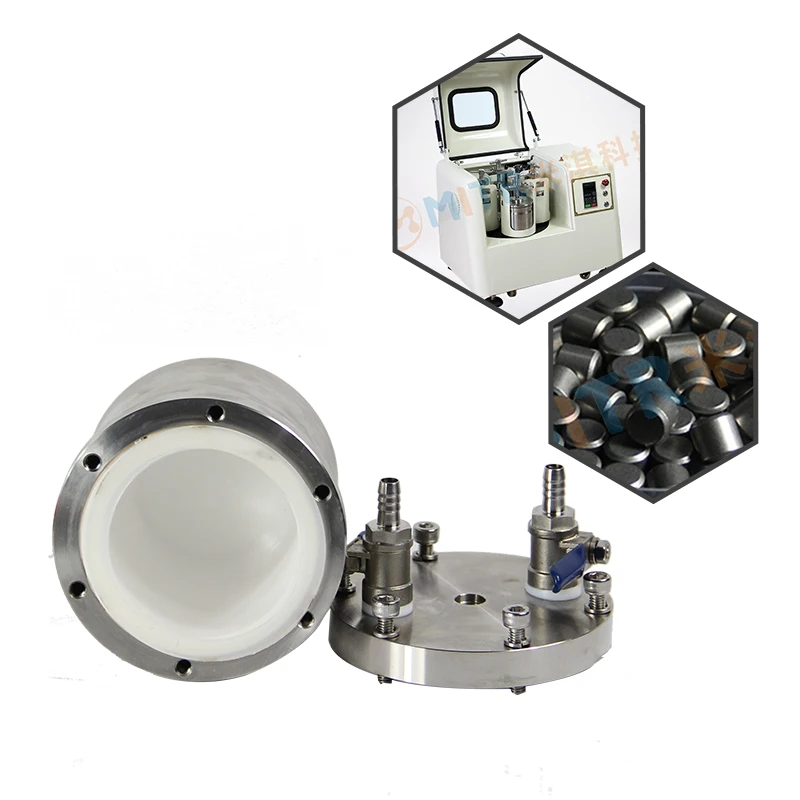

Vacuum Jar Size	250 ml /500ml( Stainless steel)
Feed Material Capacity	160 ml*4
Feed balls Capacity	160 ml*4
Sun Wheel Speed	10 - 400 r/min
Ball Mill Jar Speed	20 - 800 r/min
Total Grinding Speed	1200 /min
Speed Ratio	1:2

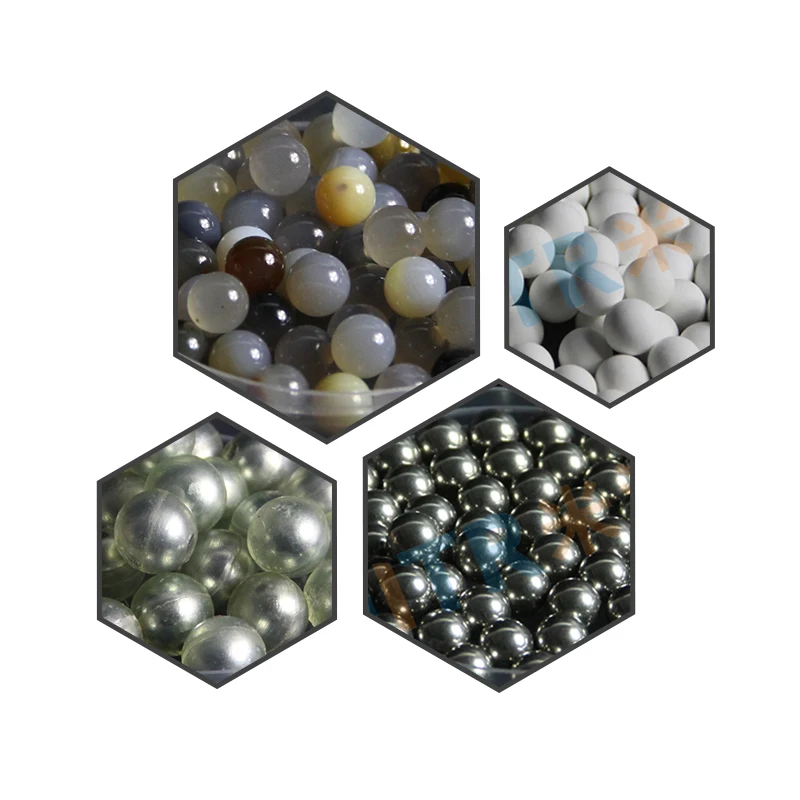

Material of Grinding Tools	Stainless steel, agate, zirconia, corundum, tungsten carbide, nylon, polyurethane, polytetrafluoroethylene, silicon carbide, etc.
Ball Size	1 / 2 / 3 / 5 / 8 / 10 / 15 / 20 / 25 / 30 mm
No. of Grinding Stations	2 or 4
Mode	Vertical planetary
Grinding Mode	Dry/wet

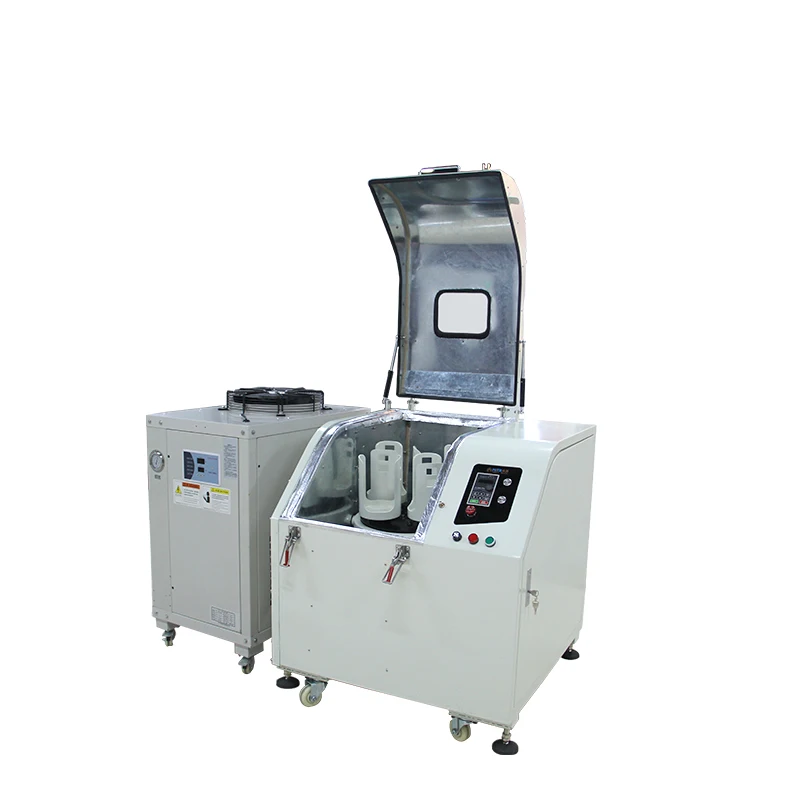

Low Temperature Cooling Treatment	Yes (air cooler added)
Oil Seal Position	The bottom of planetary main disk
Disk Dimensions	360mm
Oil Seal Capacity	800ml(fill in before using the planetary ball mill)
Noise	< 60dB(Within 3 metre)
Protection Code	IP60
CN Patent	Safety protection (No.ZL 2015 2 0836150.6)
CN Patent	Oil seal silent  (Patent No.ZL 2014 2 0375569.1)
CN Patent	Frequency control(patent No.ZL 2016 2 0836150.6)
W x H x D Closed	30 45/64" x 22 53/64" x 26 49/64" (780 x 580 x 680 mm)
Net Weight	242.5 lbs (110 kg)
