Small 0.4L Laboratory Nano Scale Vertical Planetary Ball Mill
US $265.00-$330.00
Промышленный выключатель из нержавеющей стали
- Category: Grinding Equipment >>>
- Supplier: Changzhou,Doing,Machine,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Main features
1. Fast size reduction of lumps or agglomerates
2. Product size: 0.5-20 mm
3. Process capacity: 80-1500 kg/h
4. Product particle size is adjustable by changing sieves
5. Customizable options include side hatches, loading hoppers, and floor stands
Working principle
LB Series Lump Breaker offers high-capacity size reduction with a compact, low-power, easy-clean design. A rotating beater assembly grates material through a perforated screen, eliminating agglomerates for higher-quality output. This size reduction equipment offers consistent particle size within a narrow band while minimizing the generation of dust and fines.Various mesh sizes are available to suit a wide range of applications, including reducing particle size before or after mixing, intermediate sizing of product for improved drying and granulation prior to tableting, regrinding out-of-spec material for reclaim, pre-grinding prior to a secondary fine milling process, or accelerating dissolution in liquid reactors.
Technical advantages
1. Robust,simple and compact design requires minimum maintenance;
2. Available in materials and configurations to meet food, pharmaceutical, and industrial safety and sanitary standards
3. Alloy steel cutting knives.
4. Very easy and convenient for cleaning, changing sieve and cutting knives.
5. Different particle size can be achieved by changing sieve.
6. Customizable options include side hatches, loading hoppers, and floor stands
7. Available in materials and configurations to meet food, pharmaceutical, and industrial safety and sanitary standards
Main technical parameters
Model | LB-100 | LB-250 | LB-400 | LB-500 |
Capacity kg/h | 50-100 | 100-300 | 300-600 | 600-1200 |
Feed size mm | ≤50 | ≤100 | ≤200 | ≤300 |
Product size mm | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
Rotating speed RPM | 400 | 400 | 400 | 400 |
Motor power KW | 0.75 | 3 | 5.5 | 11 |
Dimension LxWxH mm | 400X250X300 | 500X350X400 | 900x500x500 | 1000x600x500 |
Weight KG | 100 | 200 | 300 | 500 |
Detailed Images

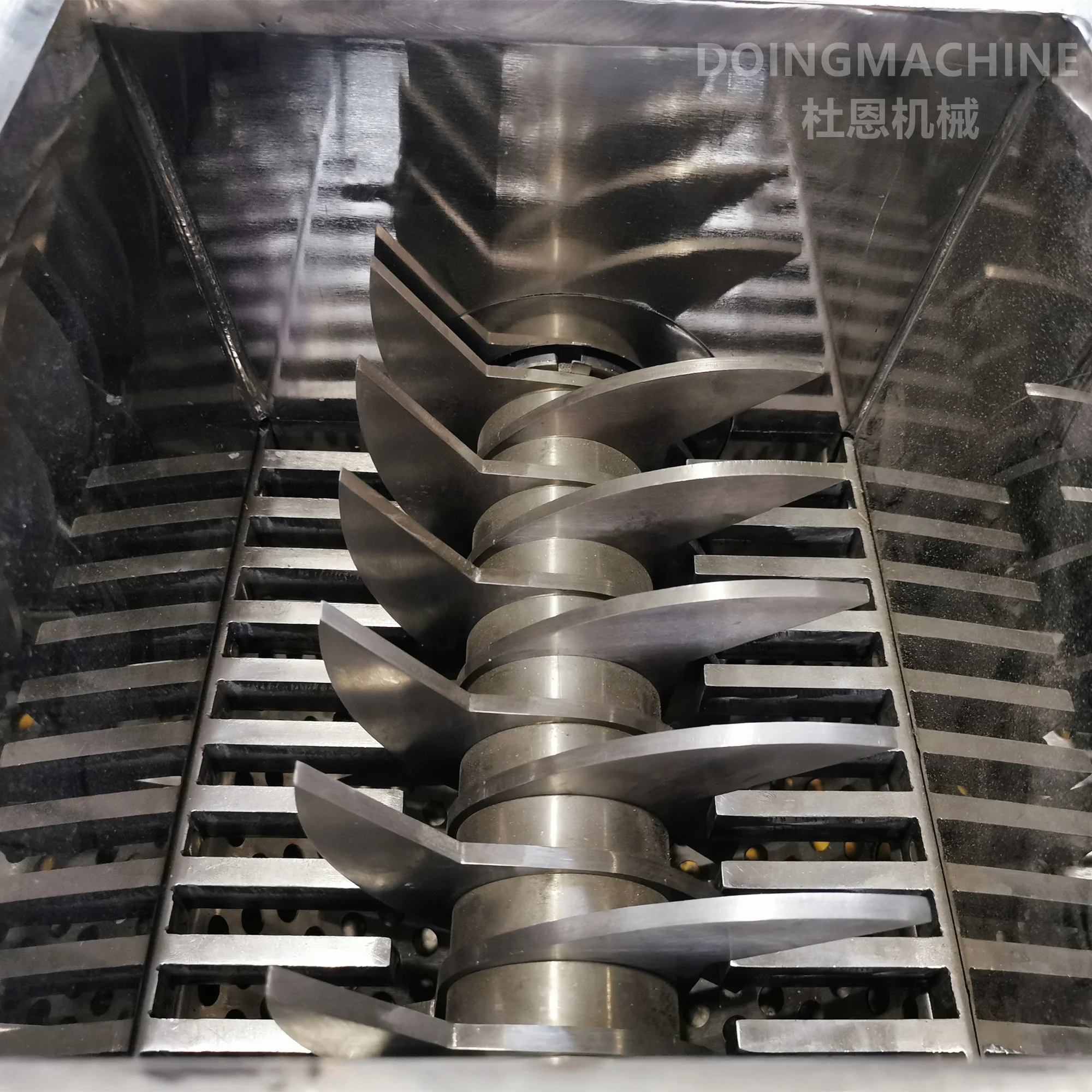

Alloy steel cutting knives
Well polished and easily dismantable

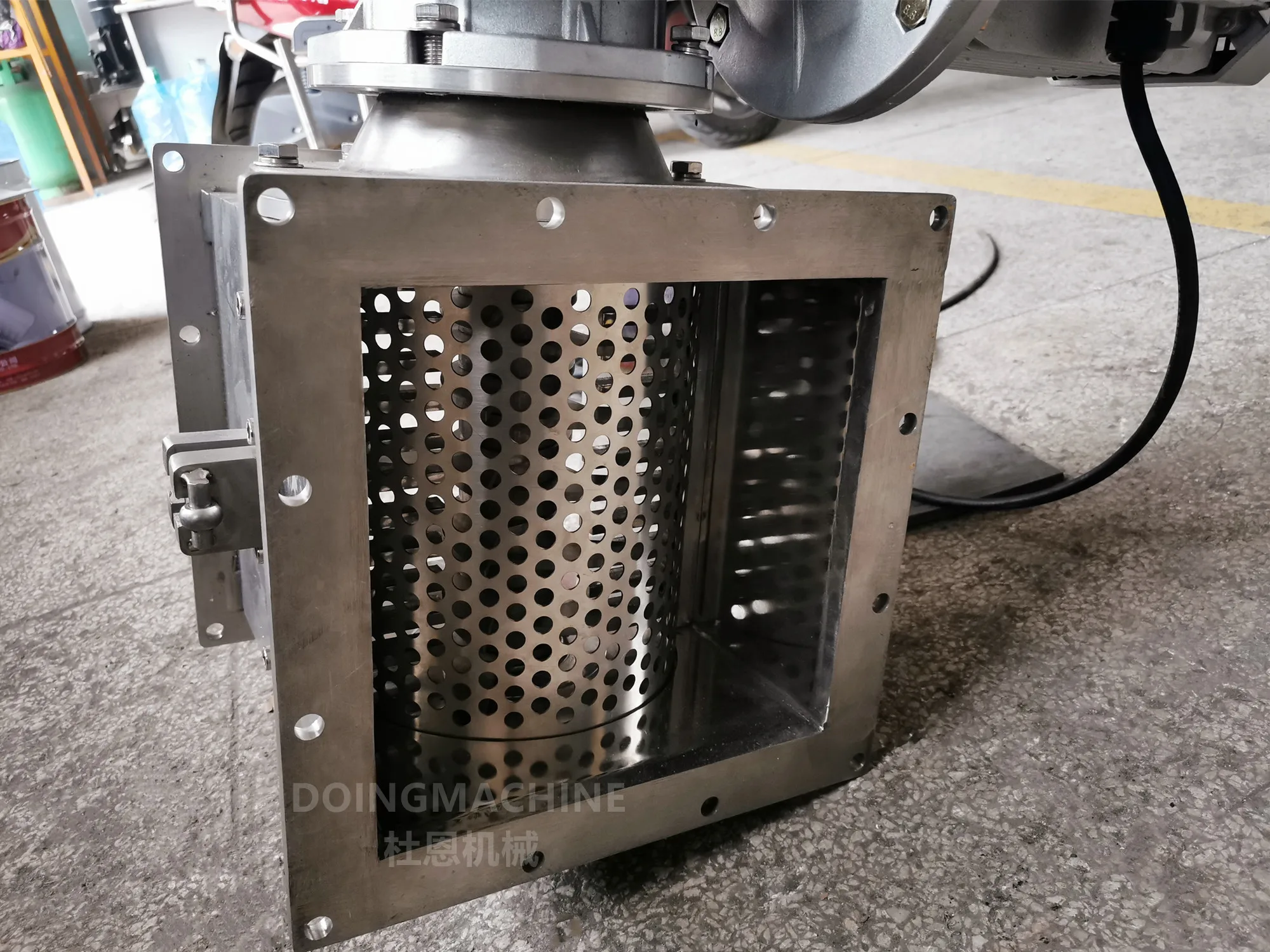

Perforated sieves
Hole size: 2-20mm
Cutting chamber
Easily dismantable for cleaning

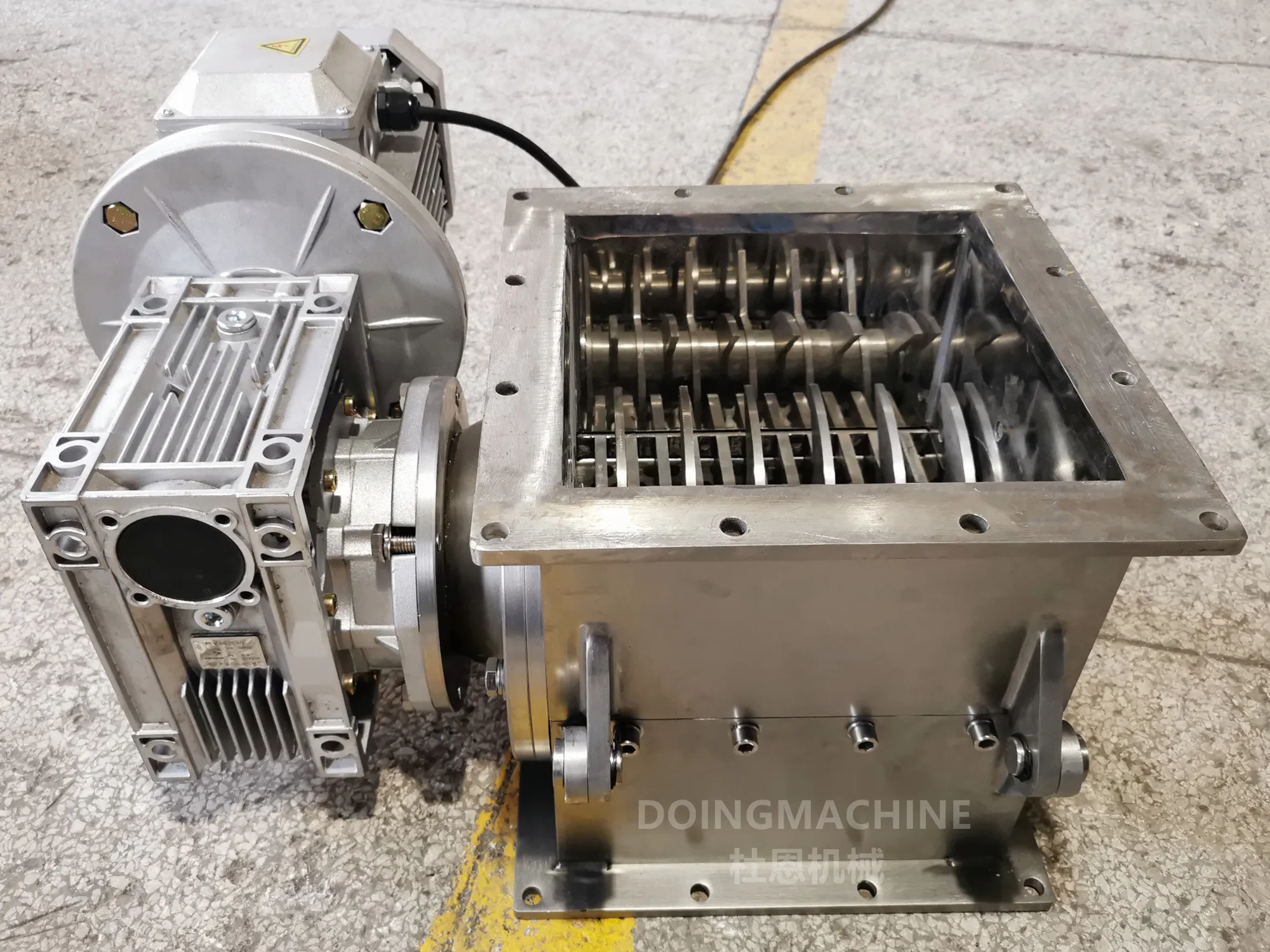

Flexible installation
Easily integrates into existing production lines
Typical applications
Food flakes
Chemical agglomerates
Fertilizer lumps
Our Factory
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our lump breaker can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to process
2) Product size before cutting/milling
3) Required final product size
4) Process capacity in kg/h
Q: How the machine will be delivered ?
A: The granulator is packed in plywood box for shipping
