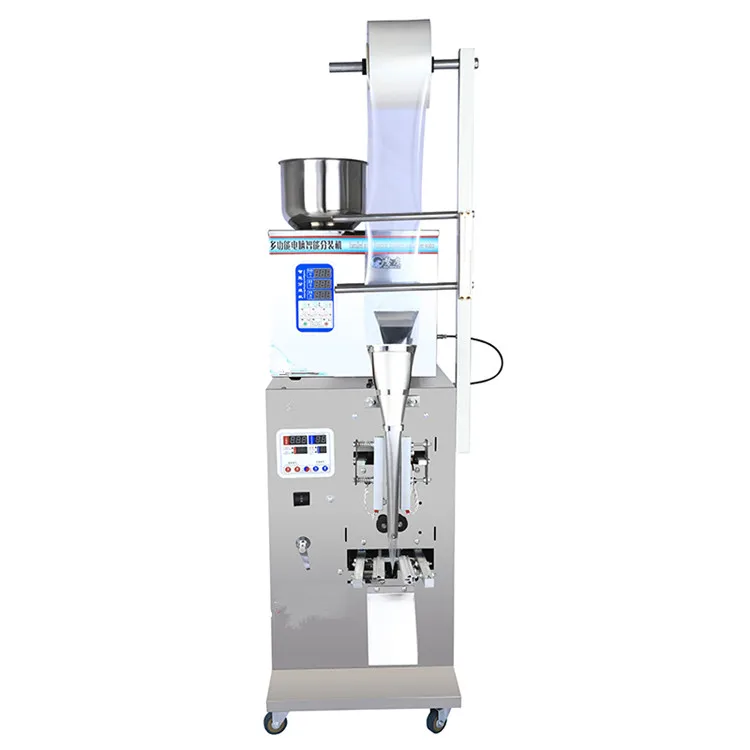

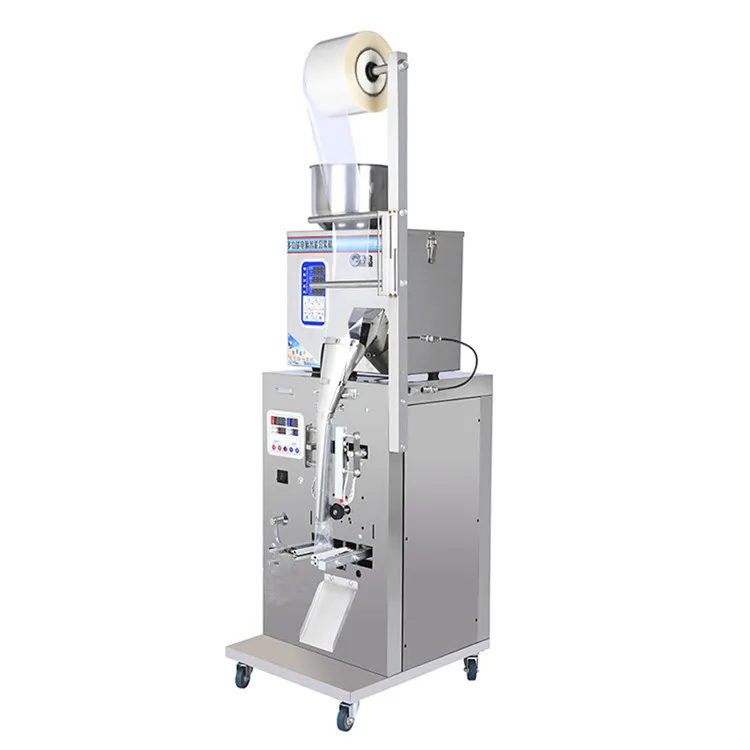

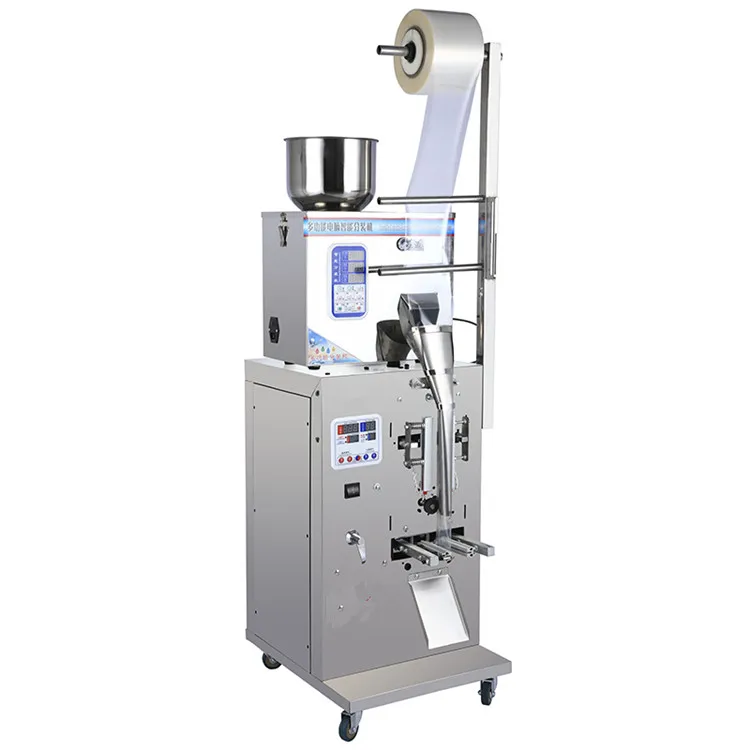

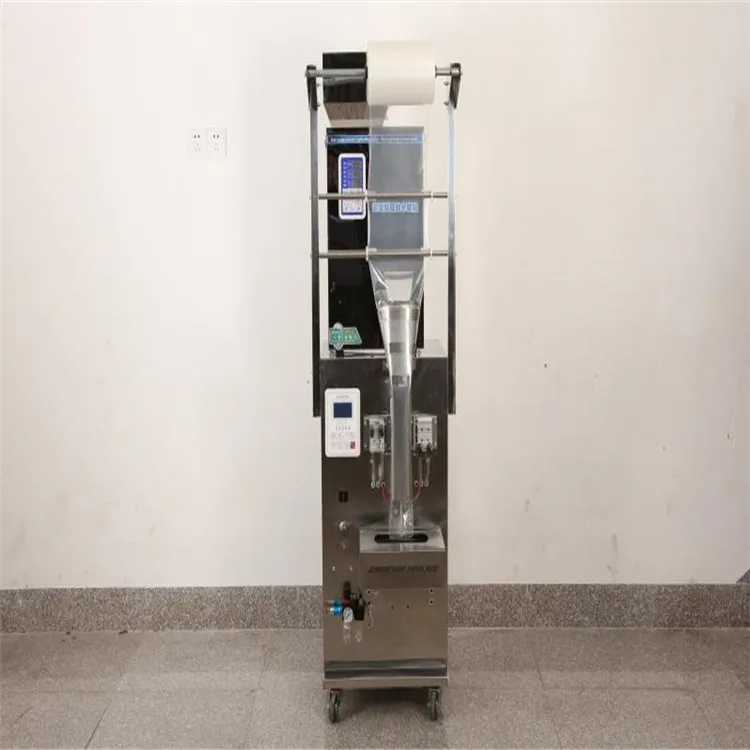

Plastic Bag Making Machine Plastic Packaging Plastic Bags 1 Kg 3 Sides Sealing Bag Honey Packing Machine 70 Filling Sealing
- Category: Packaging Machines >>>
- Supplier: Jiangyin Brenu Industry Technology Co. Ltd.
Share on (1600142560454):
Product Overview
Description
Product Overview
Please contact supplier, send inquiry now.
More working videos, details and the coupon waiting for you.
More working videos, details and the coupon waiting for you.
There are many powdered foods we see in daily life, such as: coffee, seasoning powder, milk powder, flour, medicinal powder, soda powder, edible salt, lotus root starch, white jelly powder, milk tea powder, ice cream powder, etc.

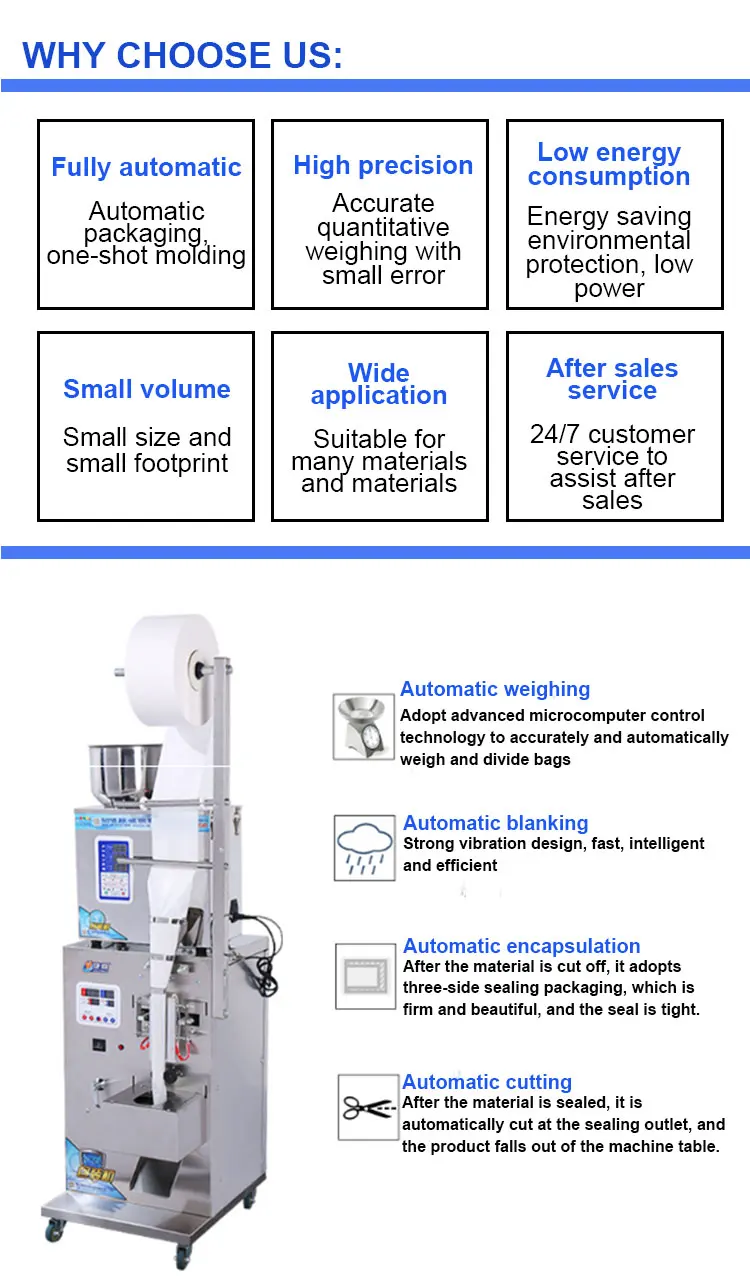

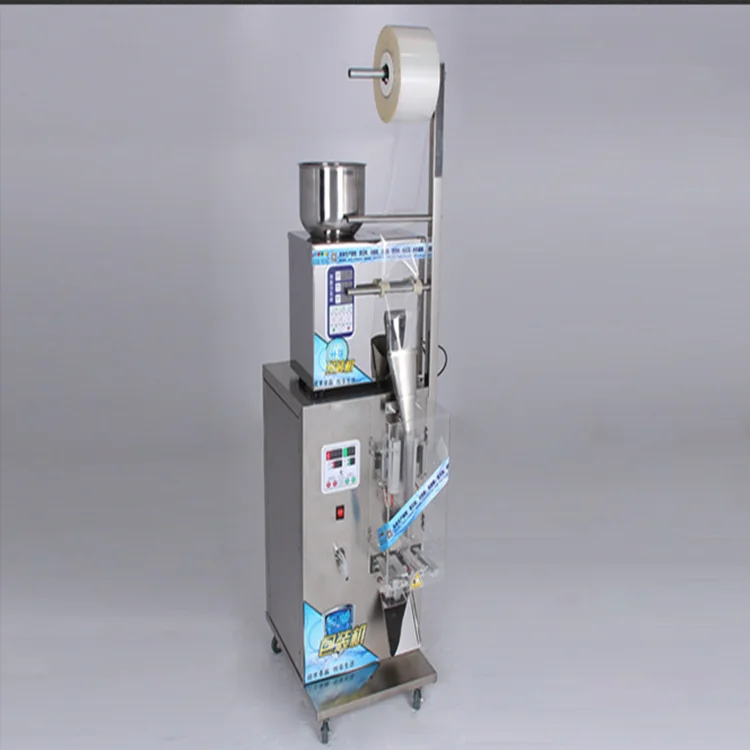

The working principle of the multifunctional powder packaging machine is a device used to pack products and protect them. Fill vertically. Packaging machinery equipment is mainly composed of weighing equipment, transmission system, horizontal and vertical sealing equipment, forming machine, filling tube and film pulling organization, so the working principle of the multifunctional powder packaging machine equipment is the roll film placed on the supporting equipment, Winding guide roller group, tensioning equipment and photoelectric detection and control equipment detect the orientation of the packaging material trademark image, and are wound by the former. The longitudinal heat sealer vertically heat seals the film at the interface wound on the cylinder to obtain a sealed tube, and then moves the cylindrical film to a horizontal heat sealer, and seals it horizontally to form a packaging bag tube. The metering equipment of the equipment fills the measured items into the packaging bag through the upper filling tube, and then heat-seals it by a transverse heat sealer and cuts it in the center to form a packaging bag unit body, and at the same time form the bottom seal of the next tube bag.
The working principle of the multifunctional powder packaging machine is a device used to pack products and protect them. Fill vertically. Packaging machinery equipment is mainly composed of weighing equipment, transmission system, horizontal and vertical sealing equipment, forming machine, filling tube and film pulling organization, so the working principle of the multifunctional powder packaging machine equipment is the roll film placed on the supporting equipment, Winding guide roller group, tensioning equipment and photoelectric detection and control equipment detect the orientation of the packaging material trademark image, and are wound by the former. The longitudinal heat sealer vertically heat seals the film at the interface wound on the cylinder to obtain a sealed tube, and then moves the cylindrical film to a horizontal heat sealer, and seals it horizontally to form a packaging bag tube. The metering equipment of the equipment fills the measured items into the packaging bag through the upper filling tube, and then heat-seals it by a transverse heat sealer and cuts it in the center to form a packaging bag unit body, and at the same time form the bottom seal of the next tube bag.
PRODUCT SPECIFICATIONS
Operating Voltage | 220V/50HZ;110V/60HZ |
Rated power | 360W |
Packing speed | 15-25pcs/min(customizable) |
Weighing range | 1-50g(customizable) |
Tolerance scope | about 0.1-0.2g(customizable) |
Body material | Quality food grade stainless steel |

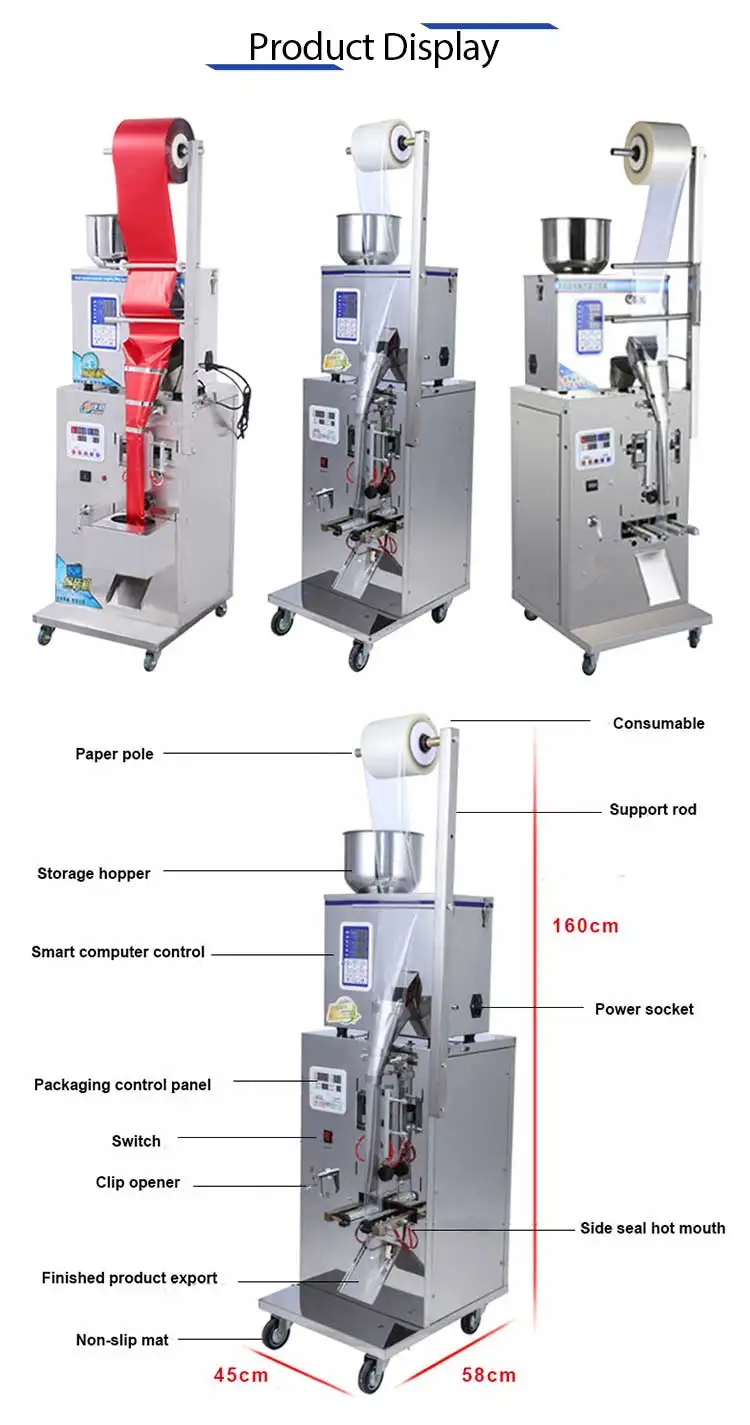

physical dimension | 45*58*160cm |
Total Weight | 65kg |
PRODUCT CONFIGURATION
New Design Small Potato Plantain Chips Packing Machine
Packing & Shipping
COMPANY INTRODUCE
Top 10 Supplyer In Alibaba Jiangyin Brenu Industry Technology Co., Itd Located The Centra Position Of China , Our Main Production Special For Food, Pharmacy , Cosmetic Industry. Base Ourself Production ,resource Integration Is Our Advantage From Upstream And Downstream Firm, Design Department And Project Design Are Most Important Of Brenu.
Main Production Including :manual Or Auto Type Bottle Unscrambler Fling Machine , Capping Machine , Labeling Machine , Sealing Machine, Hot Shrink Machine , Vacuum Dryer, Carton Machine , Packing Machine , Wrapping Machine And Carton Sealing Machine We Supplied The Turn Key Project For More Than 30 Companys At The Same Time , We Supply Free Customized Deign For The Packing Film, Plastic Bowl ,cup , Lable And So On. All Of Machinery Made By Food Type Material, All Production Pass Ce Certificate , Production Pass Is09001 Certificate , All Of Machinery Pass Very Serious Inspection Before Export . Our Production Were Exported To More Than 100 Countries, Specail In Europe ,middle Country, Asia And So On. Brenu Production Always Follow Market Request , Just Recommend Buyer Request And Most Suitable One.
Main Production Including :manual Or Auto Type Bottle Unscrambler Fling Machine , Capping Machine , Labeling Machine , Sealing Machine, Hot Shrink Machine , Vacuum Dryer, Carton Machine , Packing Machine , Wrapping Machine And Carton Sealing Machine We Supplied The Turn Key Project For More Than 30 Companys At The Same Time , We Supply Free Customized Deign For The Packing Film, Plastic Bowl ,cup , Lable And So On. All Of Machinery Made By Food Type Material, All Production Pass Ce Certificate , Production Pass Is09001 Certificate , All Of Machinery Pass Very Serious Inspection Before Export . Our Production Were Exported To More Than 100 Countries, Specail In Europe ,middle Country, Asia And So On. Brenu Production Always Follow Market Request , Just Recommend Buyer Request And Most Suitable One.
FAQ
Q:If you send help us operate the machine?
A: Yes, we will provide the operation description or video.
Q:What kind of payment you can provide ?
A:L/C,T/T,Paypal ,Western Union , and so on.
Q:What should I let you know when I have a require?
A:Where you use it and which type you need.
Q:What kind of shipment can you offer ?
A:Small machine is by air transportation . Big order and big machine are by sea transportation
Q:Can you provide customised items ?
A:Yes, we can .
A: Yes, we will provide the operation description or video.
Q:What kind of payment you can provide ?
A:L/C,T/T,Paypal ,Western Union , and so on.
Q:What should I let you know when I have a require?
A:Where you use it and which type you need.
Q:What kind of shipment can you offer ?
A:Small machine is by air transportation . Big order and big machine are by sea transportation
Q:Can you provide customised items ?
A:Yes, we can .
