Product Overview

Description



Product Overview

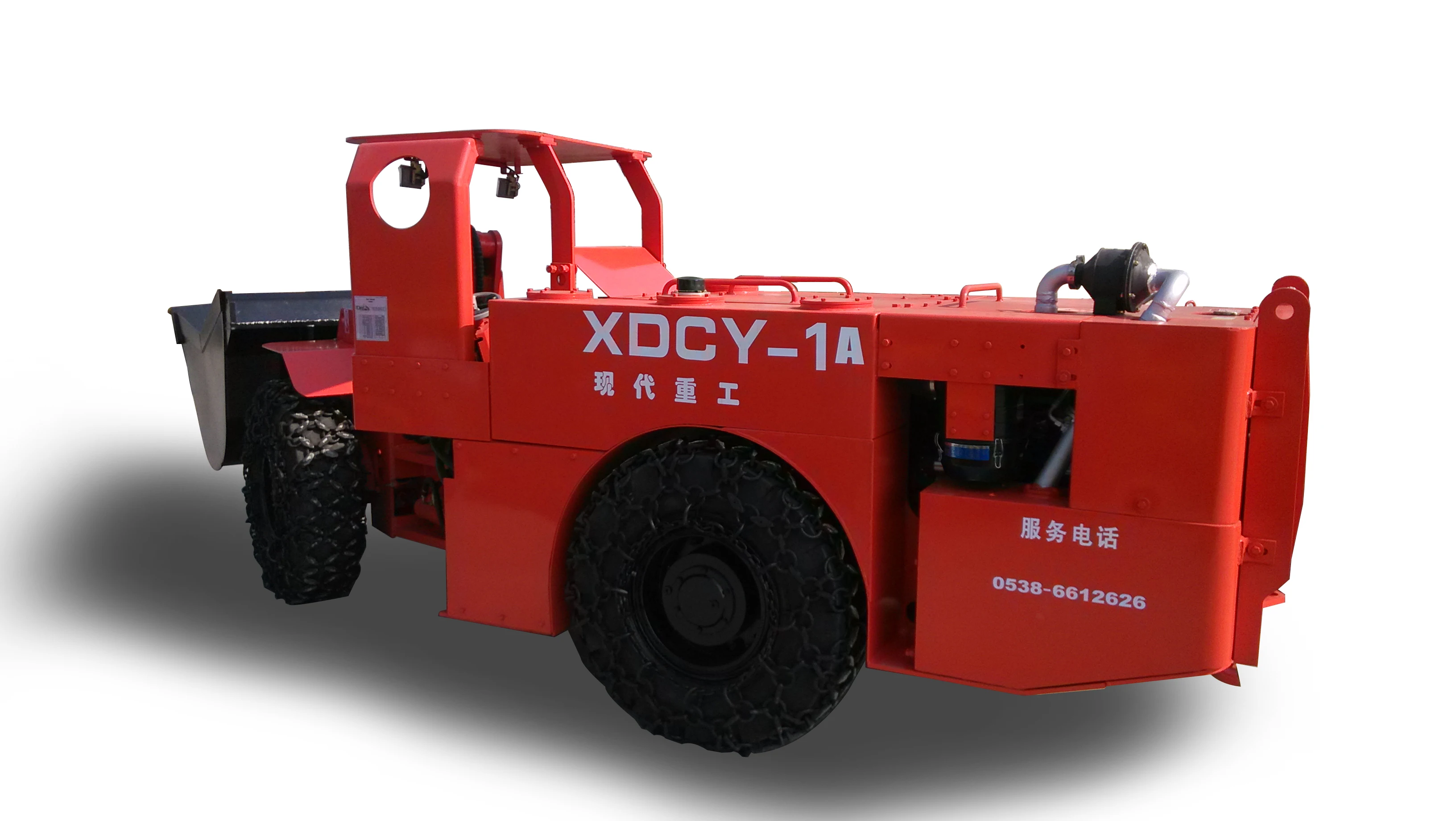

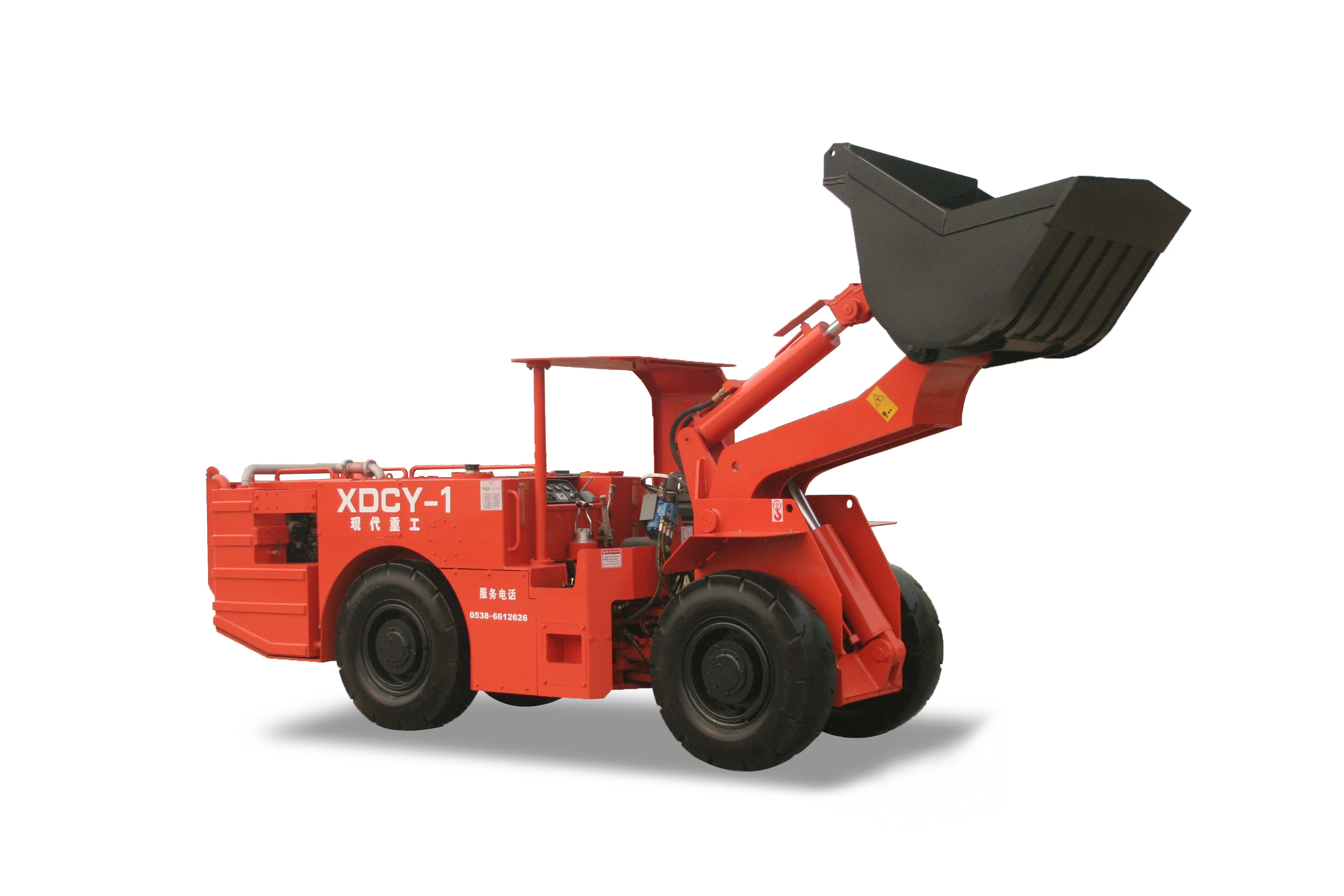

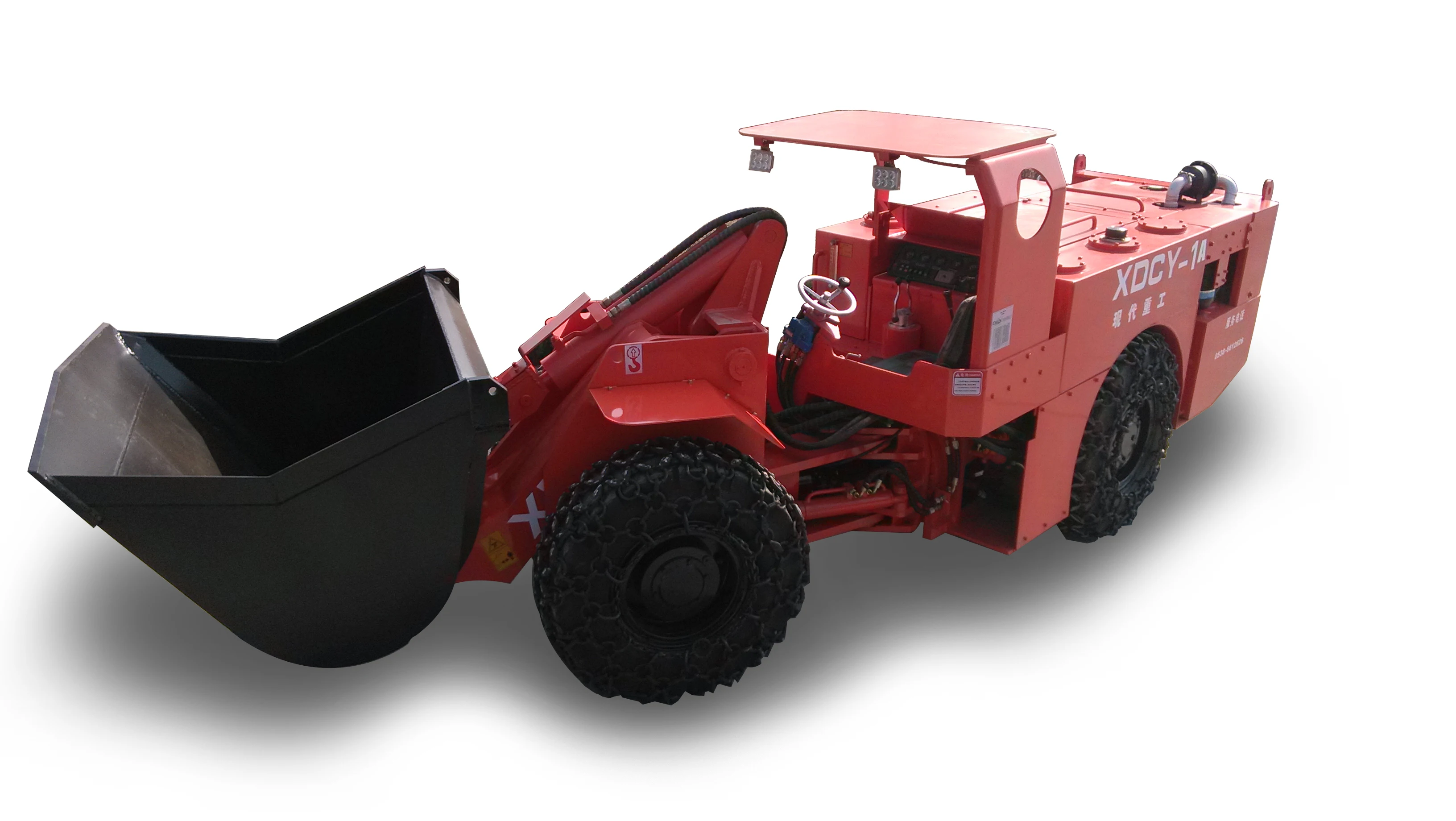

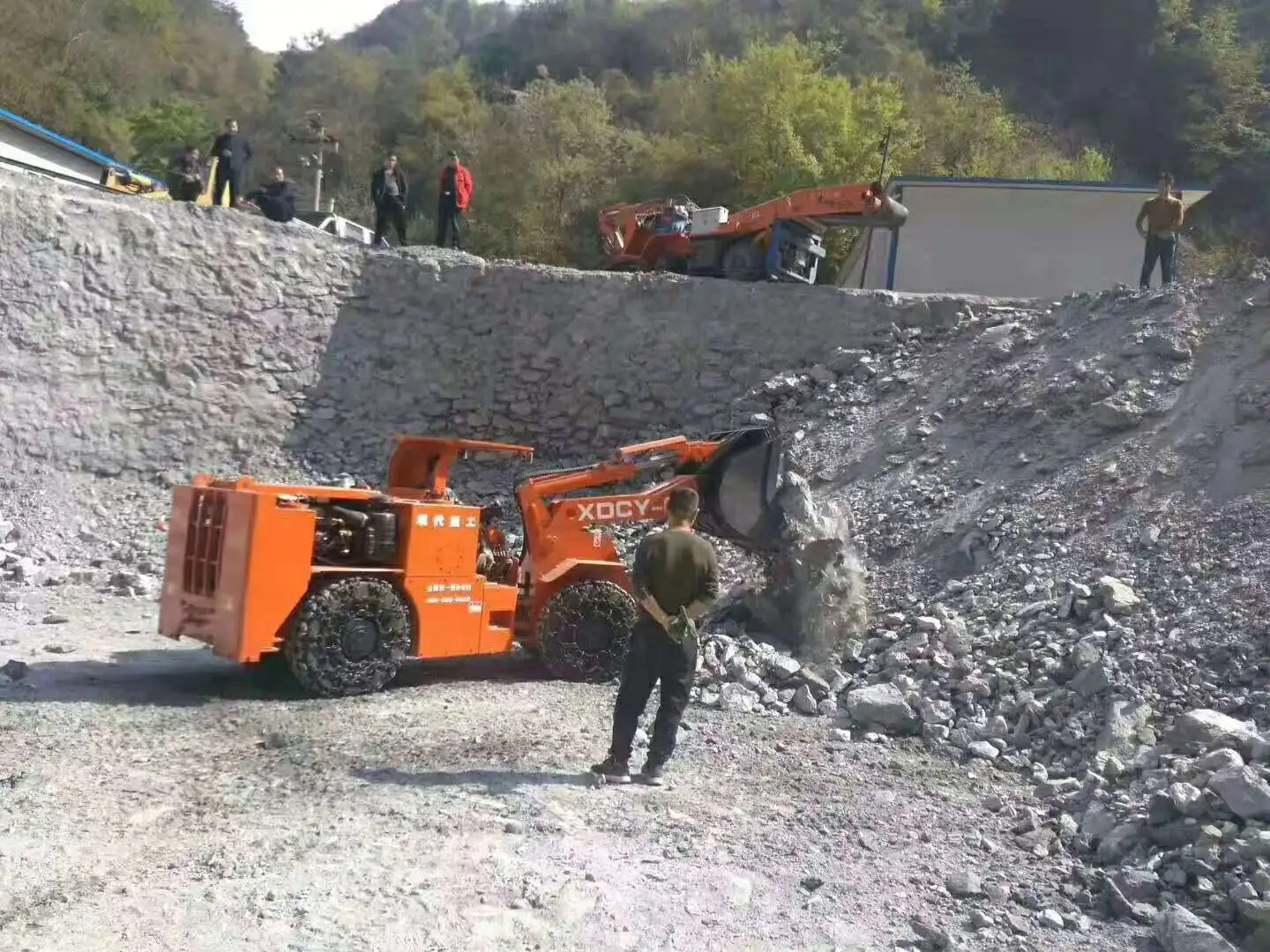

XDCY-1A diesel scooptram
1. The power system adopts China's top brand YTO brand turbocharged engine, strong power
and low emissions, Optional from China made Deutz engine.
2. Using the leading technology rotating structure, hydraulic steering, rear axle
oscillation compared with traditional ways, lower failure rate, easy to maintain.
3. The Walk system uses hydraulic torque converter, power shift transmission, and
improves reliability.
4. The operating system adopts pilot control, making the operation more simple, more
efficient.
5. The exhaust system is equipped with an imported purifying water filtration system,
which greatly reduces air pollution.

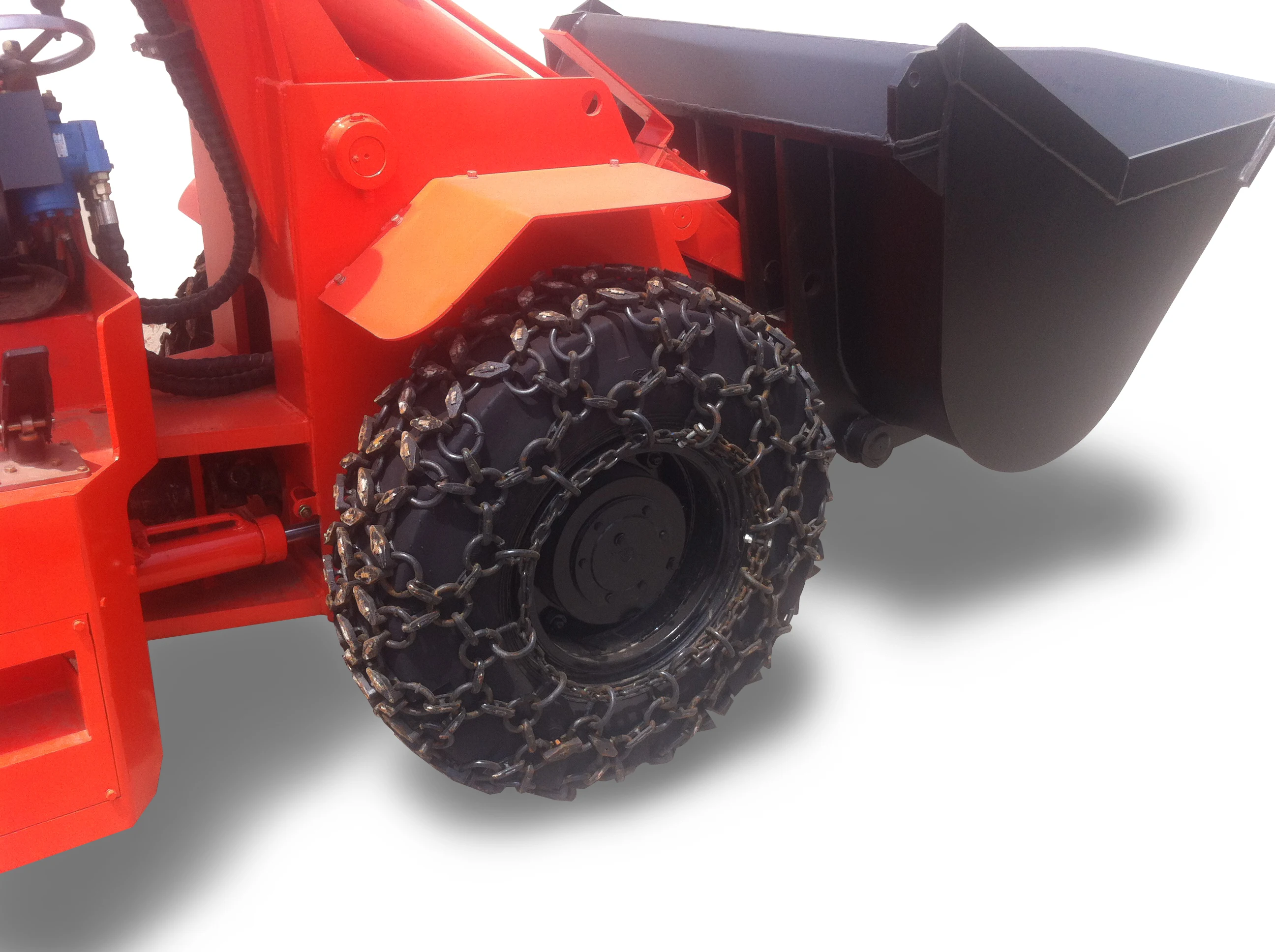

6. Adopt 10.00-20 puncture resistant smooth rubber tires.
7. The machine can shovel, load, transport, unload one operation, compact structure,
convenient operation, high-efficiency operation for mine reclamation and tunnel excavation, and road and job site construction
training, material transportation and other auxiliary operations.


FEATURES AT A GLANCE


Load capacity: 2.0 T
Bucket volume : 1.0 m³
Rated power : 66.2 kw


Right elevation
Left elevation
Front elevation




PRODUCT SPECIFICATIONS


Model
XDCY-1A
Main specifications
Bucket capacity (m3 )
1.0/ (1.3 yarda de cu)
Rated load (t)
2.0
Operating weight (t)
7.0
Lifting time of the boom (s)
≤4
The sum of three items (s)
≤8
Forward gear speed（km/h）
I 0-5.8 II 0-9.5
Reverse gear speed（km/h）
I 0-5.8 II 0-9.5
Max. climbing gradient
16°
Dimensions
Overall dimension
(L×W×H mm)
5717×1300×1950
Wheel base (mm)
2242
Wheel tread(mm)
1000
Max. dumping height(mm)
1250
Dumping distance (mm)
860
Diesel engine
Engine model
YTO LR4A3L-22
DEUTZ BF4L913
Engine type
In-line,water-cooling,
4-strokec,4 cylinders,
direct-injection, turbo
In-line,air-cooling,
4-strokec, 4 cylinders,
direct-injection,naturally aspirated
Rated power(kW)
81
68
Rated speed (r/min)
2200
2300
Total exhaust of cylinder (L)
4.33
4.086
Type of starting
Electric start
Electric start
Transmission system
Torque converter
Model
XIANDAI YJ280
Type
Single stage, three elements
Gearbox
Model
XIANDAI ZL20
Type
Fix counter-shaft, power-shift
Driving axle and tyre
YUNYU CY20S2
Type of main reducer
Spiral bevel gear,single stage
Type of final reducer
Single stage planetary
Size of tyre
10.00-20
Working device of hydraulic system
Model of working pump
CBG2063
Nominal displacement(ml/r)
63
Rated pressure(Mpa)
16
Multi-way directional valve
ZL20
Pressure(Mpa)
17
Rated flow(L/min)
100
Steering system
Type
Load-sensing hydraulic steering
Displacement(ml/r)
250
Max. input pressure(Mpa)
16
Brake system
Type of traveling brake
Wet brake/ Sistema de freno mojado
Type of parking brake
Air brake/ Freno de aire


PRODUCT CONFIGURATION


       Breaking hammer
Side-dump bucket
Explosion-proof type


SALES AND SERVICE NETWORK

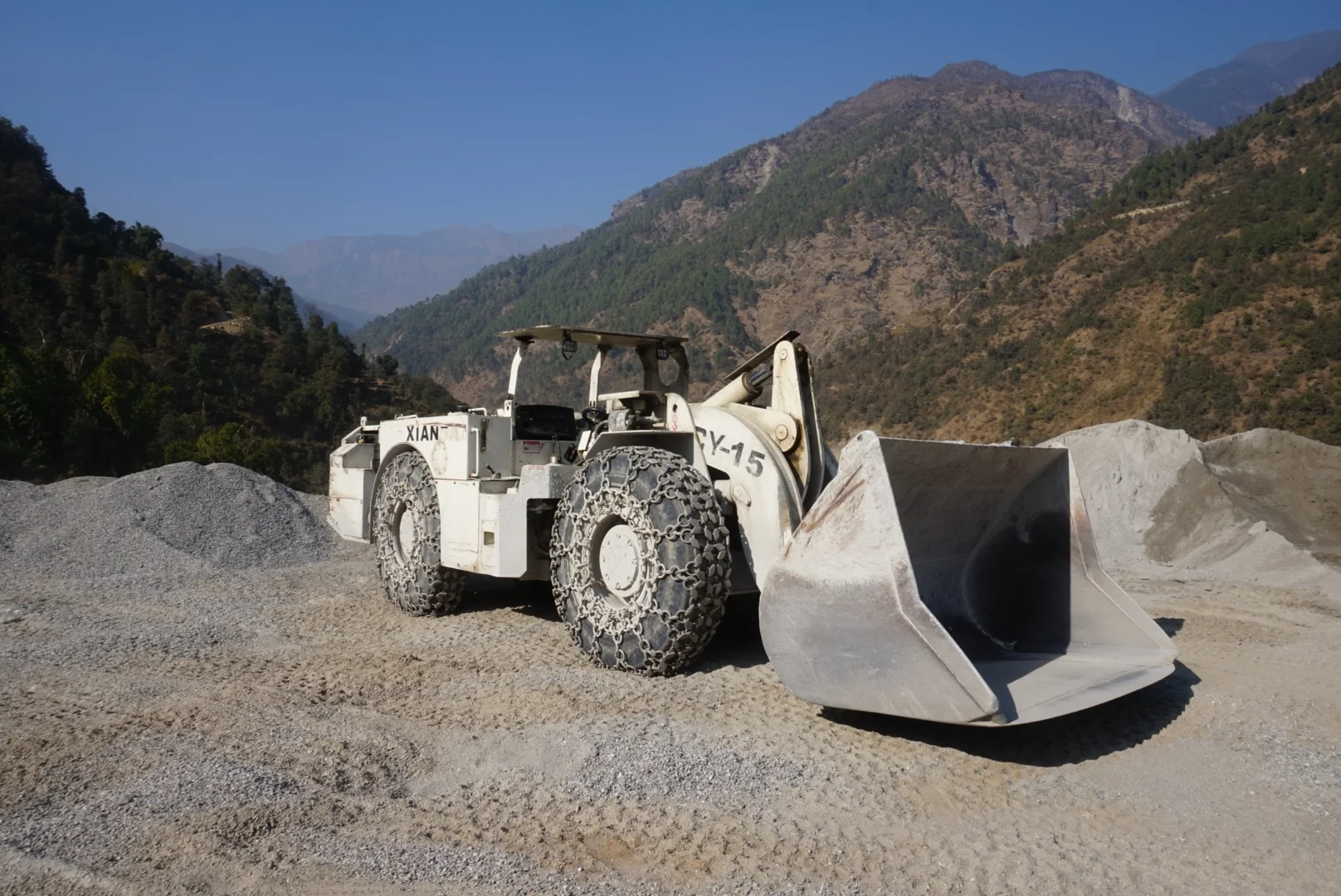

Successful Project


Project in Peru
Project in Vietnam
Project in Kazakhstan
