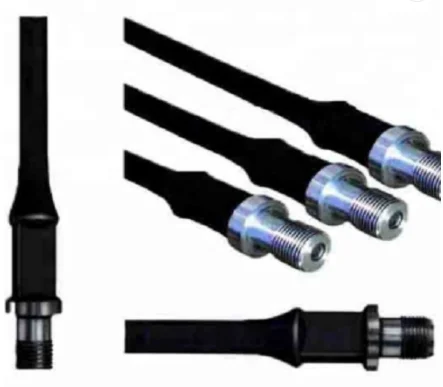

API Direct Connection Forged Hollow Sucker Rods
API Direct Connection Forged Hollow Sucker Rods
API Direct Connection Forged Hollow Sucker Rods
API Direct Connection Forged Hollow Sucker Rods

API Direct Connection Forged Hollow Sucker Rods

Share on (1600145454138):


Price:RUB 7,432.71 - RUB 37,163.55

Quantity:


Product Overview

Description

Product Description





The manufacturing process are used the advanced technologies globally. High-strength and super high strength sucker rod are our main products, in accordance with the standards SY/TSO29, SYTS6272& API Spec 11B. We also produce the specially sucker rod and pony sucker rod ,to filling with our customers’ requirements.

Before the production , the spectrometer are used for the material analysis . The magnetic detector are used to detect the pipes one by one. The Infrared thermometer are applied to monitor the temperature. Others high technologies are also used in the production to ensure the quality.



Mechanical Properties of Type-D Sucker Rods

 Tensile Strength

Yield Strength

Extension Radio 6%

Reduction of cross-section 0%

 Impact Flexibility a KIL/cm2

793~965

>620

> 10

>50

>58.8



 Specifications and Main Dimensions of Sucker Rods

 model

 Body OD (mm)

in Thread Nominal

Shoulder Face OD(mm0

Wrench Hat width(mm)

Length mm/ft

5/8

16

1 5/16

31.8

22.2

7620/25
 8000/26
9140/30

3/4

19

1 1/16

38.1

25.4

7/8

22

1 3/16

41.3

25.4

1

25

1 3/8

50.8

33.3



Specifications and Main Dimensions of Sub couplings

model

Thread Nominal in

OD mm

Length mm/in

class

YJG5/8”— -3/4”

1 5/16 —1 1/16

41.3





YJG3/4”— -7/8“

1 1/16 —1 3/16 101.6/4

T

46.0

T

YJG7/8”— -1”

1 3/16 —1 3/8

5.6







Mechanical Properties of Type HY Sucker Rods

Tensile Strength o b Mpa

 Rigidity

OD mm

Surface residual press stress Mpa

HRC Surface Rigidity

HB Center Rigidity

ct 0.1 MPa

Circle Period

980-1176

>42

>224

540

> 1x 106

<-200
