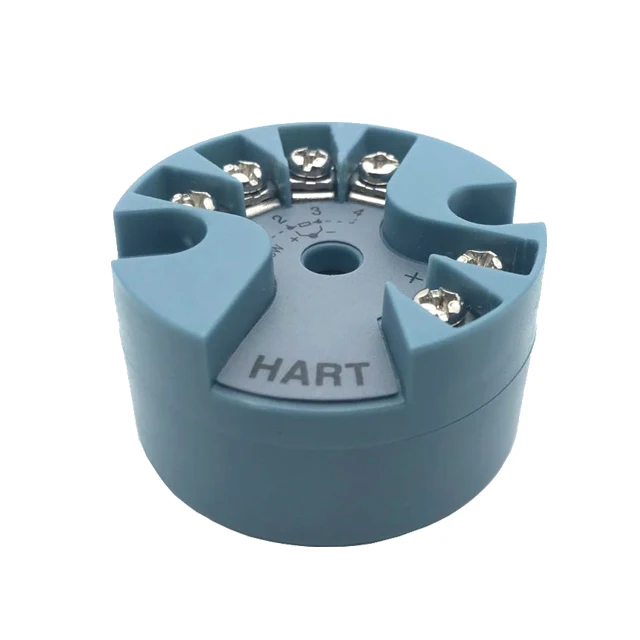

H648 RTD / TC HART pt100 temperature transmitter 4 20ma with thermowell
- Category: Temperature Instruments >>>
- Supplier: Beijing Zhongruizhicheng Technology Co. Ltd.
Share on (1600146384591):
Product Overview
Description
H648 HART temperature transmitter module
Appliction | |
Used for | RTD, TC, Ohm, mV |
Specifications | |
Power supply: | 12-32VDC |
Output: | 4-20 mA with HART (2-WIRE) |
Stability: | 0.01°C (RTD), 0.1°C(E J K N T) 0.2°C(B R S) |
Accuracy: | 0.01°C(RTD) 0.5°C(E J K N T) 1.0°C(B R S) |
Load resistance | ≤ (U-10)/0.22 |
Relative humidity: | 10%-90%RH |
Operating temperature | -40°C~+85°C |
Dimension: | Diameter Φ=44mm |
Mounting hole pitch: | D=33mm |
Weight: | About35g |
Sensor Type RTD(Resistance Thermometer): PT50,PT100,PT500,Pt1000 TC (Thermocouple): E ,J, K, N ,T ,B, R ,S Ohm:0 ~ 500Ω, 0 ~ 4500Ω Millivolt:-120 ~120mV, -1000 ~ 1000Mv | |
Features
High-voltage isolation: As high as 1000V for the isolation voltage between metal capacitance sensor processing circuit and main circuit.
High reliability: Built-in multi-level protection circuit for high reliability. Outstanding EMC performance.
Signal Type | Measurements Range | Minimum Range | Output Accuracy | ||
Thermocouples (TC) | T | -200~400℃ | 25℃ | ±0.4℃/0.2% | |
E | -200~1000℃ | 25℃ | ±0.4℃/0.2% | ||
J | - 210~1200℃ | 25℃ | ±0.4℃/0.2% | ||
K | -200~1372℃ | 25℃ | ±0.4℃/0.2% | ||
N | -200~1300℃ | 25℃ | ±0.4℃/0.2% | ||
R | 0~1768℃ | 100℃ | ±0.8℃/0.2% | ||
S | 0~1768℃ | 100℃ | ±0.8℃/0.2% | ||
B | 150~1820℃ | 100℃ | ±1.0℃/0.2% | ||
mV input | -120~120mV | 10mV | ±10μV /0.2% | ||
-1000~1000mV | 50mV | ±100μV /0.2% | |||
Resistance Temperature (RTD) | Pt50 | -200~850℃ | 10℃ | ±0.15℃/0.2% | |
Pt100 | -200~850℃ | 10℃ | ±0.15℃/0.2% | ||
Pt500 | -200~850℃ | 10℃ | ±0.1℃/0.2% | ||
Pt1000 | -200~850℃ | 10℃ | ±0.1℃/0.2% | ||
Ohm input | 0~500 Ω | 100Ω | ±0.2 Ω/0.2% | ||
0~4500 Ω | 100Ω | ±1.0 Ω/0.2% | |||
Company Information
Beijing ZhongRuiZhiCheng Technology Co., Ltd.
l A professional engineering team with 15 Years HART/5 years Profibus R&D experiences
l 80% Market share in China Mainland market for HART transmitters
l More than 1000k Units shipped per year
l One-stop Solution for various HART/Profibus transmitters
l Quick response in goods supply and post-sales support
l Globally distributed customers including China Mainland, Korea, India, America, Europe, etc
3 type color:
Size
Software Page:
Certifications
FAQ
1,Customer: i want buy the samples to test, it is ok?
Helen: of course, not free sample, but when the next order, we will return the samples money to your.
2,Customer: when will you do the shippment after my payment ?
Helen: we have the in stock, when we received the payment, i will ASAP send to your,(through DHL/ UPS/ TNT/DEDEX,etc)
3,Customer: How to pay?
Helen: the Western union, Paypal, person account, TT ,and so on.
Samples small quantity are avaliable at
any time Welcome to contact us!
