High Temperature Data Logger Log150 (60796603448)

Share on:


Price:$600.00 - $700.00
Price in USD:Details

Quantity:


Product Overview

Description

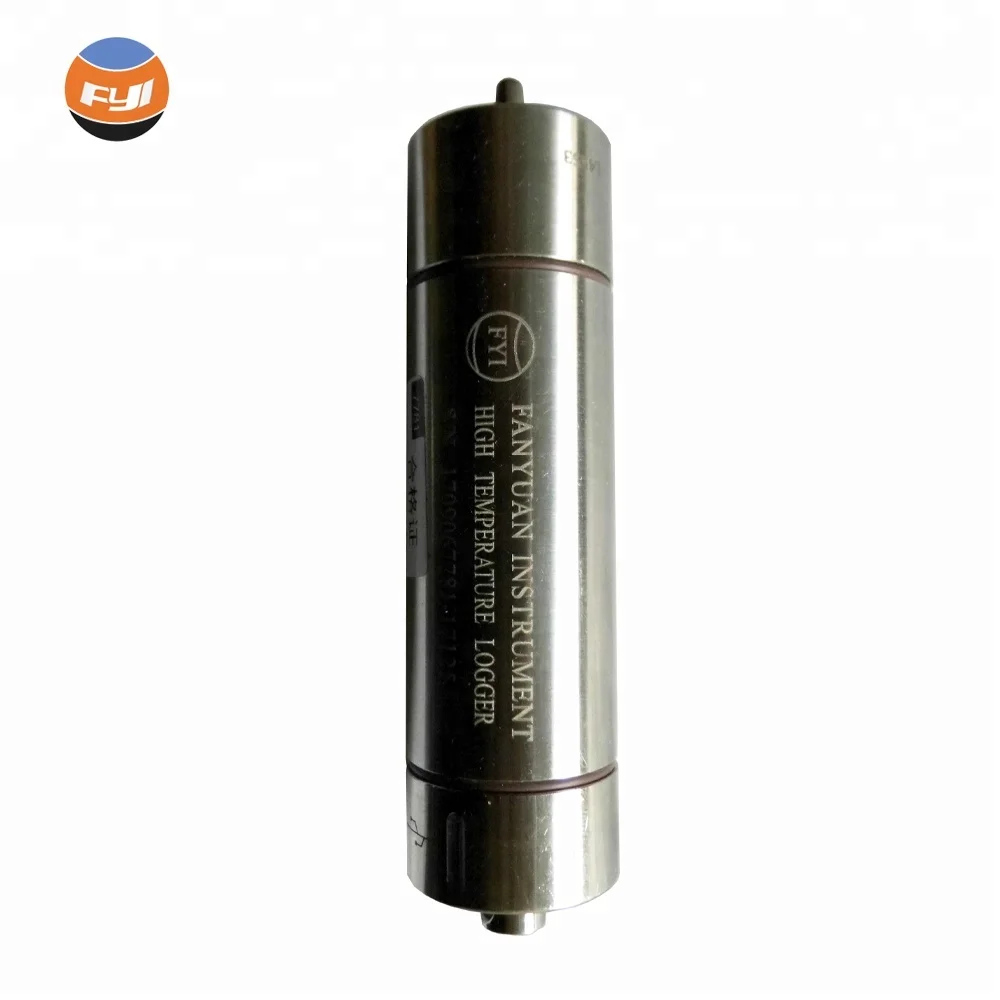

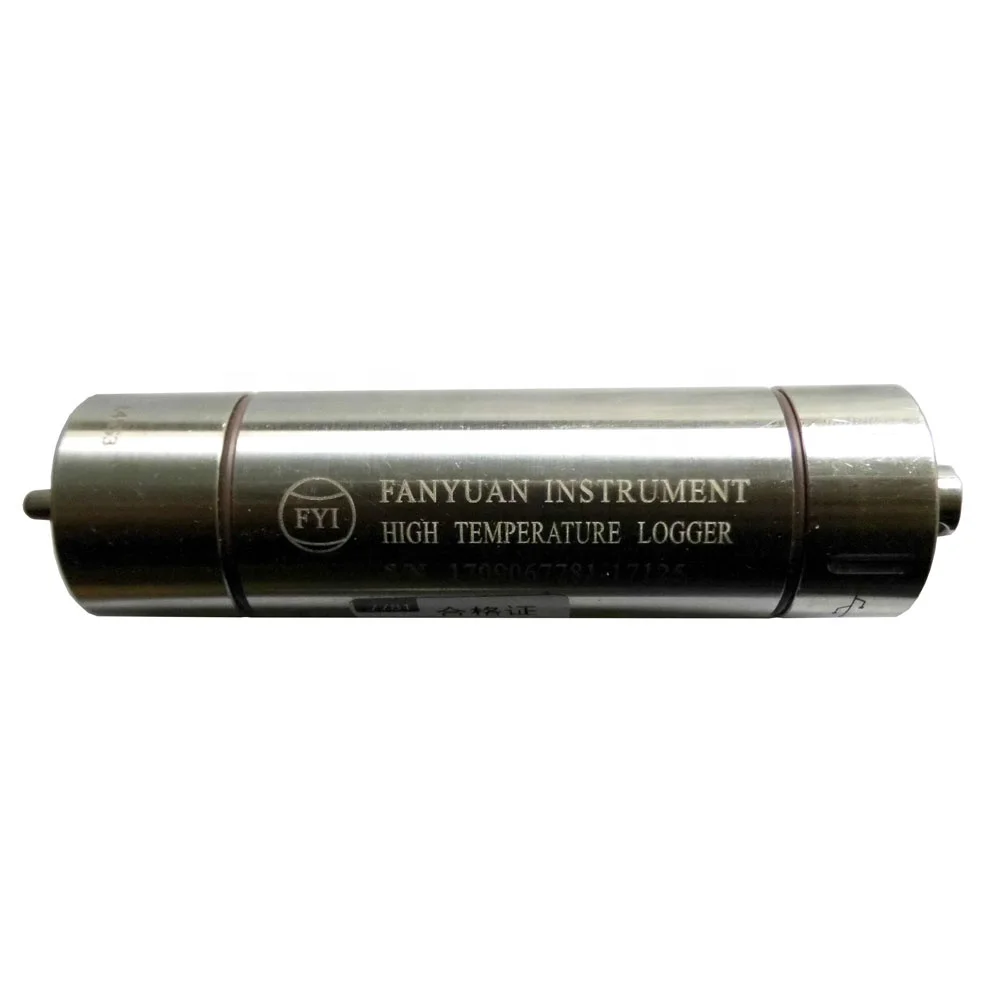

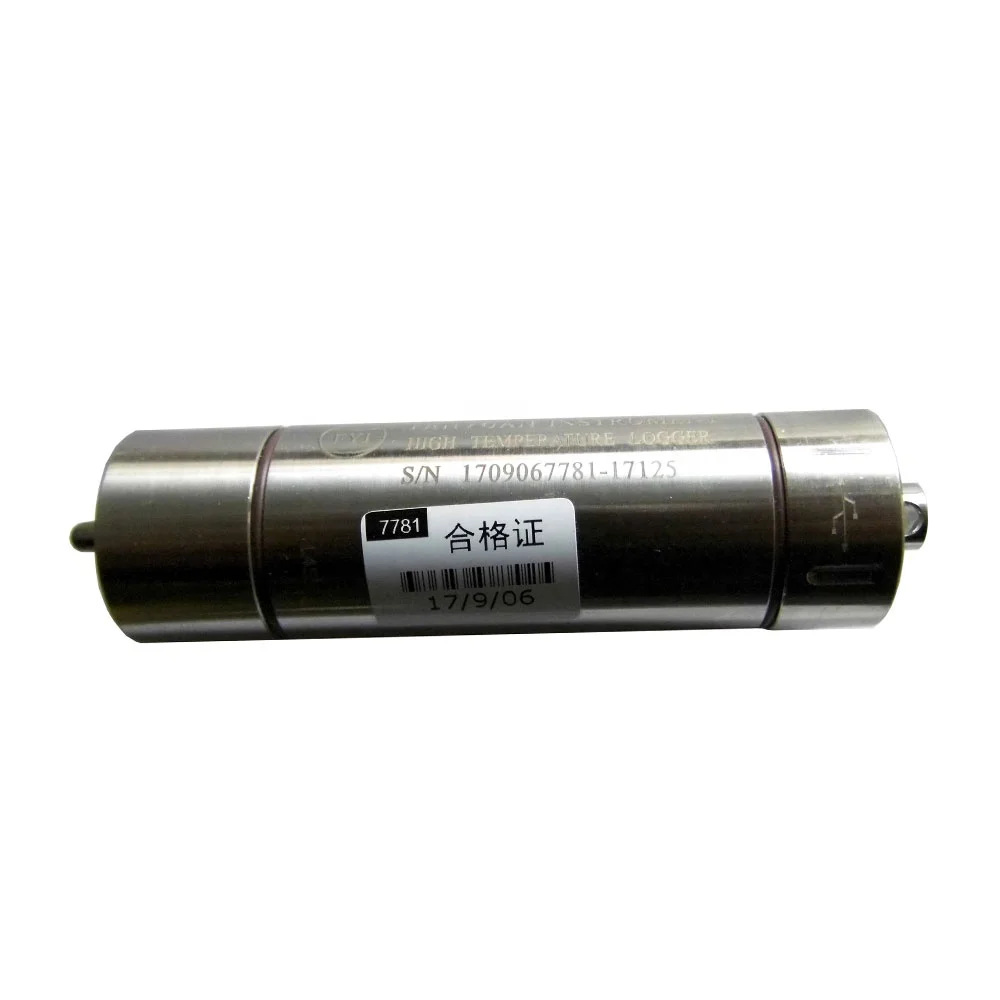

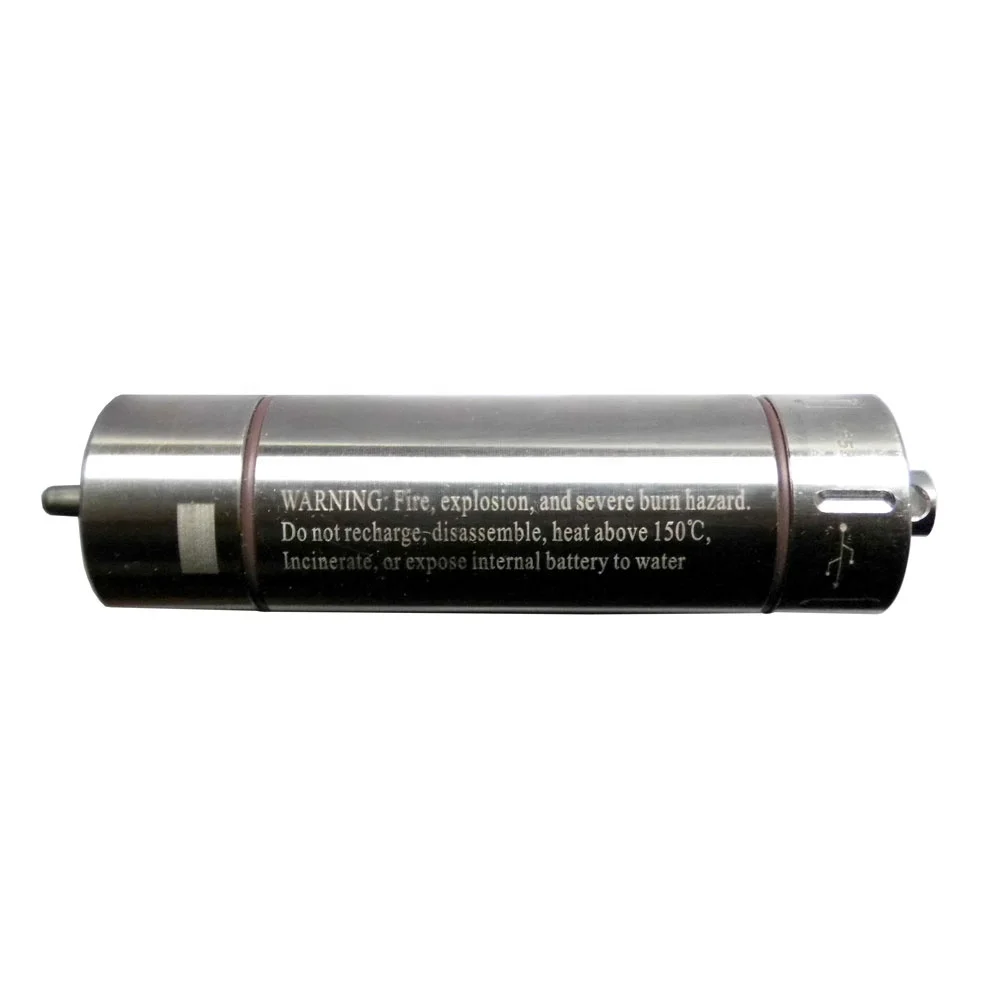

High Temperature Data Logger Log150



Product Description







Application of High Temperature Data Logger:


High Temperature Data Logger is especially designed for measuring and recording temperature from -50ºC to +150ºC with an accuracy of ±0.5ºC on occasions like validating the dye liquor temperature in dyeing machines.





Through precise measuring and recording, you can get the practical temperature data and curve during dyeing process so as to better help enterprises improve quality management.





This stainless steel device is submersible. To use, simply place it in the high temperature and high pressure liquid, then use the software to start, stop and download the logger. Graphical, tabular and statistical data is provided for analysis and can also be exported to Excel/Word automatically.






Details & Features


  Pictures of High Temperature Data Logger software















Features of High Temperature Data Logger:





1         Miniature & Self-contained;


2          Rugged water-proof housing;


3         Rigid external 10mm length probe, capable of quicker response rate than built-in probe;


4         User replaceable battery;


5          Large storage capacity, can store up to 32,130 readings;


6          USB connection, strong compatibility;


7         Real-time temperature acquisition, monitoring and alarming function;


8         Data can be exported to Excel/Word and saved permanently;


9         Battery life indicator;



Specifications







Key Specification of High Temperature Data Logger:





















































































Sensor






Semiconductor






Measurement range






-50ºC ~ +150ºC






Temperature resolution






0.01ºC






Temperature accuracy






±0.5ºC






Data capacity






32,130 readings






Reading rate



1 reading every second up to 1 reading every 7 days, chosen by the user






Real-time recording






Used with PC to monitor and record data in real time






Calibration






Digital calibration through software






Data format






Date and time stamped ºC, ºF,  K






Time accuracy






±1 minute/month at 20ºC






Computer interface






USB






Software






Logview5






Operating system






Windows 2K/XP/Vista/7






Operating environment






-50ºC~+140ºC






Battery type






3.6V High-temperature lithium battery; user replaceable






Battery life






2 years typical






 Weight of high temperature data logger






450g






 Dimension






Φ25mm×100mm (Probe length: 10mm)






Housing material






316 Stainless Steel
