Product Overview
Description

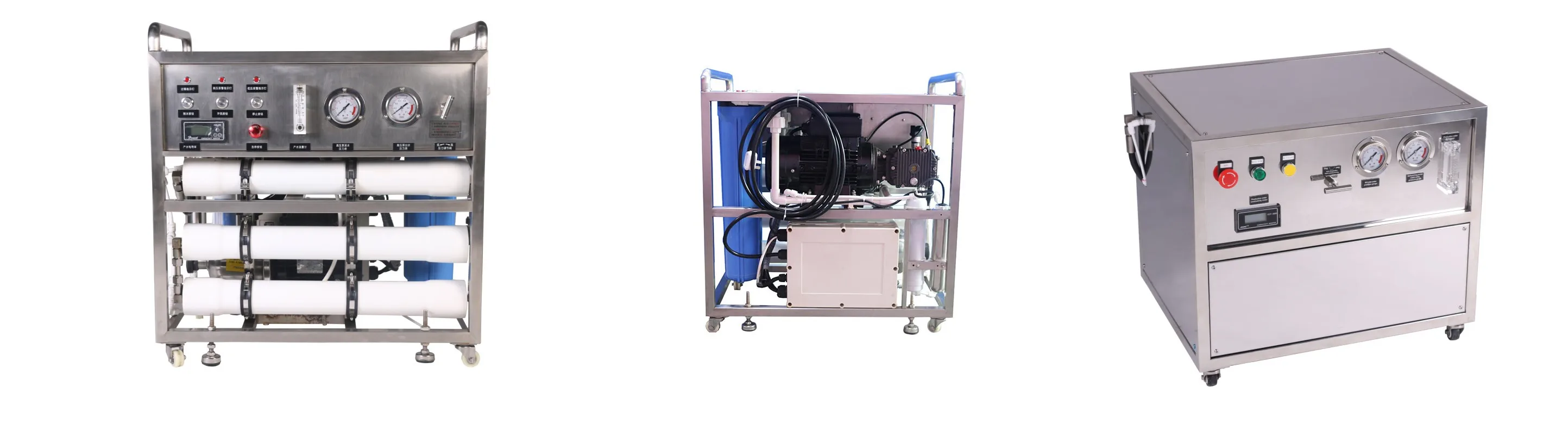

Horizontal type 10000LPD Seawater desalination RO plant for Boat desalinator Solar water filter
Flow chart: Mesh filter - Feed pump - 2pcs of 20inch cartridge filter - High pressure pump - RO membrane

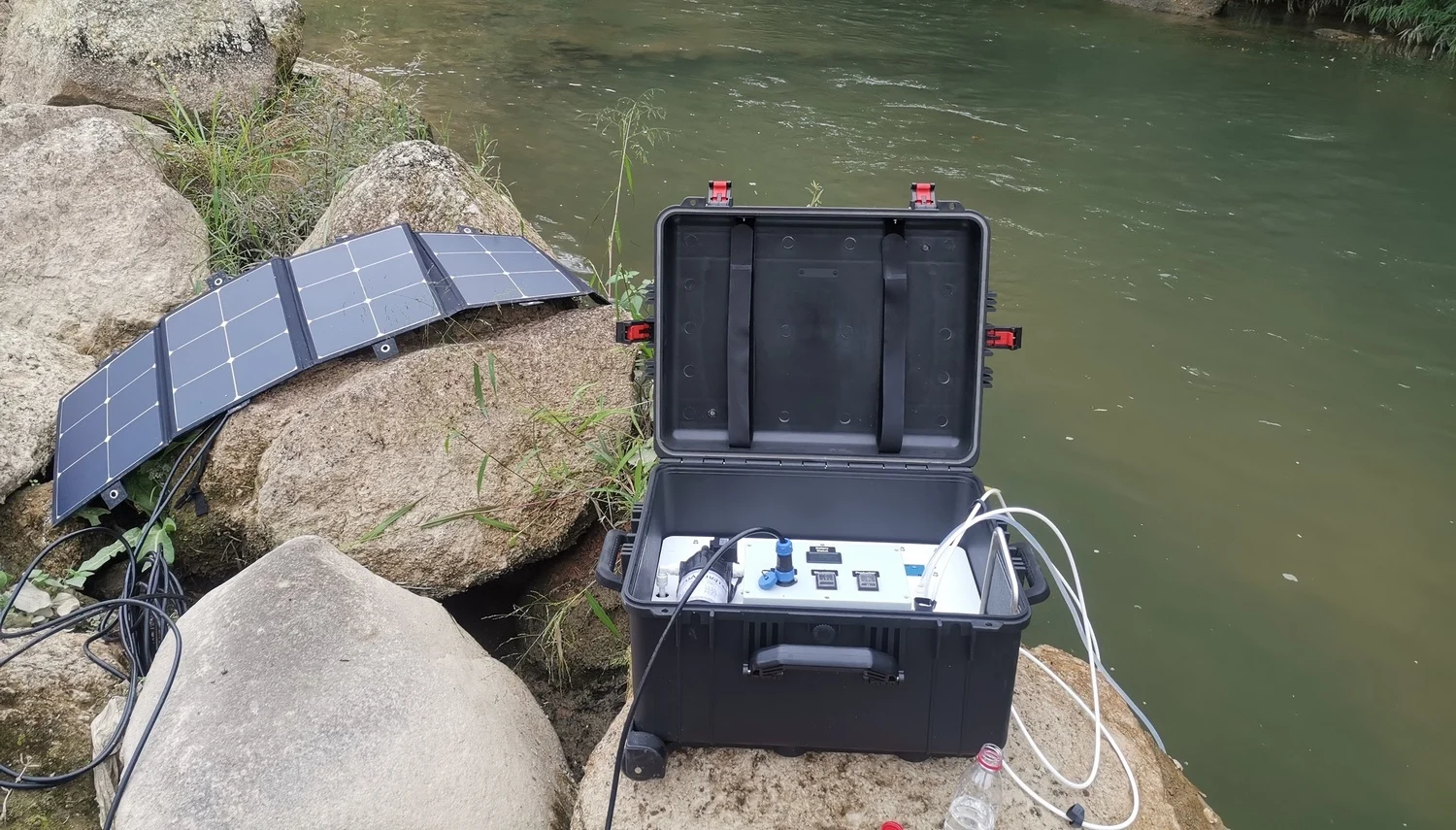

YOUBER Seawater desalination RO plant for Boat desalinator Solar water filter 24 volt
Model: YB-SW200L
Flow rate: 8-12L/H
Inlet TDS: ≤35000PPM
Output water quality: ≤600PPM meets drinking water standards.
Power: AC100-240V, 50-60Hz, DC24V. 300W
Filtration: bottom valve+suction pump+PP filter+HP pump+SWRO membrane
Main machine size: 610×480×330 mm, 23KG
Flow rate: 8-12L/H
Inlet TDS: ≤35000PPM
Output water quality: ≤600PPM meets drinking water standards.
Power: AC100-240V, 50-60Hz, DC24V. 300W
Filtration: bottom valve+suction pump+PP filter+HP pump+SWRO membrane
Main machine size: 610×480×330 mm, 23KG

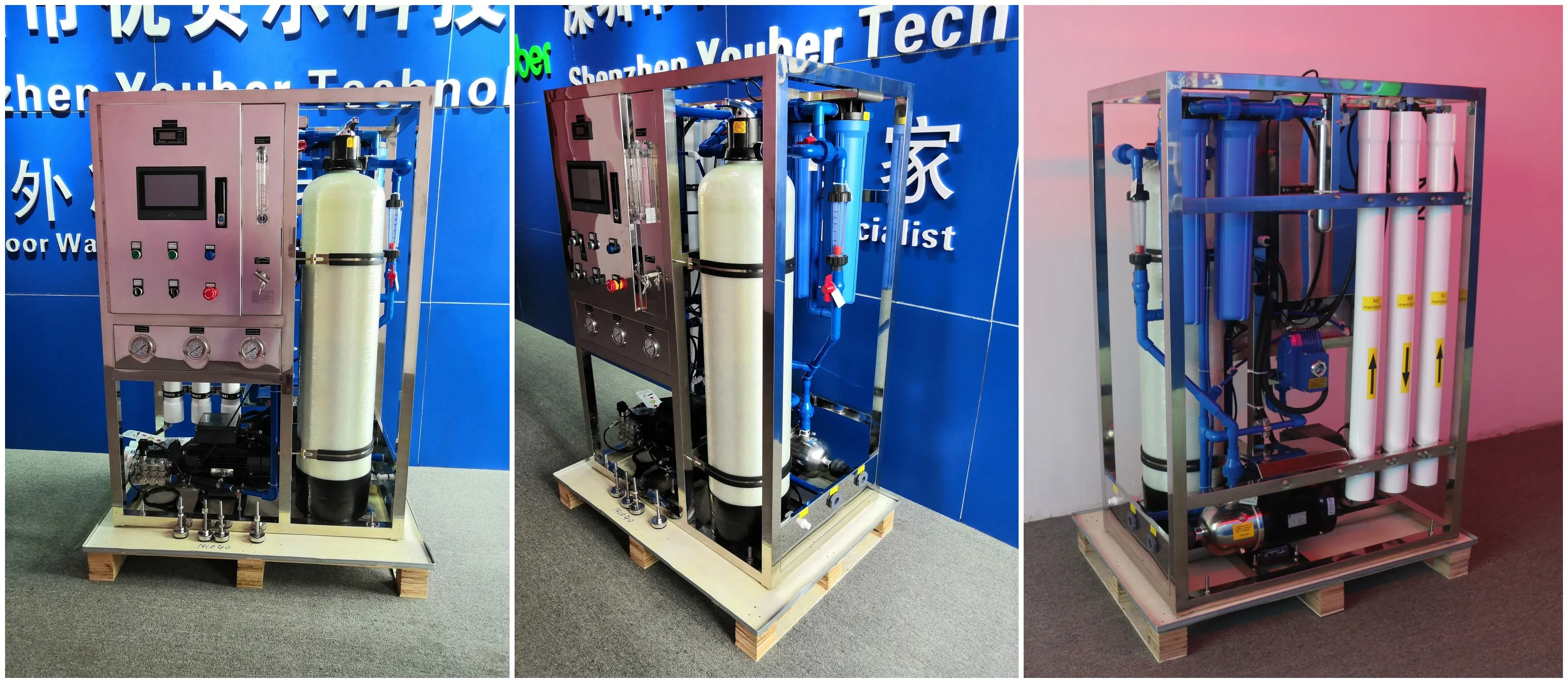

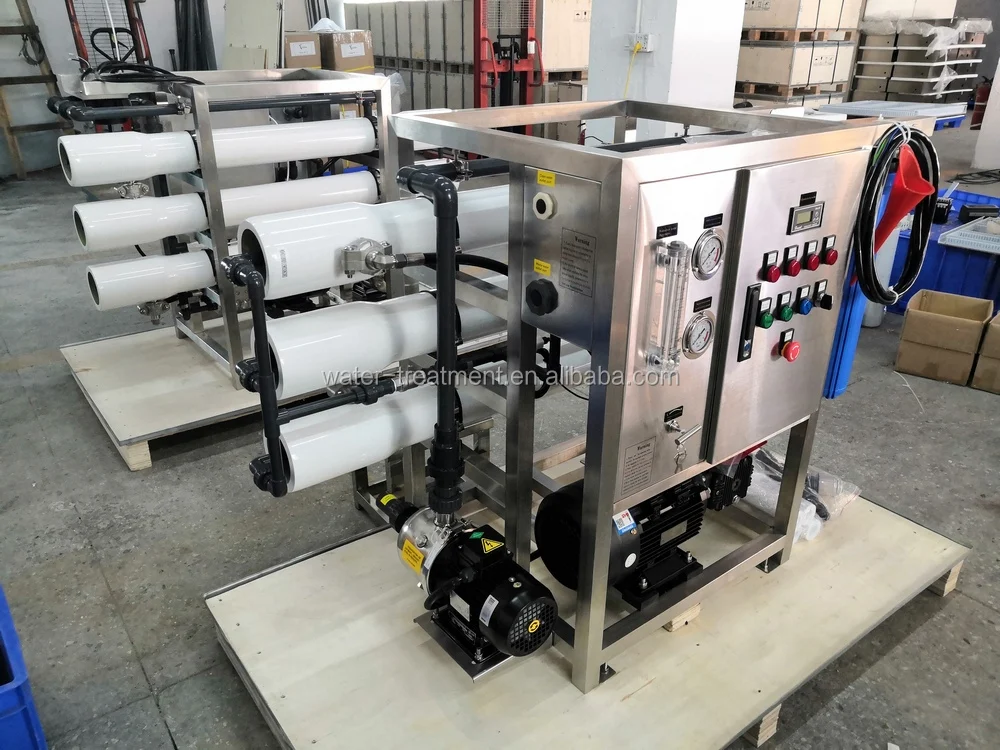

Modular Seawater desalination RO plant for Boat desalinator Solar water filter
Flow chart: Mesh filter - Feed pump - 2pcs of PP cartridge filter - High pressure pump - RO membrane
Model: YB-SWRO700-2, YB-SWRO1400-2, YB-SWRO2000-2
The rated flow: 29L/H, 58L/H, 82L/H
Recovery rate: 4%, 8%, 12%
Applicable power: AC110-240V 50/60HZ, 1 phase/3 phase; Power : 1.9KW
Inlet water TDS: <45000ppm; Freshwater TDS :<600ppm
Working pressure : <6Mpa Working temperature : 5-45℃
Inlet water residual chlorine: <0.1ppm Inlet water oil and grease: <0.1ppm
Inlet water turbidity: <2NTU Inlet water PH: Neutral
Inlet water COD: ≤10ppm Inlet water BOD: ≤5ppm
Equipment specification: 71*46.5*63 (cm) Equipment net weight: 70-80Kg
Packing specification: 86*63*80 (cm) Packing gross weight: 90-100Kg
Recovery rate: 4%, 8%, 12%
Applicable power: AC110-240V 50/60HZ, 1 phase/3 phase; Power : 1.9KW
Inlet water TDS: <45000ppm; Freshwater TDS :<600ppm
Working pressure : <6Mpa Working temperature : 5-45℃
Inlet water residual chlorine: <0.1ppm Inlet water oil and grease: <0.1ppm
Inlet water turbidity: <2NTU Inlet water PH: Neutral
Inlet water COD: ≤10ppm Inlet water BOD: ≤5ppm
Equipment specification: 71*46.5*63 (cm) Equipment net weight: 70-80Kg
Packing specification: 86*63*80 (cm) Packing gross weight: 90-100Kg
Model: YB-SWRO3000-2, YB-SWRO4000-2, YB-SWRO5000-2
The rated flow: 125L/H, 165L/H, 205L/H
Recovery rate: 15%, 23%, 29%
Applicable power: AC110-240V 50/60HZ, 1 phase/3 phase; Power : 2.8KW
Inlet water TDS: <45000ppm; Freshwater TDS :<600ppm
Working pressure : <6Mpa Working temperature : 5-45℃
Inlet water residual chlorine: <0.1ppm Inlet water oil and grease: <0.1ppm
Inlet water turbidity: <2NTU Inlet water PH: Neutral
Inlet water COD: ≤10ppm Inlet water BOD: ≤5ppm
Equipment specification: 97*60*137 (cm) Equipment net weight: 180-23Kg
Packing specification: 110*77*165 (cm) Packing gross weight: 200-250Kg
Recovery rate: 15%, 23%, 29%
Applicable power: AC110-240V 50/60HZ, 1 phase/3 phase; Power : 2.8KW
Inlet water TDS: <45000ppm; Freshwater TDS :<600ppm
Working pressure : <6Mpa Working temperature : 5-45℃
Inlet water residual chlorine: <0.1ppm Inlet water oil and grease: <0.1ppm
Inlet water turbidity: <2NTU Inlet water PH: Neutral
Inlet water COD: ≤10ppm Inlet water BOD: ≤5ppm
Equipment specification: 97*60*137 (cm) Equipment net weight: 180-23Kg
Packing specification: 110*77*165 (cm) Packing gross weight: 200-250Kg
Model: YB-SWRO7000-2, YB-SWRO10000-2, YB-SWRO13000-2
The rated flow: 290L/H, 415L/H, 540L/H
Recovery rate: 20%, 25%, 30%
Applicable power: AC220-440V 50/60HZ, 3 phases; Power : 4.6KW
Inlet water TDS: <45000ppm; Freshwater TDS :<600ppm
Working pressure : <6Mpa Working temperature : 5-45℃
Inlet water residual chlorine: <0.1ppm Inlet water oil and grease: <0.1ppm
Inlet water turbidity: <2NTU Inlet water PH: Neutral
Inlet water COD: ≤10ppm Inlet water BOD: ≤5ppm
Equipment specification: 109*80*156 (cm) Equipment net weight: 340-380Kg
Packing specification: 124*98*184 (cm) Packing gross weight: 370-400Kg
Ion exchange device(Softener):
Recovery rate: 20%, 25%, 30%
Applicable power: AC220-440V 50/60HZ, 3 phases; Power : 4.6KW
Inlet water TDS: <45000ppm; Freshwater TDS :<600ppm
Working pressure : <6Mpa Working temperature : 5-45℃
Inlet water residual chlorine: <0.1ppm Inlet water oil and grease: <0.1ppm
Inlet water turbidity: <2NTU Inlet water PH: Neutral
Inlet water COD: ≤10ppm Inlet water BOD: ≤5ppm
Equipment specification: 109*80*156 (cm) Equipment net weight: 340-380Kg
Packing specification: 124*98*184 (cm) Packing gross weight: 370-400Kg

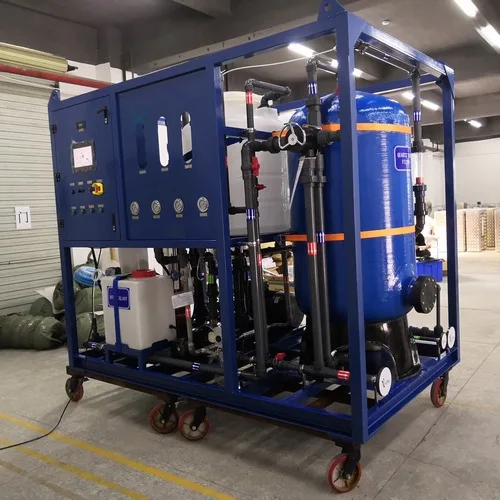

YOUBER 30-36Ton/day Seawater desalination RO plant for Boat desalinator Solar water filter Advantages & Characteristics:
☞ Auto operating by pressing one key, easy and convenient to operate. Auto flushing.
☞ PLC automatic control, more integrated and convenient.
☞ SEKO dosing pump, accurate dosing, reducing the fouling of the seawater RO membrane.
☞ The machine sets up high and low voltage protection to prevent the machine from break downing.
☞ USA imported DOW brand seawater RO membrane, max salt removing rate can reach up to 99.7%.
☞ All of the high pressure fittings adopt SS316 material, safe and corrosion resistant.
☞Customized end side port FRP membrane housing, simple connection, safe and reliable.
☞ High quality SS316L high pressure pump, USA imported CAT brand or Italy imported for option, safe and corrosion resistant, running more stable.

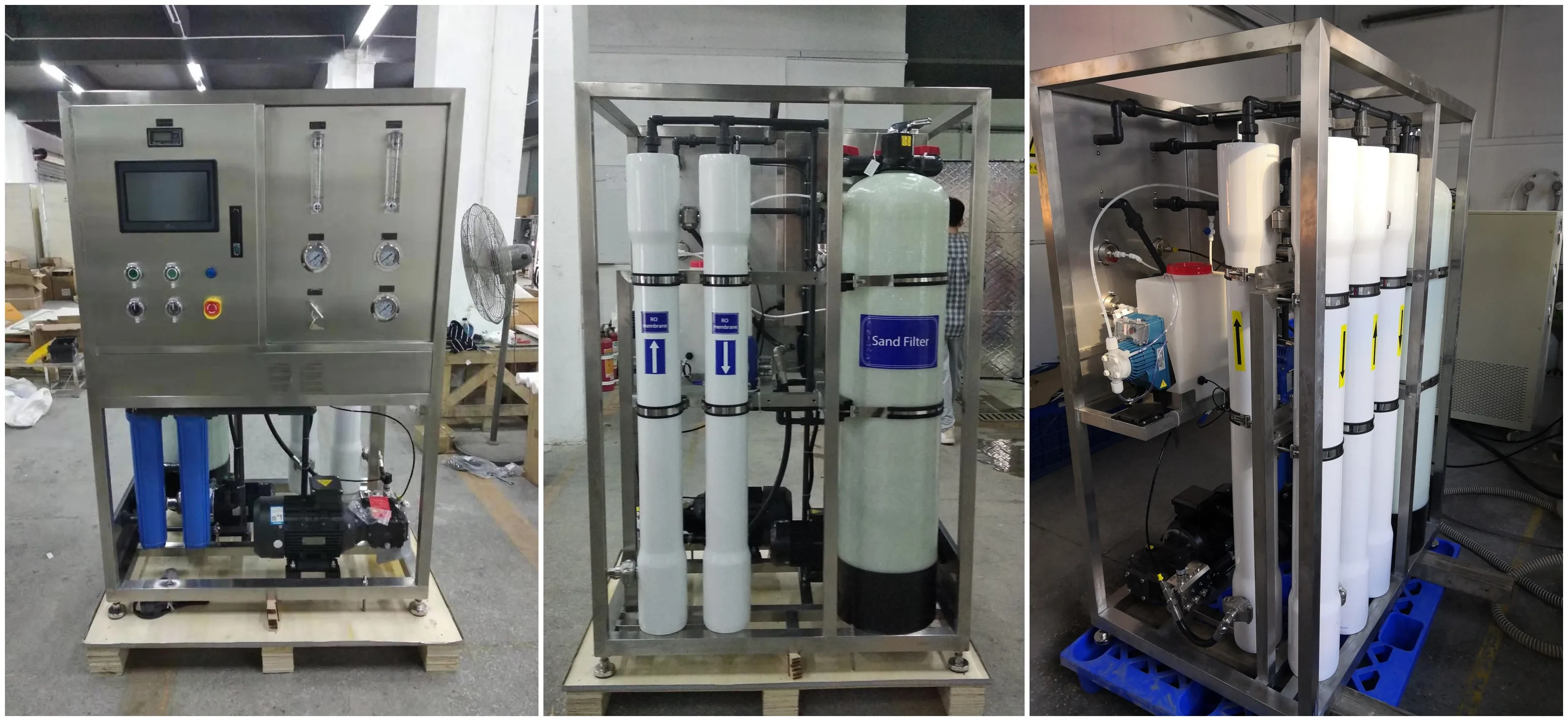

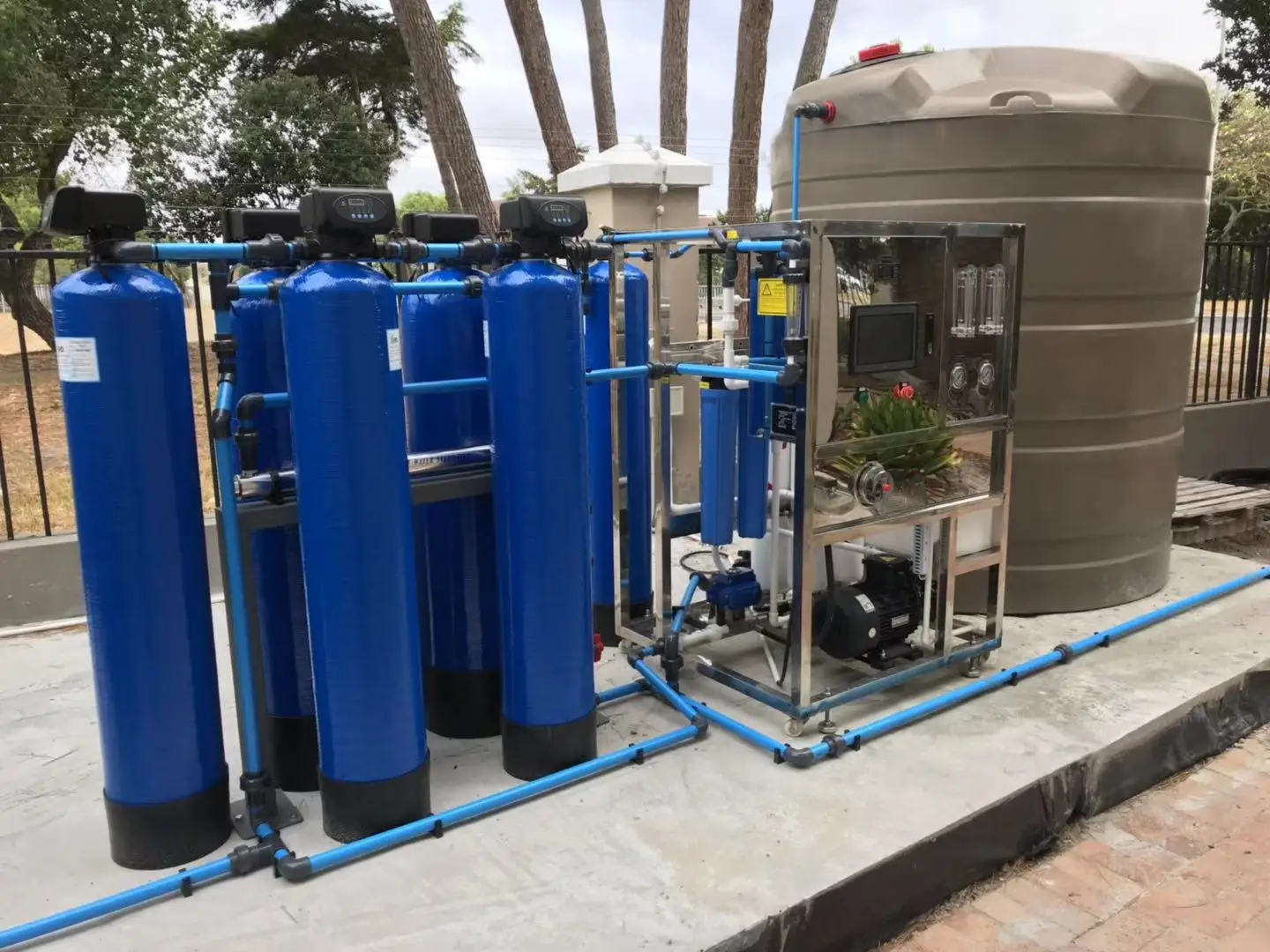

Quartz sand filter:
This device is used in the first filtration of water treatment. It consists in 304stainless steel. There is quartz sand inside. It divides coarse sand, medium sand and fine sand. It can remove dirty and other big particles.
Activated carbon filter:
Activated carbon filter is used in the second filtration of water treatment and filter medium is activated carbon. It can adsorb Hg, plum bum and other heavy metal, organic contamination, odor and improve water sense.
Ion exchange device(Softener):
The ion exchange soften machine is used for cutting down hardness of water.

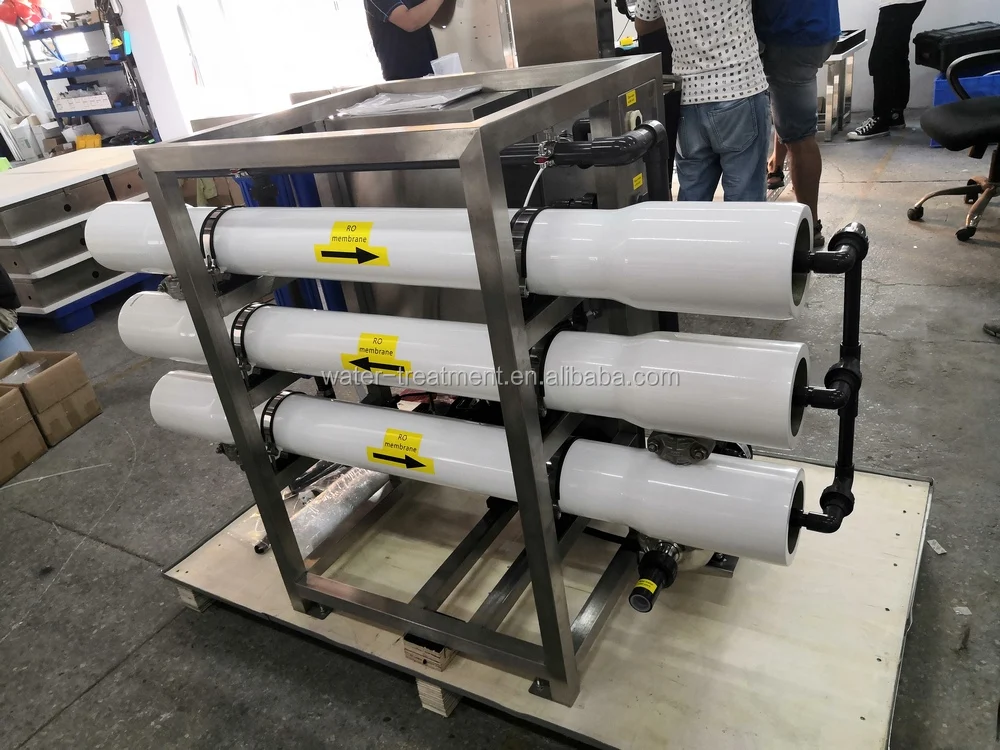

Seawater RO membrane:
Reverse Osmosis is the device that uses semi-permeable membrane under the pressure differences function to make the salt water desalination and purification. It is on the contrary of natural direction, so it is called reverse osmosis. It can remove more than 97% solubility of salts in the water and more than 99% of the gel, micro-organisms, and particulate organic matter and so on. It is the first choice equipment of modern water and purified water. RO usually has I and II stages.
Precision Filter:
This equipment uses high polymer material through special craft to make the asymmetric membrane, under the pressure function, the original fluid flows outside the membrane or inside the membrane, in which the high polymer material, as well as the colloid granule is prevented in the membrane surface, they are carried off by circulatory flowing original fluid and then become the concentrated solution, thus achieve the goal of material separation, concentration and depuration.
YOUBER Seawater desalination RO plant for Boat desalinator Solar water filter Application

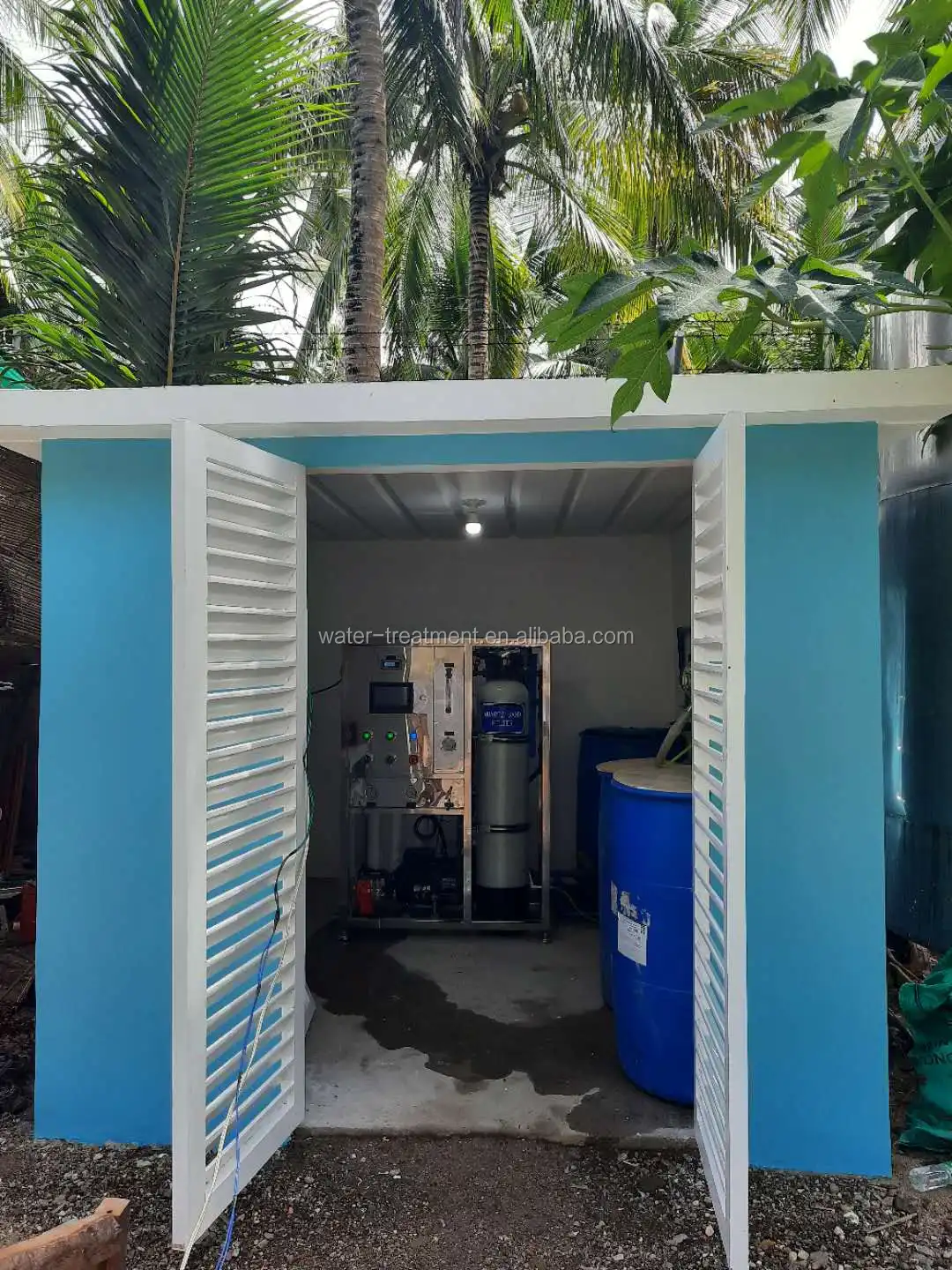

★ Sea water brackish water treatment machinery can be used for seaside villa, seaside villa house drinking water use;

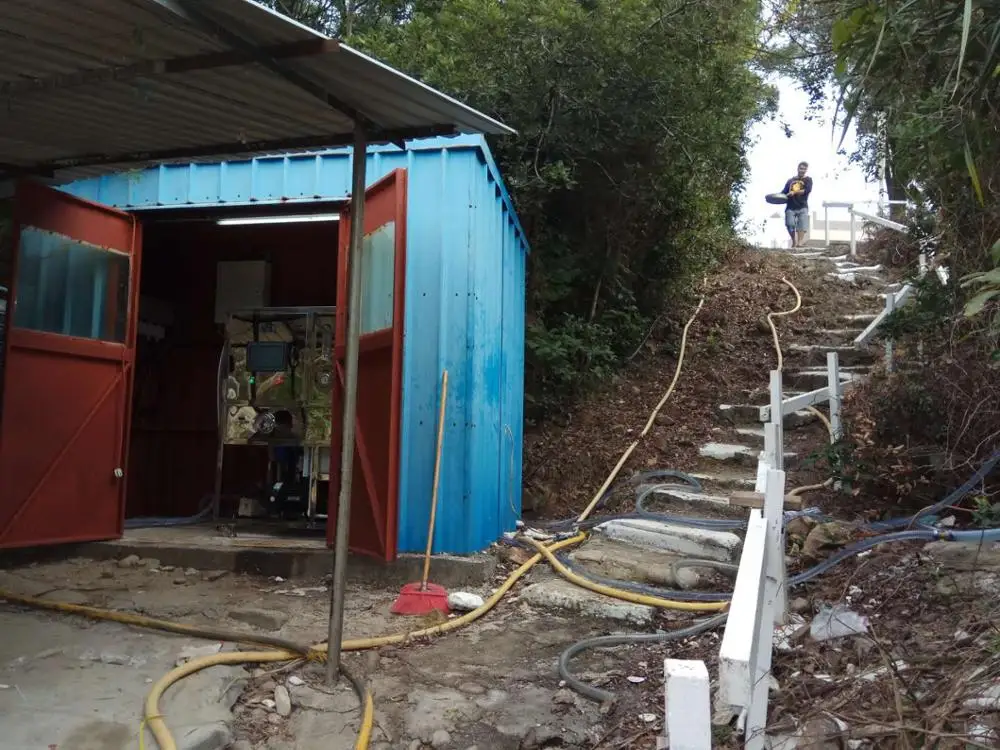

★ Sea water brackish water treatment machinery can be used for island family, island restaurant, island hotel drinking water use; inflatable water islands and island drinking water purifier;
★ Sea water brackish water treatment machinery can be used for salty alkali lake, rivers in some middle east regions drinking water;
★ Sea water brackish water treatment machinery can be used for desert underground water drinking water use, underground water purifier;

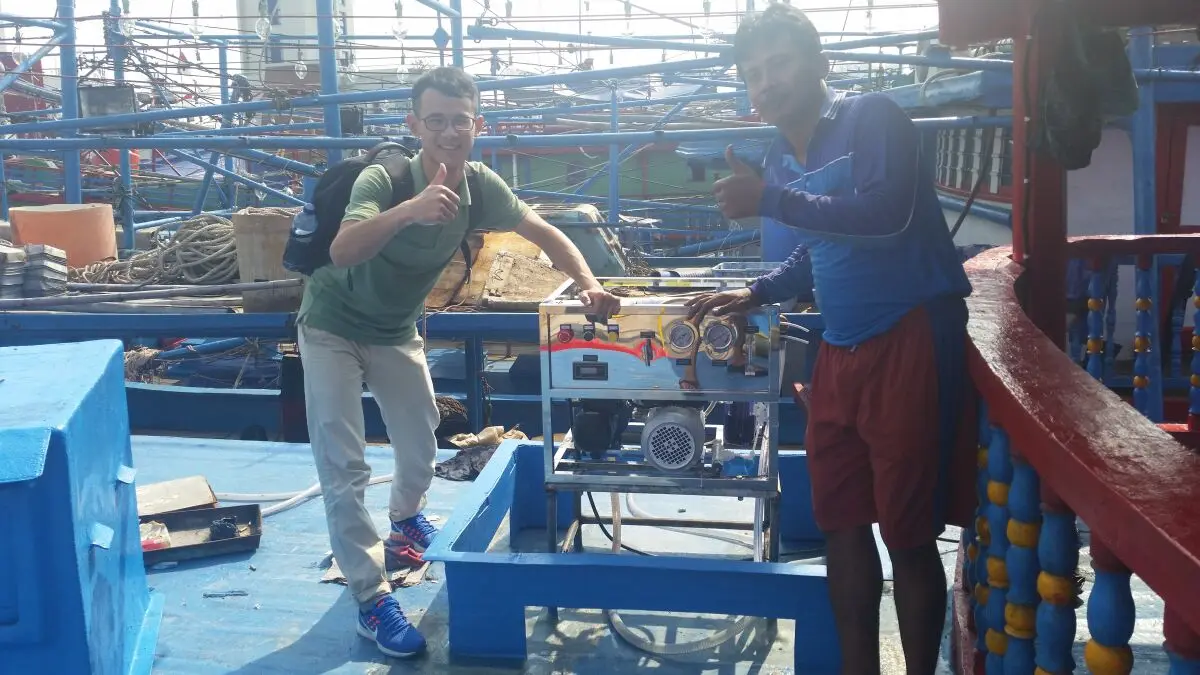

★ Sea water brackish water treatment machinery can be used for marine drinking water use, marine boats, marine ships, army boats, army ships, marine lights boats, marine drinking water maker;
YOUBER Seawater desalination RO plant for Boat desalinator Solar water filter Advantages:

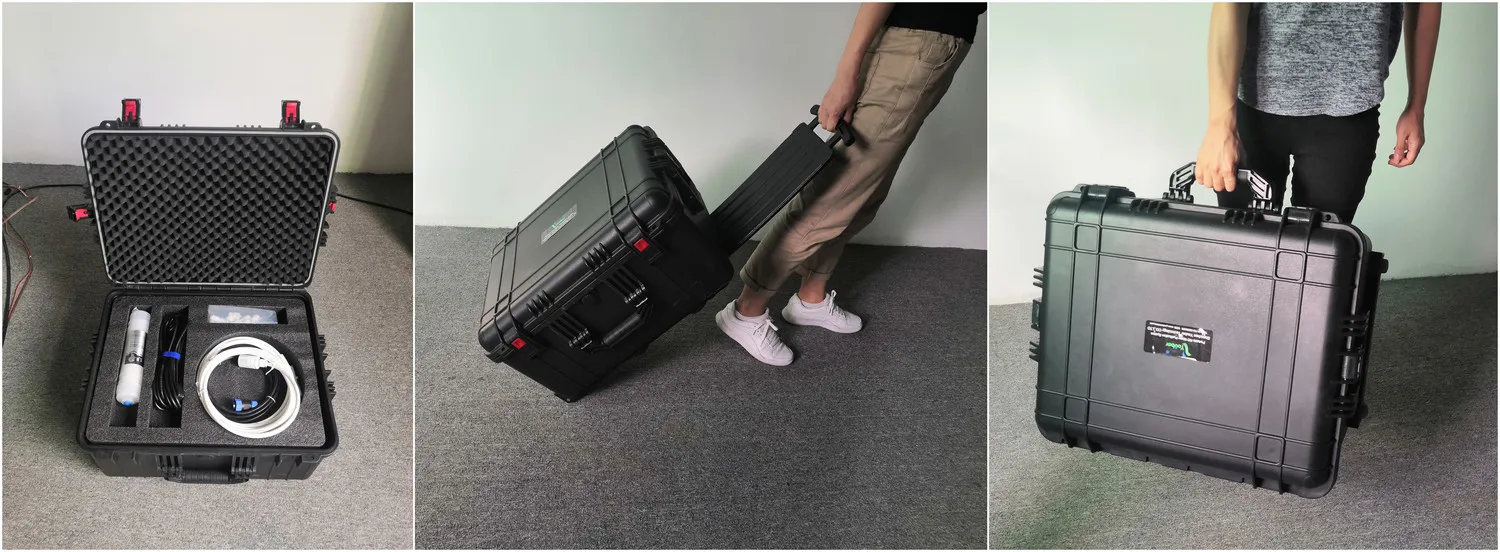

Filter seawater / salty water into fresh drinking water. Portable Seawater Desalination Device, let you in a variety of special environment, such as geological exploration, military field, deep sea fishing boats, yachts, transport ships, islands, resorts and other regions have fresh water, to provide you with clean and safe drinking water.
