timber veneer peeling machine manufactory for plywoood
- Category: Woodworking Machinery >>>
- Supplier: WEIHAI BAISHENGYUAN INDUSTRY CO. LTD.
Share on (1600148238043):
Product Overview
Description
Product Description

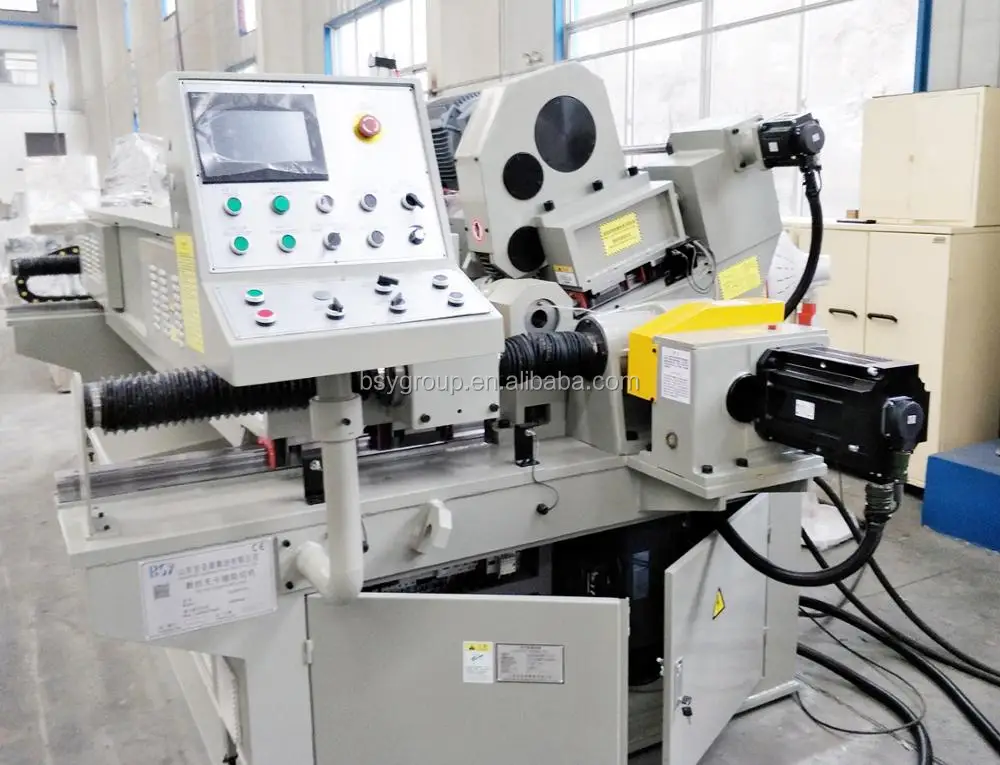

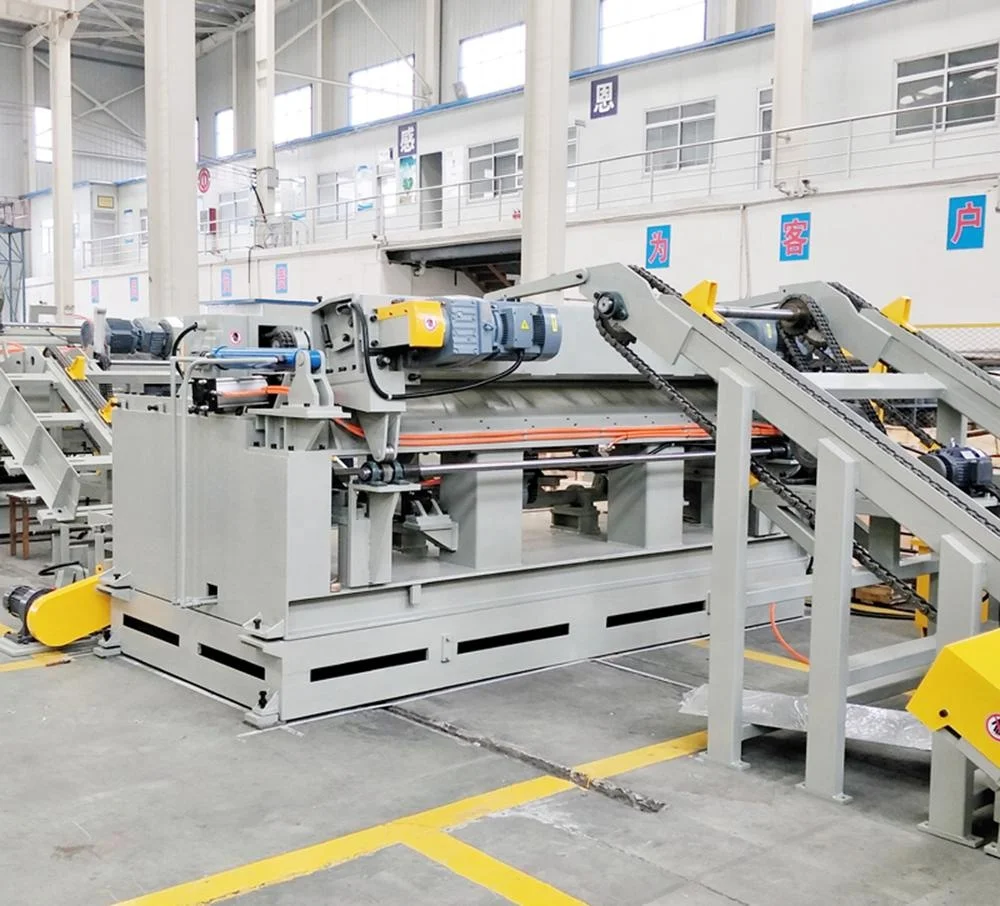

timber veneer peeling machine
timber veneer peeling machine is the very important machine in the plywood produce.
timber veneer peeling machine mainly used for the core veneer produce, but now our machine also can used for the face veneer
produce, because they have the following features:
1) With the Mitsubishi system
2) With the electric back angle
3) Automatic adjust the knife gate
4) The difference is + 5 decimillimeter
5) Servo motor bring ball screw to feed, linear guide
6) With the knife box which make the disassemble very easy.
7) Hydraulic press the knife
8) Gear transmission.
timber veneer peeling machine mainly used for the core veneer produce, but now our machine also can used for the face veneer
produce, because they have the following features:
1) With the Mitsubishi system
2) With the electric back angle
3) Automatic adjust the knife gate
4) The difference is + 5 decimillimeter
5) Servo motor bring ball screw to feed, linear guide
6) With the knife box which make the disassemble very easy.
7) Hydraulic press the knife
8) Gear transmission.
Specification
Model | SL2600/5E | SL1350/5E | SL2600/5B | SL1350/5B |
Working diameter (mm) | Φ 480 | Φ 480 | Φ 480 | Φ 480 |
Max. working length (mm) | 2600 | 1350 | 2600 | 1350 |
Veneer thickness (mm) | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 |
Log-core diameter (mm) | Φ60 | Φ60 | Φ40 | Φ40 |
Veneer output speed (m/min) | 30-80 | 30-80 | 30-80 | 30-80 |
Total motor power (kw) | 60 | 42 | 58 | 40 |
Overall dimensions (mm) | 4600X2200X1900 | 3350×2200×1900 | 4750X2150X1870 | 3500×2150×1870 |
Weight (kg) | 13500 | 12000 | 11500 | 10000 |

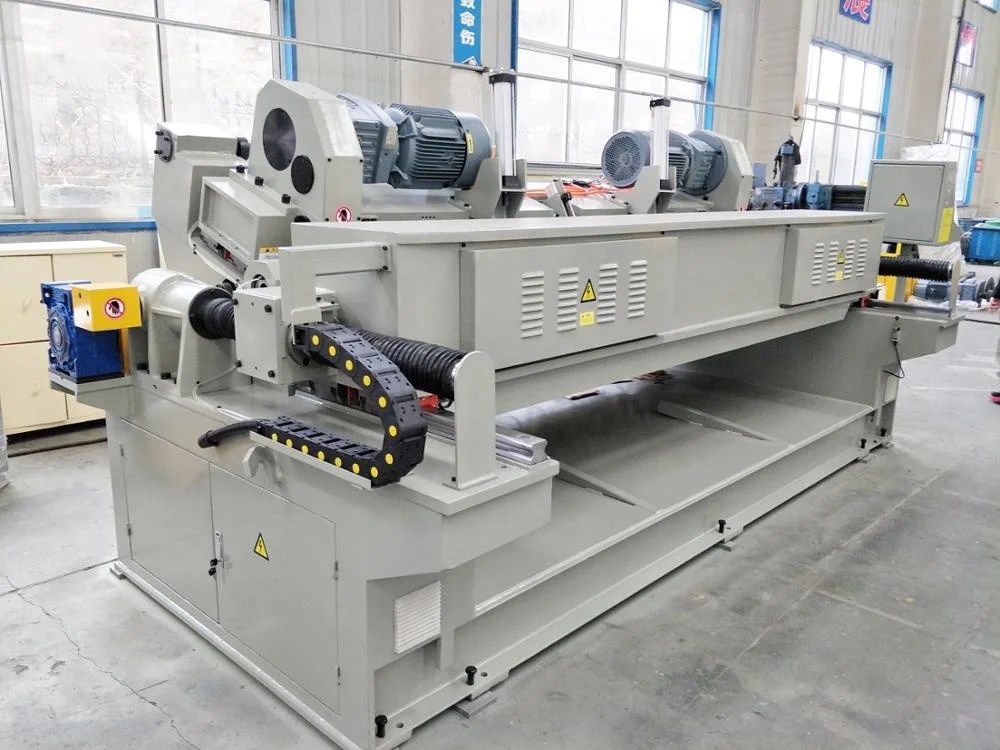

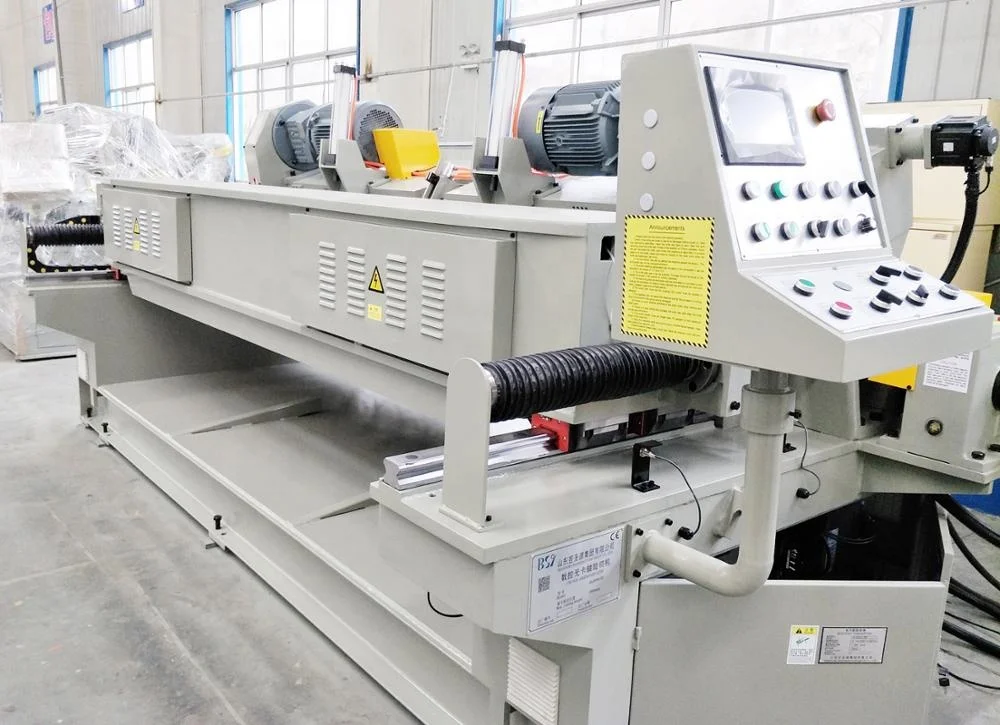

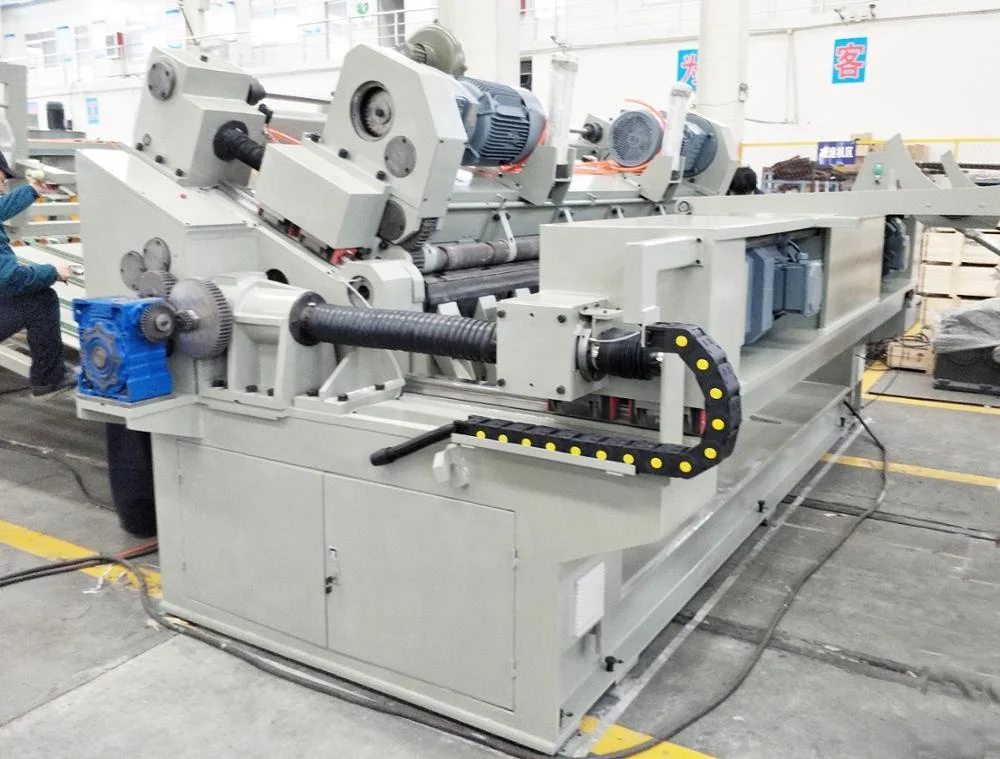

Details Images
Packing & shipping

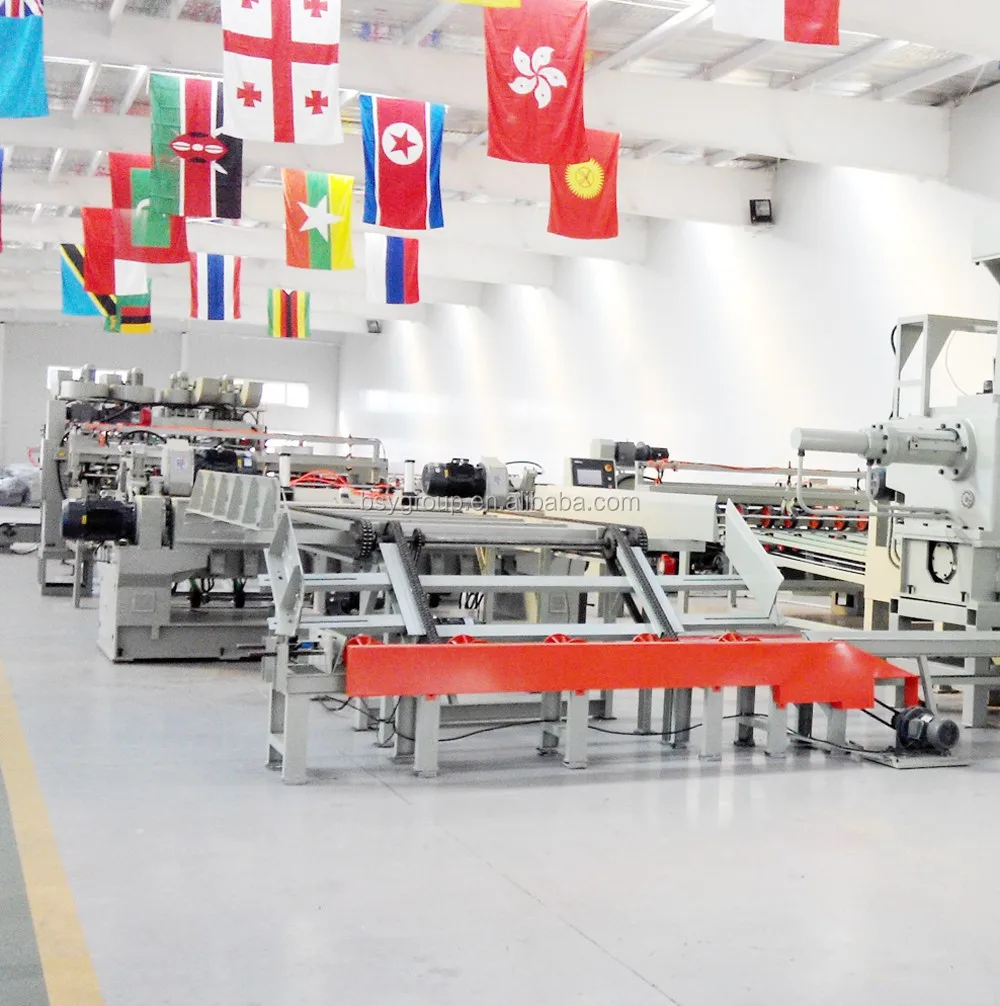

Company Profile
