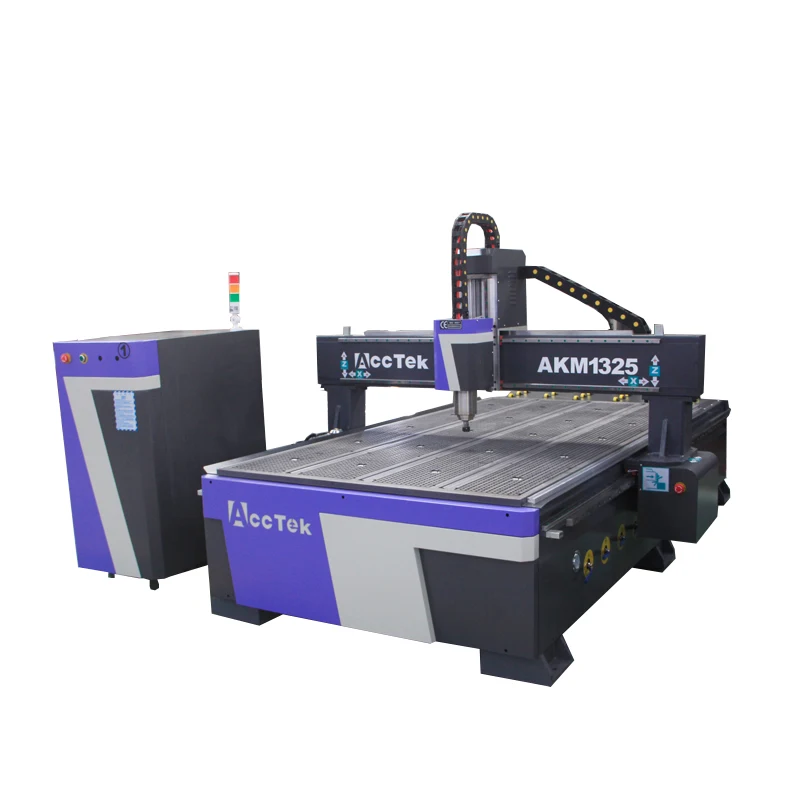

Affordable price 1325 cnc router milling machine wood engraving carving cutting working cnc router

Product Overview

Description





Affordable price 1325 cnc router milling machine wood engraving carving cutting working cnc router

Features of wood carving cnc router machine :

1.High temperature tempering treatment, welded steel tube T type machine bed and gantry, high rigidity, bearing strength better.

2.Y axis with double Leadshine stepper motor and driver, moving stably.

3.Linear square guide rail with automatic oil lubrication device, ensuring long life time working ,reduce the time of machine maintenance.

4. China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work .

5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.









Parameters of cnc router milling machine

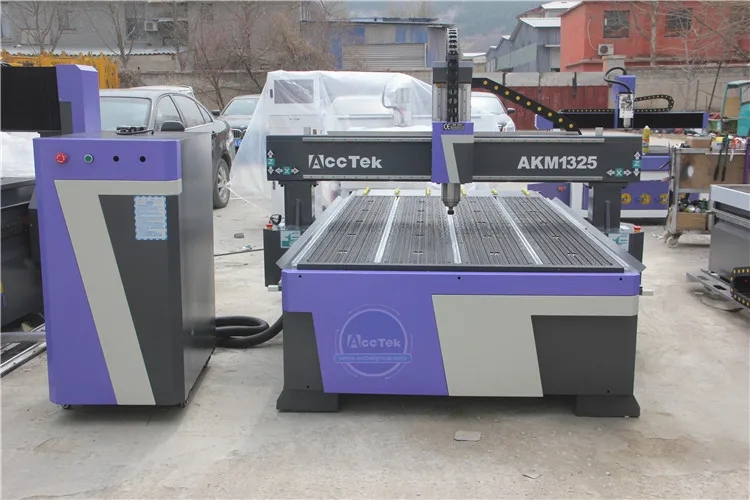

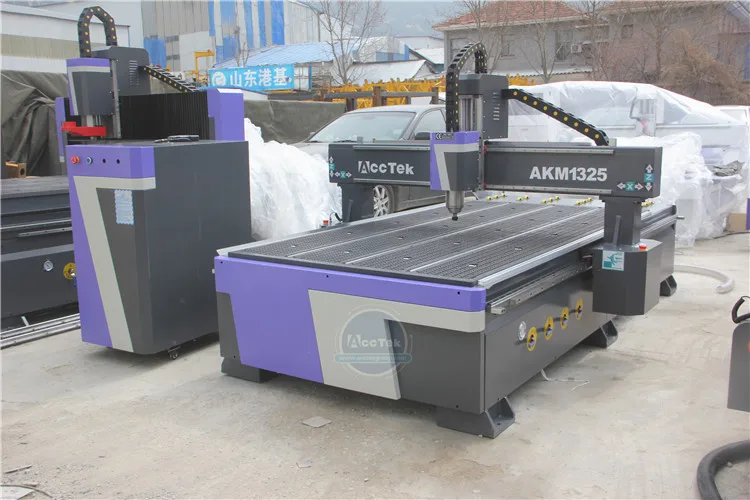

Model		AKM1325  CNC wood craving machine
Working Area		1300×2500×200mm
Spindle		4.5kw Air-colling spindle/ 3.2 water cooling spindle
Working Mode		Leadshine Stepper Motor (Servo motors is optional)
Control System		MACH3 controller /DSP control system
Drive Mechanism		Gear-wheel on X Y axis
Table Surface		Vacuum table & T-slot extrusions
Frame		heavy duty Structure
Z-axis setting		Auto Z origin tool high sensor
Dictate Formate		G code, *.u00, *.mmg, *.plt
Operating Voltage		3phase 380V
Software		Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software
Packing Size		3700*2050*1930mm
Lubrication System		Oil lubrication system
Net weight/ Gross Weight		1350kg/ 1550kg

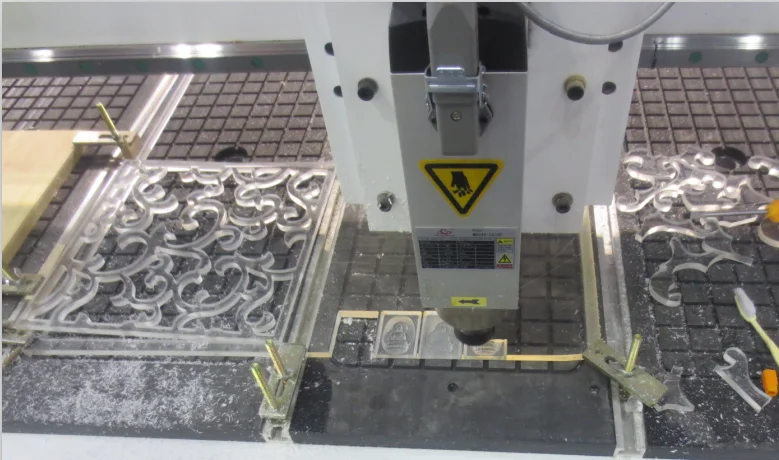

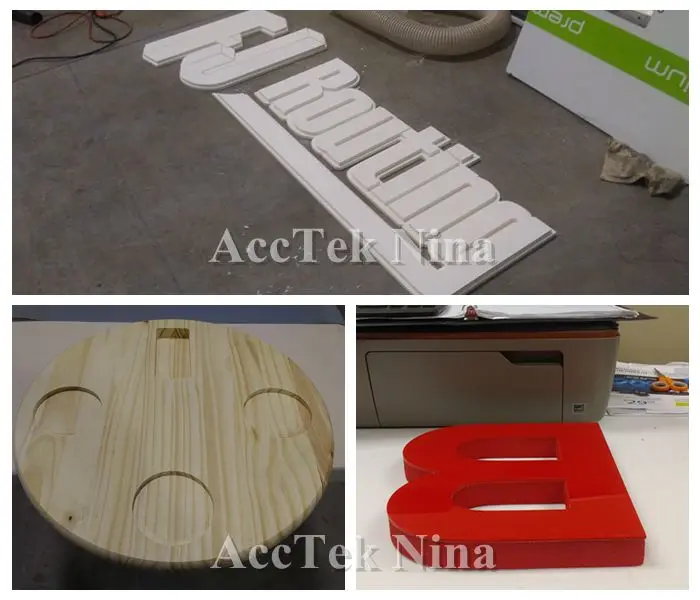

Applications of cnc router milling machine

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cup board doors, interior doors, sofa legs,

   headboards ,game cabinets, computer tables, sewing machines table, instruments etc.

2 .Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making

3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto

4. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5. Architectural models: engraving fine window, fencing and wall patterns, etc.



Materials:
1.Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard, etc.
2.Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE, etc
3.Metal: Aluminium, Brass, Copper, etc,it needs extra cooling system .

5. Composite: Aluminium Composite, Copper Composite, Titanium, Composite, Zinc Composite, etc.

6. Plastics & Composites (ACP, ACM and solid surface material etc)

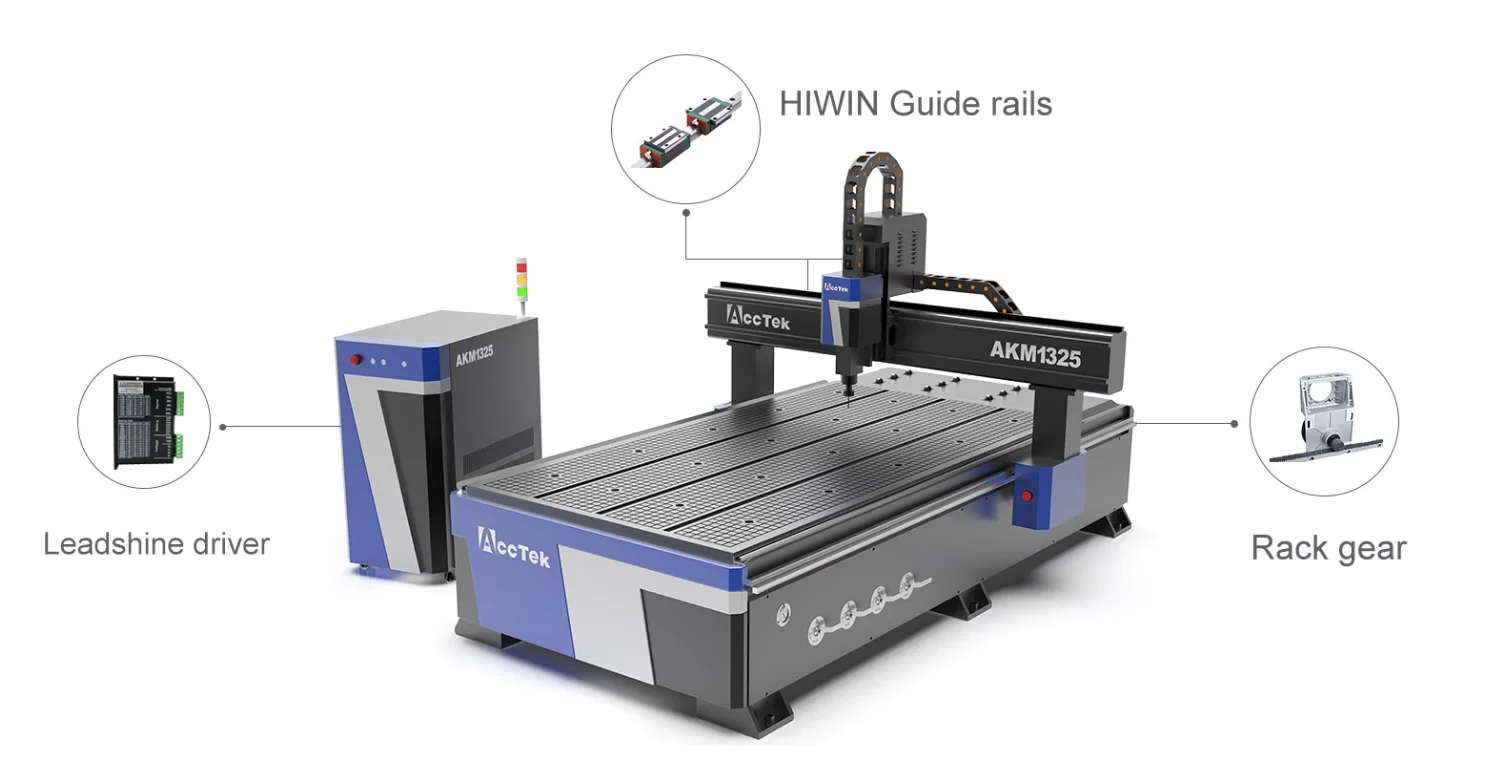

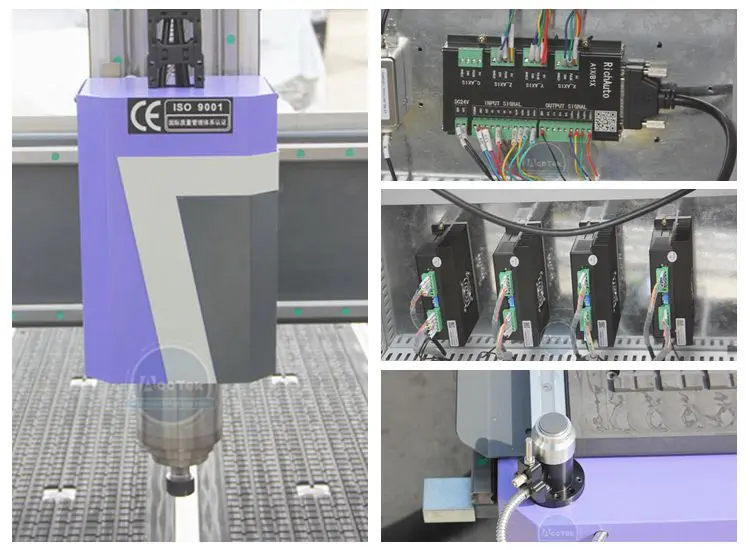

Detail parts of china 1325 cnc router:

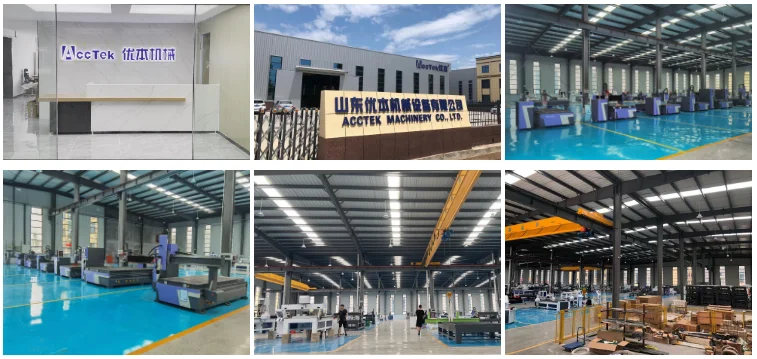

Jinan AccTek Machinery Company specializes in manufacturing CNC Router and Laser machines.

Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing.

Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty.

Components for our machines are sourced from world class suppliers and innovators in machine control.

These machines are used in many industries, crafts and arts businesses around the world. These include woodwork,

metal and stone work, aluminum fabrication, boat building, shop fitting, mold making, to name a few.

Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.

We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit.

"Our business is to improve your business"





After sale sevice:



CE certificate:



FAQ:

1. who are we?
We are based in Shandong, China, start from 2005,sell to Domestic Market(40.00%),Northern Europe(9.00%),Southeast Asia(8.00%),

Eastern Europe(8.00%),Oceania(6.00%),Eastern Asia(5.00%),Western Europe(5.00%),North America(5.00%),Africa(4.00%),Mid East(3.00%),

Central America(3.00%),South America(2.00%),South Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC Router,Laser Cutting Machine,Laser Marking Machine

4. why should you buy from us not from other suppliers?
AccTek specializes in manufacturing CNC Router and Laser machines. Our dedicated and highly skilled after sales service department,

sales team, and thorough quality assurance procedures mean that you can buy with confidence!





Hot sale cnc router machines:

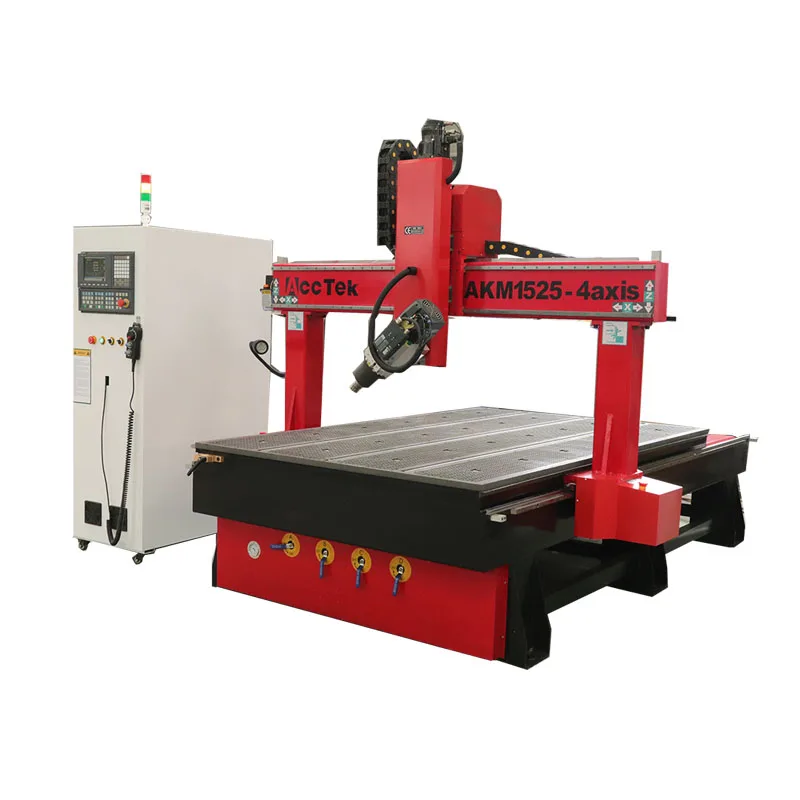

4 axis rotate spindle cnc router

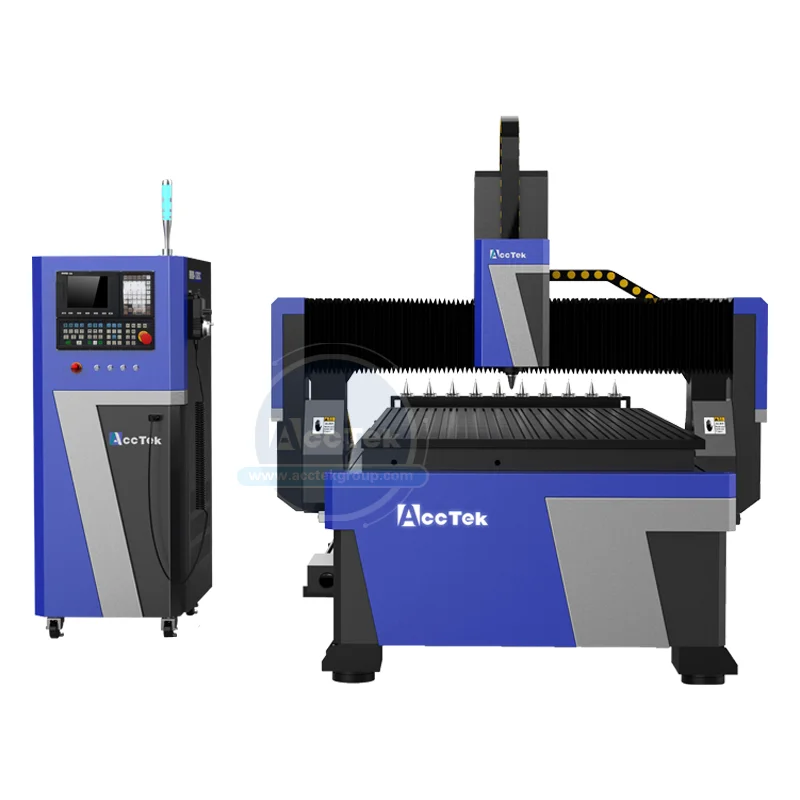

auto tool changer 1325 cnc router

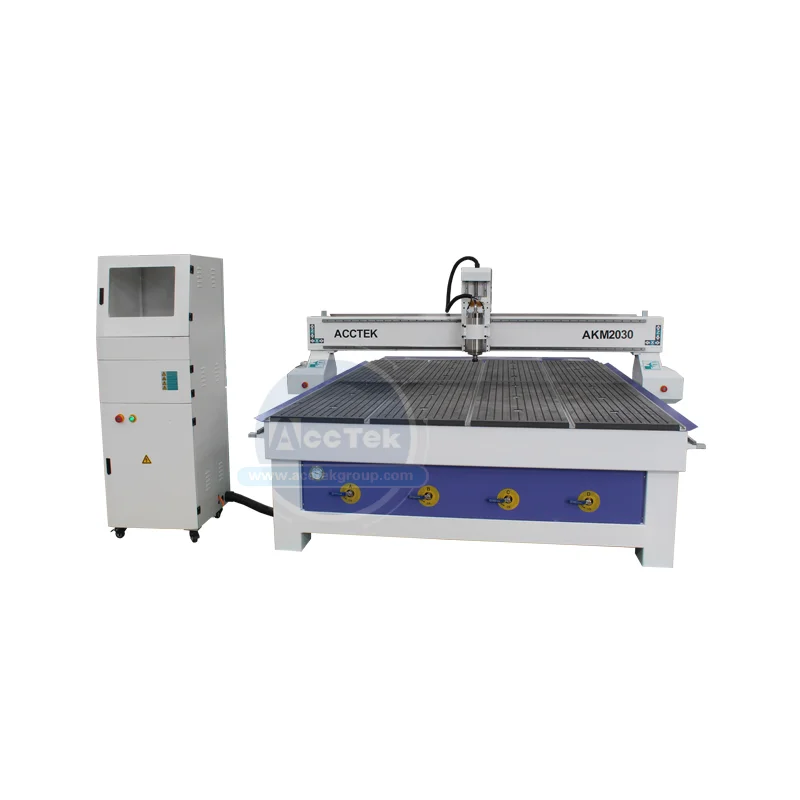

2030/2040 big size wood cnc router
