Высокая точность 3D cnc деревообрабатывающий 1224 Автоматическая мебель cnc маршрутизатор резьба по дереву машина для деревянной двери (1700002160487)

Share on:


Price:13 000,00 $ - 16 000,00 $
Price in USD:Details

Quantity:


Product Overview

Description



High precision 3D cnc woodworking 1224 automatic furniture cnc router wood carving machine for wood door


Product Description




This is a new type of economical automatic tool change product, with fast changeover speed, high efficiency, and most importantly, high precision and high quality.
1. UE481 with 9 kW China ATC air cooling spindle and linear tool changing, the machine can change tools automatically during the work.
2. Widely used in furniture industry.
3. Semi-tracking tool change reduces the weight of the fuselage and speeds up the tool change.
4. The bed is welded with steel pipe, high-temperature tempering, durable.
5. Wireless handwheel, keyboard, mouse. The unlimited range can control the machine from a distance.
6. The Z-axis travel switch is mechanical, ensuring the accuracy of the tool change point.
7. We also have some optional parts for you to choose: Germany Becker vacuum pump, dust collector, mist cooling system, rotary system and so on. Some main parts of the machine can be changed according to your requirements.




Model
UE-481
X-Y-Z axis working area
1220*2440*200mm

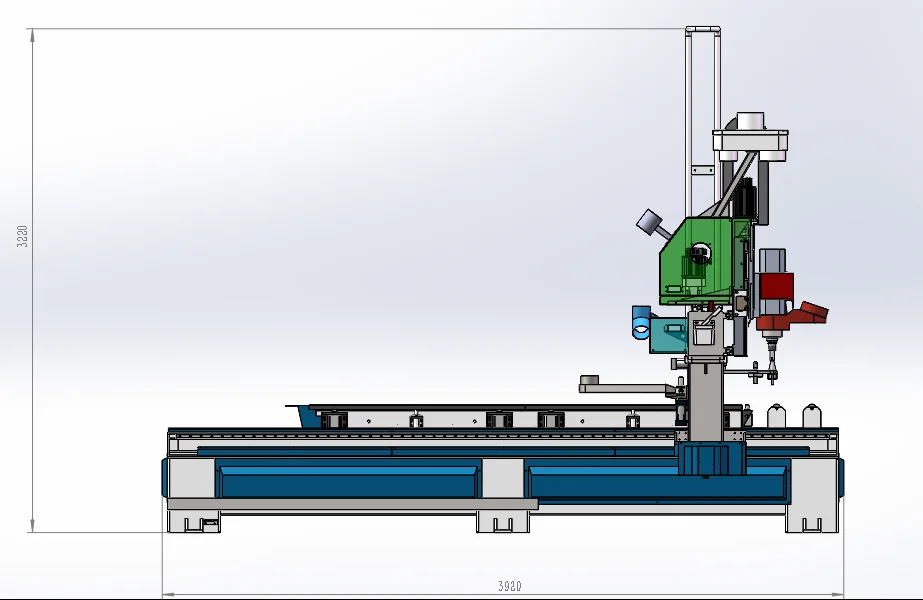

Machine size
2100*3860*2380mm
Repositioning resolution
0.02mm
X-Y movement
Rack and pinion, gear drive/Taiwan
Z movement
Ball screw drive/Germany
Guide
Linear 25mm square/Taiwan
Spindle power
9KW China ATC fan cooling spindle
Spindle speed
24000rpm
Inverter power
11KW Inovance
Tool magazine
12 pcs tools, linear type
Drive motors
Inovance Servo Motor
Working voltage
AC380V/50-60Hz, 3-phase
Command code
G code
Computer interface
USB 2.0
Reduce
Motovario
Software
Artcam , Alphacam copy
Controls
Syntec 60CA
Standard equipment included
1.Oil lubrication system
2.Dust hood
3.vacuum table with the 7.5 kW Chinese pump
4.Tool shanks
5.Positioning pins
Optional
Vacuum cleaner
5.5 kW Becker vacuum pump


Detailed Images





9kw China ATC air cooling spindle
ATC spindle 9KW China ATC air cooling
ER 32
Speed 18000rpm-24000rpm





Linear type tool change 12 sets
Tool changer ISO 30
linear type with too holder and tool chank
fast changing speed





Dust exhaust apparatus
Make the table and workpieces cleaner
By matching with secondary dust removal, the cleaning effect will be better



Vacuum table with 7.5kw Chinese pump
The vacuum table is single layer vacuum table with high qulity PVC
Strong sealing
The vacuum table is a diamond-shaped area, and the adsorption effect is better



Syntec 60CA with wireless handwheel
New three-axis linkage motion mode to achieve comprehensive controlling\t\t\t\t\t\t\t
Large storage space,fast reading speed and reliable processing.\t
The wireless handwheel is easy to operate and more flexible



Oil lubrication system
A central oiler\t\t\t\t\t
"Note: It is recommended that one pump of the oiler once a month will be" sufficient to keep your machine lubricated.\t\t\t\t\t
When the oil tank needs filling, top up with a good quality \t\t\t\t\t
SAE 30 weight oil.\t






Company Introduction



Jinan Quick-Fulltek CNC Machinery Co.,Ltd, was founded in 2006, we are one of the best CNC router suppliers in China. Our products are selling well widely all over the world and have good reputations.specializes in R&D and production of various cnc equipment,such as 3 axis cnc, ATC cnc,automatic load and unload cnc,4 axis,5 axis, PTP, panel furniture cnc.All series machines are with one-year warranty. Meanwhile, customized equipment are available according to different requirements.
Facing the chances and challenges of Global Economic integration as well as being offered with opportunities Knowledge Economy Era,we are determined to achieve our dreams step by step with the advantages of high technology. We aim to be a professional,branding and international suppliers for woodworking industrial solutions.





Packing and shipping
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to the customer's requirements for loading the whole container or LCL at Qingdao port.



Certifications


The following is the patent certificate obtained by QUICK CNC, as well as CE certification, ISO 9001, etc.




Samples Show




1.Woodworking:wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc

2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould

3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.

4.Decoration:acrylic,density board,artificial stone,organic glass,soft metals like aluminum,copper, etc.

5.Cylindrical object


Customer Photos


QUICK CNC has in different customer groups all over the world, including agents, end customers, and customer recommendations, etc.
There are the advertising industry, the woodcraft industry, furniture manufacturing industry, and metal processing industry, etc.




QUICK CNC has established strategic alliance business relationships with partners all over the world.
Its products are sold all over the world, and are well received at home and abroad for "quality and durability".


Customer Feedback



QUICK CNC machines are sent all over the world, and they have also been well received by many customers


FAQ


Q: Are you a factory or a trading company?
A: We are a factory. We are a professional factory specialize in CNC equipment for over 15 years.
Q: How long is your delivery time?
A: Generally it is 25-30 days, it is according to quantity.
Q: How does your factory do regarding quality control?
A: Quality is the priority. Our leaders always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Quick CNC has been Alibaba's Gold supplier for several years. If you check with Alibaba, you will see that we have never got any complaints from any customers.
Q: What's your payment term?
A: We normally accept T/T and L/C at sight, another fast payment way is also accepted if the amount is small, like Western Union, Mastercard, and cash, etc.

PS: All machines can be customized according to your requests
