Factory price automatic high speed stainless steel wire drawing machine
- Category: Wire Drawing Machines >>>
- Supplier: Hebei Kaiye Machinery Equipment Co. Ltd.
Share on (1600150138017):
Product Overview
Description
Machine Introduction

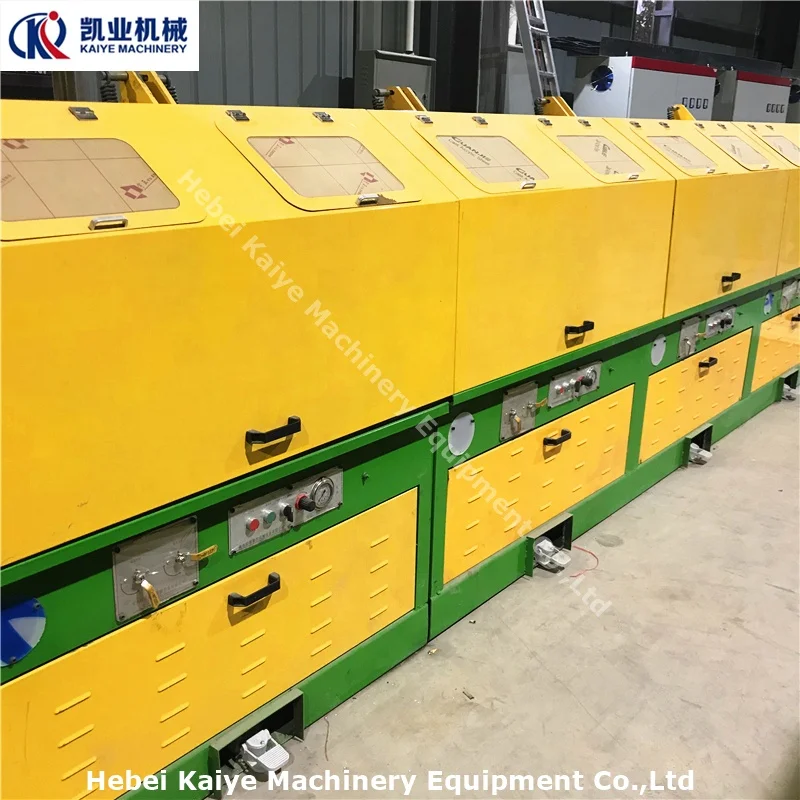

Stainless steel straight line wire drawing machine
The main features of the straight line wire drawing machine are that the drum adopts narrow slot water cooling, and the drawing die adopts direct water cooling; the cooling effect is good; the transmission efficiency is high and the noise is low; the fully enclosed protection system is adopted, and the safety is good; the air tension tuning is adopted, and the drawing is stable.
Different from the ordinary wire drawing machine, the straight wire drawing machine adopts AC frequency conversion control technology or DC programmable control system and screen display, with high degree of automation, convenient operation and high quality of drawing products. It is suitable for drawing various metal wires with diameter less than 12mm.
The main functions of straight wire drawing machine include accurate meter counting with error of 0.1%, automatic deceleration and stop at fixed length, wire breaking detection and automatic stop, positive and negative jogging and left-right linkage of any drum, display of various fault information and processing information, and monitoring of various motion information.
This machine is mainly used for drawing stainless steel wire. The raw material can be 201，304，310，316，410，430, etc.
We can also produce wire drawing machines for drawing other raw materials, including welding rods; welding wires (gas shielded wire, submerged arc welding wire, flux cored wire, etc.); steel wire (high, medium and low carbon steel wire, stainless steel wire, prestressed wire, tire wire, rubber tube wire, spring wire, steel curtain wire, etc.); wire electric view (aluminum clad wire, copper wire, aluminum wire, etc.); alloy wire and other metal wires Material.
Machine Specification
Model | Unit | LZ400 | LZ560 | LZ600 | LZ800 |
Capstan diameter | mm | 400 | 560 | 600 | 800 |
Drawing dies | Times | 9 | 9 | 9 | 9 |
Inlet wire diameter | mm | Φ2.5-4.5 | Φ5.5-6.5 | Φ6.5-8.0 | Φ8.0-10.0 |
Outlet wire diameter | mm | Φ0.8-1.4 | Φ1.6-2.0 | Φ2.0-3.0 | Φ2.8-3.5 |
Drawing speed | m/s | 12-18 | 10-15 | 8-12 | 8-10 |
Total reduction rate | % | 90.32 | 90.53 | 90.53 | 90.53 |
Motor power | Kw | 7.5-15 | 22-37 | 22-37 | 37-75 |
Machine Features

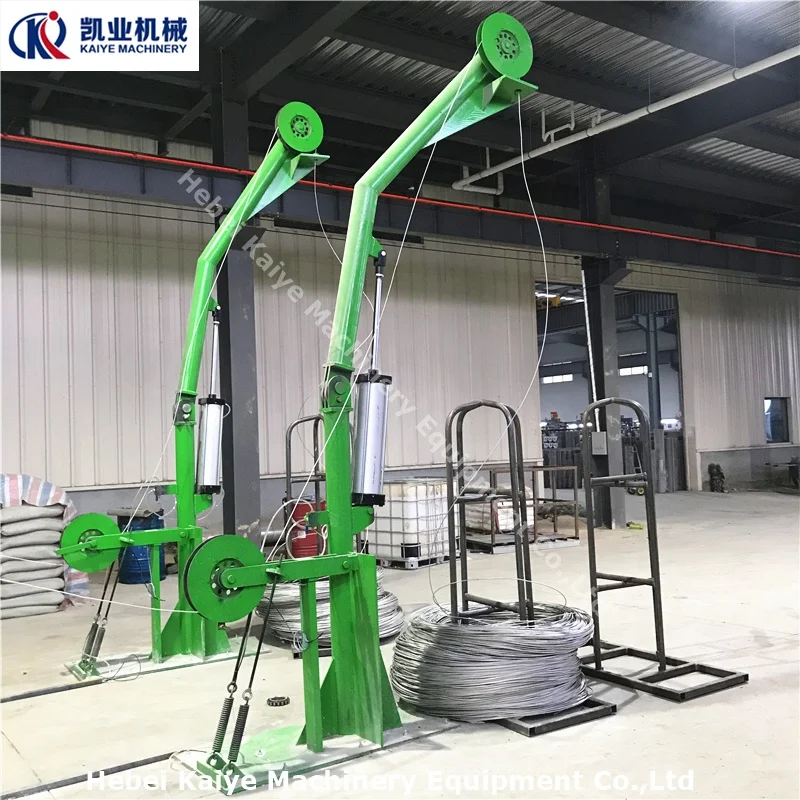

Wire Pay off system
Pay off system is usually according to the type in the picture, pneumatic lifting pulley, convenient wire threading.
Boron coating system
The upper part of boron coating system is boron coating function, and the lower part is automatic drying function.

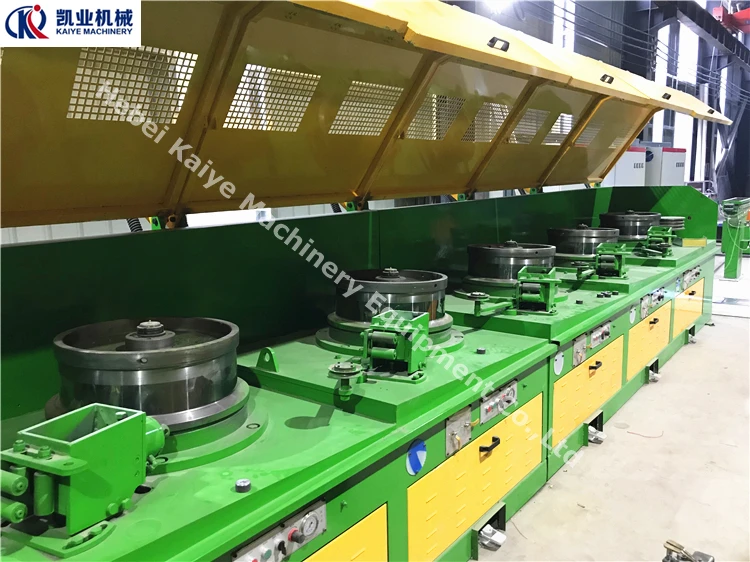

Drawing drum
The drum of drawing machine adopts narrow slot water cooling, which has good cooling effect. And it is not easy to enter the dust.The drum is sprayed with tungsten carbide coating to prolong the service life.

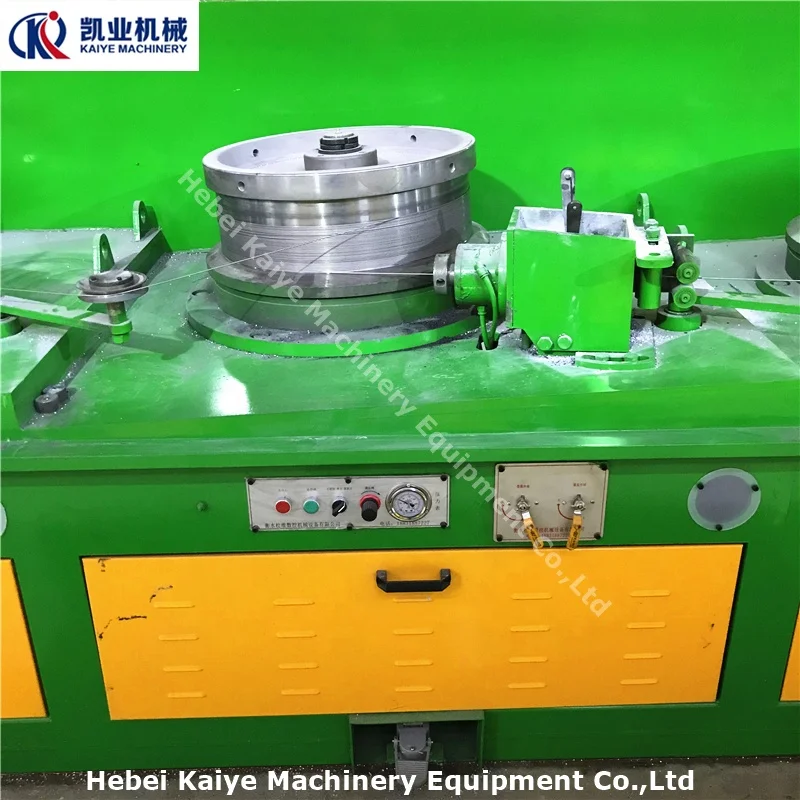

Tension device
The last drum adopts tension tuning, drawing is stable, and the groove is also sprayed with tungsten carbide process. Machine can be broken line detection and automatic stop; any drum positive and negative point movement and left and right linkage.

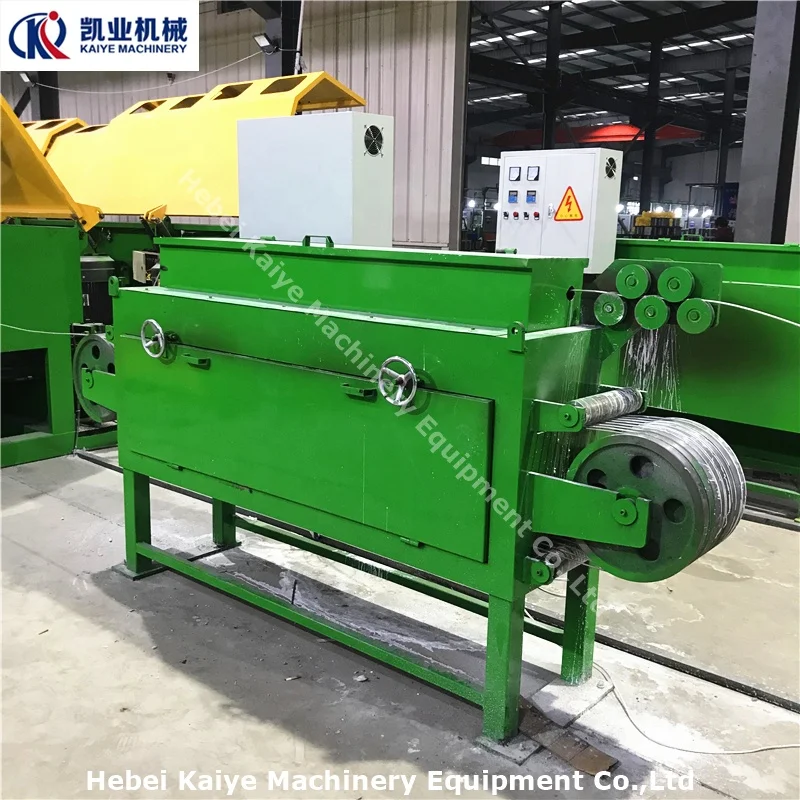

Cleaning wire system
The finished wire will pass through the cleaning device after drawing, and the finished wire is clean and smooth without impurities.

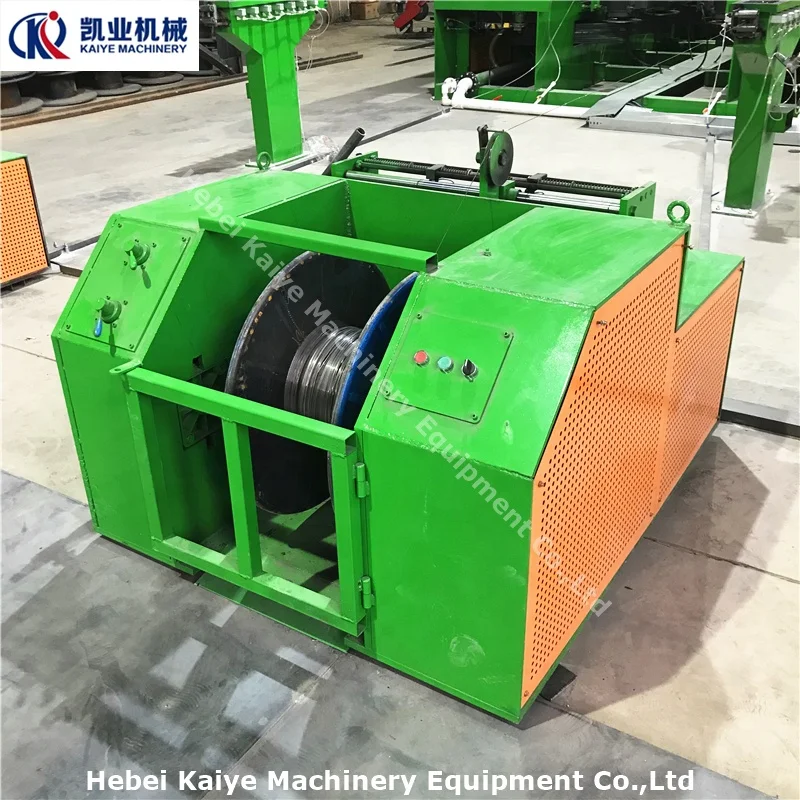

Wire take up system
Take up system can choose coil type or bobbin type,the size can be customized according to requirements.
Control cabinet
High degree of mechanical automation, all kinds of fault information and processing information are displayed on the screen.
Inverter
The inverter cabinet has good heat dissipation performance, hard oxidation surface treatment, good friction resistance, and can effectively prevent dust.
Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Free airport and train station pick-up service.
* Sample testing support.
* View our Factory.
* Free airport and train station pick-up service.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Company Information
Factory History.
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields.
Factory workshop.
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: wire mesh welding machine, 3D EPS panel machine, reinforcement mesh welding machine, Gabion mesh machine, hexagonal wire mesh machine,wire drawing machine, expanded metal machine,chain link fence machine, CNC stirrup rebar bending machine .
Factory R&D Team.
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years. Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Market and Customers
The company's machinery and equipment sell well in China, and are exported tonearly 100 countries and regions such as Romania,Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa,Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.
