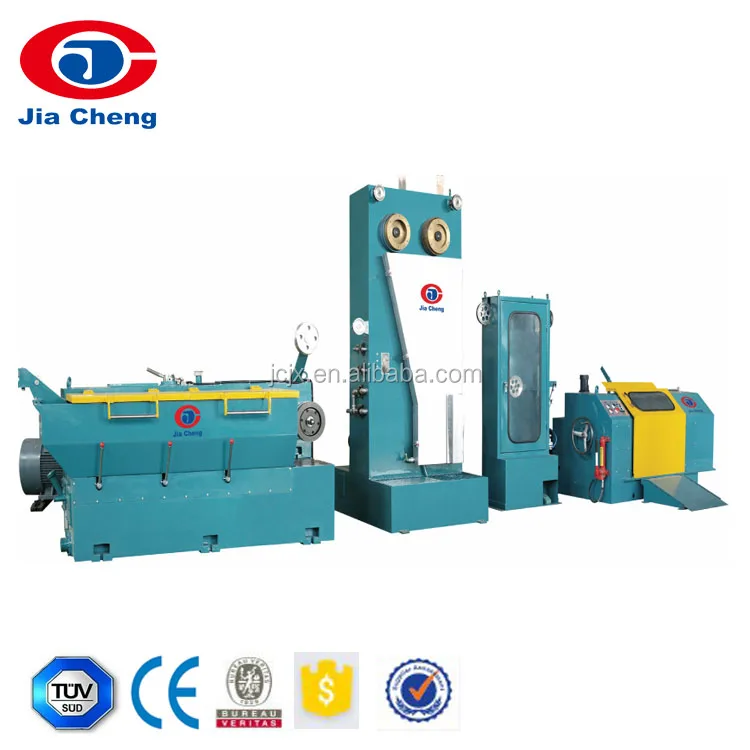

Electric Cable Pulling Machine With Continuous Annealer,water tank wire drawing machine
- Category: Wire Drawing Machines >>>
- Supplier: Jiangsu Jiacheng Technology Co. Ltd.
Share on (882042339):
Product Overview
Description

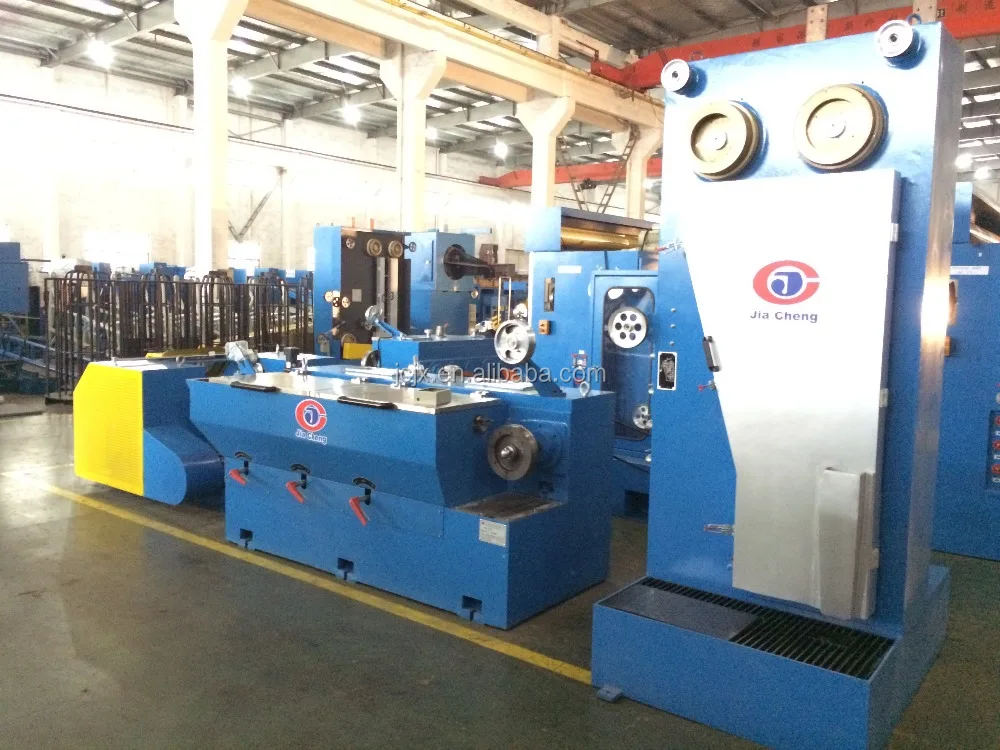

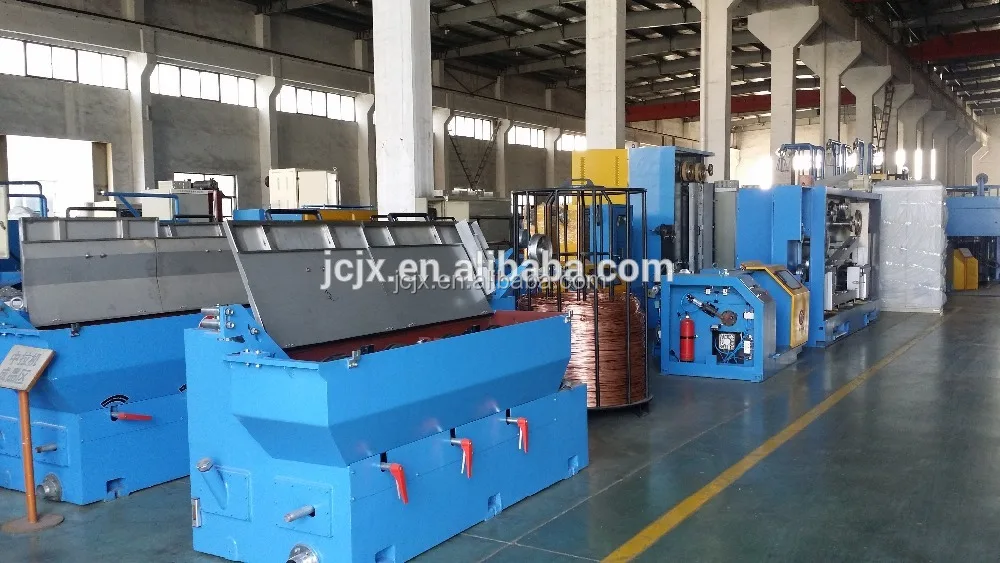

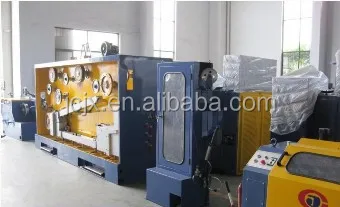

Water tank wire drawing machine
Main Usage
It is used to drawing copper wire from2.5-3.5mm to 0.4-1.6mm.
Working vieo:https://www.youtube.com/watch?v=Yvydc0PSJPk
Machine's advantage
(1) Double inverters auto tension control system.
(2) Unify 250 cast-iron main frame, precision machinery, no shock.
(3)Capstan treated with carbon fiber.
(4)Suitable for continuous annealer, take up machine with and without shaft colier machine.
Technical Parameter
Machine type | 17DH |
Inverter Control | Double inverter control |
Max.Inlet Dia.(mm) | 2.5~3.5 |
Outlet Dia.(mm) | 0.4~1.6 |
Max.Line Speed(m/min) | 2000 |
Body Structure | Ironed cast |
Drawing capstan | Carbon fiber capstan |
Slip ratio of m/c(%) | 20 |
Main motor power(kw) | 55 |
Take-up motor(kw) | 11 |
Fix speed capstan Dia.(mm) | 250 |

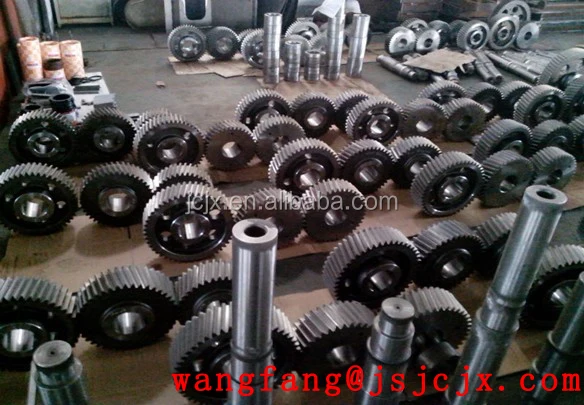

Transmission type | By Gear |
Take-up bobbin size(mm) | 500/630(aperture 127) |
Traversing type | Motor type |
Bobbin loading &unloading type | Pneumatic type |
Tension control | Aire pressure type |
Lubrication type | Full immersion |
Brake | Disc brake |

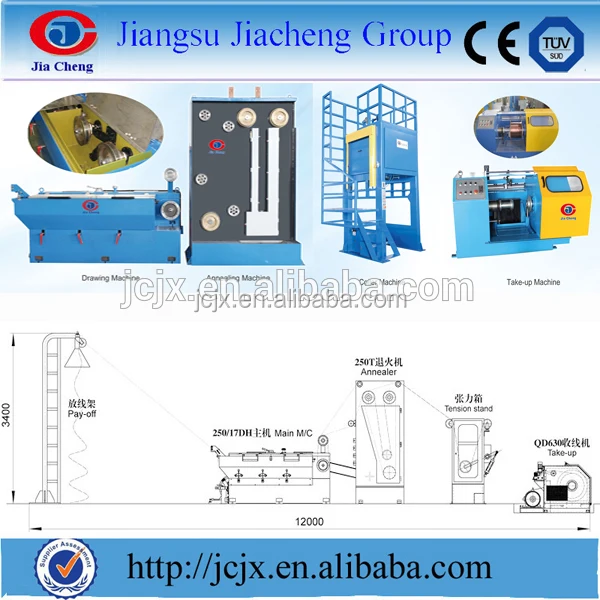

Online Continuous Annealer | |
Machine structure | vertical |
Annealing wheel dia.(mm) | 250 |
Protection type | Steam or nitrogen |
Annealing voltage(V) DC | 60 |
Annealing current(A) DC | 2000 |

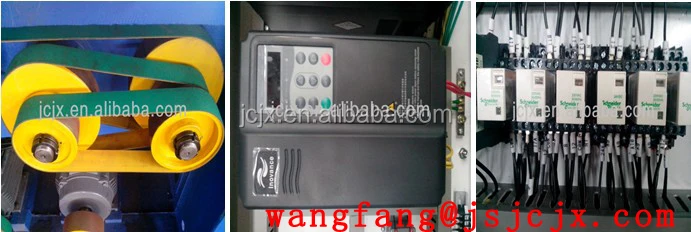

Key part brand
Japan NSK bearing
Switzerland belt
France Schneider electric
Shenzhen Inovance inverter
Our Services
![R$H%MQG_N%R$LN]%)L1IG$J_.png](http://sc02.alicdn.com/kf/HTB167HcOVXXXXa_XVXX760XFXXXg/208863/HTB167HcOVXXXXa_XVXX760XFXXXg.png)
Pre-sale free training
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training , includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Instruct installing when the machine in customer's workshop
(The buyer provides engineer's round trip air tickets, board and lodging, the security).
After-sale service content and measure
“It’s the after-sales support that makes delivery complete”.
(1)Free service guarantee period is: 12 months after shipping (except wearing parts)
(2)Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee and other basic cost.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
Company Information
(1) We already have a history of 30 years.
(2) Attending a lot of exhibition at home and abroad.
(3) Getting a lot of honor and certificate.
FAQ
1.Q:Are you machinery factory or trading company?
A:We are machinery factory
2.Q:Where is your factory located?
A:We are located in Zhangjiagang City which is about 2 hours near Shanghai Airport
3.Q:How many years warranty?Can you teach us?
A: 12 months warranty. Oversea technician service is available. We can help you installation , debugging and training.
4.Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
5.Q:Can we order on alibaba.com?
A:Yes!Of course!We also we give you more discount if you order on alibaba.com.
Contact us
*Different of cable making equipment
*Wire drawing machine (multiple wire)
*Rod breakdown machine
* Offline annealing and tin-coating machine
* Rigid frame stranding machine
* Annealing machine
* Copper, Aluminum, Aluminum Alloy, Brass, Stainless Steel wire.
