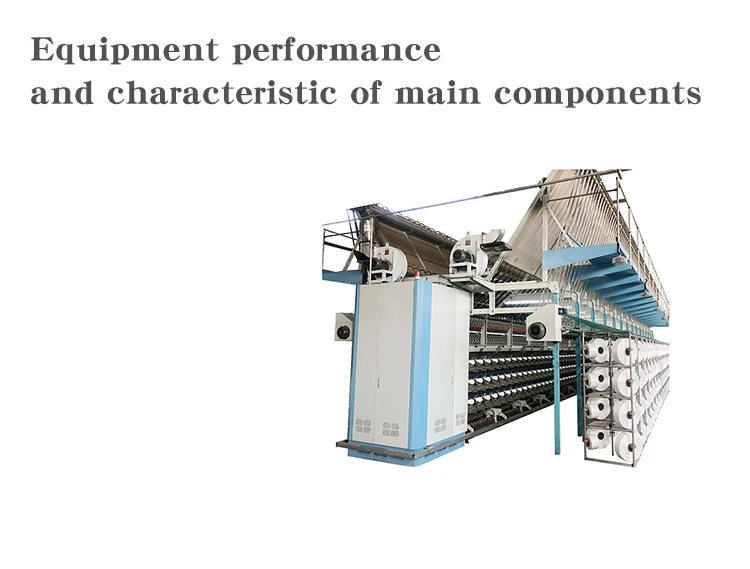

Product Overview

Description





Spindle
240
264
288
Section
10
11
12
Spindle Pitch
110mm
Highest Mechanical speed
1000m/min
Raw Material and Fibre Number
55-222dtex(50-200Denier)/polyester55-222dtex(50-200Denier)
Section Size
1440mm
False twist direction
S,Z adjustable

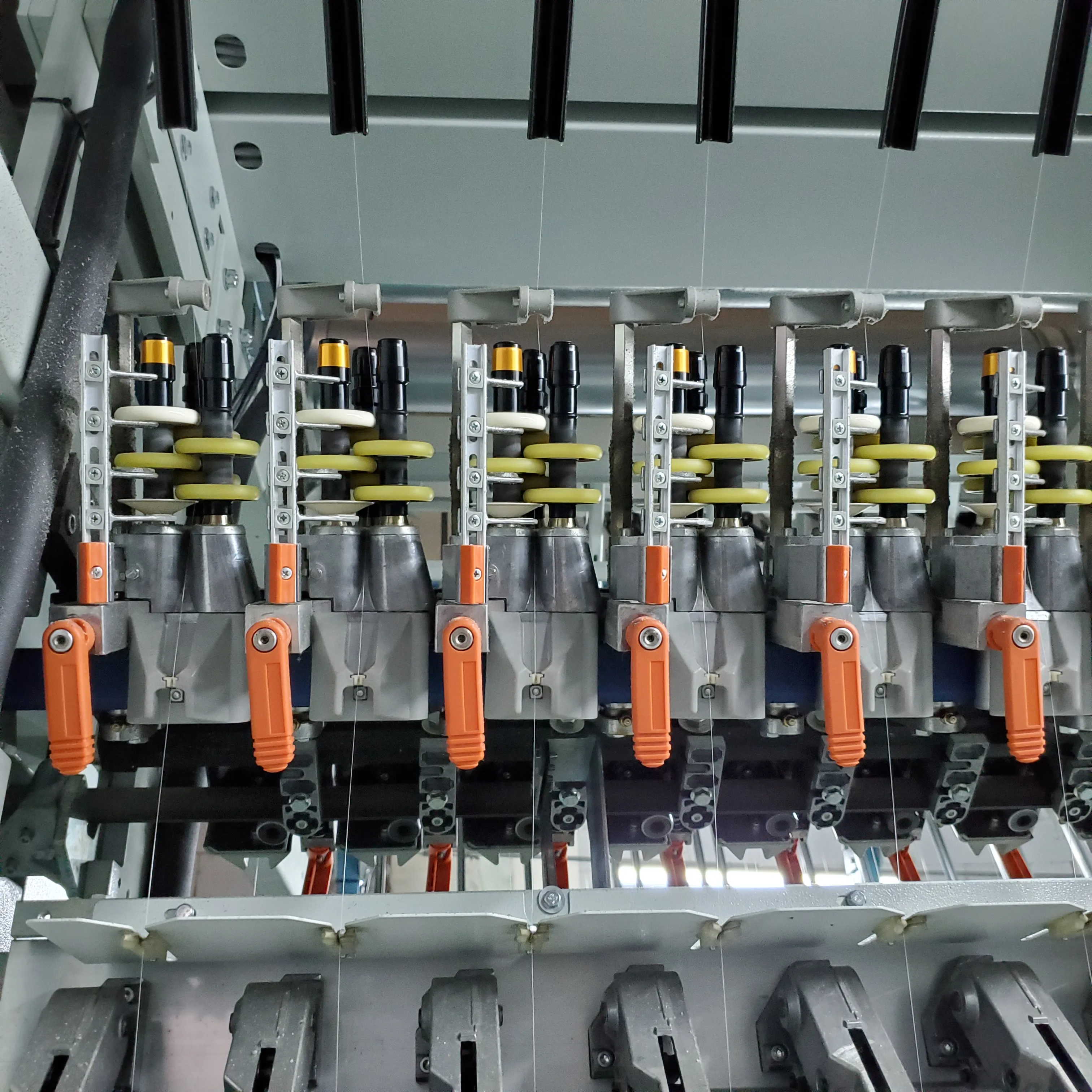

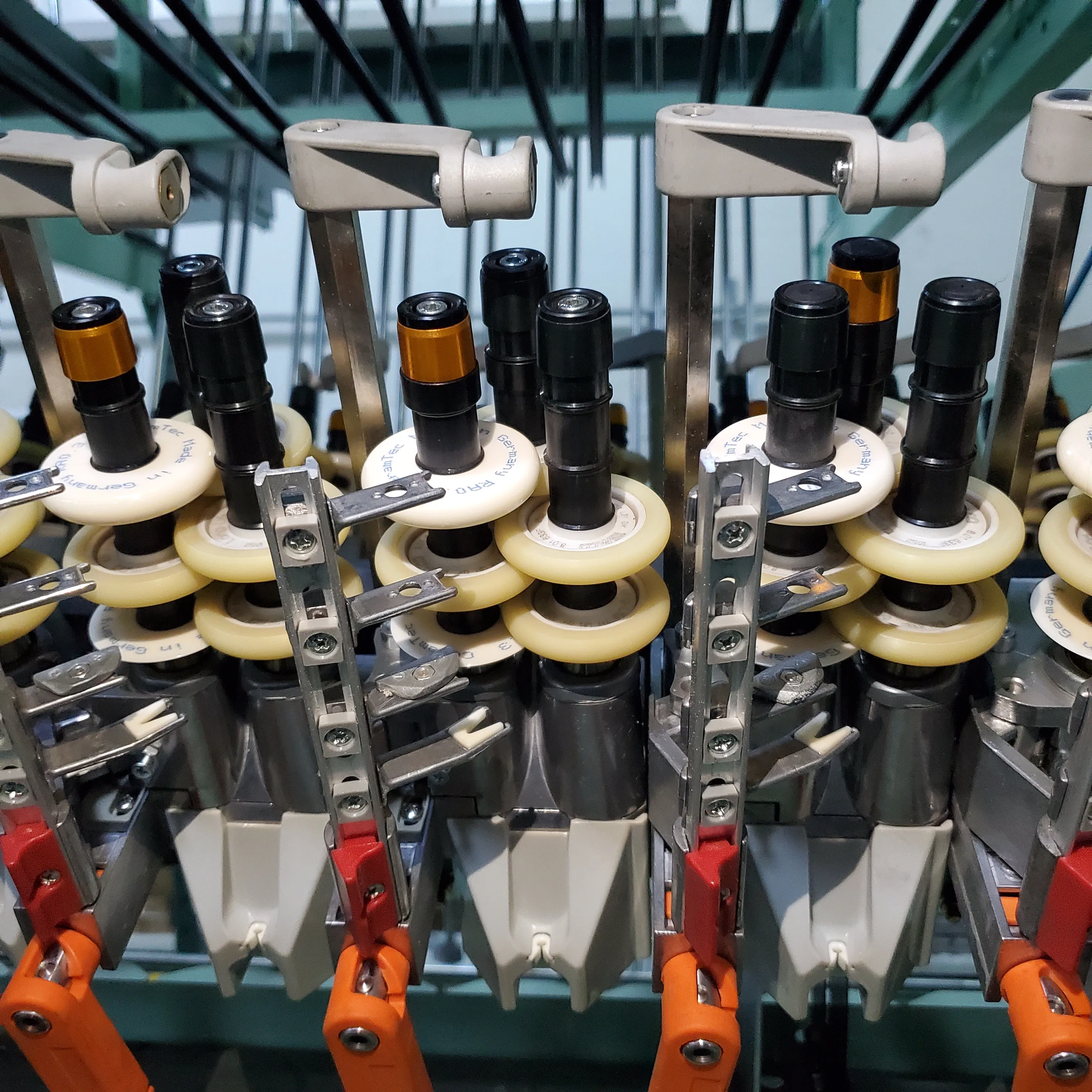

The highest speed of false twist device
18000r/min

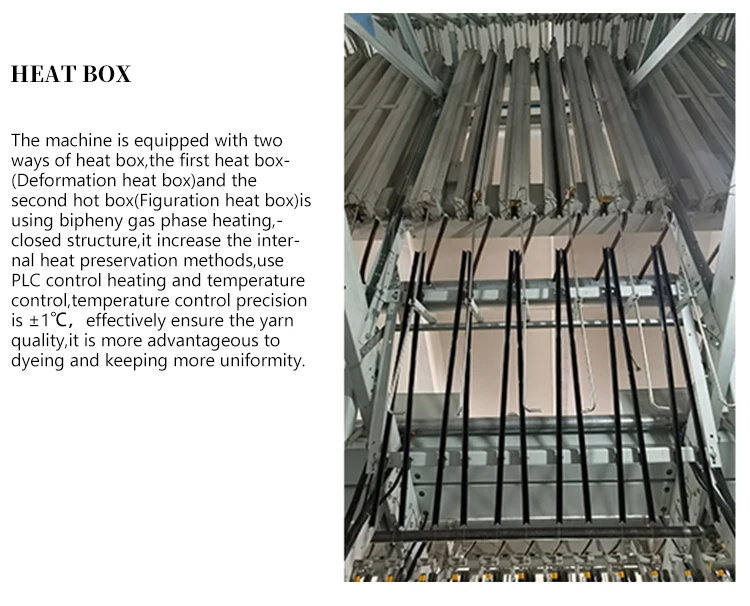

Deformation heat box temperature range
160-250℃
Figuration heat box temperature range
160*250℃（low temperature biphenyl as100-180℃）
Cooling mode and length
cooling plate to cool naturally/1100mm

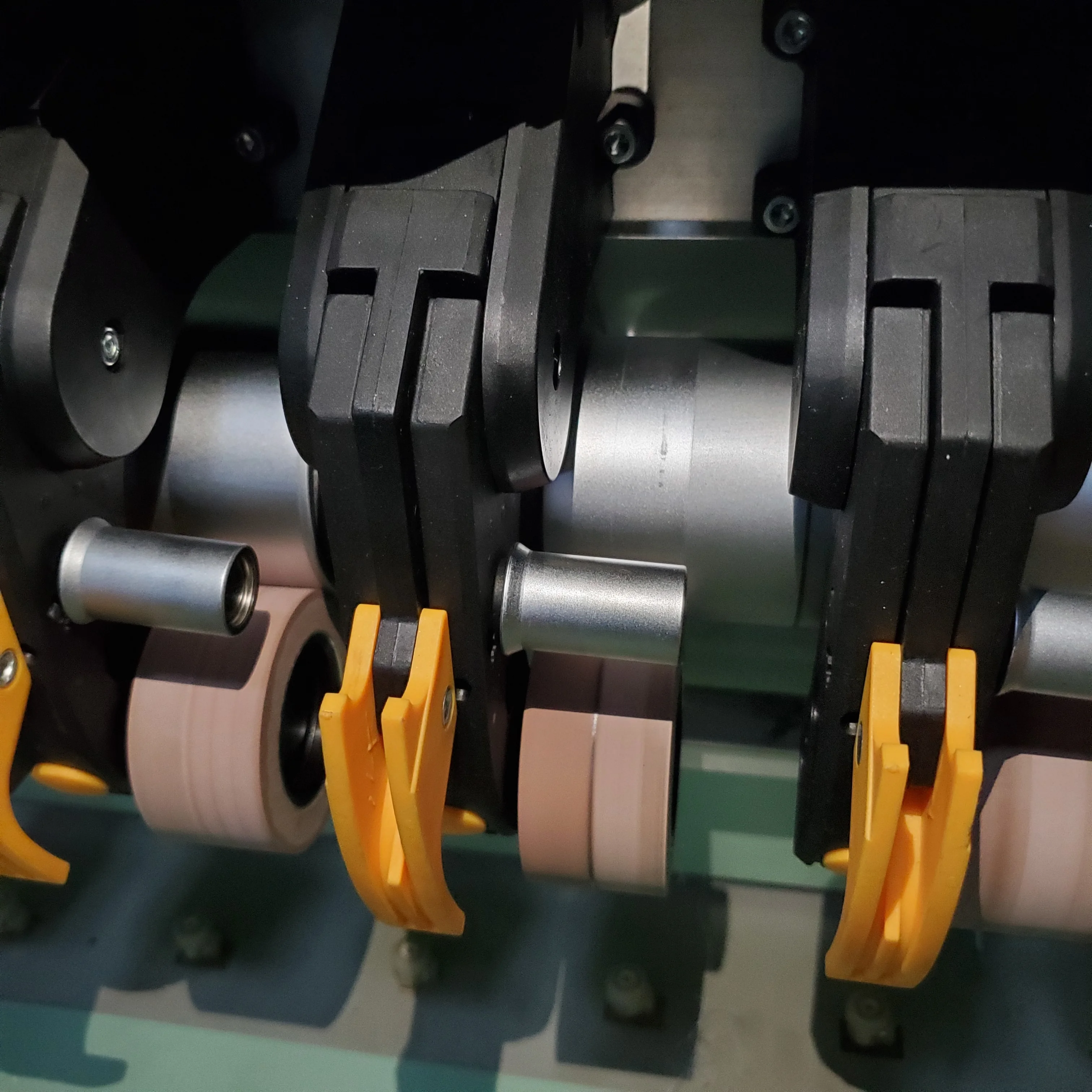

Firction roller diameter
φ100mm

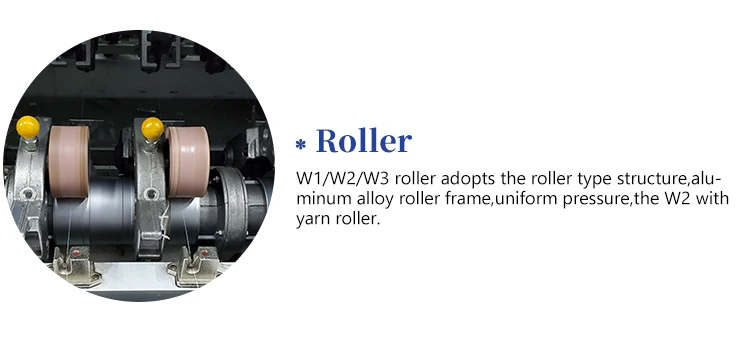

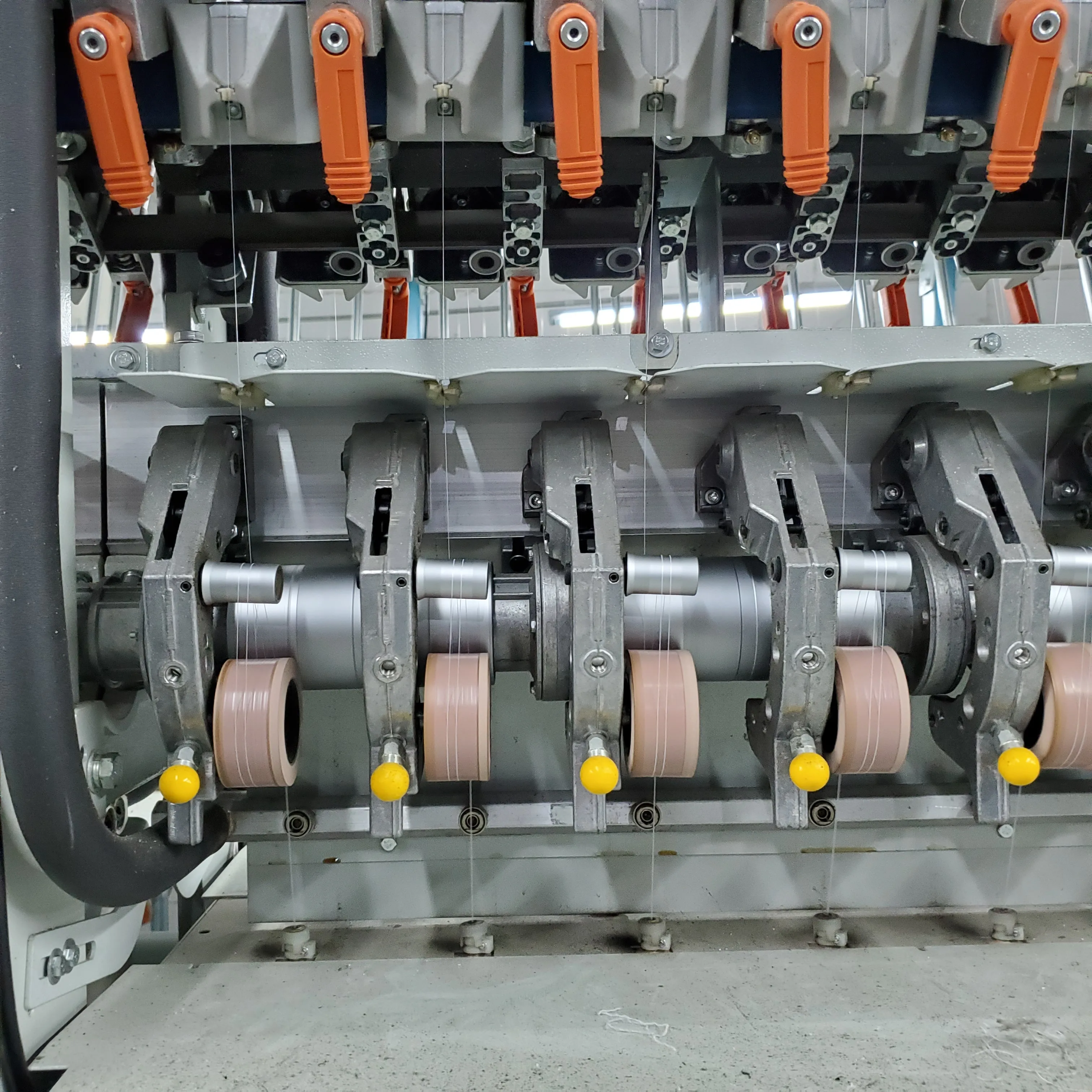

Roller diameter
φ75mm
Largest original yarn size
φ435*250mm

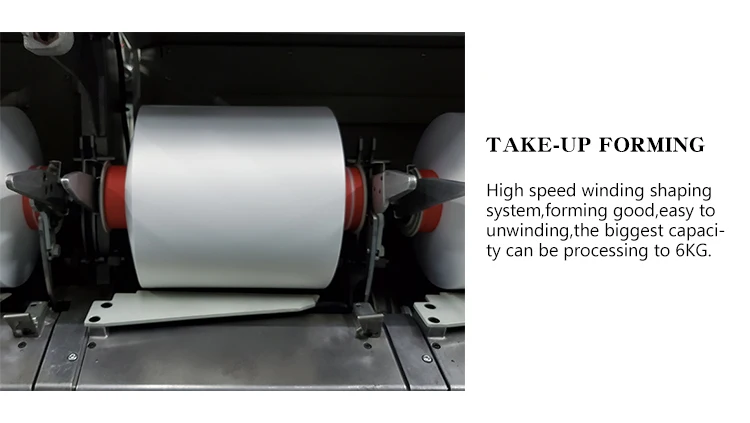

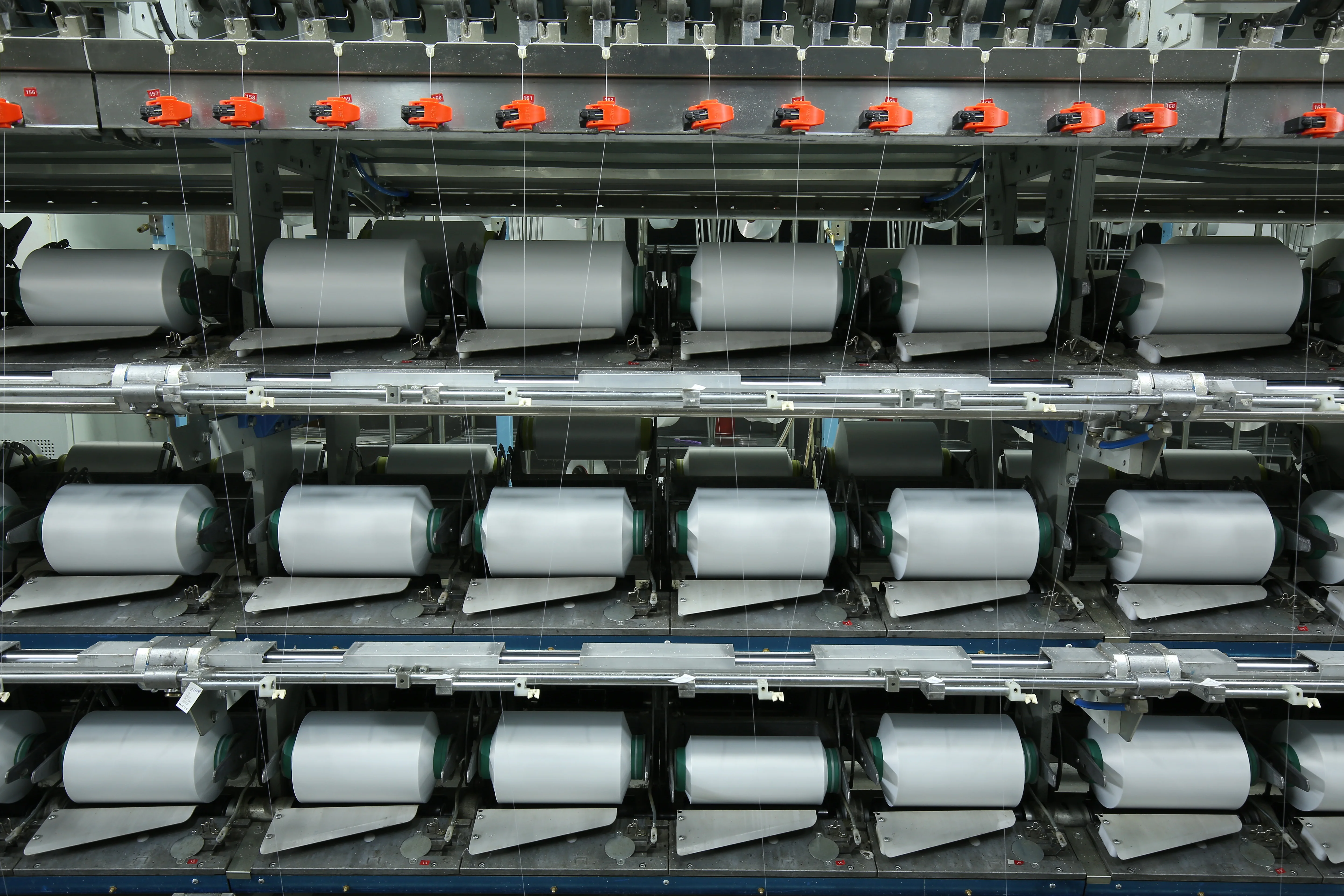

Maximum take-up size
φ250*250mm
Standard take-up capacity weight
5KG
Take-up paper pipe specifications
φ69*φ57*290mm
Dimension(fixed the original holder)
19000*7020*5360mm
20440*7020*5360mm
21880*7020*5360mm
















Title goes here.
All drafting assembile are of same standard. A wide variety of effect yarns (roving) can be fit .The core roller provides good stability to frm twisting yarn.The ring and loop from with the hollow spindles accommodating binding cops.All drafting assembiles composed by frequency control ,which is not only convenient for the machine adjustment ,but also to enable the roller change speeds the variety of the fancy yarns and meanwhile is good in stablility and high production capacity.
Main Features
1. Special designed reversing device which fits for twisting both yarns and spandex fibers
2. The stable qualit of spindle run long-time even under high-speed operation
3. Double-geared drive device, reasonable force load transmitting, winder twist range
4. Adjustment system through belt tension, easy operation
5. Pedal brake systme, operation easy, extend the life of belt and spindle
6. Winding completed or yarn broken, spindle support lift automatic to avoid yarn grind
7. Oil-bath gearbox and special yarn guide, made excellent winding form
8. The take-up tension on the roller can adjust at ease. It is alos suit for winding loose packages for dyeing.
