Affacare AH 600 surgical instruments medical ultrasonic scalpel system ultrasonic shear ultrasonic debridement scalpel
- Category: Professional Medical Devices >>>
- Supplier: Luoyang Qinzheng Trading Co. Ltd.
Share on (1600155162500):
Product Overview
Description
Affacare AH-600 surgical instruments medical ultrasonic scalpel system ultrasonic shear ultrasonic debridement scalpel
Generator
It is the control section of ultrasonic scalpel system and its output power can be controlled by handle and foot switch. The output power can be divided into 5 levels, of which level 1 is the minimum and level 5 is the maximum. Ultrasonic scalpel in level 5 will show relatively strong separation capacity; and ultrasonic scalpel in level 1 will show relatively strong hemostasis capacity.

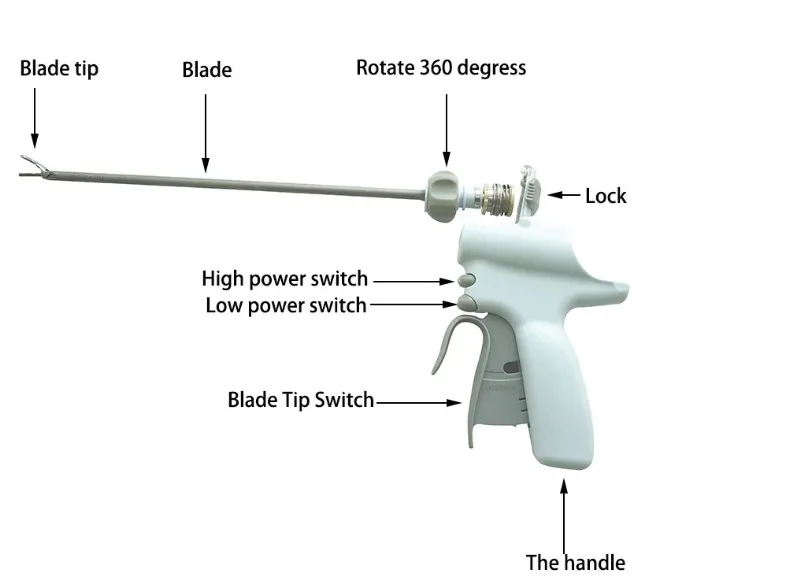

Handle and Cutter
it can be used to control the open and close of forceps holder and the clamp & cutting of tissue. “Max” key on the front end of handle AH-636 can be used to control level 5 of high power and the “MIN” key on the both sides of handle can be used to control the level 1 to 4 of lower power.
Transducer
it can convert electric energy to mechanical energy

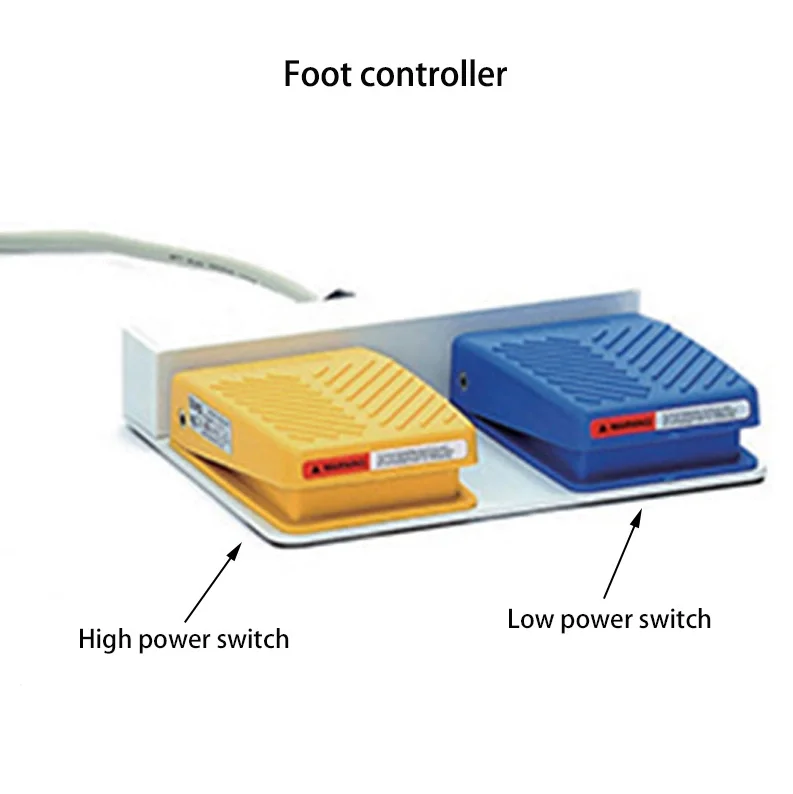

Foot Switch
the left pedal on foot switch is the switch of level 5 high power and the right one on foot switch is the switch of level 1-4
lower power with protection level of IPX8. 1.2.5 Cutters: cutters are disposable.
lower power with protection level of IPX8. 1.2.5 Cutters: cutters are disposable.
Application procedures
Ultrasonic scalpel Shear has the function of transmission and amplification of ultrasonic mechanical energy with function of cutting and coagulation during operation. Various product models can meet the demand of various surgeries.
Ultrasonic scalpel Shear has the function of transmission and amplification of ultrasonic mechanical energy with function of cutting and coagulation during operation. Various product models can meet the demand of various surgeries.
Features:
1.The handle and foot pedal can be used independently, which is convenient for doctors to use.
2.Precise Cutting and Coagulation Synchronously.
3.Minimal lateral thermal tissue damage.
4.No electricity passes through the patient.
5.No toxin smoke, only from water vapor.
6.Multi-functionality (cut, coagulate, grasp, dissect).
7.Precise Operation, easy handling.
1.The handle and foot pedal can be used independently, which is convenient for doctors to use.
2.Precise Cutting and Coagulation Synchronously.
3.Minimal lateral thermal tissue damage.
4.No electricity passes through the patient.
5.No toxin smoke, only from water vapor.
6.Multi-functionality (cut, coagulate, grasp, dissect).
7.Precise Operation, easy handling.
Specifications: | ||
Driving frequency: | 55kHz±1kHz | |
Main amplitude (maximum amplitude) of point: | 50μm～100μm | |
Maximum power of driven transducer: | 33W±10W | |
Vibration frequency of point: | 55kHz±1kHz | |
Derived output acoustic power: | ＜4W | |
Power reserve index: | ＞2 | |
Lateral amplitude of point: | ＜10μm | |
Static (no-load) electric power: | ＜20W | |
Certifications:
Clinical trial report
The results of this clinical trial show that the AH-600 ultrasonic scalpel system and the GEN300 ultrasonic scalpel system
produced by Johnson & Johnson in the United States have no significant difference in the cutting effect and hemostatic effect of
adipose tissue and connective tissue. The two are held and operated in the handle. There was no significant difference in comfort
and convenience. There was no significant difference in operation time, bleeding volume, drainage volume and drainage properties
between the two groups. No serious adverse events occurred. This indicates that the AH-600 ultrasonic scalpel system is effective
in tissue cutting and hemostasis. The ease of operation has reached the international level of similar products, and it is safe
and effective for cutting fat and connective tissue and hemostasis in laparoscopic surgery.
produced by Johnson & Johnson in the United States have no significant difference in the cutting effect and hemostatic effect of
adipose tissue and connective tissue. The two are held and operated in the handle. There was no significant difference in comfort
and convenience. There was no significant difference in operation time, bleeding volume, drainage volume and drainage properties
between the two groups. No serious adverse events occurred. This indicates that the AH-600 ultrasonic scalpel system is effective
in tissue cutting and hemostasis. The ease of operation has reached the international level of similar products, and it is safe
and effective for cutting fat and connective tissue and hemostasis in laparoscopic surgery.
AH-600 ultrasonic scalpel system has been used in more than 900 hospitals in China. The annual usage of cutter exceeds 200,000 pieces.
Company profile
Luoyang Qinzheng Trading Co., Ltd. is a company specializing in the sales of medical equipment which located in Luoyang, Henan Province,China. Since our establishment in 2013, we have been committed to the sales of medical equipment. We have been doing medical device export business since 2018. At present, we have cooperated with more than 200 medical institutions and hospitals in the world, and our products are exported to Mexico, India, Singapore, Malaysia, Ecuador, Bolivia and other countries. Our high-quality products and services have been widely praised by customers.
Our main products are ultrasonic scalpel system, urology equipment and consumables, surgical lights, operating table, clinical analysis instruments, medical optical instruments,etc. These products have been used in many hospitals in China. And also, our products have obtained CE, ISO13485 and other certificates. We guarantee to provide our customers with high quality products and services.
We hope to cooperate with more medical institutions internationally. Looking forward to hearing from you!
Our main products are ultrasonic scalpel system, urology equipment and consumables, surgical lights, operating table, clinical analysis instruments, medical optical instruments,etc. These products have been used in many hospitals in China. And also, our products have obtained CE, ISO13485 and other certificates. We guarantee to provide our customers with high quality products and services.
We hope to cooperate with more medical institutions internationally. Looking forward to hearing from you!
FAQ
1. Q: How many years can the generator work?
A: Usually it can work 5-6 years.
2. Q: How many times can the transducer work?
A: It can work 80-100 times.
3. Q: How many times can the handle work?
A: 20-30 times.
4. Q: How many times can the cutter work?
A: We recommend using it only once.
5. Q: Do you have videos for learning?
A: Yes, we have made some videos of the installation and how to use it.
6. Q: What's your after-sale service?
A: When the generator cannot work within the warranty period, we will send a new to replace it. For detailed after-sales policy, please click Here for consultation!
7. Q: Can you provide academic support?
A: Yes, we can.
8. Q: Can you appoint engineers to our country?
A: When you become an agent, we will arrange an engineer to serve you.
2. Q: How many times can the transducer work?
A: It can work 80-100 times.
3. Q: How many times can the handle work?
A: 20-30 times.
4. Q: How many times can the cutter work?
A: We recommend using it only once.
5. Q: Do you have videos for learning?
A: Yes, we have made some videos of the installation and how to use it.
6. Q: What's your after-sale service?
A: When the generator cannot work within the warranty period, we will send a new to replace it. For detailed after-sales policy, please click Here for consultation!
7. Q: Can you provide academic support?
A: Yes, we can.
8. Q: Can you appoint engineers to our country?
A: When you become an agent, we will arrange an engineer to serve you.
