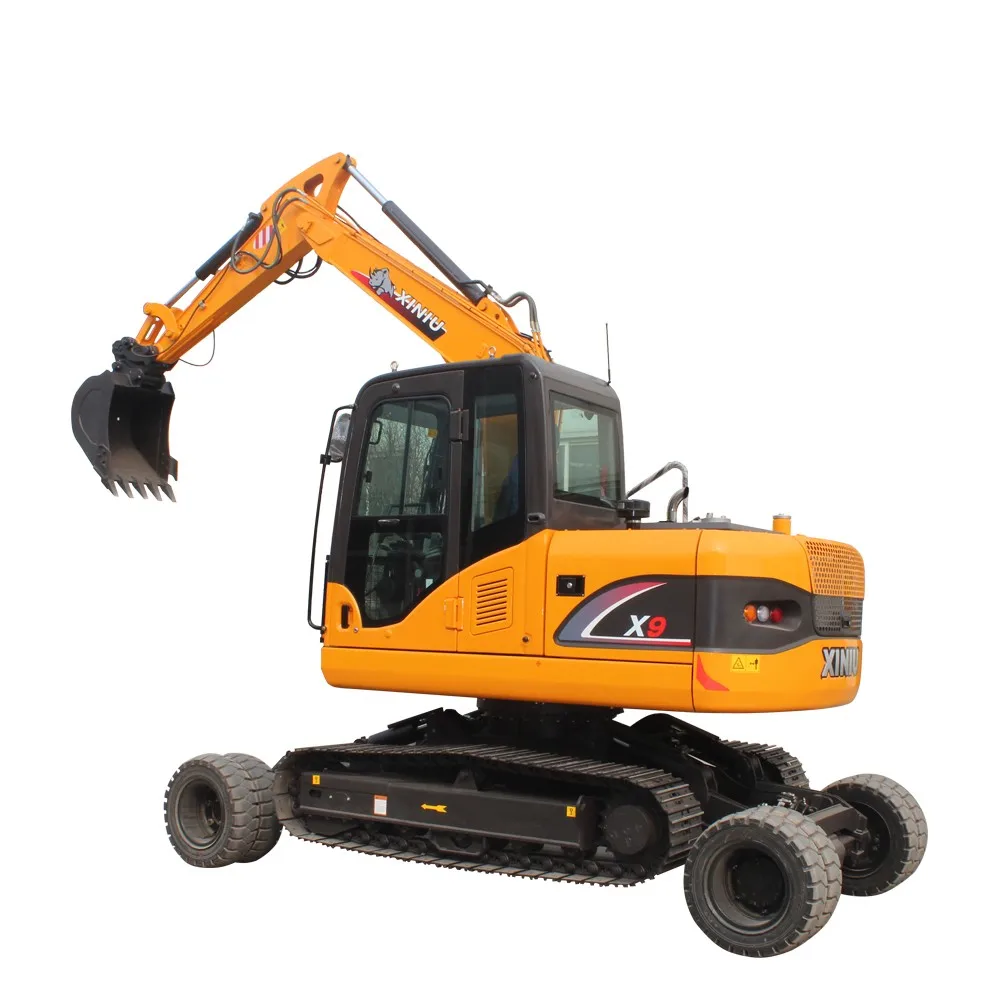

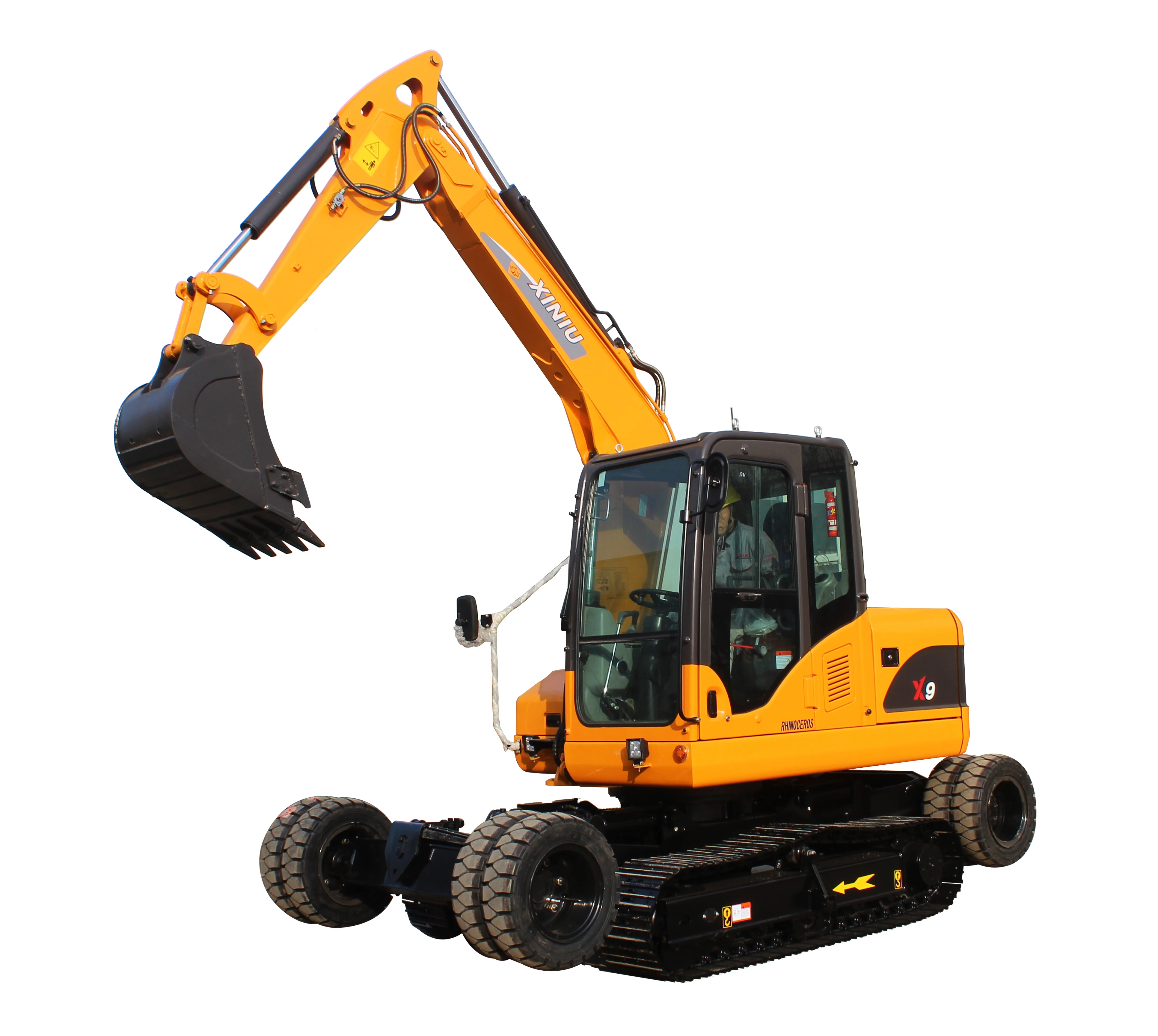

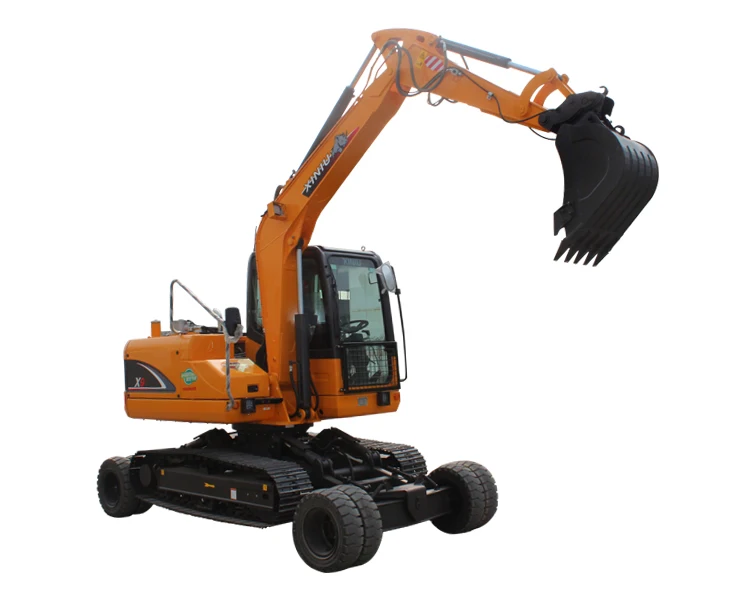

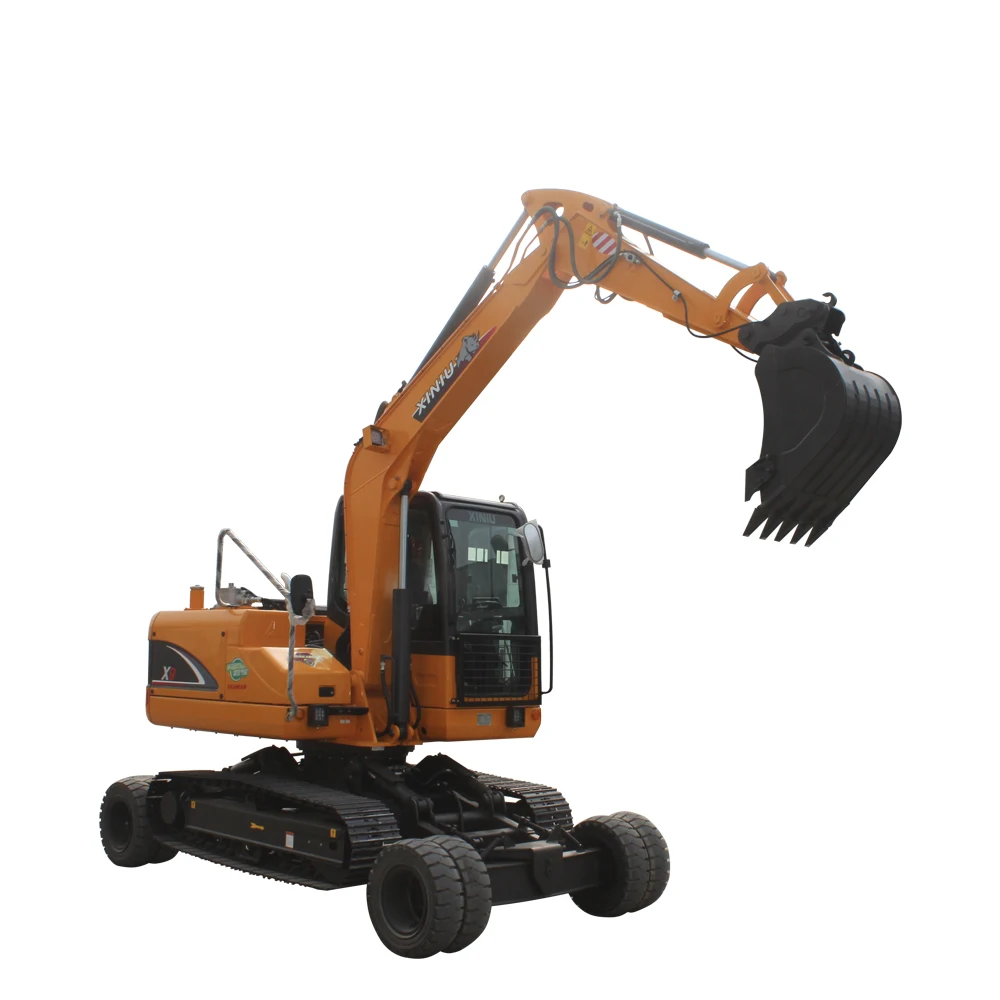

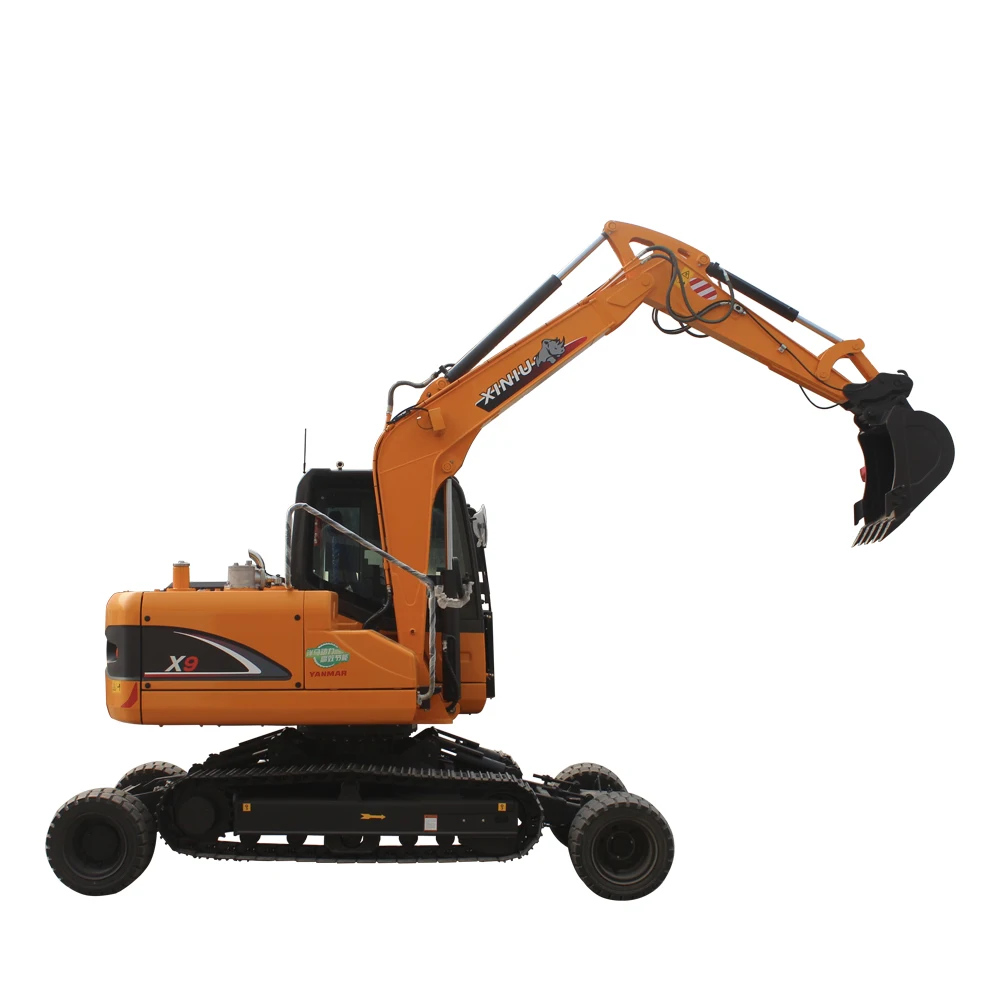

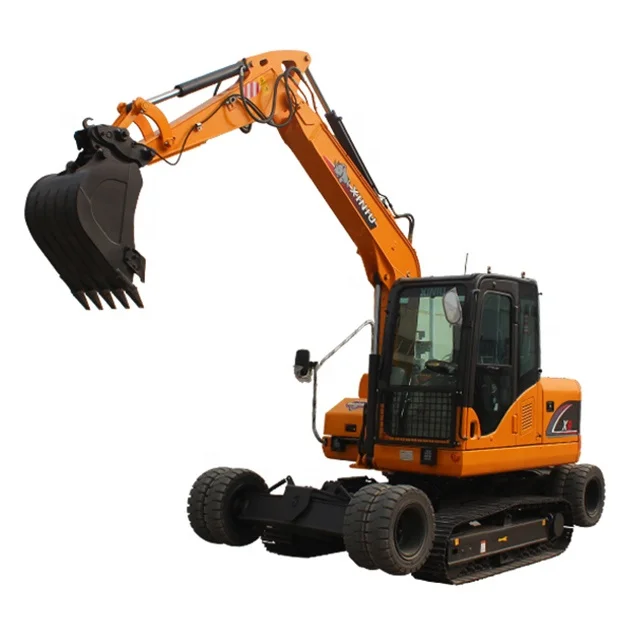

Rhinoceros 9 ton Small Crawler Excavator X9 Wheel Excavator South Africa sale
Wheel-Crawler Excavator X9 Amphibious type with Patent design and YANMARengineWheel-Crawler Excavator X9, is new design, patent products, There are two modes of travel-wheel and track:running on the wheel, working on the track. That is easy to change each other, and there is no need truck loading for transporting.
It is driven by imported Yanmar engine, Germany Rexroth pump, and USA EATON swing motor, traveling motor, powerful and reliable performance,
and also X9 contains other well-known parts: South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB, 0.32m3 bucket,
and also X9 contains other well-known parts: South Korea SUNJIN valve/ Joystick, A/C cab for choose, Radio, USB, 0.32m3 bucket,
Overall dimension: 6570x2120x2982 mm,

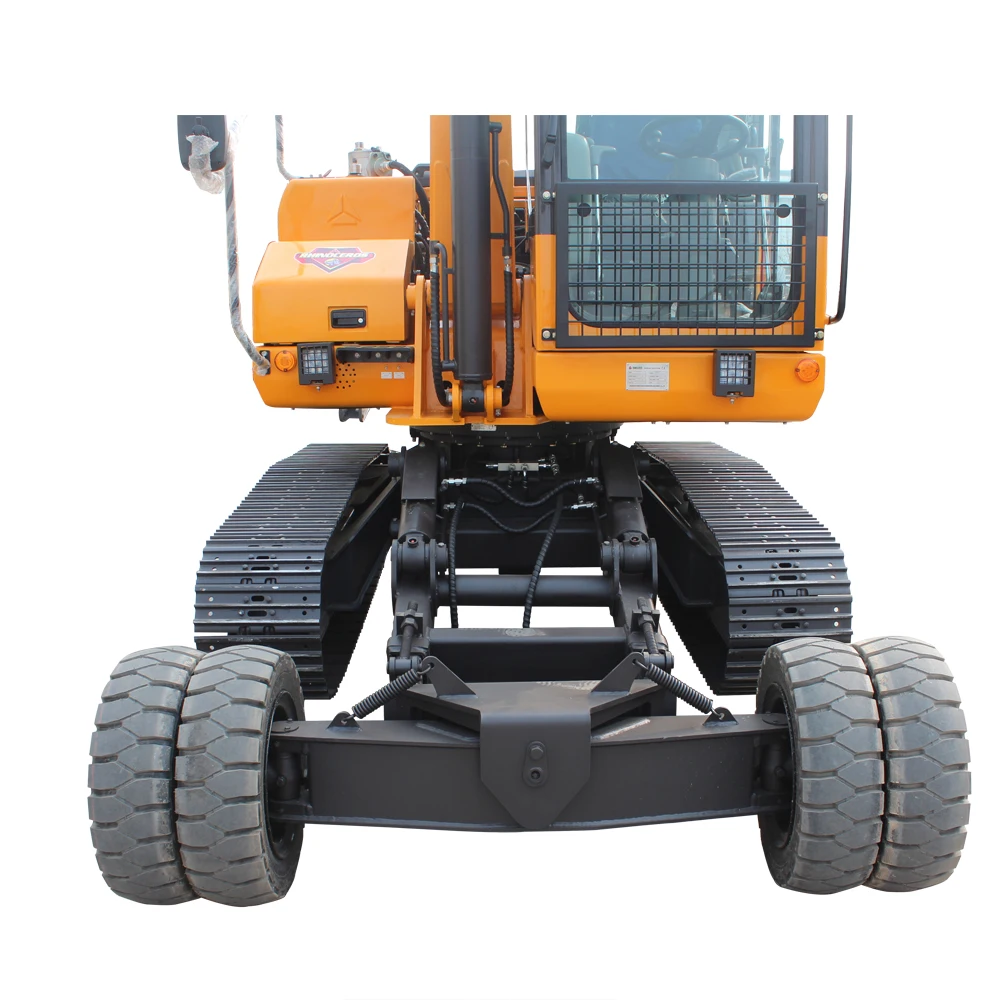

Running on wheels, Working on track.
Specification
X9 Wheel- Crawler Excavator Specification: | ||
Total length (Boom3.6m+Bucket arm 2m) | 6570 mm | |
Total height (Boom3.6m+Bucket arm 2m) | 2982 mm | |
Counter weight turning radius | 1836 mm | |
Engine hood height | 2104 mm | |
Counter weight ground clearance | 1120 mm | |
Upper structure width | 2000 mm | |
Cabin height (wheels up) | 2982 mm | |
Tire width | 2120 mm | |
Ground clearance | 270 mm | |
Wheels up wheel gauge | 3400 mm | |
Distance of swing center to rear wheel (wheels up) | 1682 mm | |
Wheels down wheel gauge | 3560 mm | |
Distance of swing center to rear wheel (wheels down) | 1767 mm | |
Rear wheel ground clearance(wheel up) | 300 mm | |
Tracks ground clearance(wheel down) | 330 mm | |
Total height (wheels down) | 3190 mm | |
Track wheel track | 2050 mm | |
Track width | 400 mm | |
Track outer width | 2160 mm | |
Technical performance specification | ||
Total weight | 8770kg | |
Bucket capacity | 0.3m3 | |
Engine Model | YANMAR 4TNV94L-BNBKC | |
Engine Displacement | 3.054L | |
Engine power/rpm | 33.7 kw/2100 rpm | |
Engine Max. torque | 193.2-210.6 N.m/126±100rpm | |
Wheel travelling speed | 25 km/h | |
Track travelling speed | 2.3km/h | |
Swing speed | 9rpm | |
Max. grade ability | 30° | |
Hydraulic system | Rexroth from Germany | |
Pump | variable capacity pump | |
Pressure | 25 Mpa | |
Displacement | 132 L/min | |
Capacity of hydraulic tank | 175 L | |
Capacity of fuel tank | 150 L | |
Engine oil capacity | 12 L | |
Working device | Boom 3.6m+Arm 2m | |
Max. digging radius | 6880mm | |
Max. digging radius (on ground) | 6735mm | |
Max. digging depth | 3772mm | |
Max. digging depth | 7130mm | |
Max. dumping height | 5220mm | |
Min. turning radius | 2617mm | |
Max. vertical digging depth | 3425mm | |
Bucket digging force (KN) | 56KN | |
Bucket arm digging force (KN) | 36KN | |
Details Images
Our company
Certifications
FAQ
What is the machIne advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers, Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container?

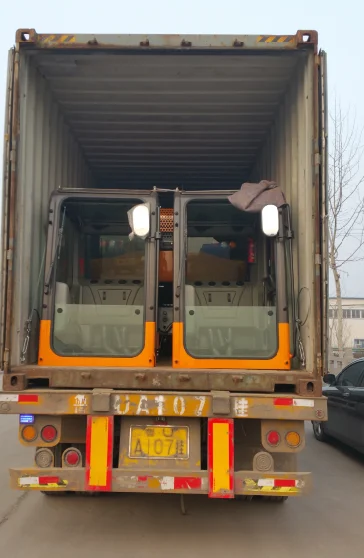

A: 2 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers, Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container?
A: 2 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
