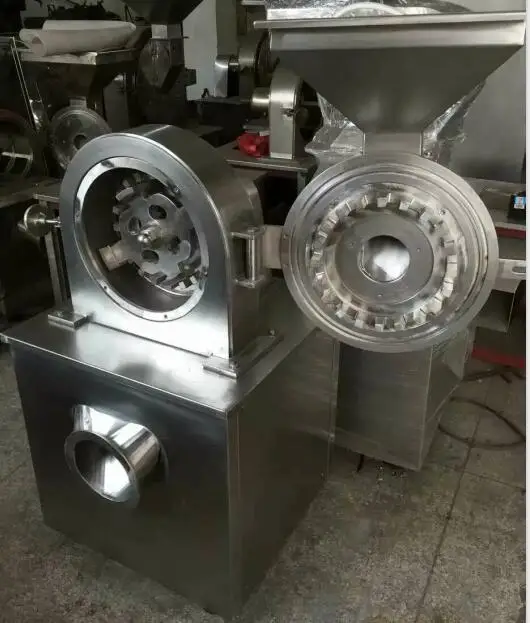

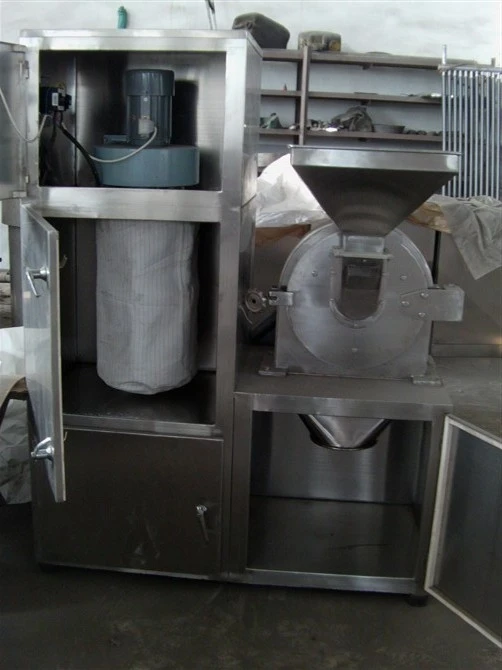

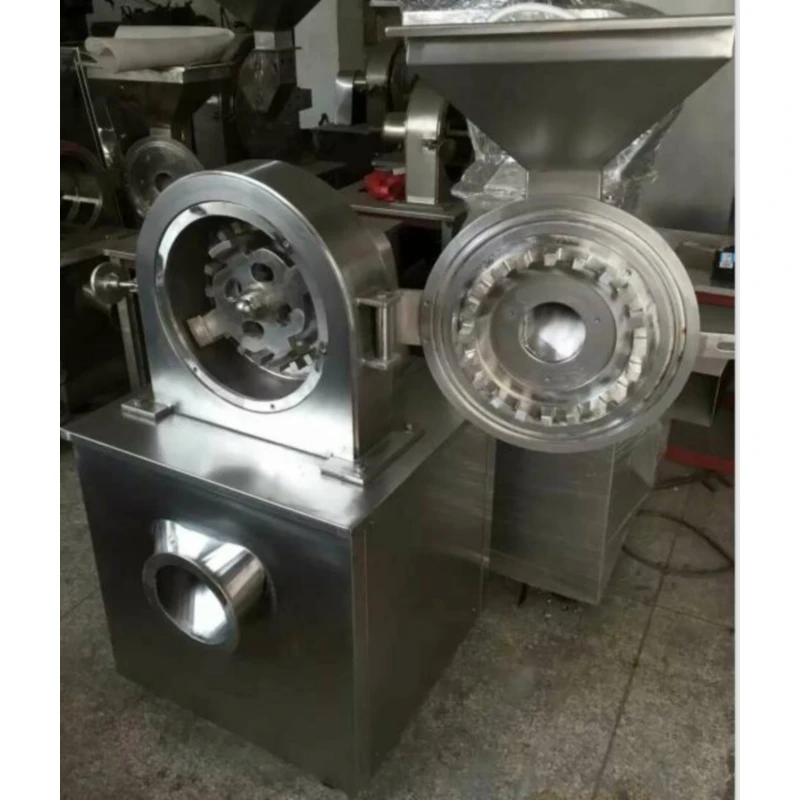

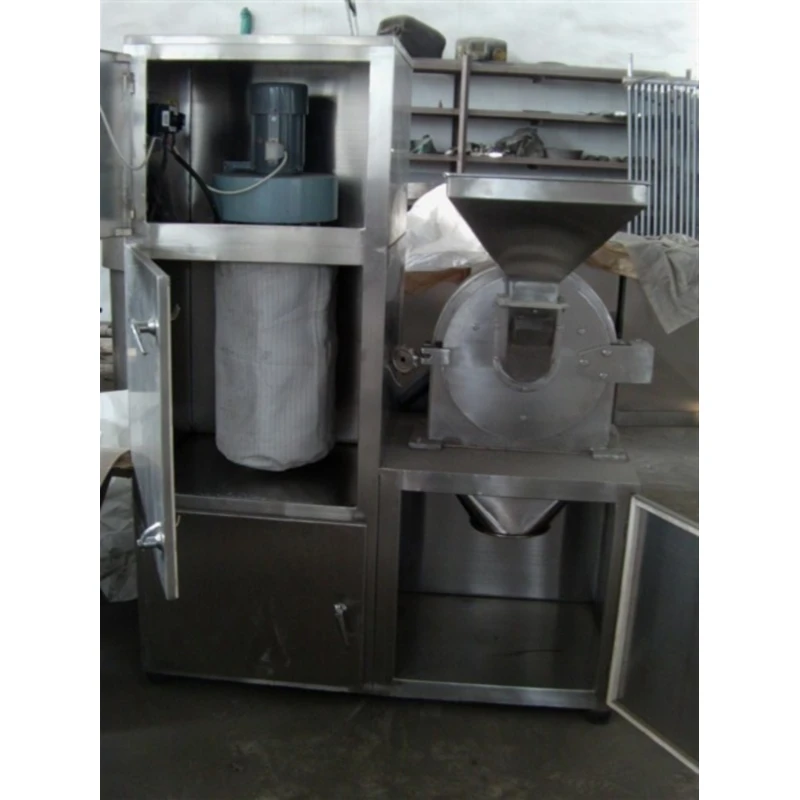

B Series Universal Pulverizer Set
Main application
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Working principle:
By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. Designed according to GMP standard and wholly made of stainless steel, model 30B, model 40B and 60B crushing chamber are equipped with water cooling jacket. With simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment at present.
Technical Parameters:
Main application
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Working principle:
By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. Designed according to GMP standard and wholly made of stainless steel, model 30B, model 40B and 60B crushing chamber are equipped with water cooling jacket. With simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment at present.
Technical Parameters:
Spec | unit | 20B/20B Set | 30B/30B Set | 40B/40B Set | 60B/60B Set |
productive capacity | kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
speed of main shaft | r/min | 4500 | 3800 | 3400 | 2800 |
feeding granule size | mm | 6 | 10 | 12 | 15 |
finess of pulverization | mesh | 60-150 | 60-120 | 60-120 | 60-120 |
grinding motor power | kw | 4 | 5.5 | 11 | 15 |
fan power | kw | 1.5 | 1.5 | 1.5 | 2.2 |
weight | kg | 250 | 320 | 550 | 680 |
overall dimension （L×W×H） | mm | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
overall dimension （set）（L×W×H） | mm | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×1000×1750 |
Products Description
Product packaging

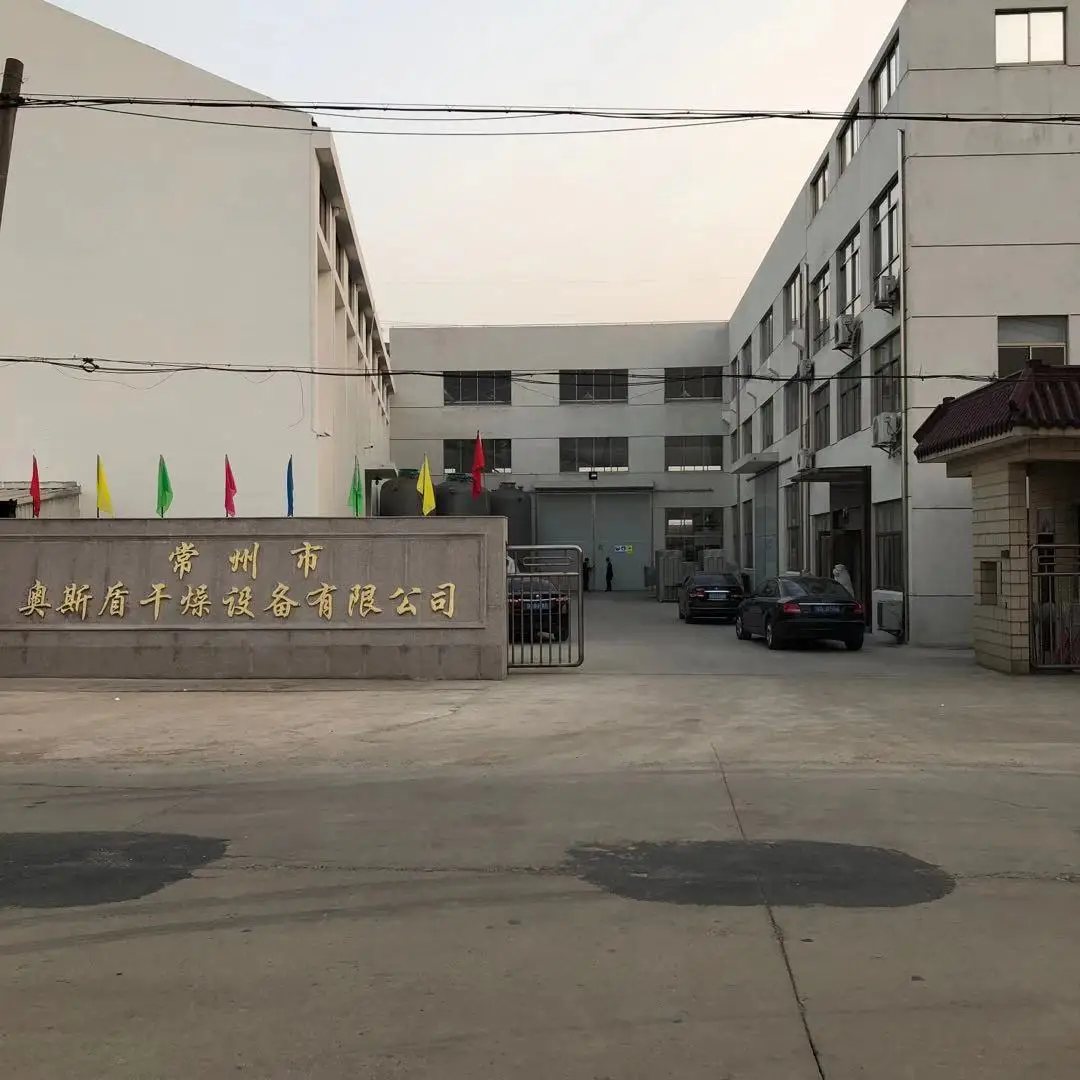

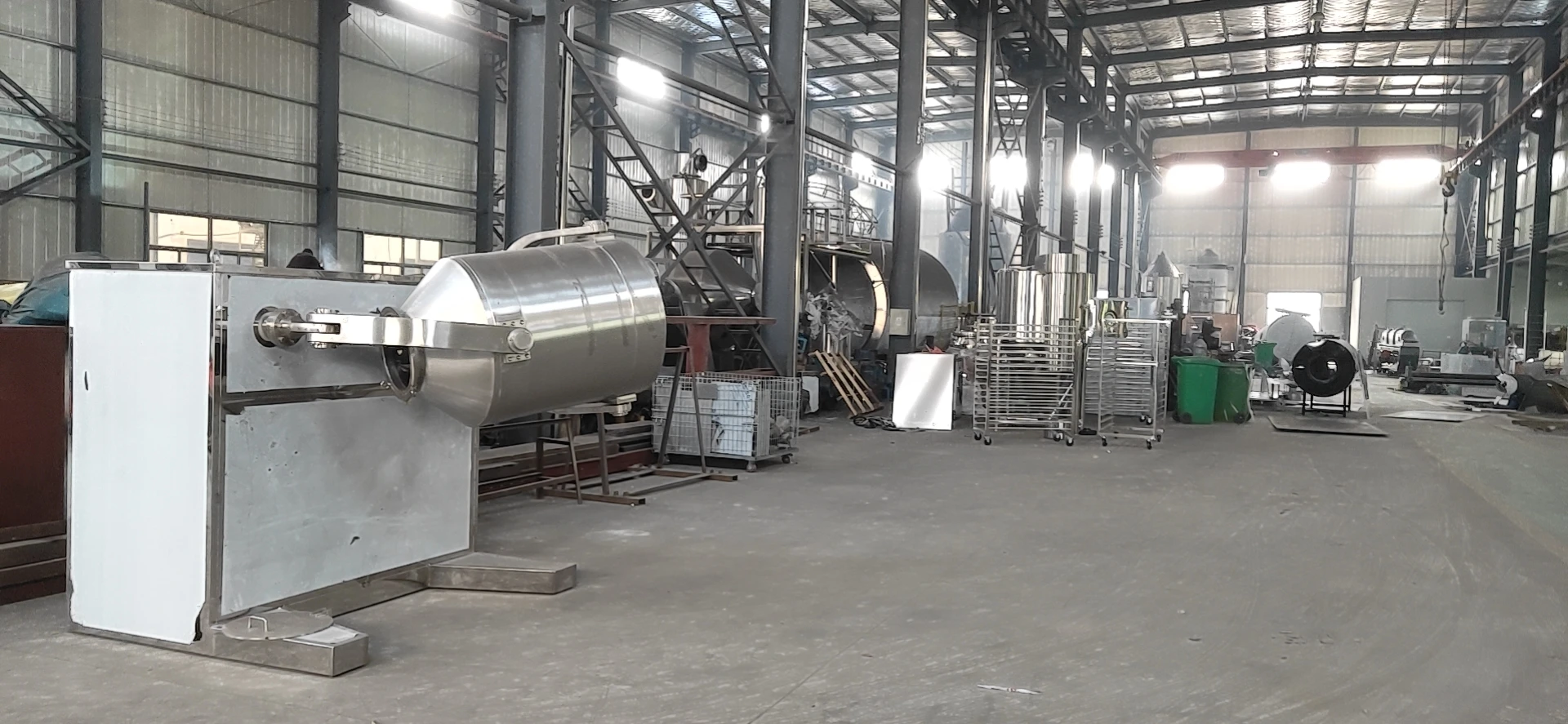

Company Profile
Liaoyang Yishan Machinery Imp. & Exp. Co., Ltd. is a company specialized in researching, developing and supplying pharmaceutical , chemical and food equipment.
Our main products include drying machines, mixing and granulating machines, packing machines, labeling machines, filling machines, tablet press and all kinds of stainless steel products. Our products have been exported to many countries and regions, such as America, Canada, El Salvador, Thailand, Pakistan, Russia, Belarus, Bulgaria, Senegal, South Africa, etc.
We strictly execute the National Quality Standard and our products meet GMP standard.
We have professional technicians and experienced workers. In addition to this, we own the most advanced processing equipment such as CNC lathes, millers, horizontal boring machines, polishing machines and automatic welding machines.
We carry out human-oriented management and adhere to the guidelines that quality and clients' interest come first. We will continuously accommodate to markets' need and bring our advantage into full play to give our best service to all clients.
Finally, we sincerely welcome all clients from home and abroad to visit our company and we hope to establish long-term cooperation with you.
Our main products include drying machines, mixing and granulating machines, packing machines, labeling machines, filling machines, tablet press and all kinds of stainless steel products. Our products have been exported to many countries and regions, such as America, Canada, El Salvador, Thailand, Pakistan, Russia, Belarus, Bulgaria, Senegal, South Africa, etc.
We strictly execute the National Quality Standard and our products meet GMP standard.
We have professional technicians and experienced workers. In addition to this, we own the most advanced processing equipment such as CNC lathes, millers, horizontal boring machines, polishing machines and automatic welding machines.
We carry out human-oriented management and adhere to the guidelines that quality and clients' interest come first. We will continuously accommodate to markets' need and bring our advantage into full play to give our best service to all clients.
Finally, we sincerely welcome all clients from home and abroad to visit our company and we hope to establish long-term cooperation with you.
FAQ
How about the after sale service?
1)We will always put the quality first and if there is any quality problem, we will solve it and make compensaton for our coustomers appropriately.
2)We adopt sea worthy and air worthy export packing and take charge in the packing, we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling, we will slove the problems in and after the selling for our coustomers.
