2.24GHz J3160 CPU embedded mini fanless industrial computer with 4G RAM/128G SSD/WIFI/Amplified speaker/MIC/AUDIO/GbE/USB3.0
- Category: Industrial Computer & Accessories >>>
- Supplier: Shenzhen Zhongkong Computers Co. Ltd.
Share on (1600168652280):
Product Overview
Description
Features:
|

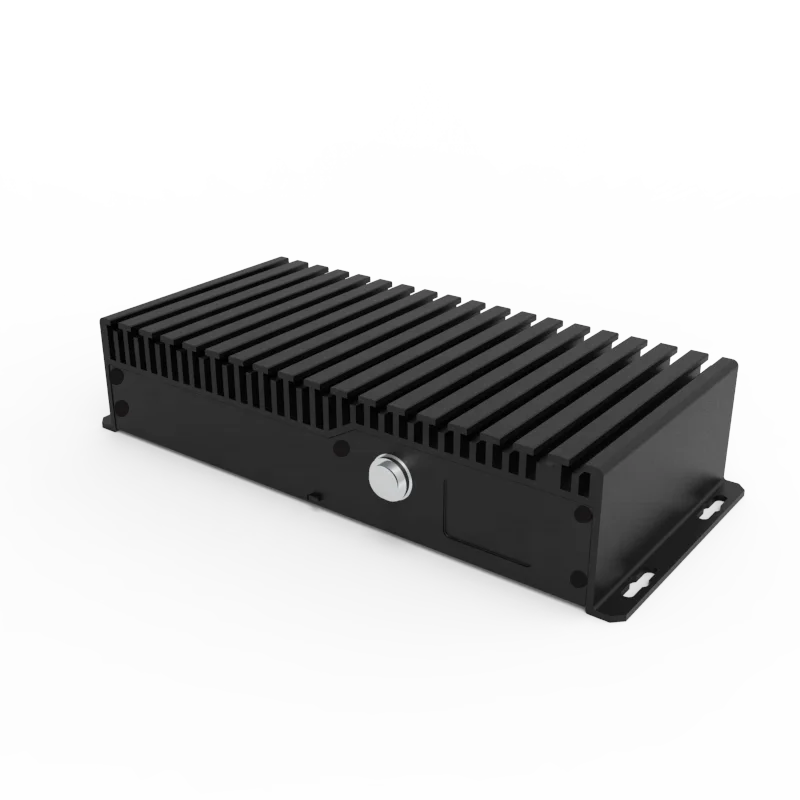

Model:BOX320
Specifications(BOX320-J31604G64S):
Enclosure | Color | Black |
Size | 95mm*201mm*42mm(L*W*H) | |
Structure | Aluminum alloy fan-less compact design | |
Heatsink | Fanless all aluminum thin-fin heatsink | |
Material | Aluminum alloy die-casting | |
System | CPU | Intel J3160 CPU |
Platform | ||
Video card | Intel® HD Graphics card integrated with HDMI | |
RAM(preset) | 1* 4GB DDR3L/1.35V/SODIMM,support upto 8GB | |
Storage | HDD | 1* SATA III with SATA power supply |
SSD(preset) | 1* 64G MSATA | |
I/O | Network | 1* Lan(GbE) |
USB | 2* USB2.0(internal),4*USB3.0 | |
Serial port | none | |
Display | 1*HDMI | |
Audio | 1* MIC,1*AUDIO | |
Expansion | 2* MiniPCIe (1*SSD+1*WIFI half size) | |
LED indicator | Power LED | |
Power-ON | Switch | |
WIFI(option) | 2* WIFI/4G SMA | |
Software | OS(preset) | WINDOWS 10 PRO(with SDK) |
Power | DC power | 90-240VAC input, 12V/5ADC output |
Environment | Installation | Desktop or embedded open area |
Operation | 0℃~45℃ | |
Storage | -20℃~70℃ | |
RH | 5%-95% NC | |
Vibration | 0.5g rms/5-500HZ/random/operating |
BOX320 IO mapping
|

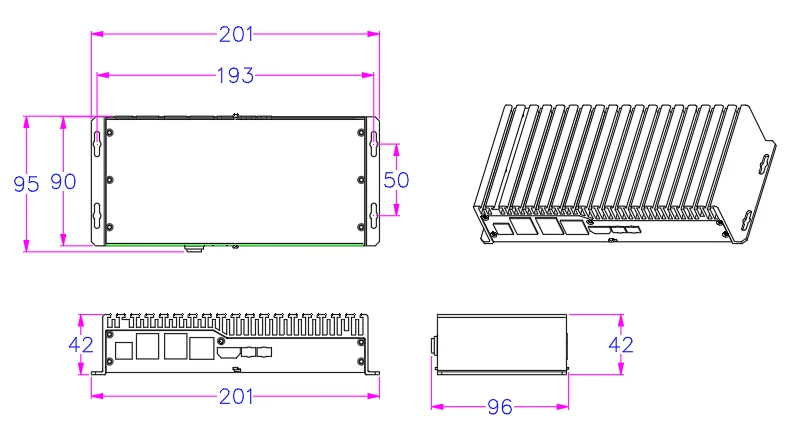

BOX320 Size:
Ordering information(options)
SN | Model | CPU | RAM | Disk | LAN | COM | USB | WIFI | Power | OS |
1 | BOX320-J31602G1T | J3160 | 8G | 1TGSSD | 1*RJ45 | (0) | 6 | (0) | 12V/5A | WIN7/10 |
2 | BOX320-J31608G512S | J3160 | 8G | 512GSSD | 1*RJ45 | (0) | 6 | (0) | 12V/5A | WIN7/10 |
3 | BOX320-J31604G256 | J3160 | 4G | 256GSSD | 1*RJ45 | (0) | 4 | (0) | 12V/5A | WIN7/10 |
4 | BOX320-J31604G128SW | J3160 | 4G | 128GSSD | 1*RJ45 | (0) | 6 | 1 | 12V/5A | WIN7/10 |
5 | BOX320-J31604G128SWD | J3160 | 4G | 128GSSD | 2*RJ45 | (0) | 4 | 1 | 12V/5A | WIN7/10 |
OS options
SN | Version | SDK | Key | Image |
1 | WES 7/WINDOWS 7 |
|
|
|
2 | WIN10 IoT 2016 |
|
|
|
Packing Details
l 1x BOX IPC
l 1x Power brick
l 1x WIFI Antenna
l 1x HDMI cable(1.5m)
l 1x QC card
l 1x Manual
l 1x screw bag
