heavy duty four side moulder wood planer
US $22300-$23300

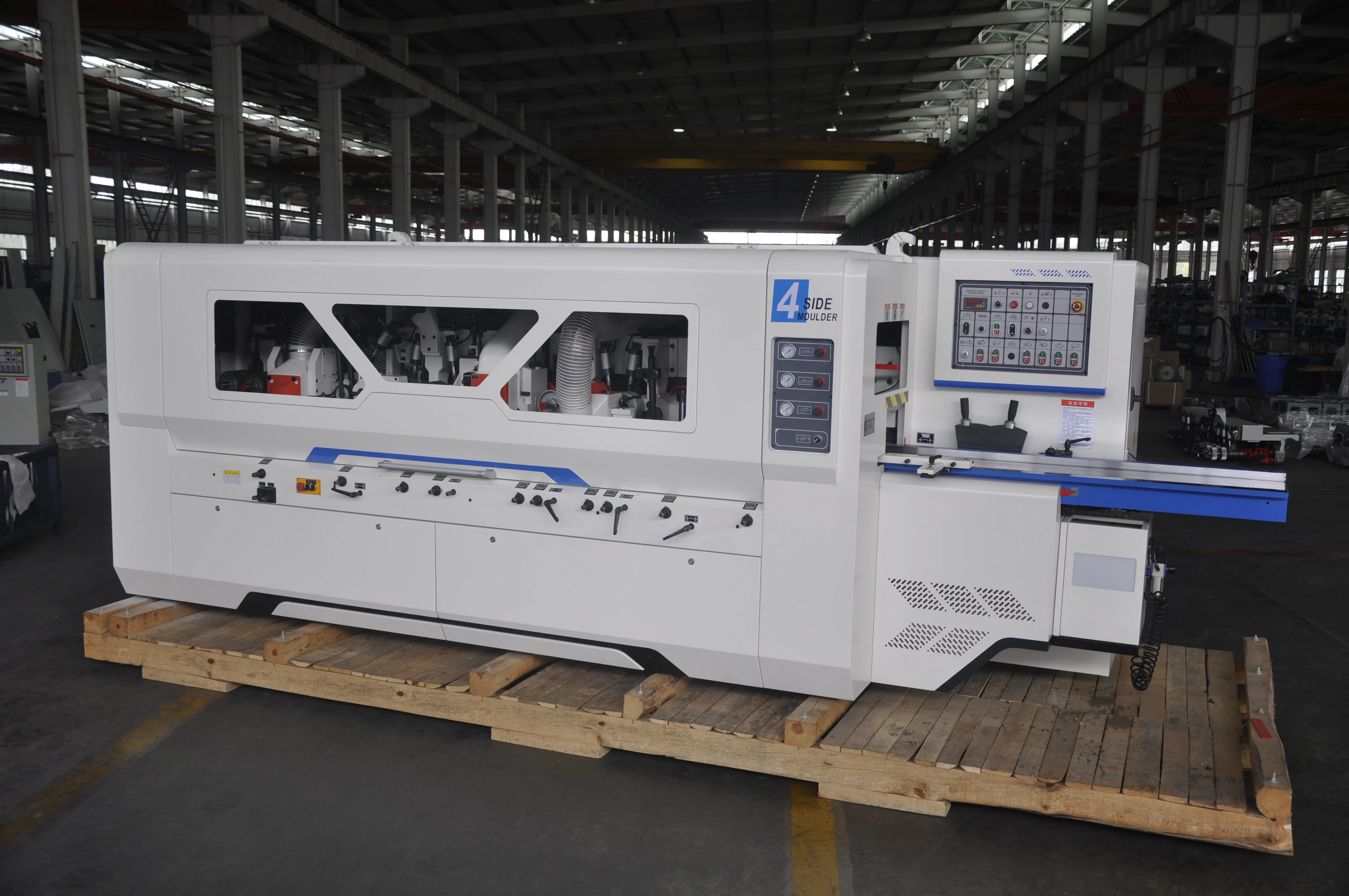

High Speed 6 Head Four Side Moulder Machinery For Wood Line Factory
- Category: Wood Planer >>>
- Supplier: Qingdao Fengkai Machinery And Equipment Co. Ltd.
Share on (1600168917588):
Product Overview
Description
Product Description
Model | MB523W | MB623W | MB723W |
Working width | 20-230mm | 230 | 230 |
Working thickness | 8-160mm | 160 | 160 |
Universal spindle quantity | 1pc | 1pc | 1pc |
Normal spindle quantity | 4pc | 5pc | 6pc |
Spindle speed | 6800RPM | 6800RPM | 6800RPM |
Feeding speed | 6～36m/min | 6～36m/min | 6～36m/min |
Spindle diameter | 40mm | 40mm | 40mm |
1st bottom spindle cutter diameter | 125mm | 125mm | 125mm |
Scoring cutter diameter | 152mm | 152mm | 152mm |
Right spindle cutter diameter | 108-200mm | 108-200mm | 108-200mm |
Left spindle cutter diameter | 108-200mm | 108-200mm | 108-200mm |
1st top spindle cutter diameter | 108-170mm | 108-170mm | 108-170mm |
2nd top spindle cutter diameter | / | / | 108-170mm |
2nd bottom spindle cutter diameter | / | 108-200mm | 108-200mm |
Universal spindle cutter diameter | 108-160mm | 108-160mm | 108-160mm |
1st Bottom spindle power | 5.5kw | 5.5kw | 5.5kw |
2nd Bottom spindle power | / | 7.5kw | 7.5kw |
Left spindle power | 7.5kw | 7.5kw | 7.5kw |
Right spindle power | 5.5kw | 5.5kw | 5.5kw |
1st Upper spindle power | 7.5kw | 7.5kw | 7.5kw |
2nd upper spindle power | / | / | 7.5kw |
Universal spindle power | 7.5kw | 7.5kw | 7.5kw |
Feeding power power | 5.5kw | 5.5kw | 5.5kw |
Lifting power power | 0.75kw | 0.75kw | 0.75kw |
Total power | 38.25KW | 47.75KW | 54.75KW |
Universal spindle rotation direction | 360° | 360° | 360° |
Pressing wheel size | 140*35*50mm | 140*35*50mm | 140*35*50mm |
Dust collection port size | 6*150mm | 6*150mm | 6*150mm |
Machine size | 468*186*183cm | 519*186*183cm | 583*186*183cm |
Machine weight | 5500kg | 6000kg | 6800kg |

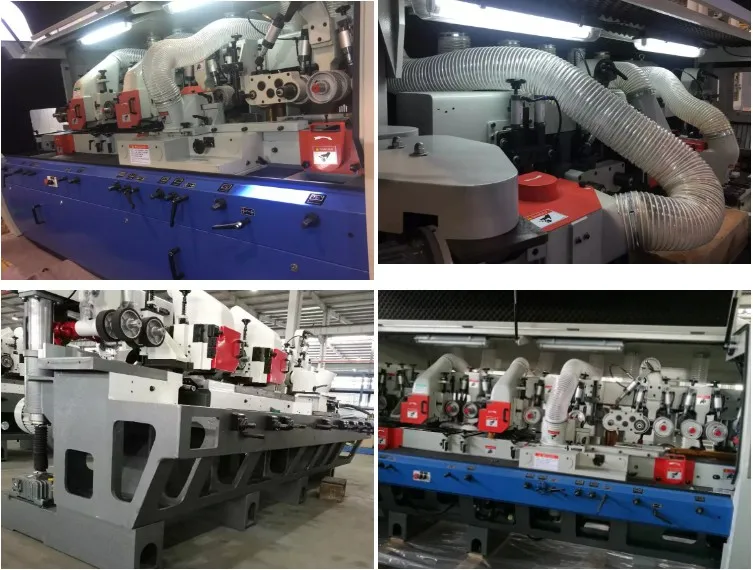

Details Images

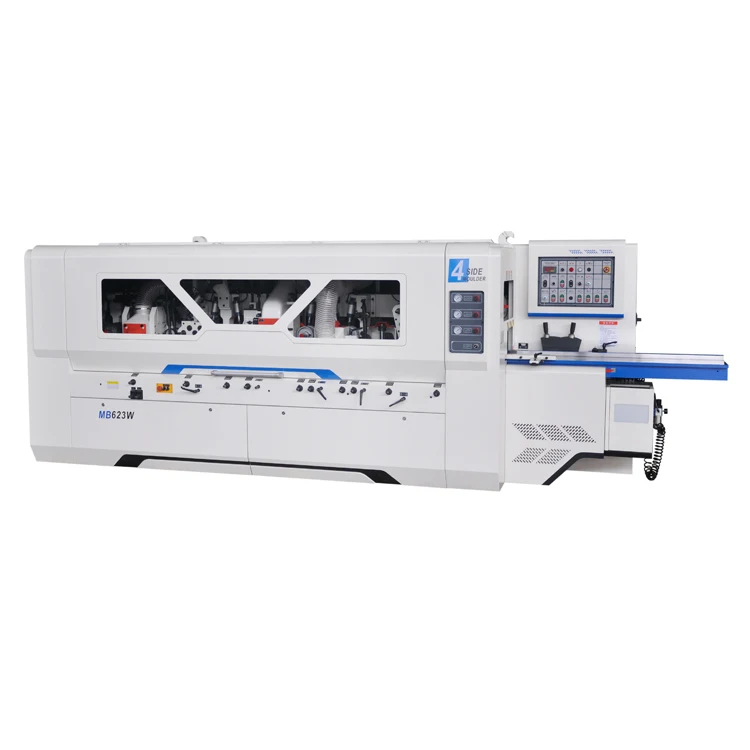

MB623W universal spindle 4 sided planer moulder

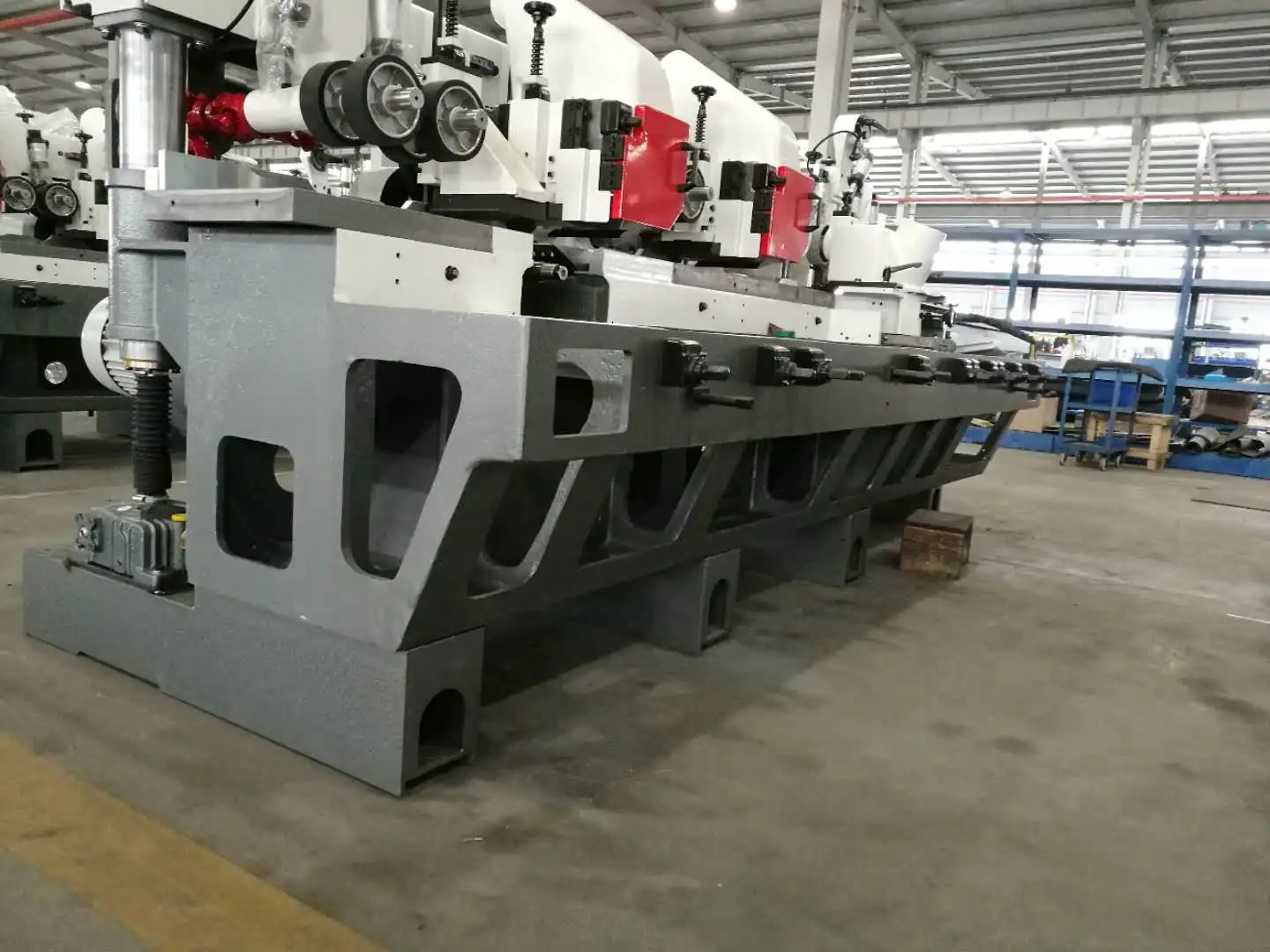

1. This machine adopts an integral casting body, which has stable performance and precision and good rigidity.
1. This machine adopts an integral casting body, which has stable performance and precision and good rigidity.
2. Fully enclosed safety cover and power-off protection when opening the door, low working noise, safety and environmental protection.
3. The main spindles adopts precision processing, dynamic balance processing, and precise assembly, which runs smoothly and with high accuracy.
4. The working table is made of special materials and special heat treatment, and is hard-chrome plated, which is wear-resistant.

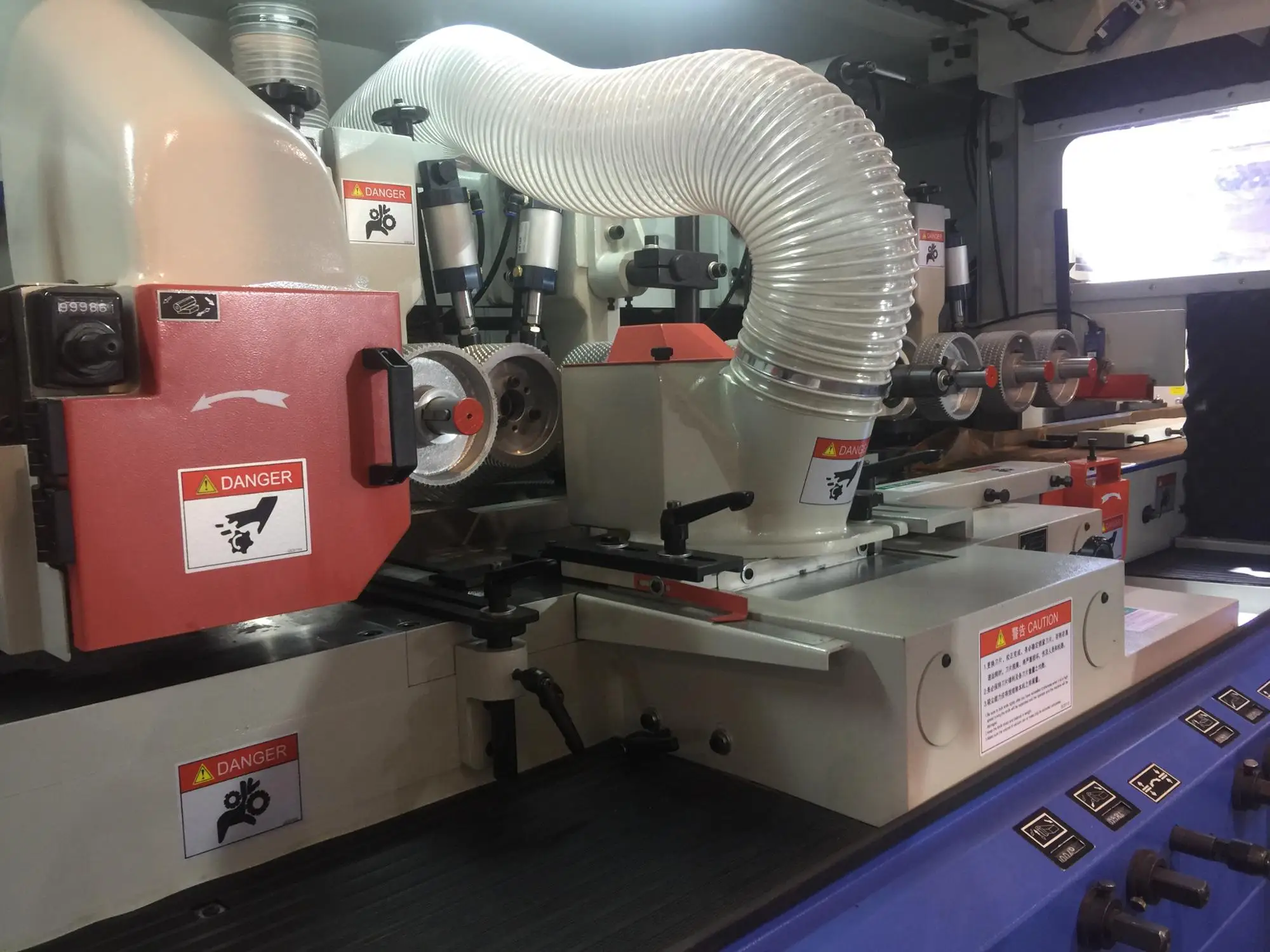

5. Feeding system adopts front middle and rear three-stage pressing the material, the pressure is stable and the adjustment is convenient.

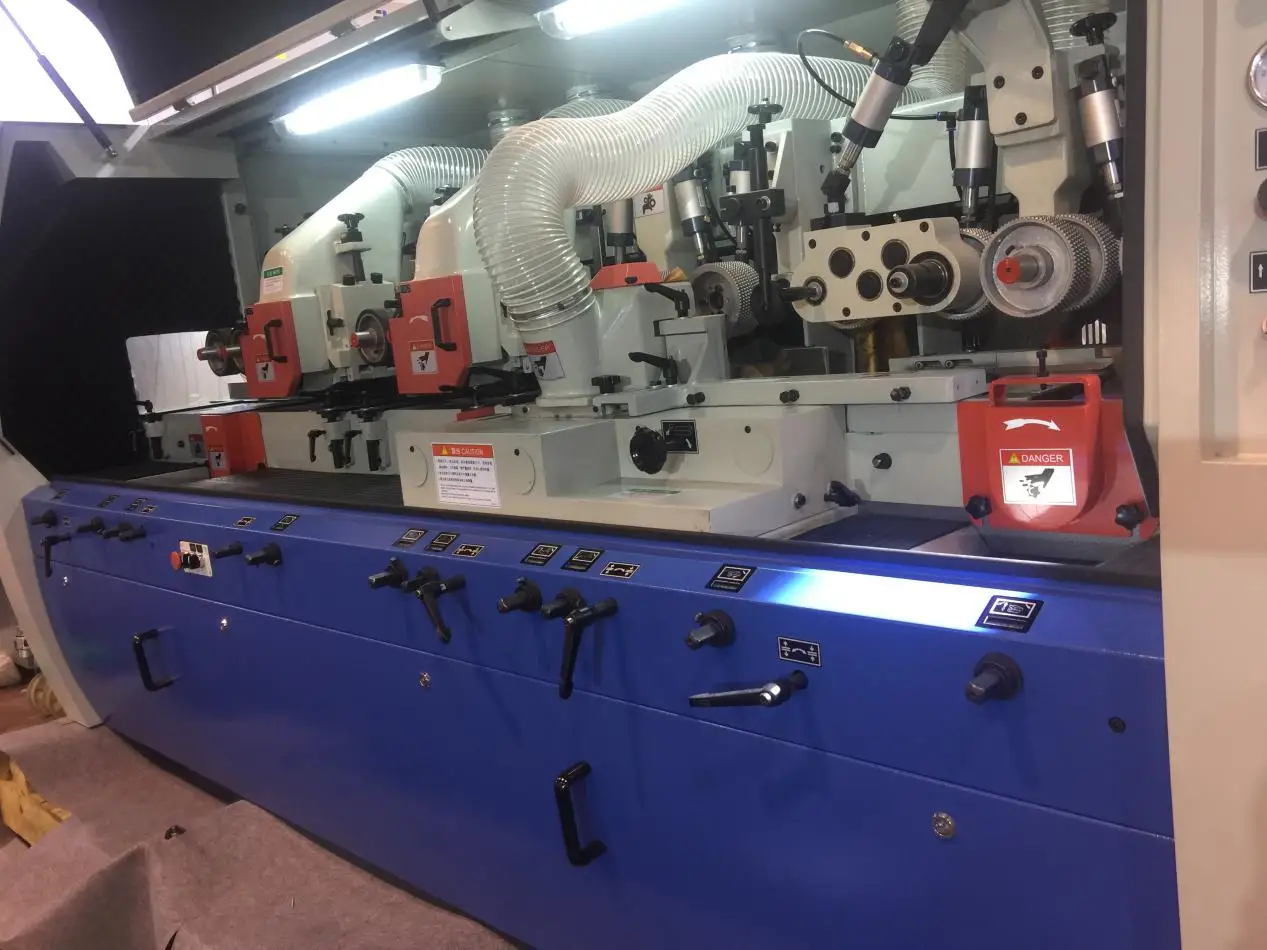

6. Multiple sets of bottom driving rollers are used in front middle and rear of the working table to ensure smooth feeding and strong force.
7. Lubrication of working table and dovetail board are controlled by manual pump,convenient and quick.
8. The first flat planer has a trimming sipe, and the front and rear mouth plates are fitted with diamond plates, which is accurate in planing and wear-resistant.
9. The 1st bottom cutter has a planing function, which can do manual feeding and planing processing when raise the first and second feeding wheels.
10. All electrical components and transmission parts use excellent brands and components with stable performance.
11. The feeding speed is controlled by frequency conversion, and the feeding speed reaches 5 ~ 36m/min.
12. Universal shaft can be 360 ° rotation.
13. Humanized centralized operation panel,easy to operate.
Optional functions：
1. CE standard for EU market.
2. Increase power of each spindle motor.
3. Lengthen the feeding table by 2500 ~3000mm.
4. Lubricate working table with electric oil pump.
5. Each spindle adopts brake system.
