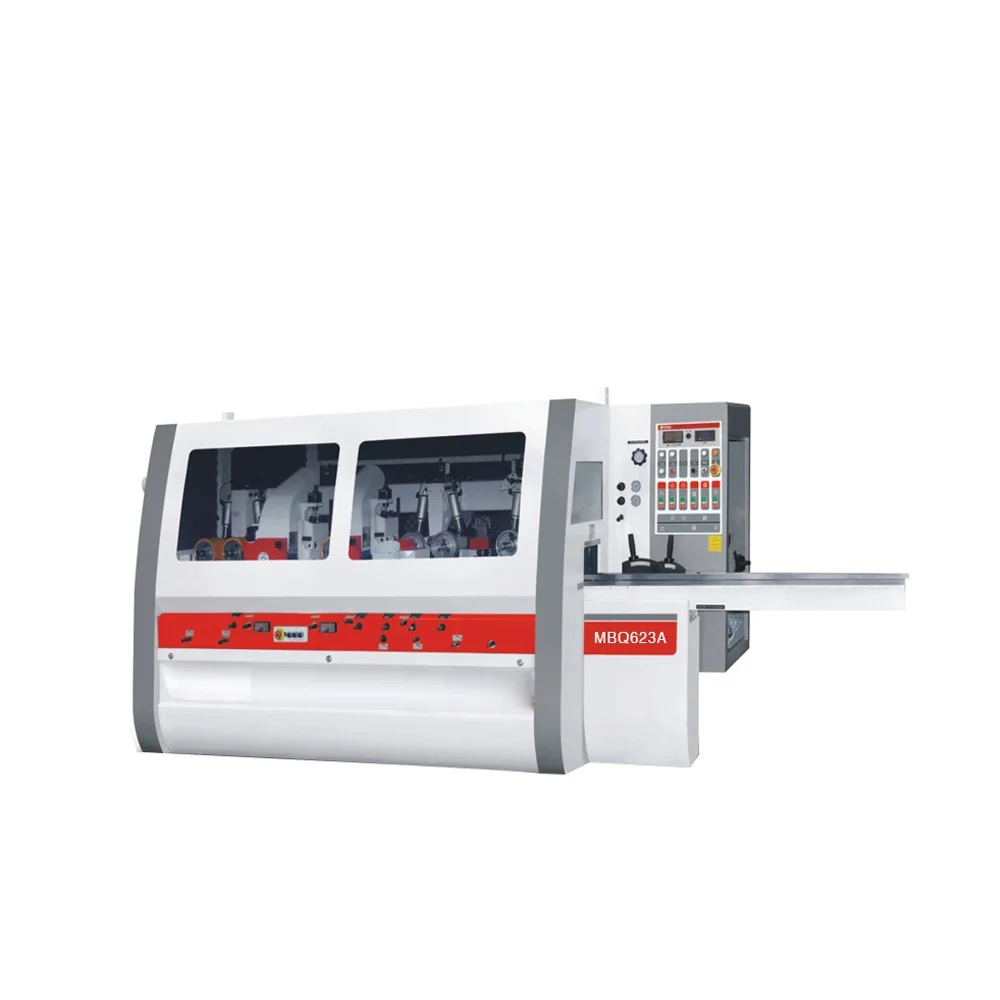

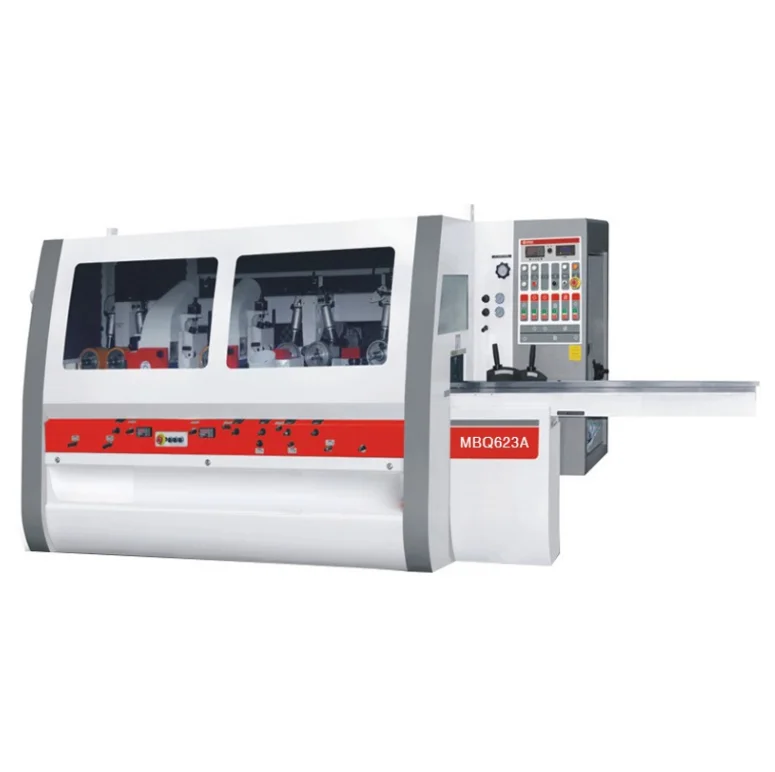

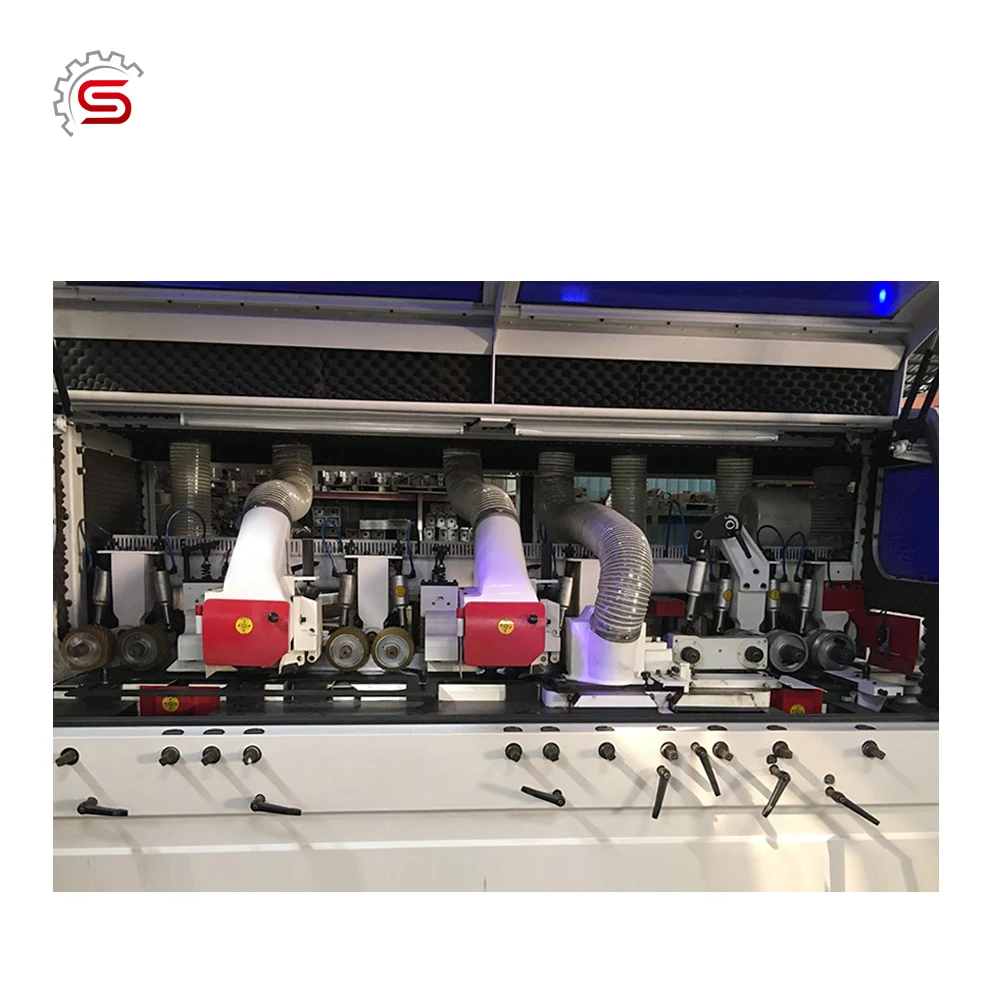

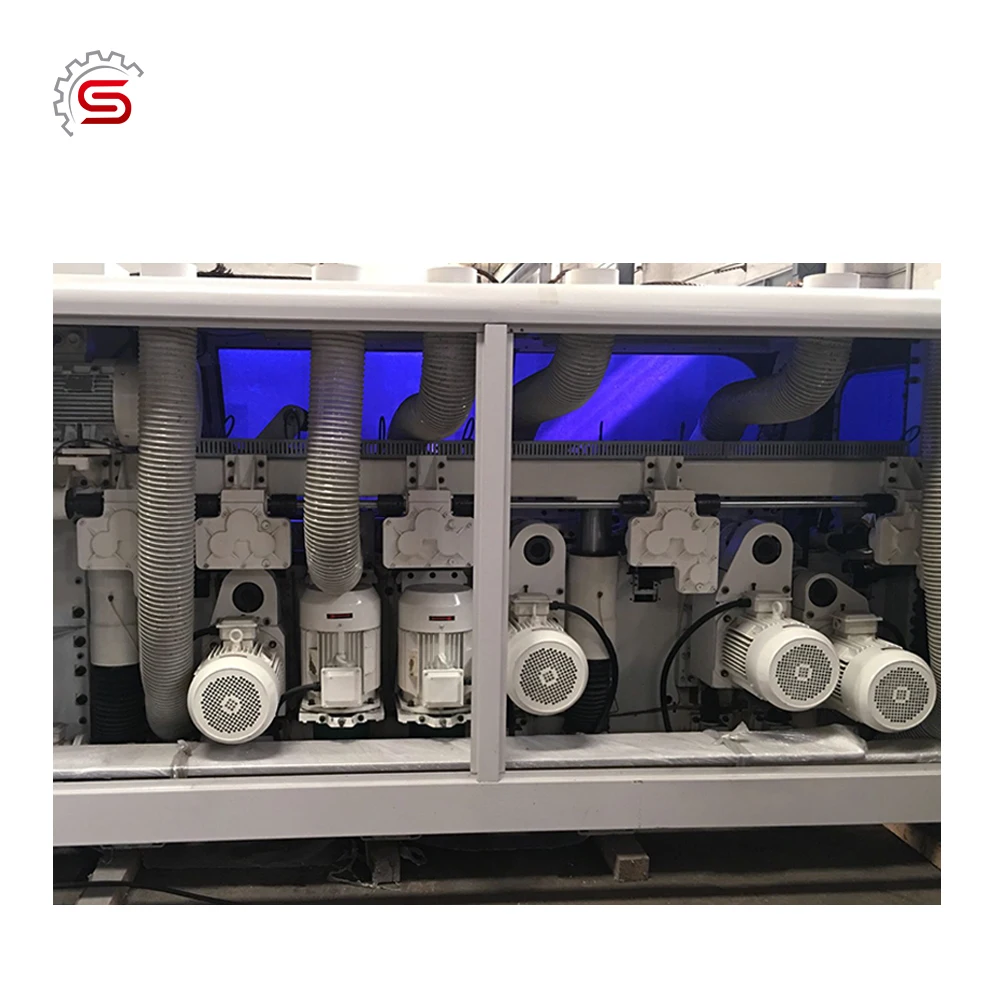

heavy duty four side moulder wood planer
US $22300-$23300
heavy duty four side moulder wood planer
- Category: Wood Planer >>>
- Supplier: Qingdao Steeler Woodworking Machinery Co. Ltd.
Share on (1600401457654):
Product Overview
Description
Model | MBQ623A |
Max.working width | 230mm |
Min.working width | 25mm |
Max.working thickness | 150mm |
Min.working thinkness | 8mm |
Spindle amounts | 6 pcs |
Spindle speed | 6000rpn |
Feed speed | 7-28m/min |
Spindle diameter | φ40mm |
Cutter diameter First bottom cutter | φ125 |
Right vertical cutter | φ125-φ160 |
Left vertical cutter | φ125-φ160 |
First top cutter | φ125-φ160 |
Second top cutter | φ125-φ160 |
Second bottom spindle | φ125-φ160 |
Motor power First bottom cutter | 7.5kw/10hp |
Right vertical cutter | 7.5kw/10hp |
Left vertical cutter | 7.5kw/10hp |
Fist top cutter | 11kw/15hp |
Second top cutter | 7.5kw/10hp |
Second bottom cutter | 7.5kw/10hp |
Feed motor | 5.5kw/7.5hp |
Beam elevation | 0.75kw/1hp |
Total power | 54.75kw/73hp |
Feeding wheel Dia. | Φ140mm |
Suction hood Dia. | φ140mm |
Overall dimensions | 4350*1635*1735mm |
Packing dimensions | 4550x1835x1835mm |
Weight | 3710kg |
No. | Model | MBQ616A | MBQ618A | MBQ621A | MBQ623A | MBQ630A |
1 | Max.Working width | 160mm | 180mm | 2100mm | 230mm | 300mm |
2 | Working thickness | 8-100mm | 8-120mm | 8-120mm | 8-150mm | 8-200mm |
Motor power | First bottom spindle | 4kw | 4kw | 5.5kw | 7.5kw | 11kw |
Right side spindle | 4kw | 4kw | 5.5kw | 7.5kw | 7.5kw | |
Left side spindle | 4kw | 4kw | 5.5kw | 7.5kw | 7.5kw | |
First top spindle | 5.5kw | 7.5kw | 7.5kw | 11kw | 15kw | |
Second top spindle | 5.5kw | 5.5kw | 7.5kw | 11kw | 15kw | |
Second bottom spindle | 4kw | 4kw | 5.5kw | 7.5kw | 11kw | |
Feed | 4kw | 4kw | 4kw | 5.5w | 5.5kw | |
Feed beam rise&fall | 1.1kw | 1.1kw | 1.1kw | 1.1kw | 1.1kw | |
General power | 32.1kw | 34.1kw | 42.1kw | 58.6kw | 73.6kw | |
3 | Dimension | 4100*1630*1750mm | 4100*1630*1750mm | 4100*1630*1750mm | 100*1700*1760mm | 4100*1700*1760mm |
