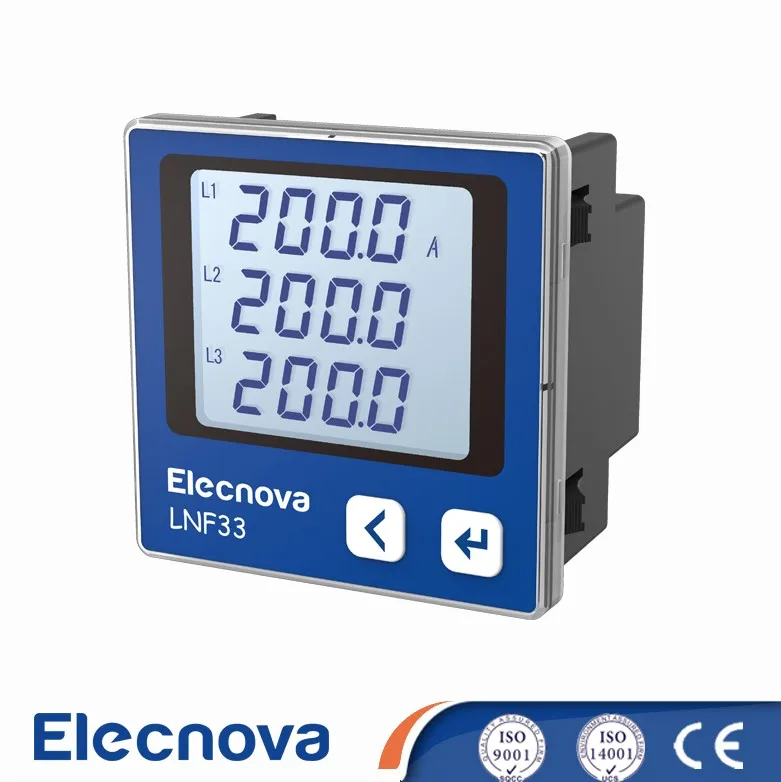

72*72 panel mounted LCD digital display 3 phase current micro ampere meter (1600175049865)

Share on:


Price:$40.00 - $50.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Product Name: 72*72 panel mounted LCD digital display 3 phase current micro ampere meter
LNF33 multifunction power meter can measure all electrical parameters and bi-directional electric energy, with functions such as communication and energy pulse output. The instrument adopts ultra-thin design and is easy to be installed. As an advanced intelligent and digital grid front-end acquisition component, it can be applied for power monitoring systems and energy management systems to realize power data collection.




Technical Parameter


Accuracy
0.5%
Data update rate
1s


Signal Input
Rated current
AC 1A,5A
Rated voltage
AC 100V,380V
Overload
Continuous:2In,instantaneous:10In/5s
Continuous:1.2Un,instantaneous:2Un/1min
Energy consumption
≤0.1VA
Fequency
45~65HZ
Communication
RS485 interface
Modbus-RTU protocol, baud rate up to 9600bps
Energy pulse
Optocoupler isolation ,pulse width 80ms±20%
Digital Input
Optocoupler isolation ,passive dry contact
Relay Output
Contact capacity AC250V 5A or DC 30V 5A

Auxiliary power supply
Working range
AC/DC 80~270V
Energy consumption
≤3VA


Environment condition
Working temperature
-10~55℃
Storage temperature
-25~70℃
Relative humidity
≤93%RH
Altitude
≤2500m
Safety
Insulation
Signal power supply output terminal to case resistance ≥100MΩ
Withstand voltage
Power supply,input and output ≥2kv
Protection level
IP54


Model Selection


LNF31
LNF33
LNF32
LNF36

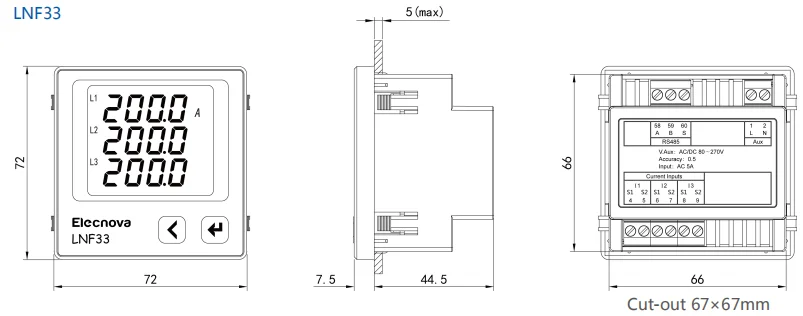

Dimension(mm)
72x72x44.5
72x72x44.5
96x96x34
96x96x34
Real-time measurement
single-phase current
three-phase current
single-phase current
three-phase current
LCD display
RS485
Note:“■”Yes,“□”Optional
