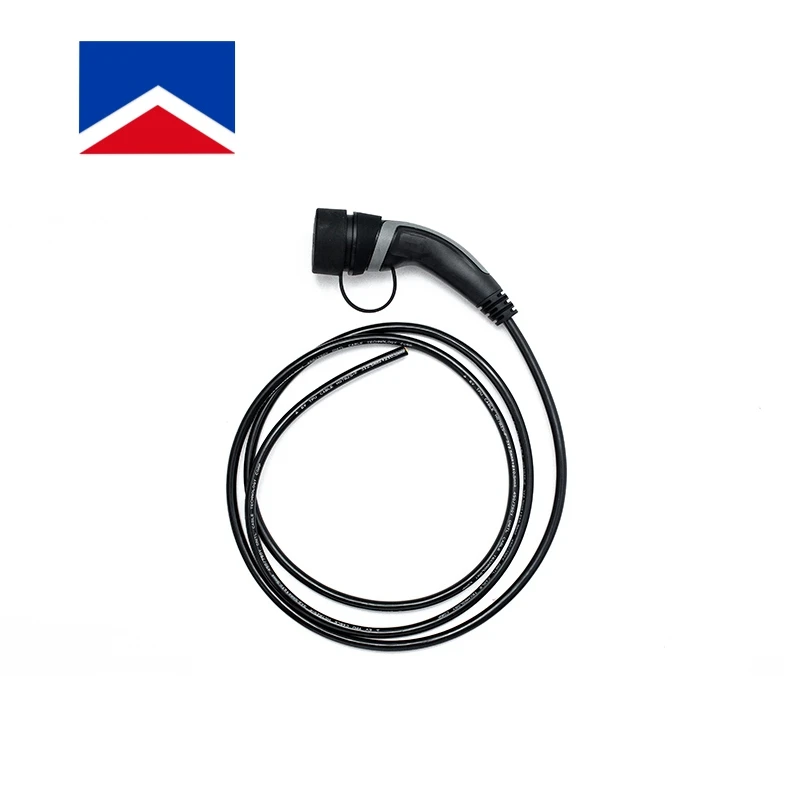

Type 2 32A/250V electrical plug with connector high quality smart charger wall outlets charger AC charger european wall socket
- Category: EV Connectors >>>
- Supplier: Nanjing Langchi Group M&E Co. Ltd.
Share on (1600175201514):
Product Overview
Description
Product Description
Type 2 Plug 32A 250V
Product Description
Product application | Electric vehicle |
Mechanical properties | Mechanical life: no-load plug > 10000 times Impact of external force: can afford 1m drop and 2t vehicle run over pressure. Insertion force: <100N |
Electrical Performance | The rated current: 16A, 20A, 32A The rated voltage: 250V/480V Insulation resistance: >1000MQ(DC500V) Pins temperature rise: <50K Withstand voltage: 2500V Contact impedance: 0.5mQMax |
Rubber Color | Orange, blue, black, green, white, gray |
Shell Color | Black, white |
Cable Color | Orange, blue, black, green, gray |
Applied Materials | Shell Material: thermoplastics, lame retar-dant grade UL94-V0 Contact-tube: Copper alloy, silver-plated |
Environmental performance | Operating temperature: -30 ℃ ~ +50 ℃ |
Features | 1. Conform to the provisions and requirements of IEC 62196-2-2016 2-lie. 2. Using riveting pressure process with none screw, have a beautiful appearance. Hand-held design conform to the ergonomic principle, plug conveniently. 3. XLPO for cable insulation prolonging the aging resistance life - span, TPU improved the bending life and wear resistance of cable. 4. Excellent protection performance, protection grade achieved IP55( working condition). 5. Applied double color coating technology, personalized custom a variety of colors. |
PRODUCT APPLICATIONS
Inspection and quarantine chart
Charging an electric vehicle is pretty easy - just plug it in and wait. You can charge your car at a public charging station or at home via a domestic socket or a specially installed charging point. Where you charge your car affects the cost and how long it takes. Imagine never having to stop at a gas station again - and instead, having an unlimited supply of fuel available at home or wherever you normally park. For many electric vehicle (EV) drivers, this is a reality. Battery electric vehicles never need gas, and for short trips, plug-in hybrids might use no gas. EV charging is simple, cost-effective, clean and convenient, particularly when you are plugged in at home - filling up your car, even while you're asleep.Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Using the latest cable technology of the factory, MARIO EV (ME) always strictly implements IATF 16949 and ISO 9001 international quality management system. We have obtained TUV, CE, RoHS, CCC, ISO certificates. There are various charging interfaces and charging solutions in accordance with SAE J1772, GB/T20234, IEC 62196 and other standards, so as to apply to multiple brands of electric vehicles and charging stations. We have many years cable manufacture experiences and independent research, development and production of cables.
Customization is the most accepted competitive advantage of us from raw material to finished Industrial Products. Our products are exported to Europe, southeast Asia and other counties and regions, and has been recognized by users around the world.
Customization is the most accepted competitive advantage of us from raw material to finished Industrial Products. Our products are exported to Europe, southeast Asia and other counties and regions, and has been recognized by users around the world.
Recommend For You
Our Services & Strength
1. We offer customization services such as logos, brand name, packaging, and cable colors.
2. Introduced advanced technology, imported advanced equipment.
3. Our products are exported to Europe, Southeast Asia, the Middle East, India, Africa and South America and other countries and regions.
4. Our company promises: reasonable prices, short production time and satisfactory after-sales service.
2. Introduced advanced technology, imported advanced equipment.
3. Our products are exported to Europe, Southeast Asia, the Middle East, India, Africa and South America and other countries and regions.
4. Our company promises: reasonable prices, short production time and satisfactory after-sales service.
Certifications
FAQ
1. Do different EVs require different chargers?
There are two standard connectors which different models of EV use (Type 1 and Type 2), the market is moving to using Type 2 as standard but charge points are available in either and there are also Type 1 to Type 2 adaptor cables.
2. How long does it take to charge an electric car using an EV charger?
The time it takes to charge an electric car depends on two factors. The capacity of the electric cars battery and the power output of your domestic EV charger. Typical charge times are around 6-8 hours using a 3kw charger, 3-4 hours using a 7kw, 1 hour at 22kw and around 30 minutes using a 43-50kw EV charge point.
3. Does my electric car need a special charging station?
Not necessarily. There are three types of charging stations for electric cars, and the most basic plugs into a standard wall outlet. However, if you want to charge your car more quickly, you can also have an electrician install a charging station at your home.
There are two standard connectors which different models of EV use (Type 1 and Type 2), the market is moving to using Type 2 as standard but charge points are available in either and there are also Type 1 to Type 2 adaptor cables.
2. How long does it take to charge an electric car using an EV charger?
The time it takes to charge an electric car depends on two factors. The capacity of the electric cars battery and the power output of your domestic EV charger. Typical charge times are around 6-8 hours using a 3kw charger, 3-4 hours using a 7kw, 1 hour at 22kw and around 30 minutes using a 43-50kw EV charge point.
3. Does my electric car need a special charging station?
Not necessarily. There are three types of charging stations for electric cars, and the most basic plugs into a standard wall outlet. However, if you want to charge your car more quickly, you can also have an electrician install a charging station at your home.
