Pallet Roller Chain Plate turntable Truck Loading Conveyor

Name: Pallet Roller Chain Plate turntable Truck Loading Conveyor
SKU: 1600175266012
Availability: InStock

Price:

Quantity:

Products Description

Types of Pallet conveyor

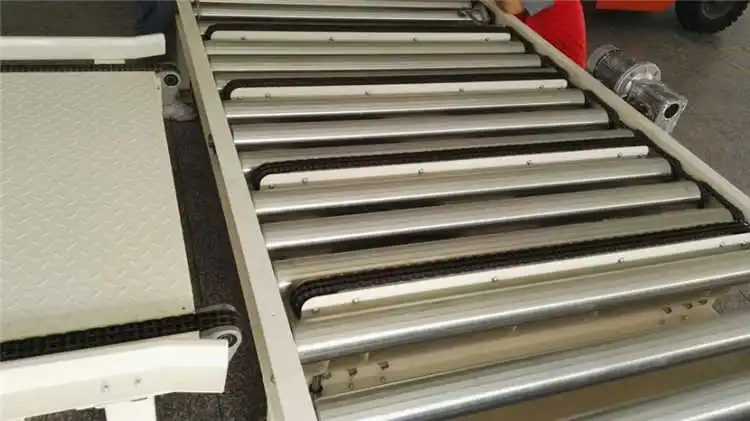

1. Roller conveyor: Stable and easy for control, it is suitable for any size, no matter long or short.

2. Chain conveyor: Suitable for Long conveyor, running smoothly

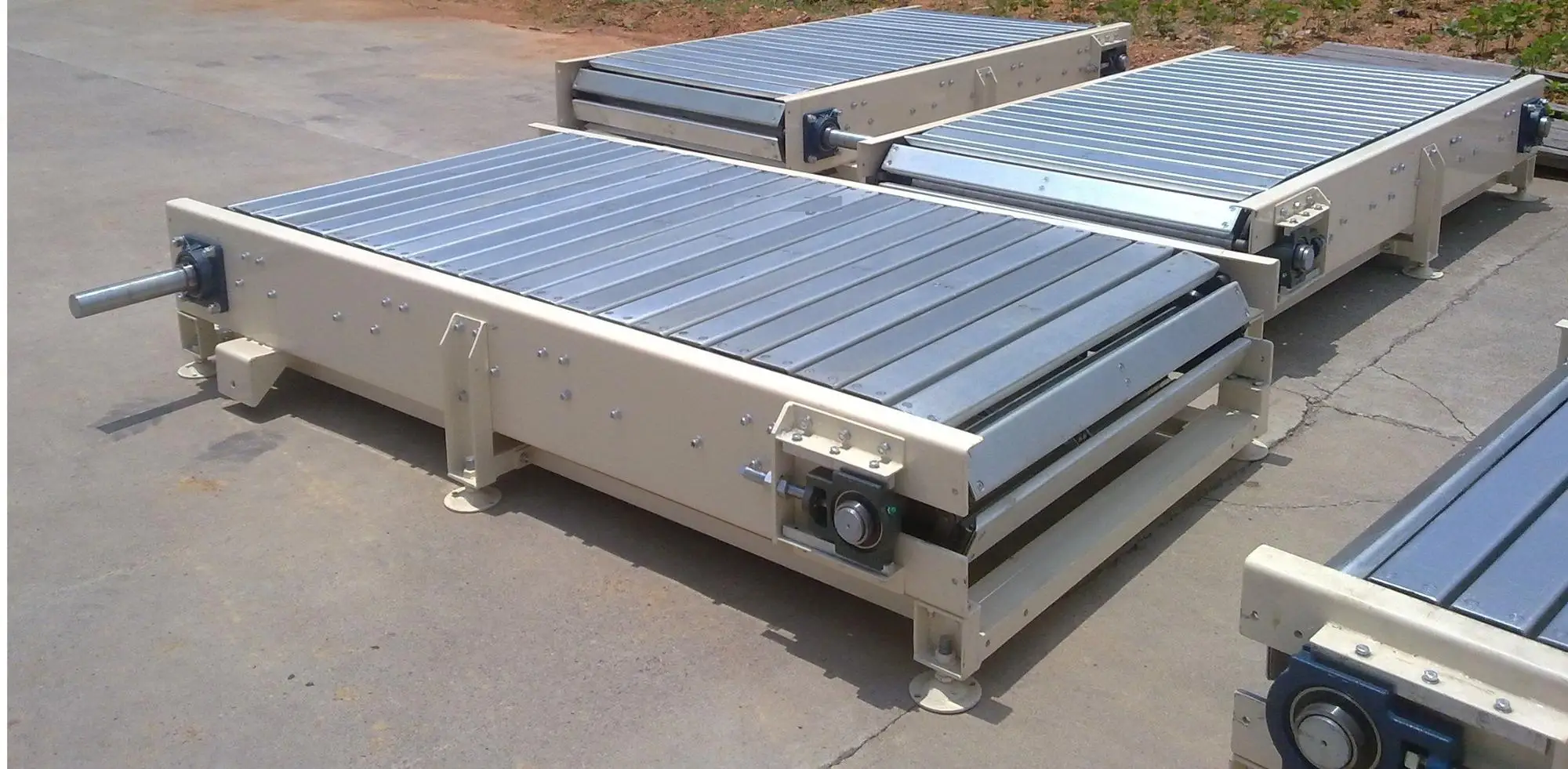

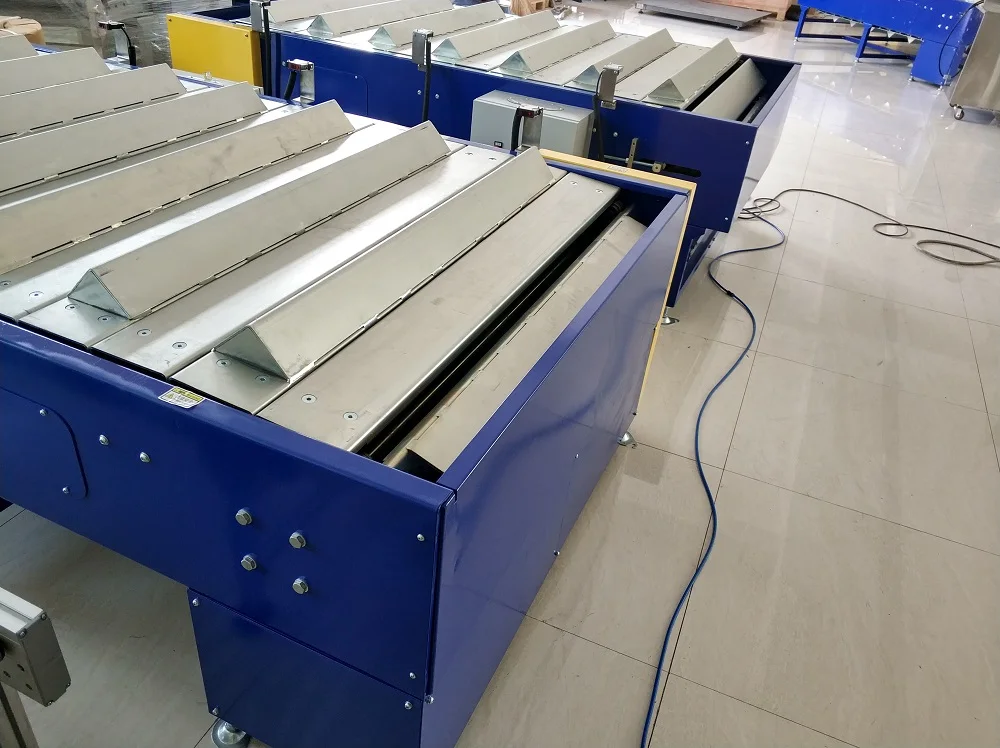

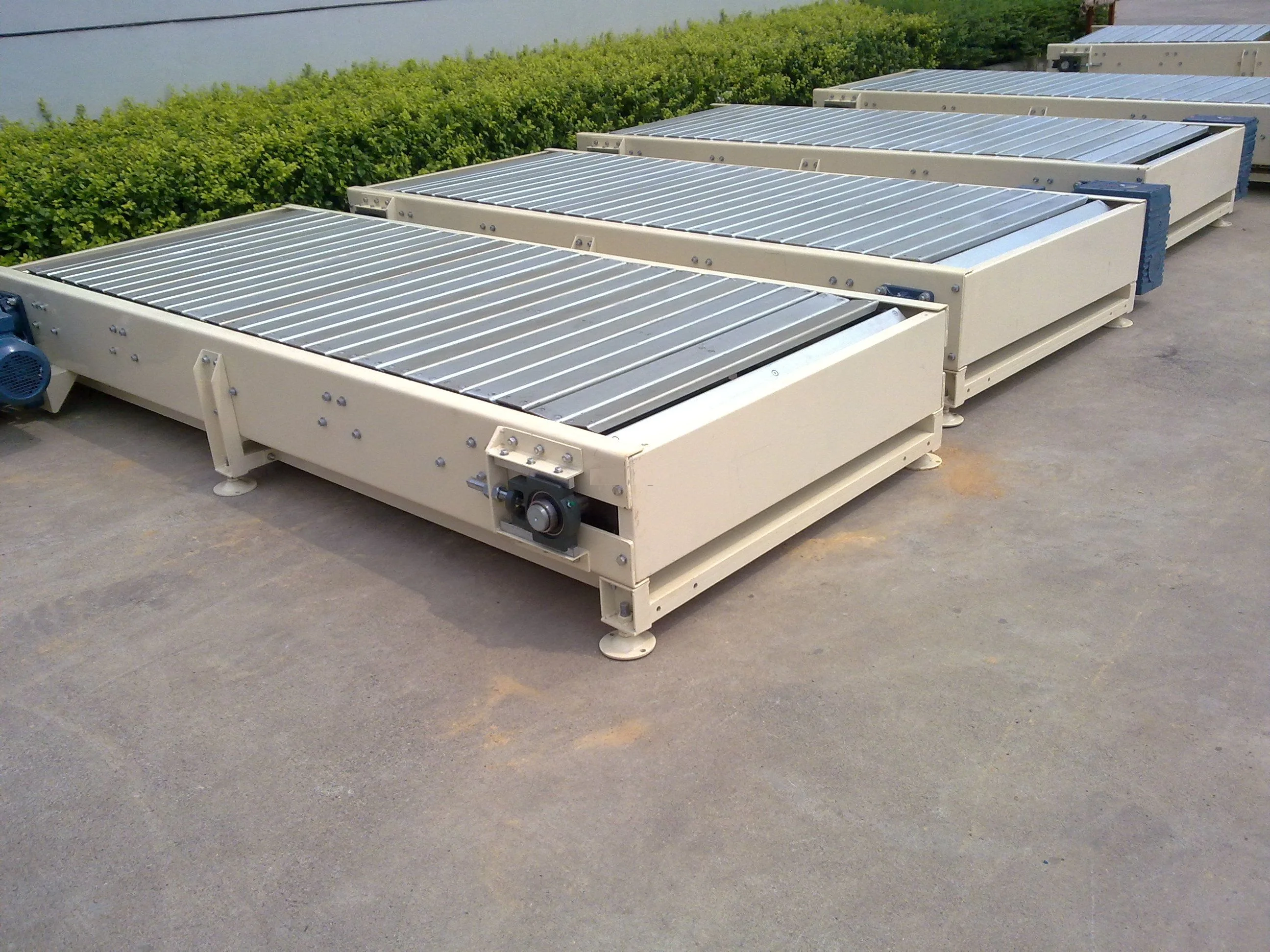

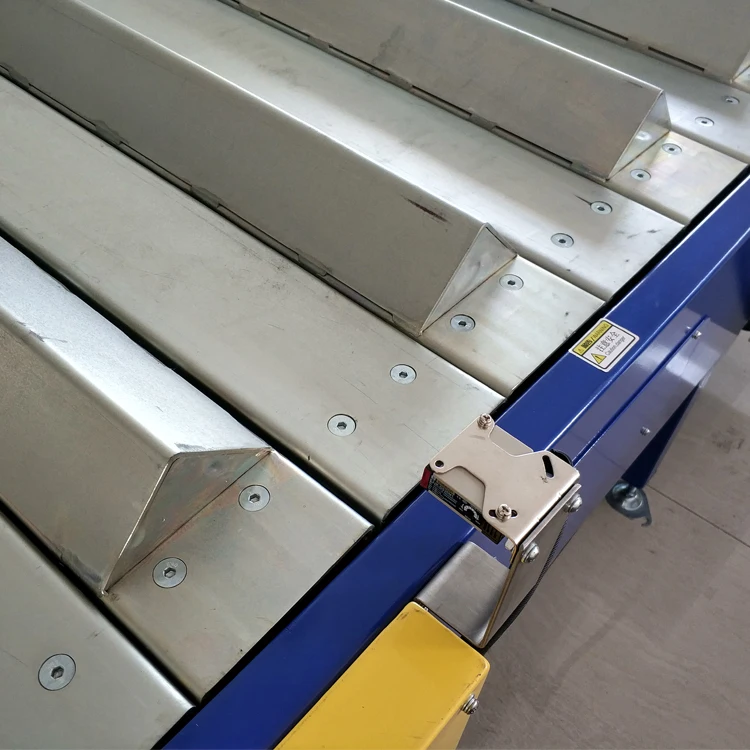

3.Chain Plate conveyor: More stable&suitable for working on it.

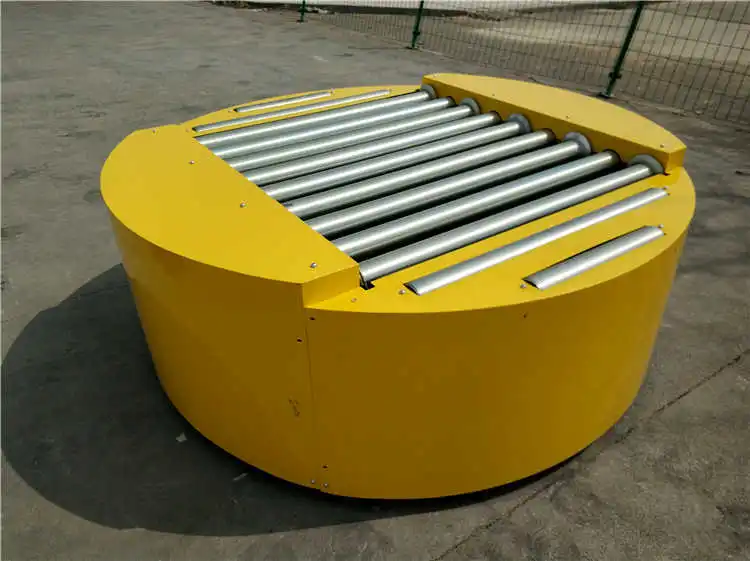

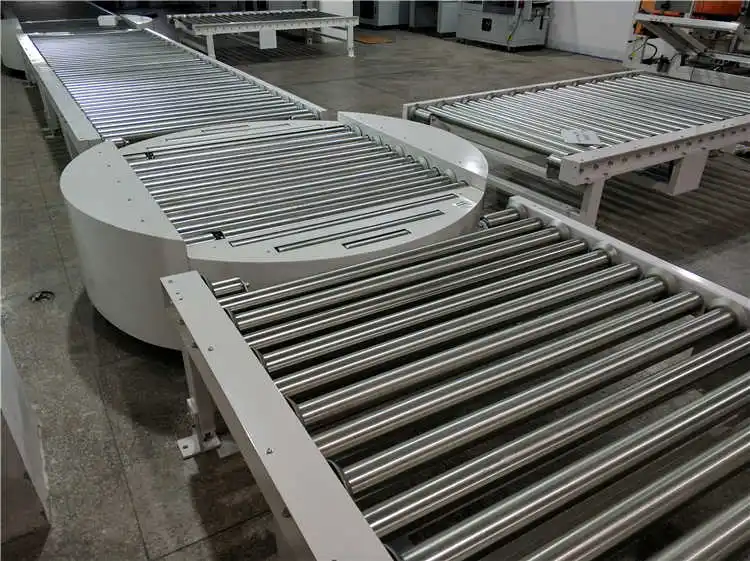

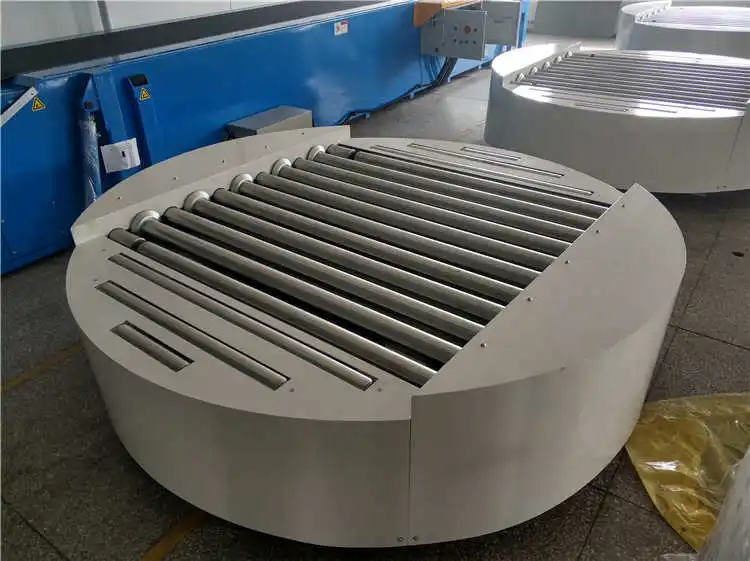

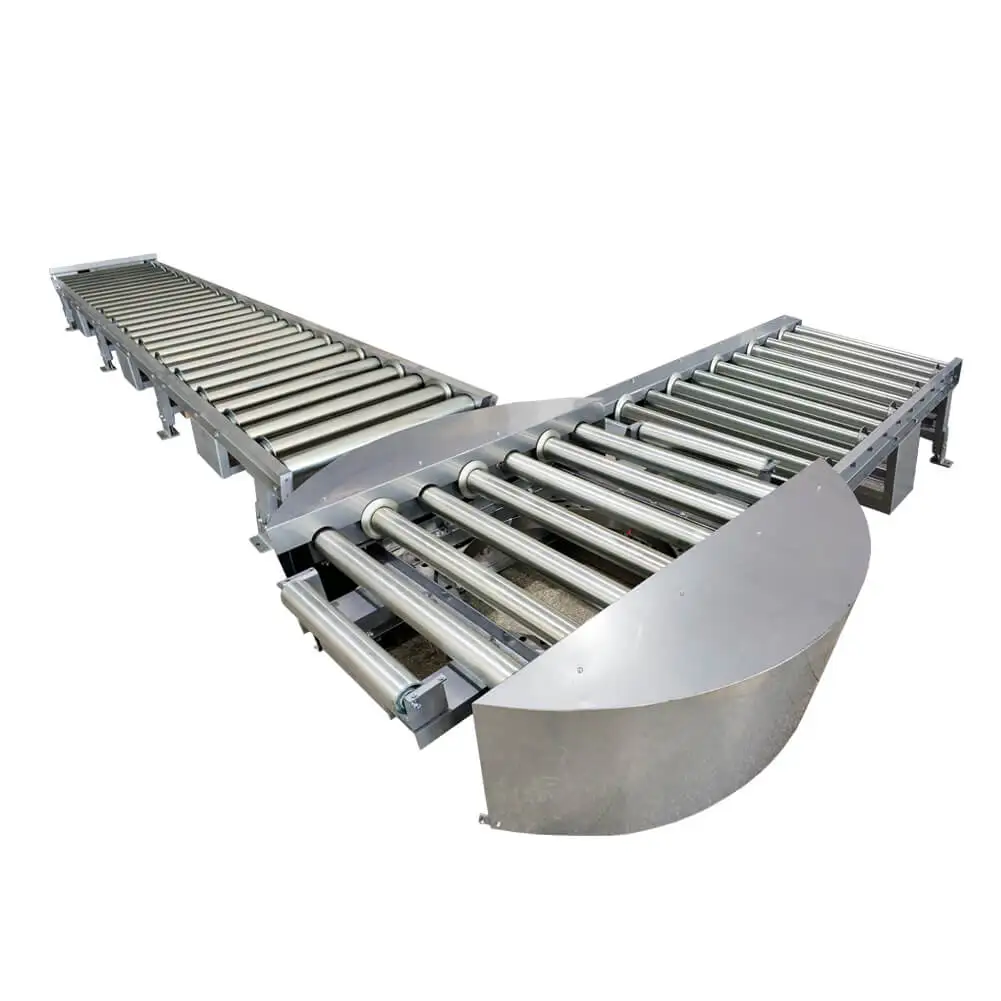

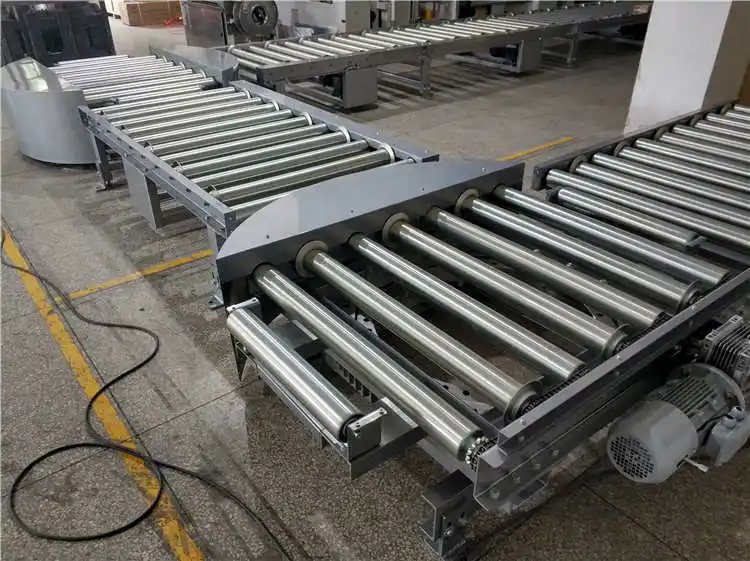

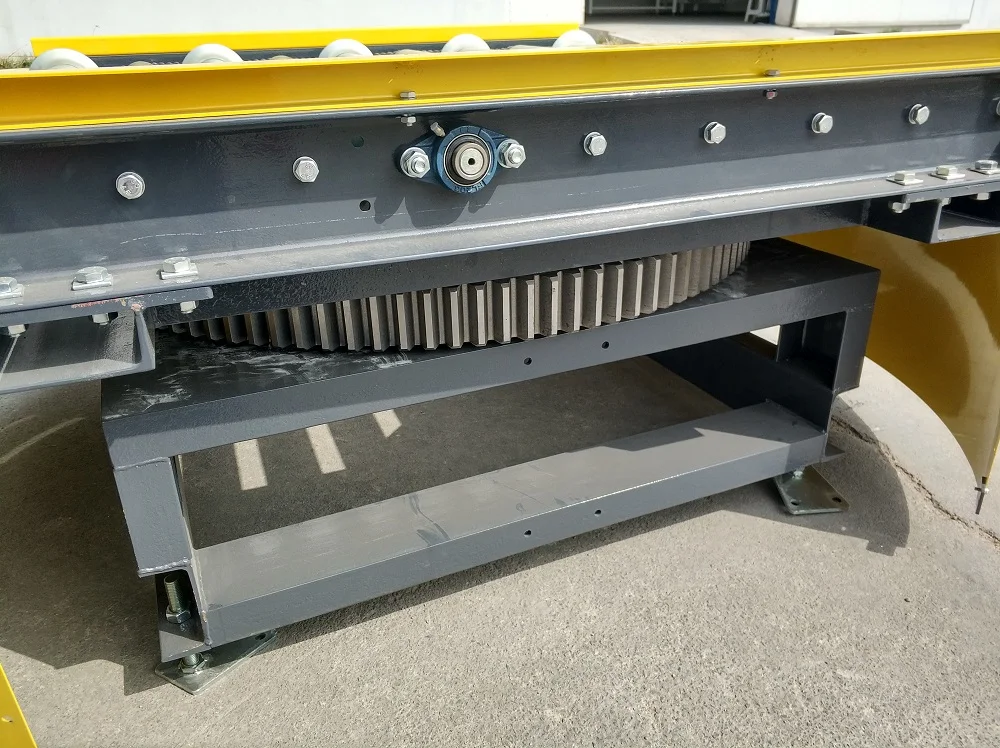

4.360 degree Turntable: Change the running direction without change of the pallet direction

5.90 degree chain transfer: Change the running direction and the pallet direction

Technical Paramenters

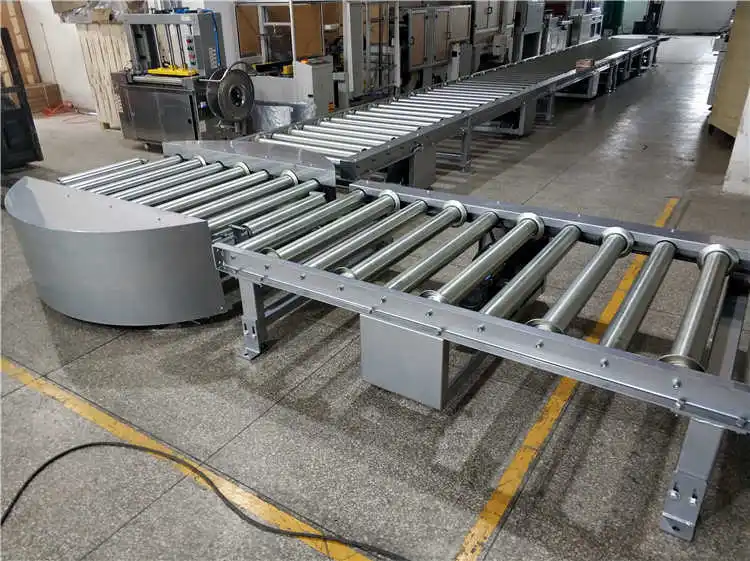

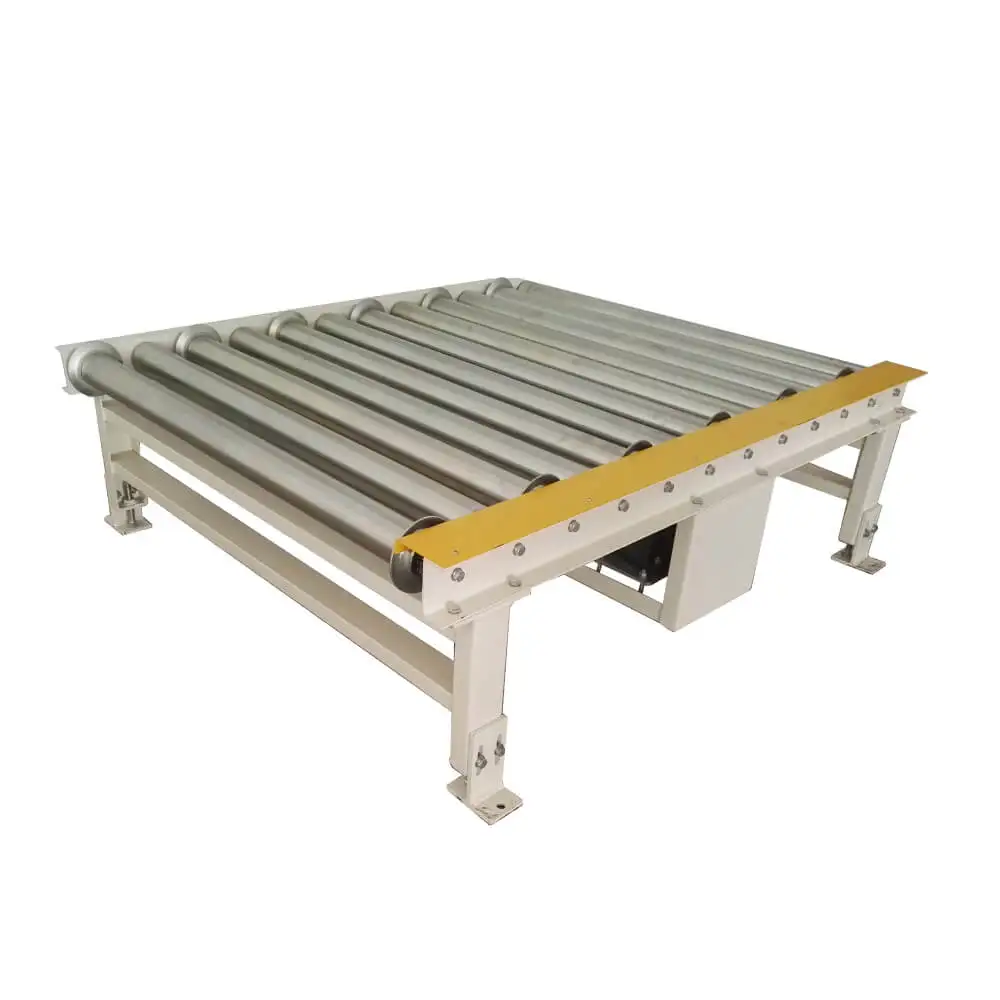

Pallet Roller conveyor
Model	PC-01
Motor Brand	Taiwan CPG (as standard) or SEW
Roller Diameter	76 or 8mm
Roller material	Galvanized Carbon steel
Loading weight	2000kg(Standard)
Turntable Diameter	1800mm/2000mm(Made according to your palet size)
Conveyor width	as your pallet width +50mm (Effective width)
Conveyor Height	350mm~500mm
Motor Power/Voltage	0.75KW~1.5KW; 50/60Hz; 220V~415V 3Phase
Color	RAL 1013 Oyster White(Standard); Or can manufacture as your RAL number.
Conveyor Speed	10m/min(or adjustable)
Running direction	Forward & Backward

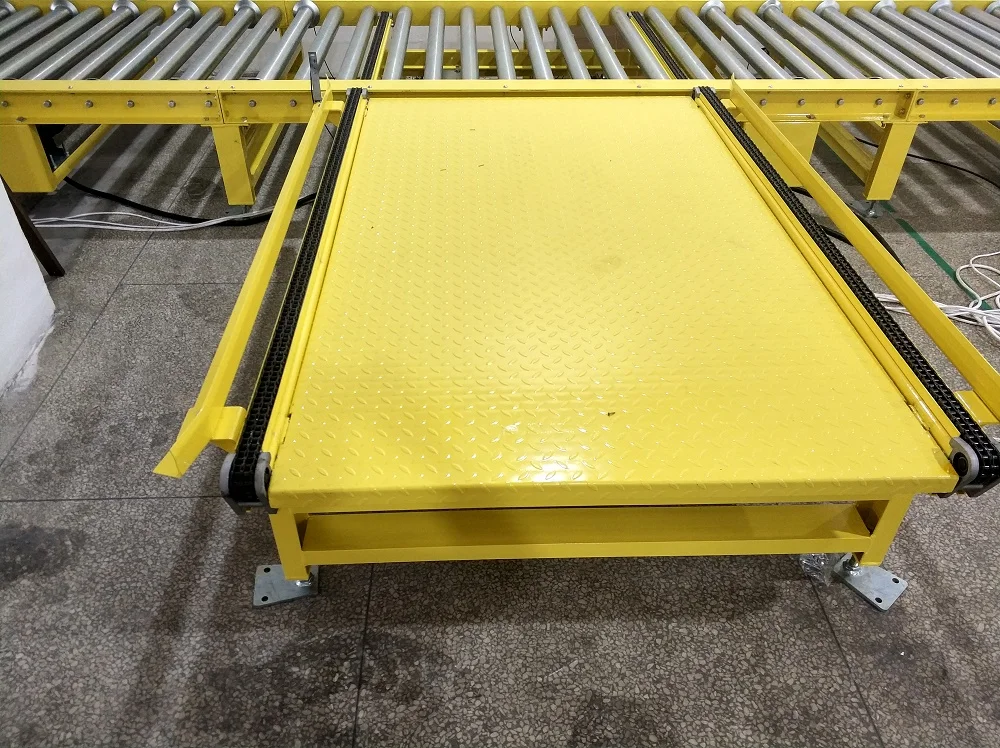

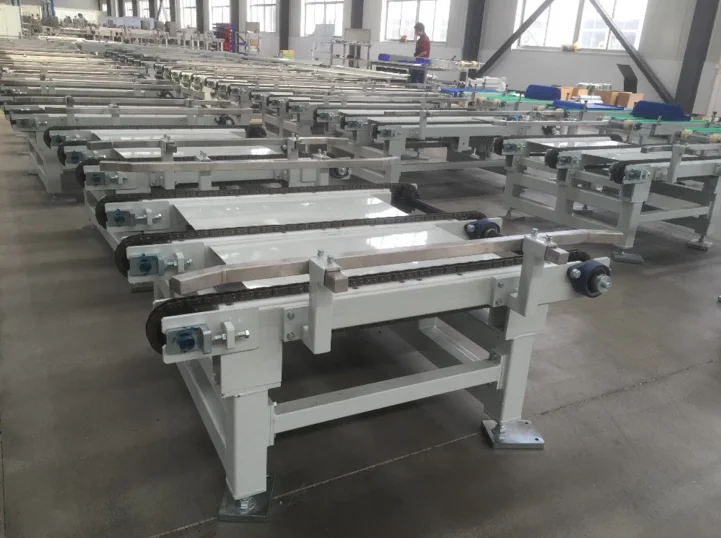

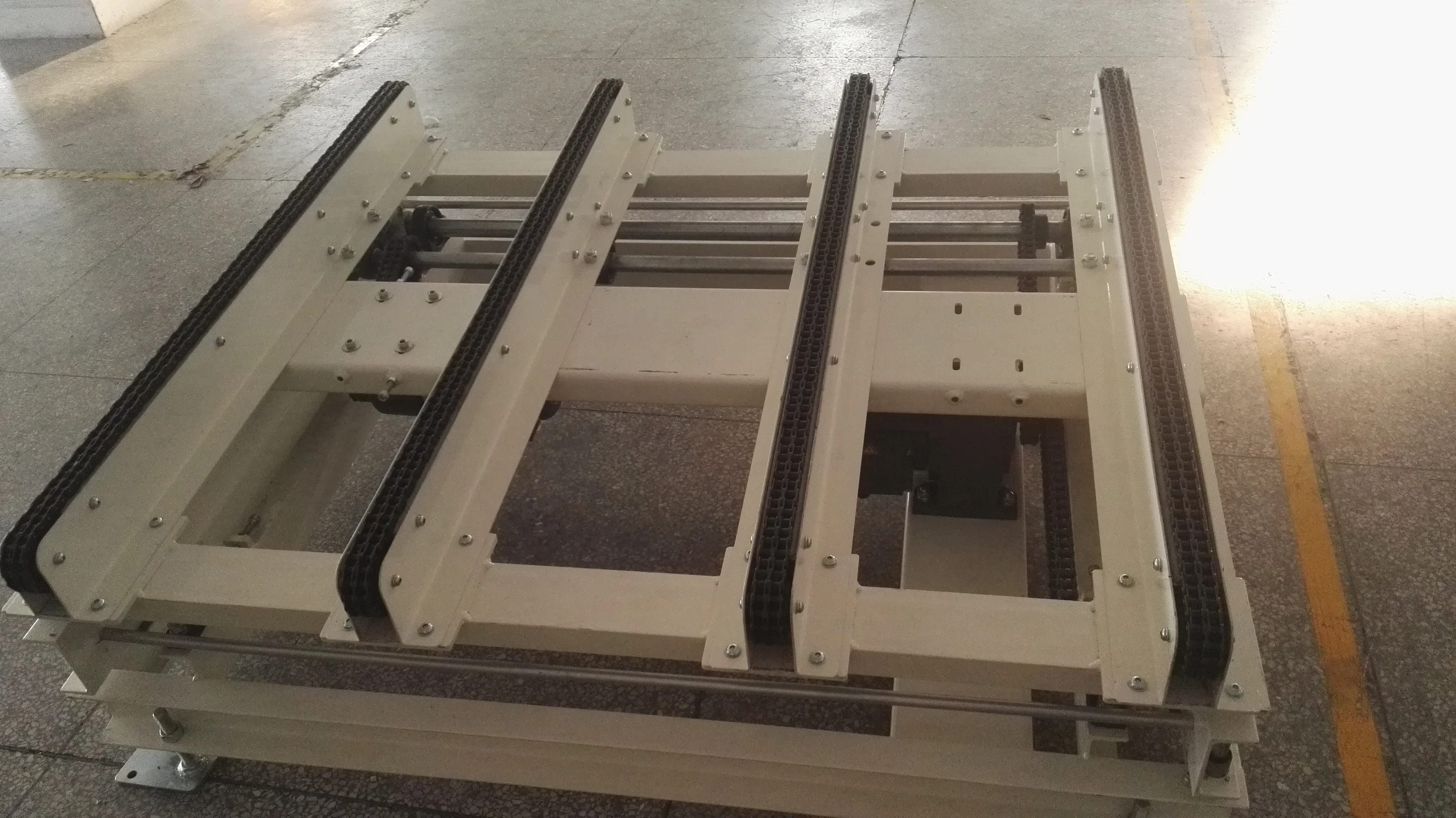

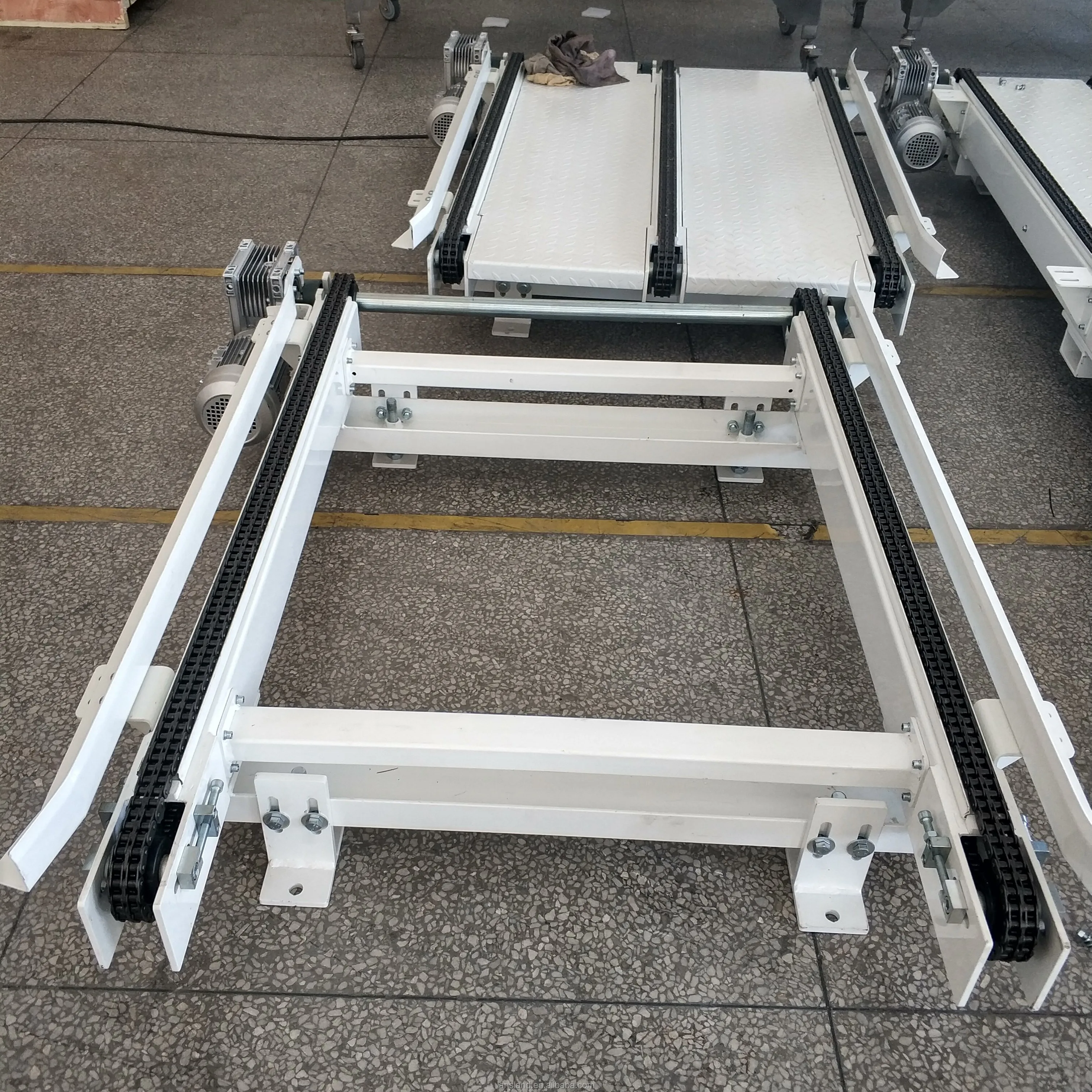

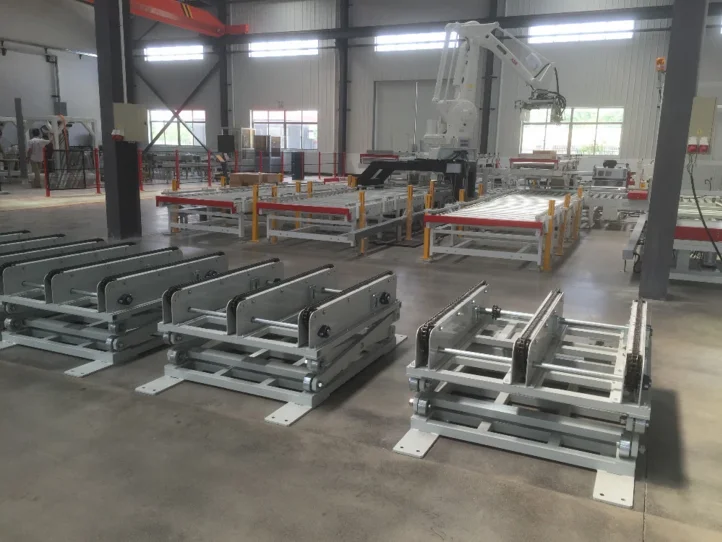

Pallet chain Conveyor
Structure Material	Carbon steel
Chain size	Double Row Chain 10B
Chain number	Double/Three/Four Chain driven for choice
Motor	0.75KW~1.5KW Geared motor(Taiwan CPG Brand)
Voltage	220V~415V 3Phase
Cover Plate	Optional
Table height	Min.Height: 300mm
Speed	10m/min or Customized

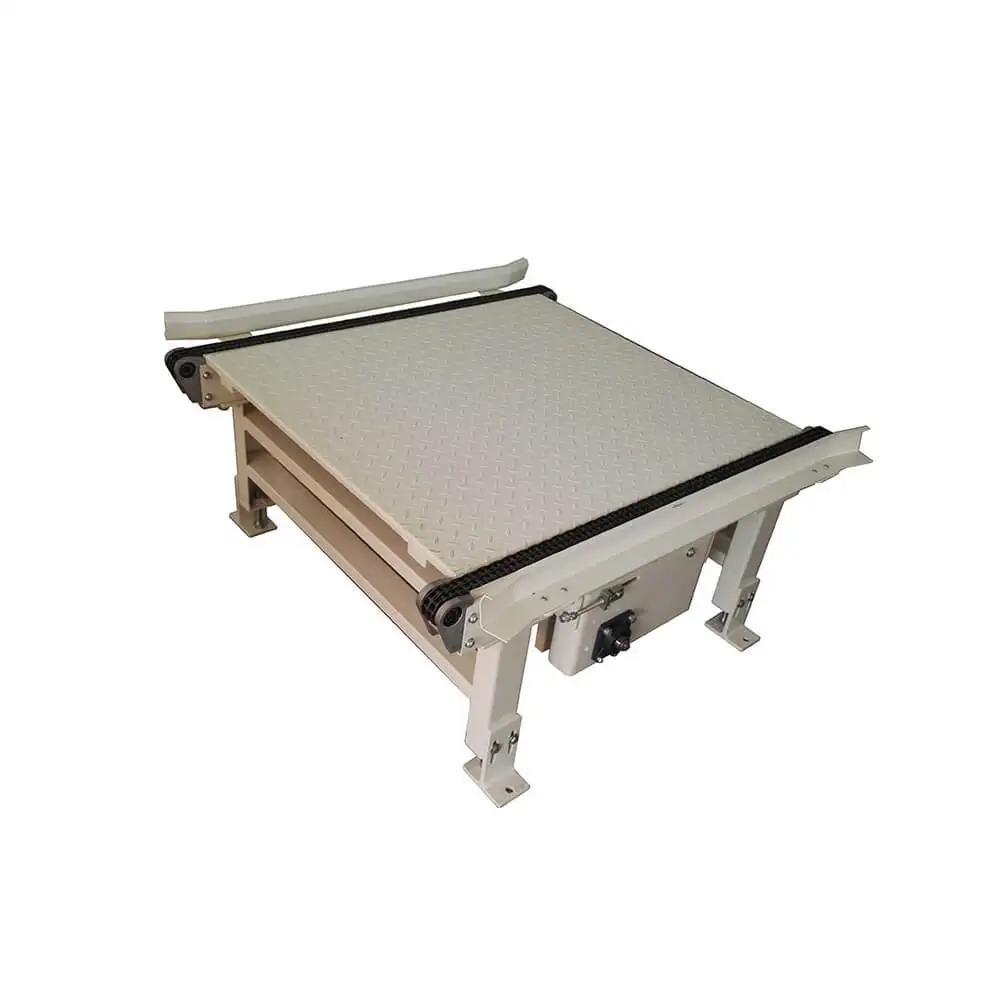

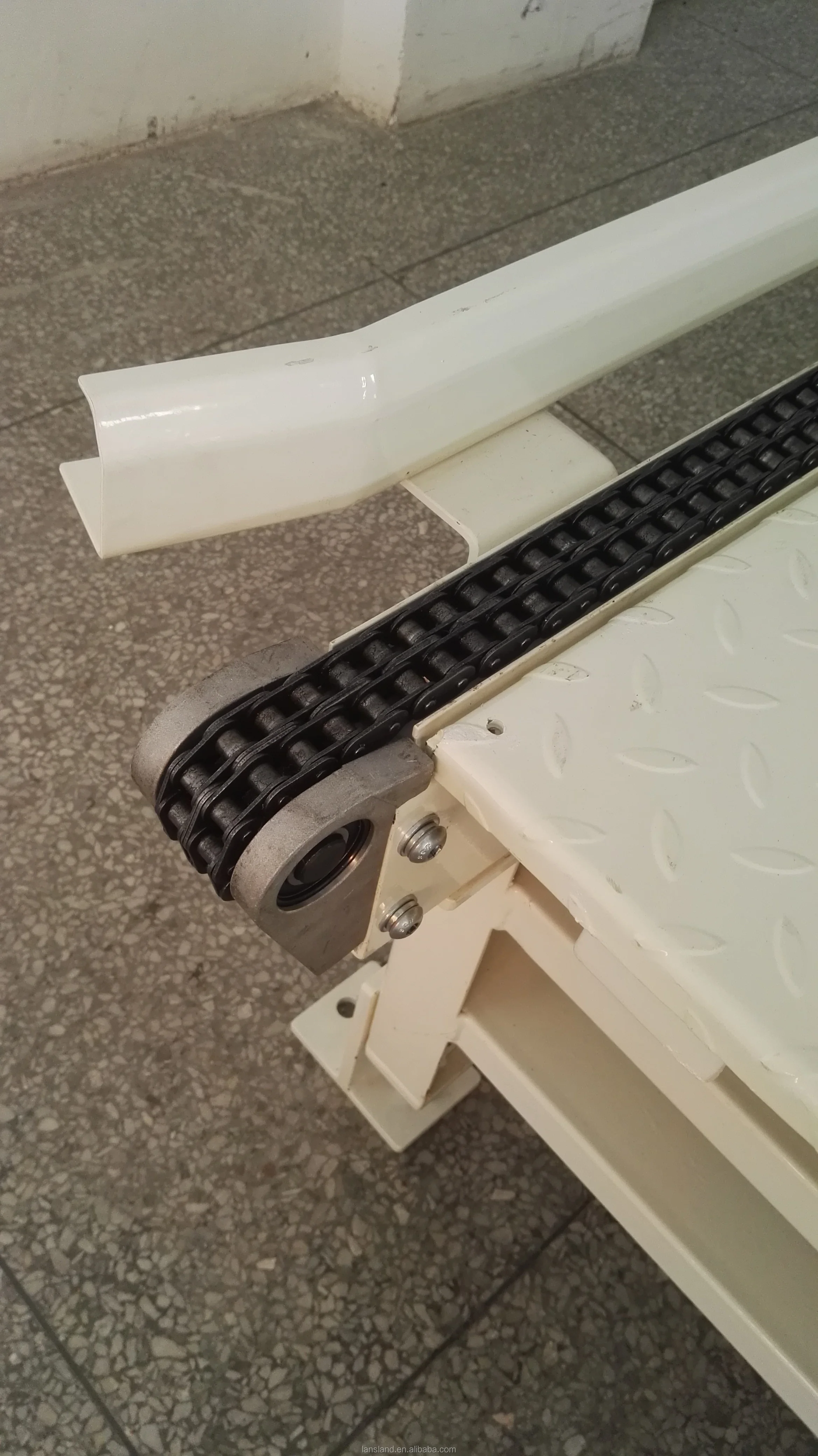

Double Row Chain

for stable running

With or Without

Cover plate

Double / Three /Four

Chains are ok for your

requirements

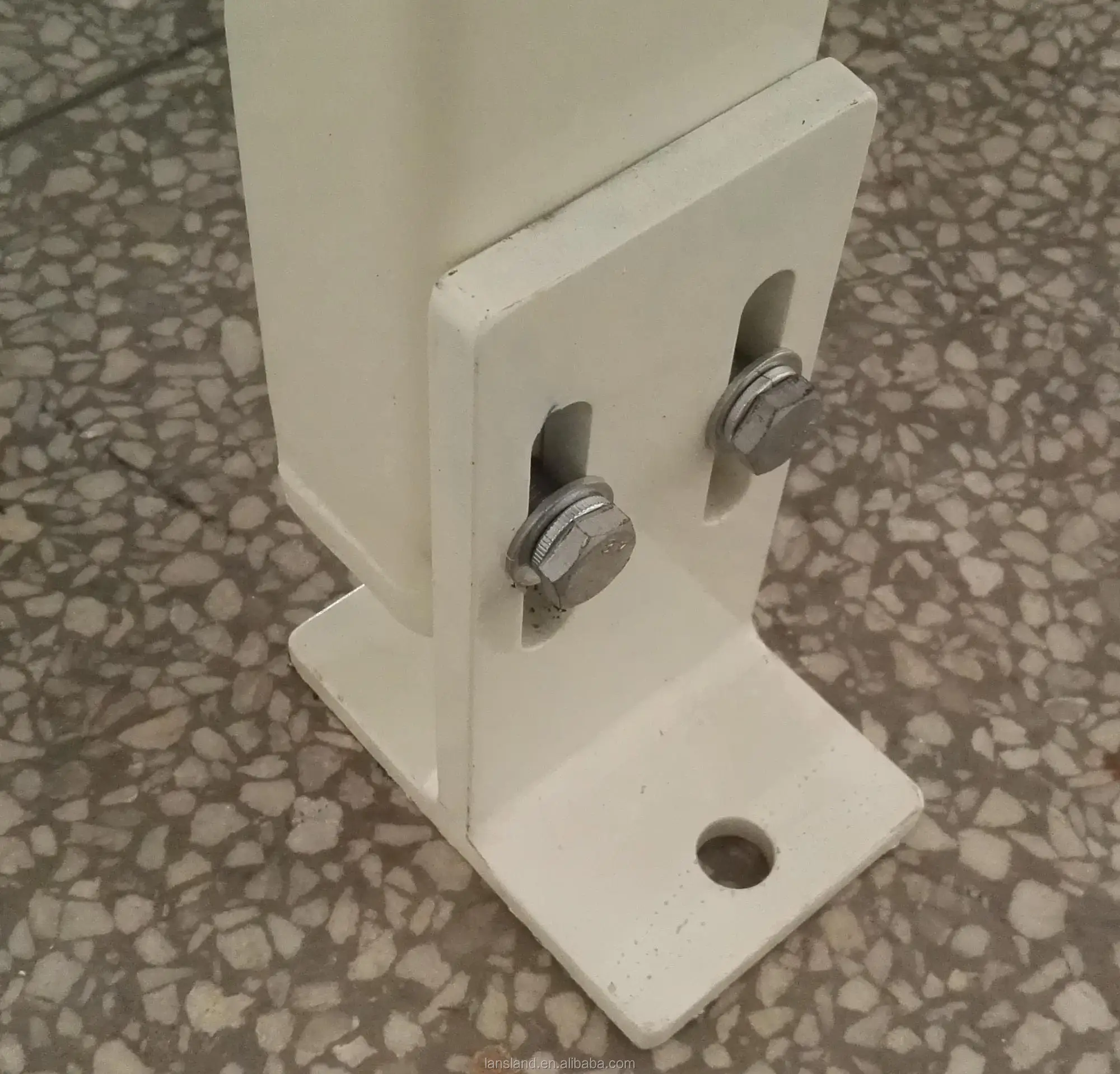

Height Adjustable

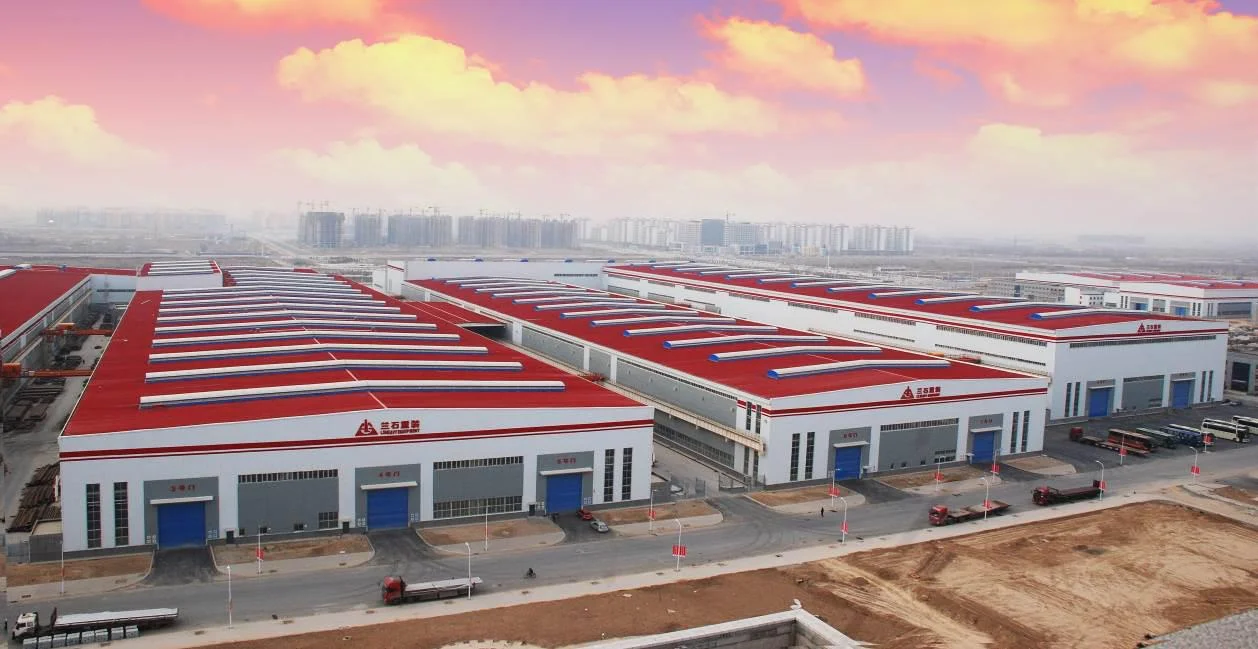

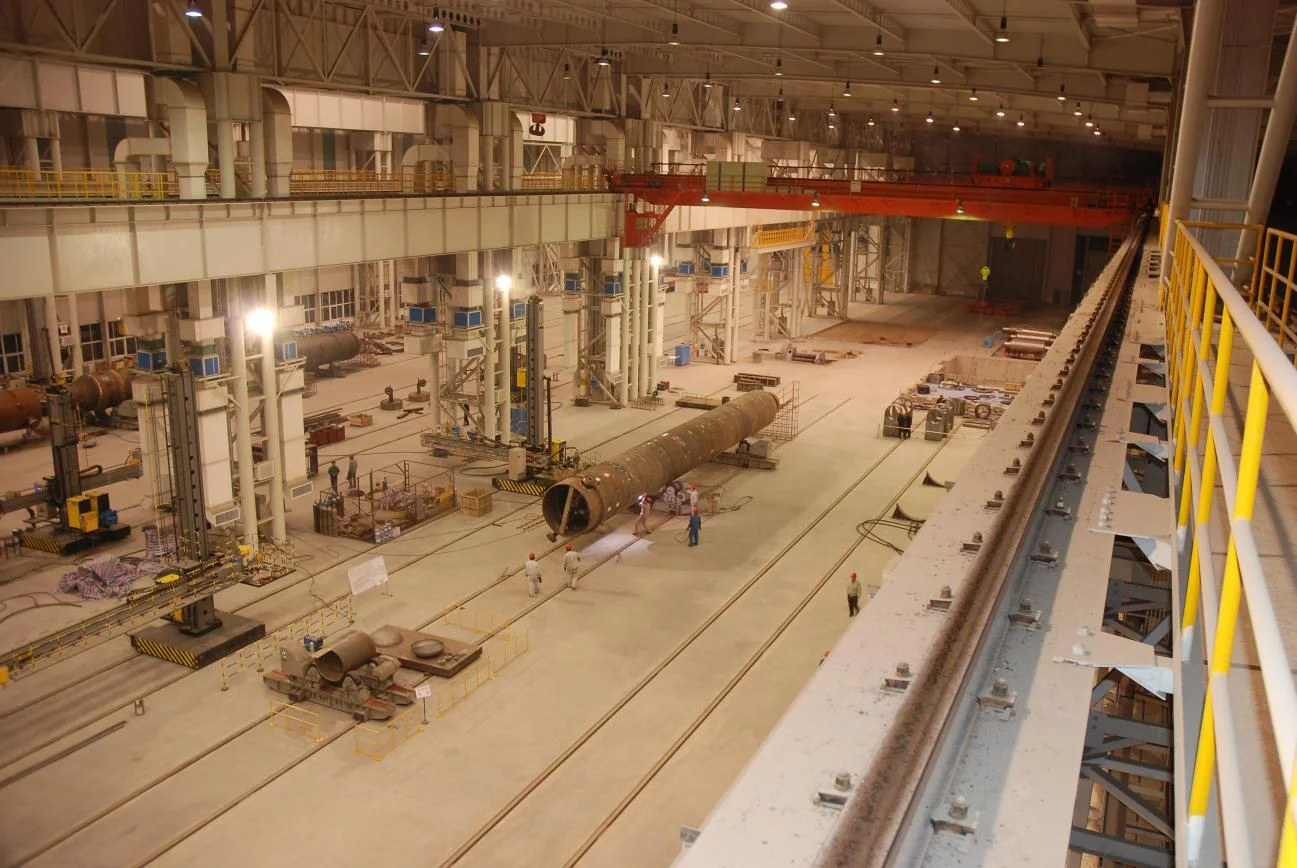

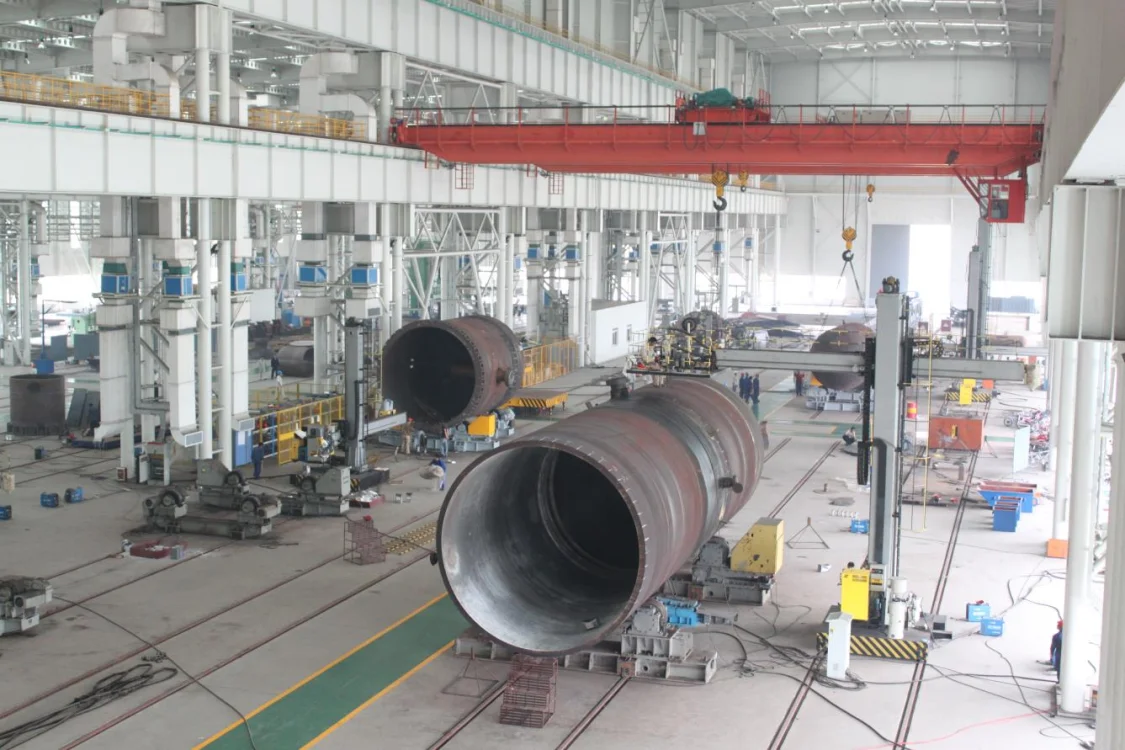

Our warehouse
