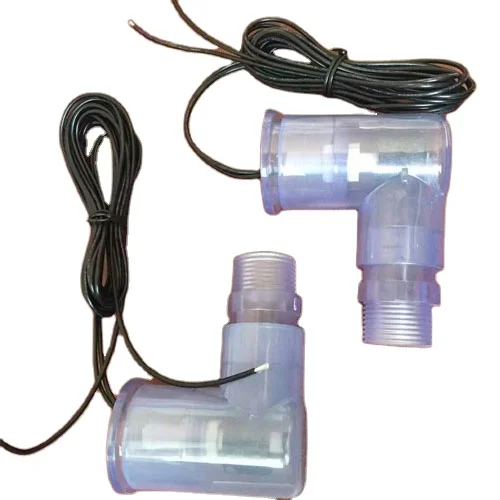

water level sensor customize condensate overflow safety switch SS2 for HVAC drain pan
- Category: Sensors >>>
- Supplier: 5C Electronics Co. Ltd.
Share on (1600177090965):
Product Overview
Description
Recommend Products
Products Description
This water level sensor model is customized.
LLS-SS2 water level switch is used for HVAC system to detect the condensate overflow, it detects clogged air conditioning condensate drains and shuts off the system to prevent the overflowing water damage to floors, walls and ceilings. This easy to install with standard 3/4 adaptor, the removable cap is easy for cleaning.
The switch can be connected to either the VCC or thermostat wires, it is NC type(normally closed) switch: When there is no water overflowing, the floater stays on the bottom of the switch, the switch is close loop, and output ON signal;
The switch can be connected to either the VCC or thermostat wires, it is NC type(normally closed) switch: When there is no water overflowing, the floater stays on the bottom of the switch, the switch is close loop, and output ON signal;
When there is water overflowing, the floater is raised by buoyancy and trigger the switch to open loop, and output OFF signal to shut-off the device.
Model NO. | LLS-SS2 |
Installation | 3/4 connector |
Switching type | NC (normally closed) |
Material | PVC |
Working temperature | -20 ~+80℃ |
Wire length | 1.8M (6feet) |
Switching Voltage Max. | 200VDC |
Switching Current Max. | 1A |
Contact rating Max. | 10W |

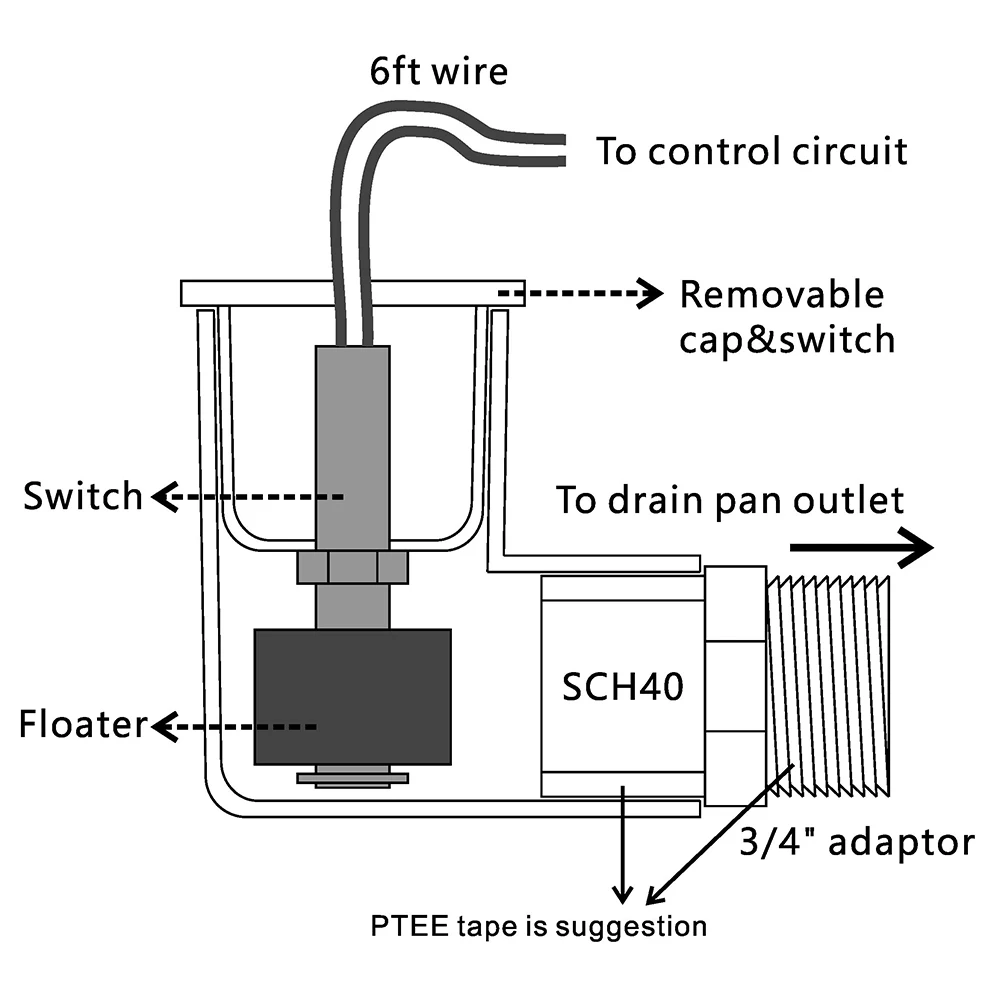

Installation Instructions

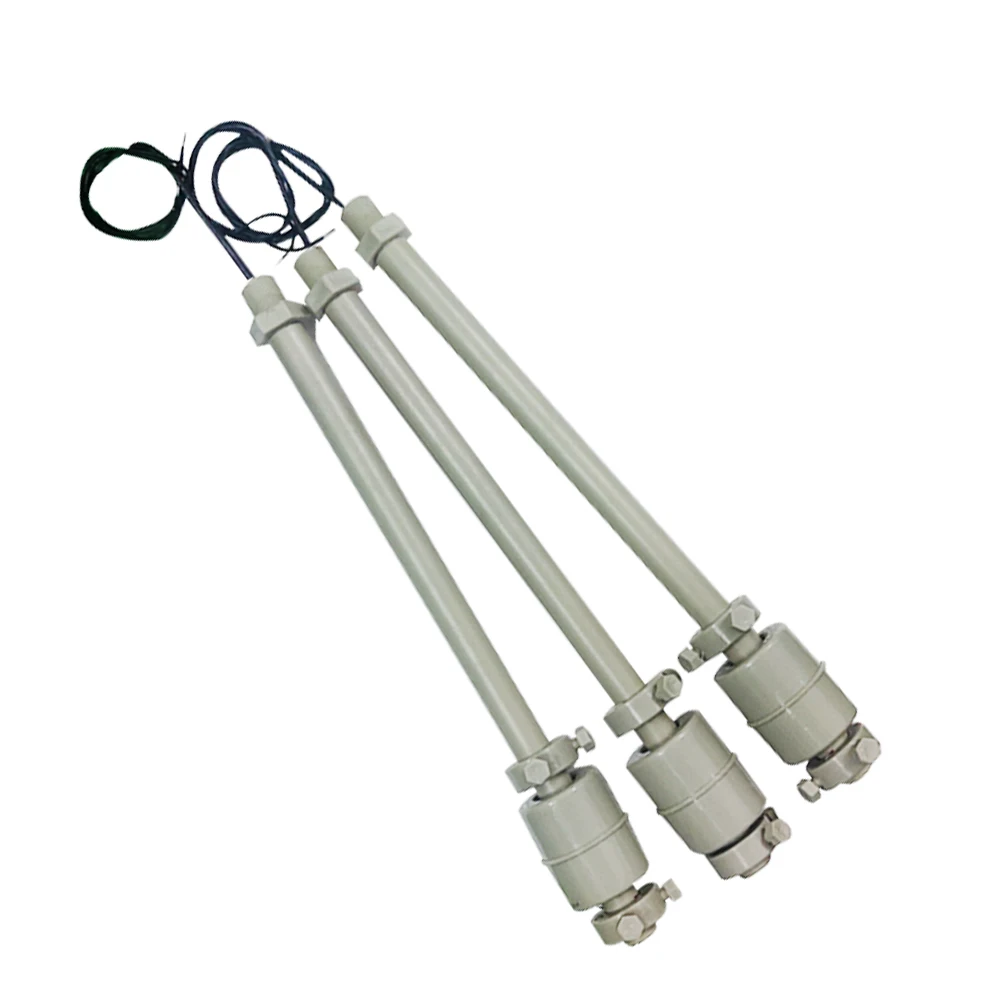

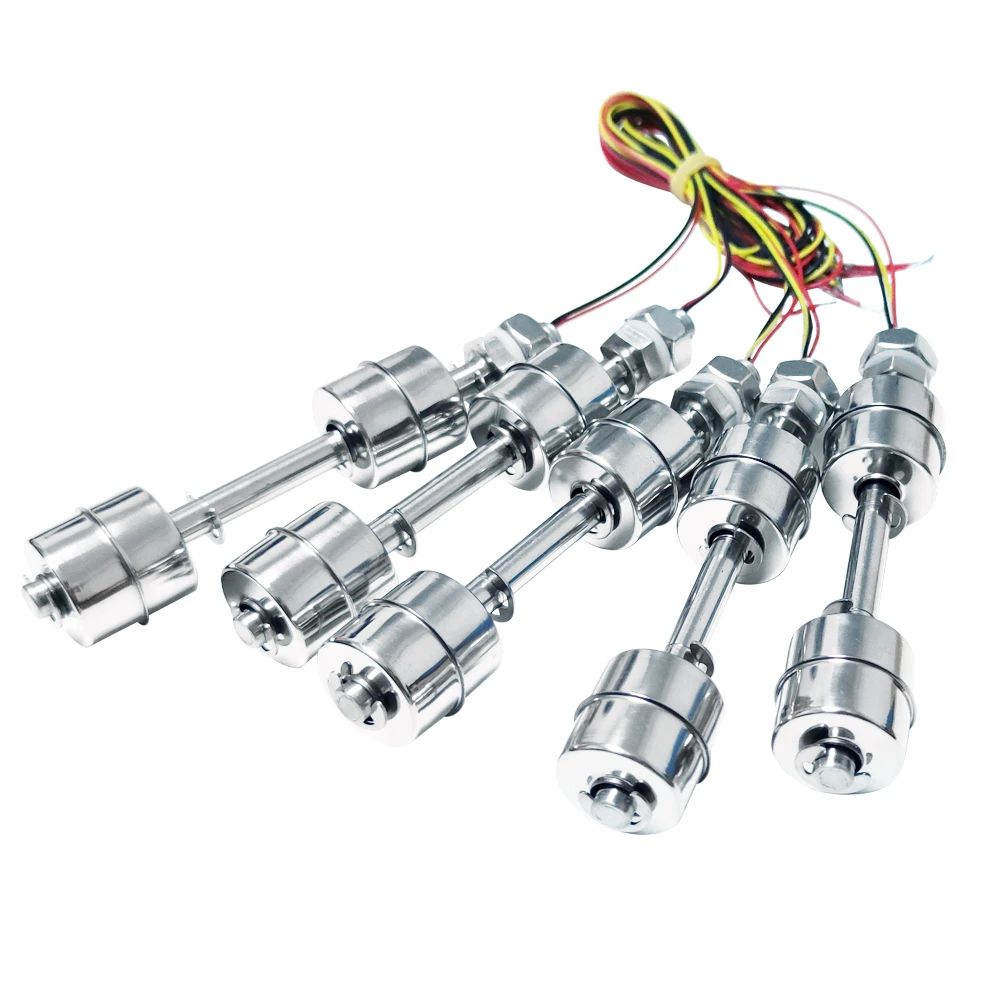

Some customized products photo
