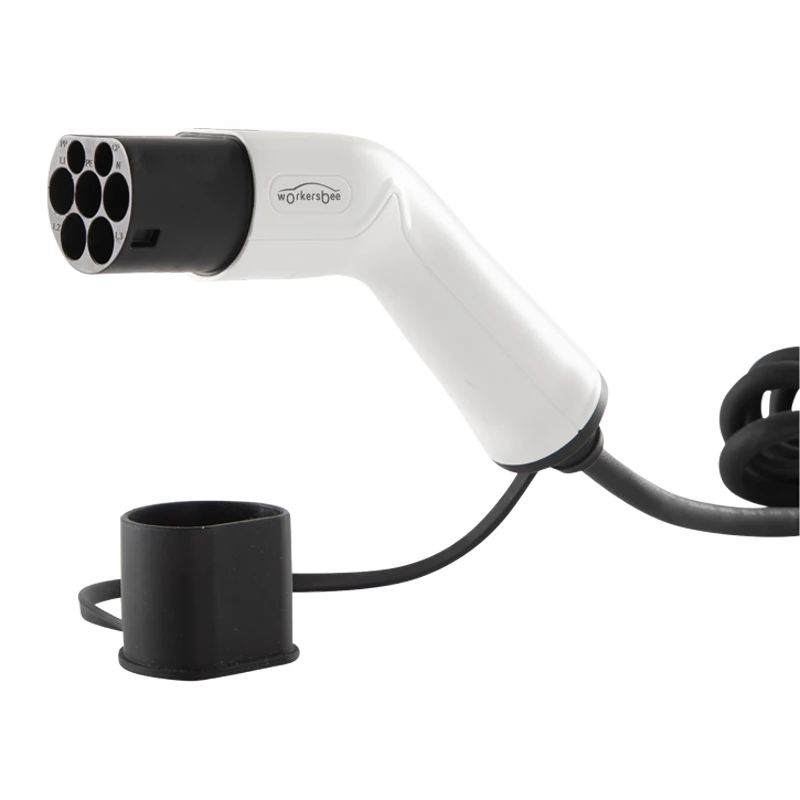

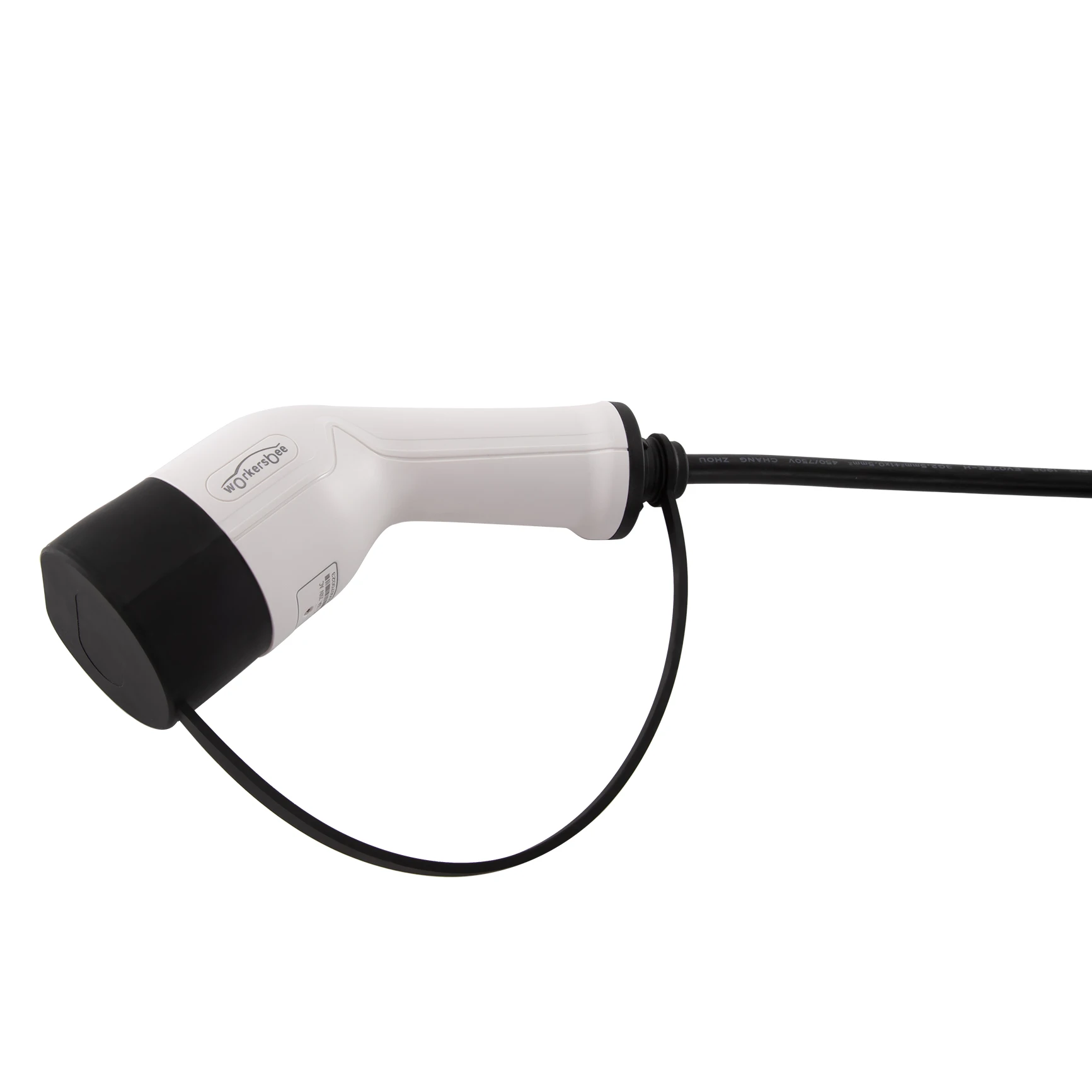

16a Однофазный Тип 2 Тип 2 Оптовая продажа зарядный кабель workersbee ev зарядное устройство тип 2 адаптер
- Category: EV Connectors >>>
- Supplier: Suzhou Yihang Electronic Science And Technology Co. Ltd.
Share on (1600177453036):
Product Overview
Description

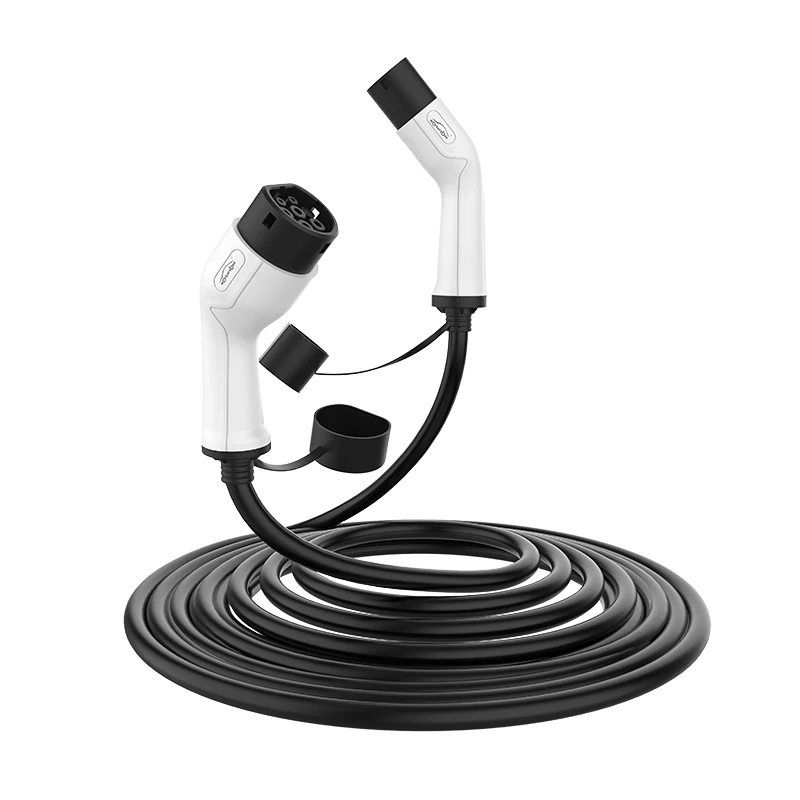

With this EV cable, you can charge your EV/PHEV that has Type 2 port with an EV charging station that has Type 2 socket. The type 2/type 1 ev connector cable is 32 Amp max and can charge your EV up to 22kW. The product has a nice appearance, hand-held ergonomic design and is easy to plug. The working length is 5 meters and is made from thermoplastic material. It has protection level IP54, is anti-flaming, pressure-resistant, abrasion-resistant and impact resistant.

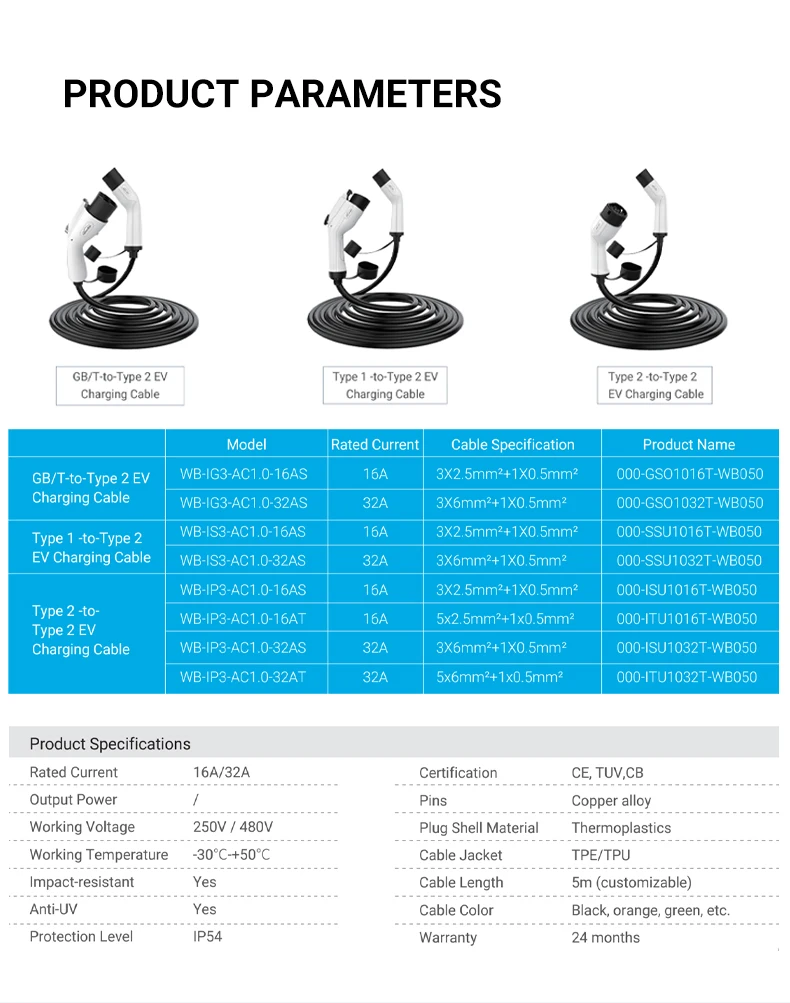

Specification
Product Name: | Type2 to type 2 charging cable |
Application Standard: | IEC 62196-1-2016/IEC 62196-2-2016 |
Certification: | CE/TUV/UKCA |
Cable length: | 5 meters |
Protection Degree: | IP55 |
UV Resistant: | Yes |
Sealing gasket: | rubber or silicon rubber |
Warranty: | 12months |

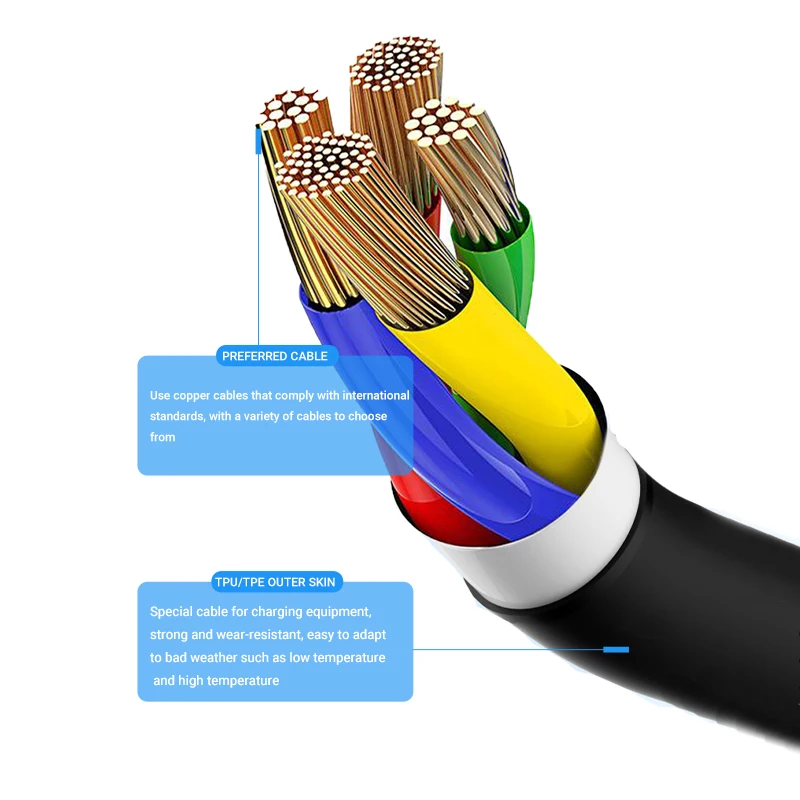

Cable: | TPE/TPU |
Rated current: | 16A/32A |
Operation voltage: | 250V/480V |
Insulation resistance: | > 1000M Ω (DC500V) |
Terminal temperature rise: | <50K |
Withstand voltage: | 2000V |
Contact impedance: | 0.5m Ω Max |
Mechanical life: | No-load plug in /out >10000 times |
Coupled insertion force: | 45N |
Impact of external force: | Can afford 1M height drop and 2T vehicle run over pressure |
Working Temperature: | -30°C ~+ 50°C |
ABS+thermoplastic, | flame retardant grade UL94 V-0 |
Terminal: | copper alloy, silver plating |
16A single phase cable size: | 3*2.5mm2+2*0.5mm2 |
16A three phase cable size: | 5*2.5mm2+2*0.5mm2 |
32A single phase cable size: | 3*6mm2+2*0.5mm2 |
32A three phase cable size: | 5*6mm2+2*0.5mm2 |
Shell color: | black/white optional |
Cable color: | black/orange optional |
Product Description
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in industrial way, 5pcs per brown master carton. We also supply commercial pack, product in bag first then in pizza box then in master carton.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: Generally, we pack our goods in industrial way, 5pcs per brown master carton. We also supply commercial pack, product in bag first then in pizza box then in master carton.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
