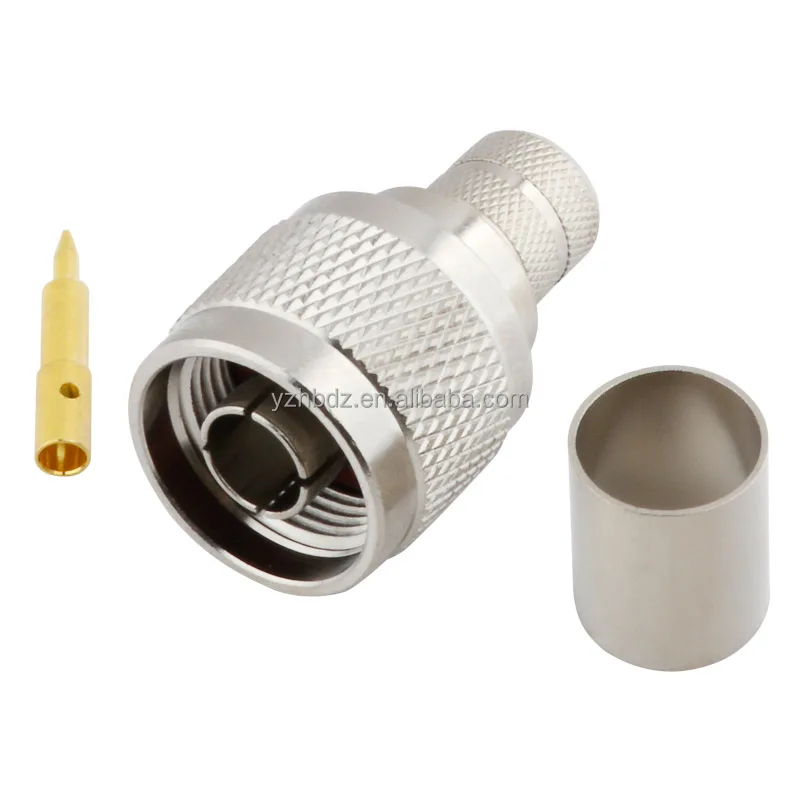

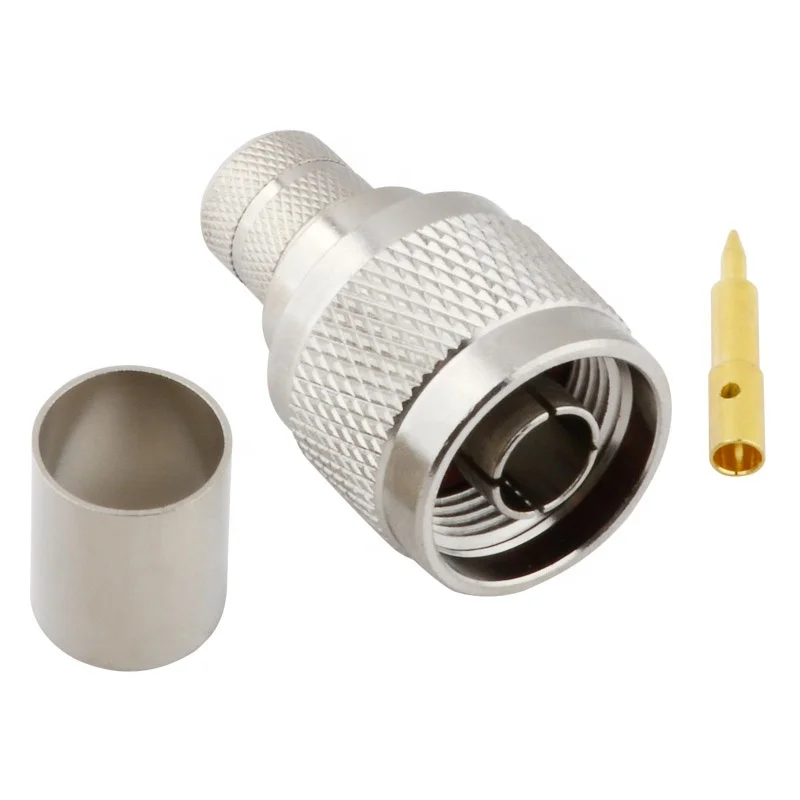

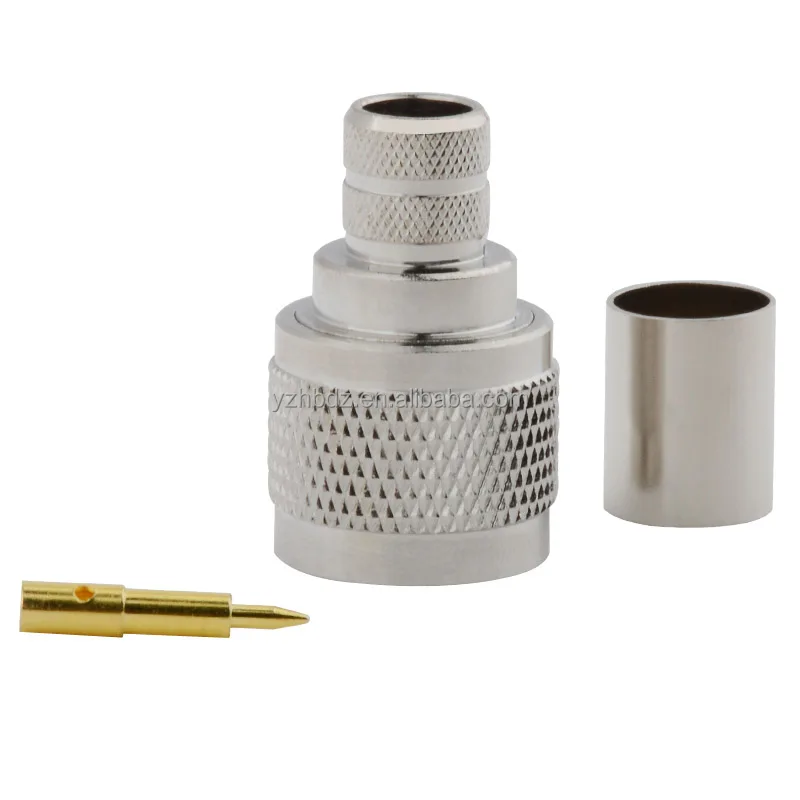

N Штекерный разъем LMR400 RG8/U 7D FB SYWV50 7 GPS 50 7 коаксиальный кабель обжимной соединитель
- Category: Connectors and Accessories >>>
- Supplier: Yangzhou Hongbo Electronics Co. Ltd.
Share on (1600178875615):
Product Overview
Description
Product Description
Specification
Impedance: | 50Ω | Body | brass | Nickel plated |
Frequency Range: | DC~11GHz | |||
Working Voltage: | 1000V r.m.s at sea level | Resilient contact | Beryllium-copper | Gold plated |
Withstanding Voltage: | 2500V r.m.s at sea level | |||
Contact resistance: | a)Center Contact ≤1m Ω b)Outer Contact ≤1m Ω | Pin contact | brass | Gold plated |
Insulation resistance: | ≥5000MΩ | Socket contact | Beryllium-copper | Gold plated |
Center Conductor retention force: | ≥0.56N | insulator | PTFE | |
Vibration | 100m/S2(10~500Hz),10g | |||
Coupling nut retention force | 450 N | Crimp ferrule | Copper alloy | Nickel or gold plated |
Disengagement force | 8~63 N | |||
Voltage Standing Wave Ratio: | Straight ≤1.15/ 6GHz Right angle ≤1.25/6GHz | O-ring sealing | silicone rubber | |
Durability(mating): | ≥500times(cycles) |
