Factory Price Two Stage 500L/H RO Water Treatment Plant With EDI System Machine Pure Water Purifier for Lab
- Category: Environmental Machinery >>>
- Supplier: Guangzhou Kaiyuan Water Treatment Equipment Co. Ltd.
Share on (1600182421849):
Product Overview
Description
Factory Price Two Stage 500L/H RO Water Treatment Plant With EDI Machine Pure Water Purifier for Lab
Product Description
Product Description
Reverse Osmosis is considered to be a highly effective approach to eliminating water impurities, such as Toxic Heavy Metals i.e. Lead and Radium, Mercury, Chlorinated Pesticides, organic matters, Turbidity & Dissolved Solids, bacteria, virus. Reverse osmosis is capable of removing more than 97% of total dissolved solids (TDS), more than 97% of organic, including pyrogens, and more than 97%bacterials in the water.
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
Flow chart :
Raw water tank→ raw water pump→ quartz sand filter→ active carbon filter→ water softner (optional) → security filter→ Reverse osmosis system (including chemical cleaning device)→ UV sterilizer (ozone generator)→ Pure water storage tank
Main Features
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation and maintainence
3.Automatic switch on when lack of water,and switch off when no water or full of water
4.RO membrane auto wash and reduce the pollution speed.
5.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
6.Production water conductivity meter monitors water quality online contionously.
7.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.
Ro system parameters
Ro system technical parameters
Ro system technical parameters(source water TDS ≤ 2000mg/L(ppm)) | |||
Item Name | Brand | Material | Function |
Raw Water Pump | CNP/Grundfos/ Danfoss | SUS-304 | Provide pressure to quartz sand filter/active carbon filter/softener |
Quartz Sand Filter | Kai Yuan | FRP/ SUS-304 | Get rid of turbidity, suspended matter, organic matter, colloid, etc. |
Activated Carbon Filter | Kai Yuan | FRP/ SUS-304 | Remove the color, free chloride, organic matter, harmful matter, absorb odor, smell, etc... to make clear water |
Anti-scalant chemical dosing system/Water Softener | SEKO | FRP/ SUS-304 | Remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water. |
Security filter | KaiYuan | FRP/ SUS-304 | Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um |
High pressure pump | CNP/Grundfos/Danfoss | SUS-304 | Provide pressure for Ro membranes |
RO vessels &membranes | Domestic/Vontron / DuPont FilmTec TM | FRP/ SUS-304 | Remove dissolved ions, organic matter ,bacteria... |
Solenoid valves, gauges,switch... | China | Cooper/Ss-304 | To protect the machine under operation |
CIP Washing system(optional) | Kai Yuan | SUS-304 / FRP | Membranes maintenance |
Electronic control | PLC Program control system | Water quality detector, AC contactor, Air switch, indicator light, knob switch, electrical miscellaneous pieces... | |
UV/Ozone(optional) | USA/Dahuang | Remove some bacteria like coliform, pseudomonas aeruginosa... | |

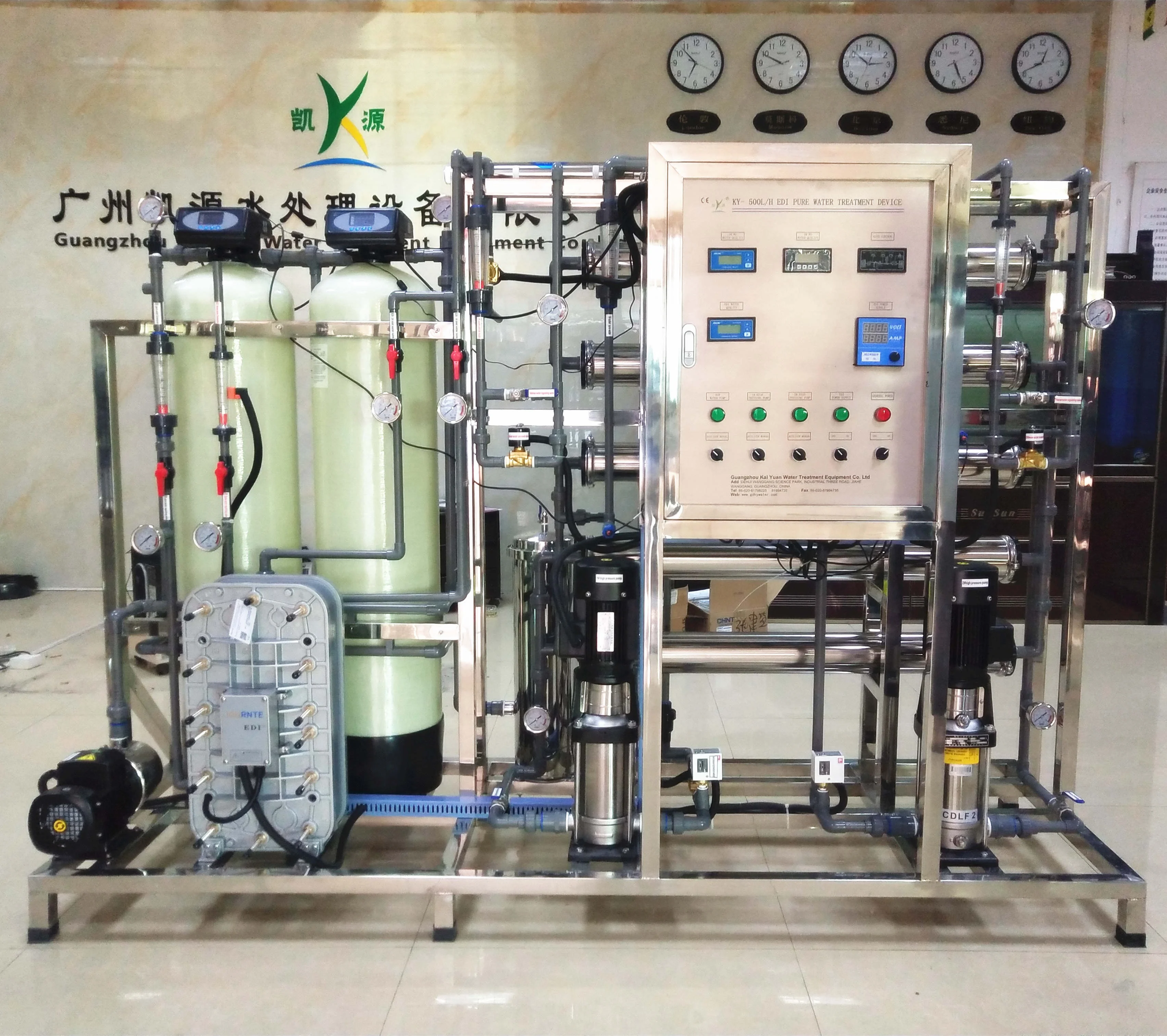

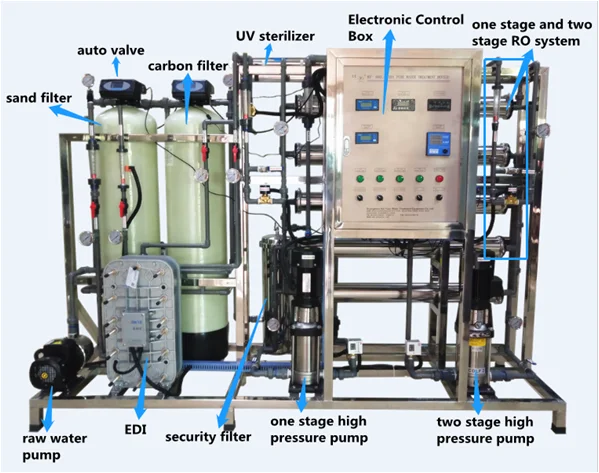

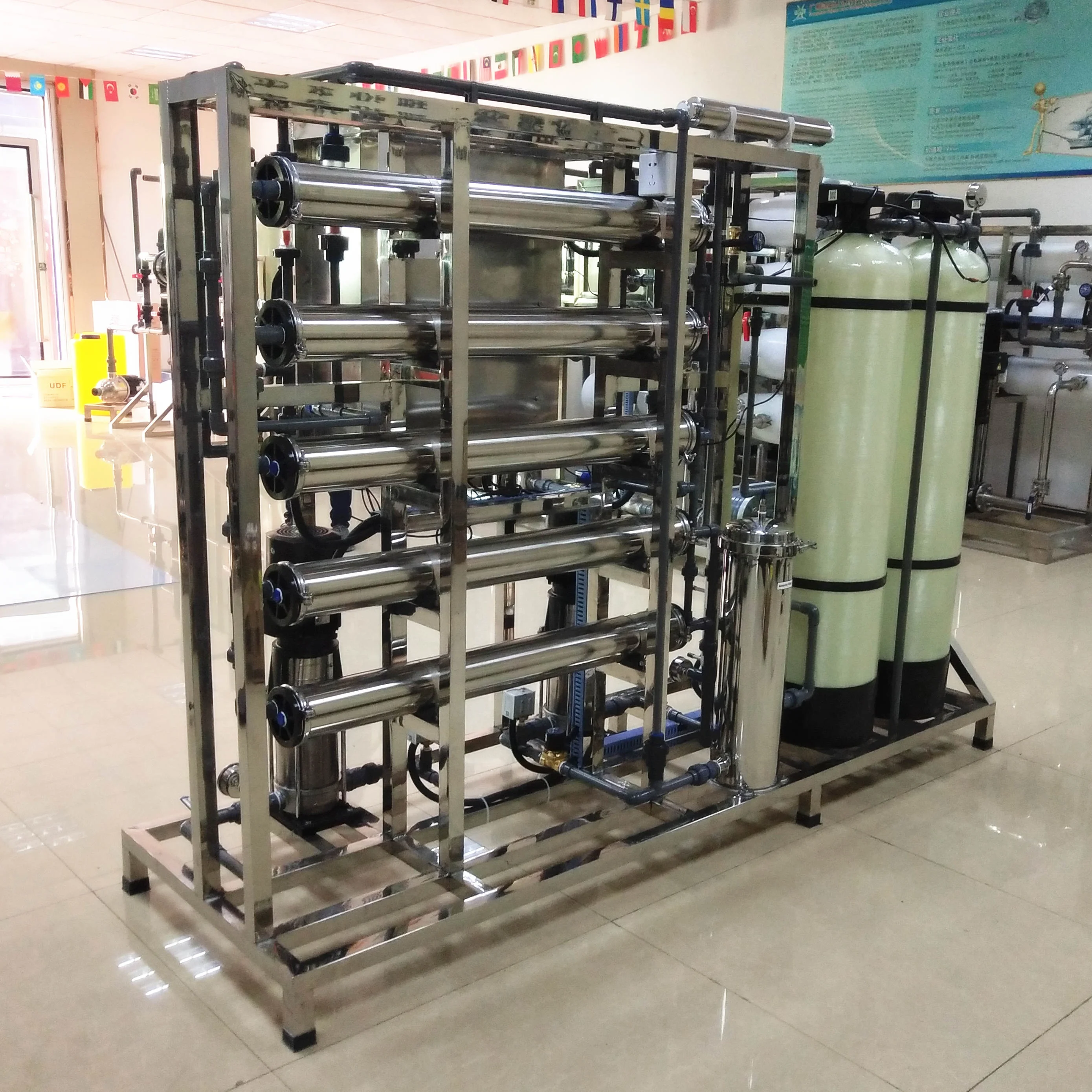

Machine Pictures
Our Services
1.Provide Instruction Manual
A.Quartz sand filter filling
B.Activated carbon filter filling
C.Filter material flushing
D.Normal operation
E.Security filter installation
F.Reverse osmosis membrane installation method
G.RO membrane flushing and adjustment
H.Operation manual
2.Provide Instruction Video
ΔΔVideo in U-disk will include in the productΔΔ
3.Online Technical Support
Engineers will guide you to solve problems.
4.Provide Site Installation
