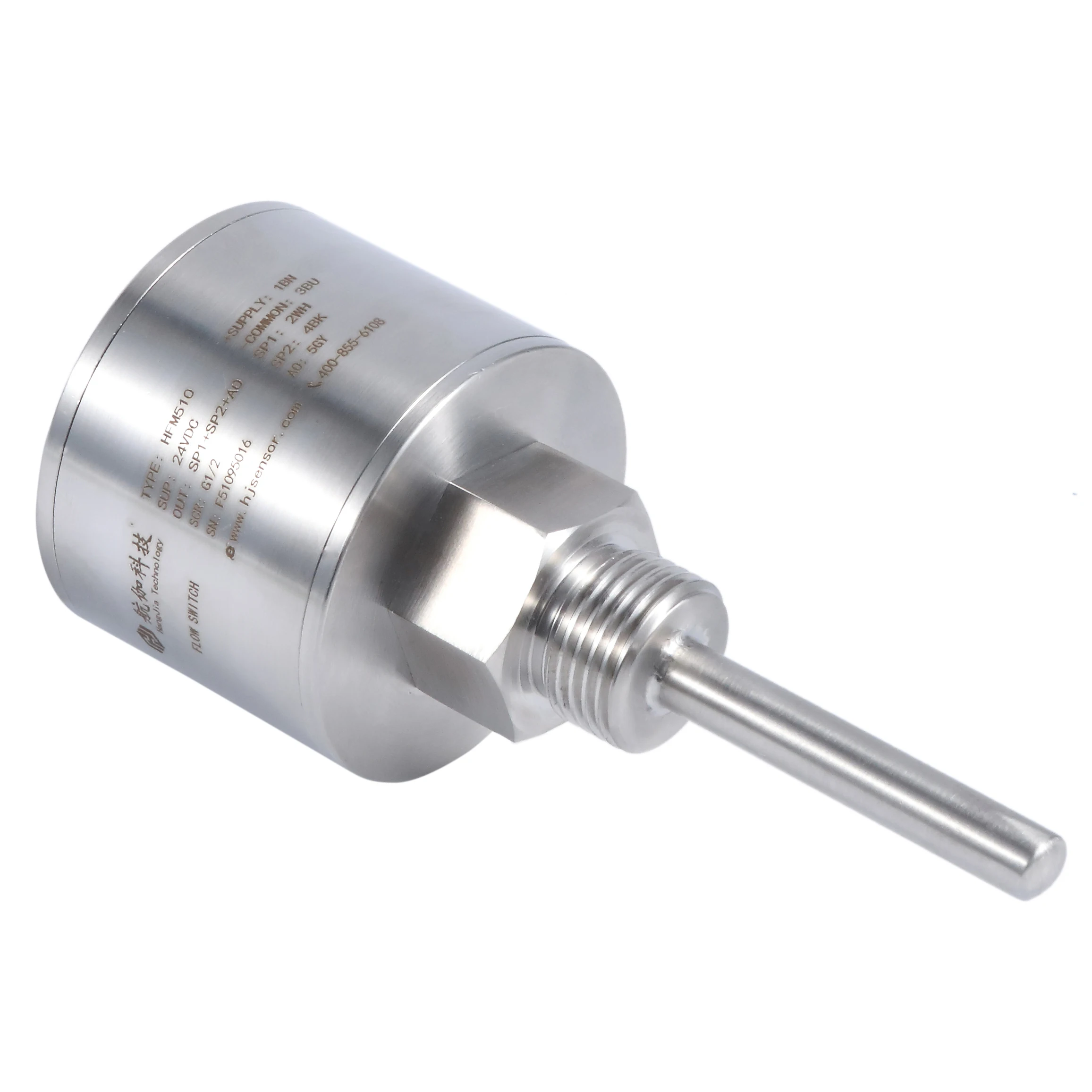

Relay Output Stainless Steel Thermal Diffusion Thermal Display Digital Flow Meter Switch For Water (1600185472666)

Share on:


Price:$220.00 - $240.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Overview:

HFM510 digital explicit flow switch adopts the principle of thermal diffusion, which is applied in flow detection to show the value of regional temperature difference corresponds to the size of flow.Its working principle is to place a heating module and a temperature sensing module in the closed probe. The temperature difference value of the heat transfer of the probe is closely related to the velocity of the measured medium. When the medium in the pipe flows at a stable velocity, the sensor module receives a fixed value that the heating module senses.When the velocity of flow through the probe changes, the thermal sensing module will send out the temperature difference signal, and the processor will output the result of the corresponding velocity.
HFM510 digital explicit flow switch does not have any moving parts, so compared with mechanical flow switch, it will not fail due to corrosion, fracture, baffle deformation and other reasons.It is also suitable for flow monitoring of different media, including some impure liquid and gas media.Insert installation mode, meet various pipe diameter installation requirements.The product USES digital display medium flow state;
Button setting parameters, easy to operate;Long service life combined with maintenance-free design.The products are widely used in industrial furnace, welding equipment, laser equipment, microwave equipment, glass machinery, lubrication machinery, printing machinery, machine tools, as well as large transformer and other fields.


Specification




Measuring Range
Water
1...150cm/s (Most sensitive range 1...60cm/s)
Oil
3...300cm/s(Most sensitive range 3...100cm/s)
Air
20...2000cm/s(Most sensitive range 20...700cm/s)
Measuring Medium
Water, Oil, Air
Withstand Voltage
100bar
Initialization Time
18s
Response Time
1...15s, related to thermal conductivity of medium, typical value 2s
Supply Voltage
24VDC(18~32VDC)
No-load current
<80mA
Switched Output
Output type
2 way PNP / 2 way NPN / 1 way Relay / 2 way PNP + Analog 4~20mA
Load Capacity
150mA max(PNP);1A max(relay);500Ω max(4~20mA)
Display
Alarm Indication
LED(Red )
Status Indicator
4 LED
Temperature
Operating Temp
-20~80ºC
Medium Temp
-20~80ºC
Storage Temp
-20~100ºC
Material
Shell
SUS304
Probe
SUS304
Protection Grade
IP67
Wiring Method
M12 Connector
