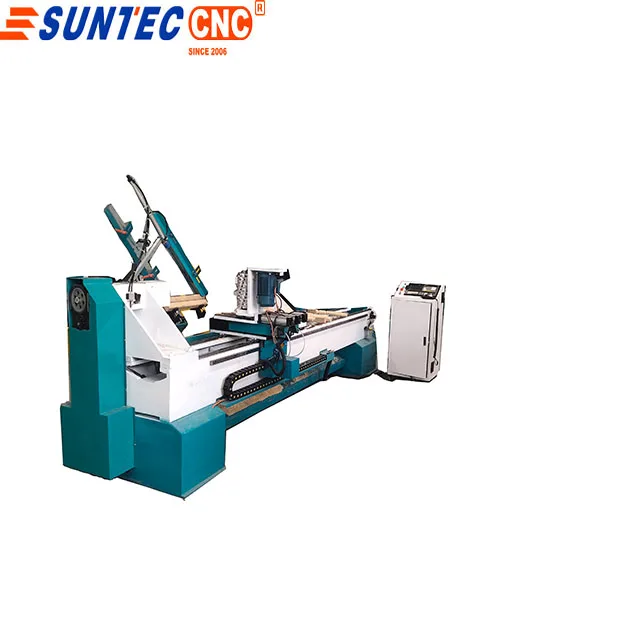

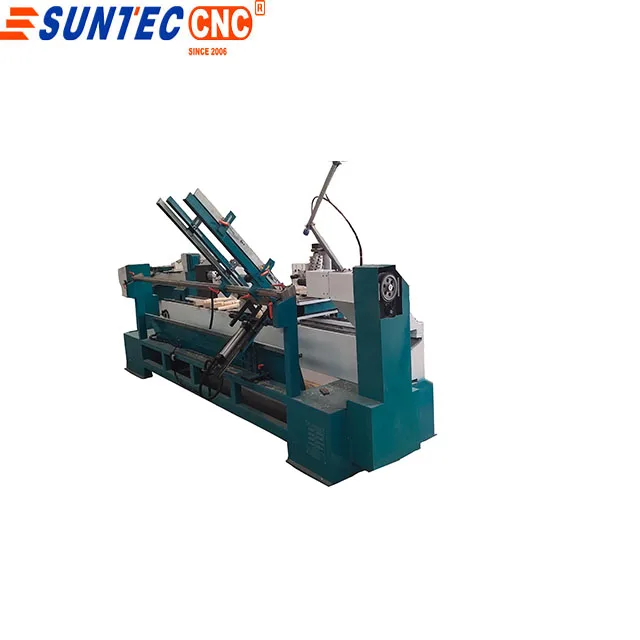

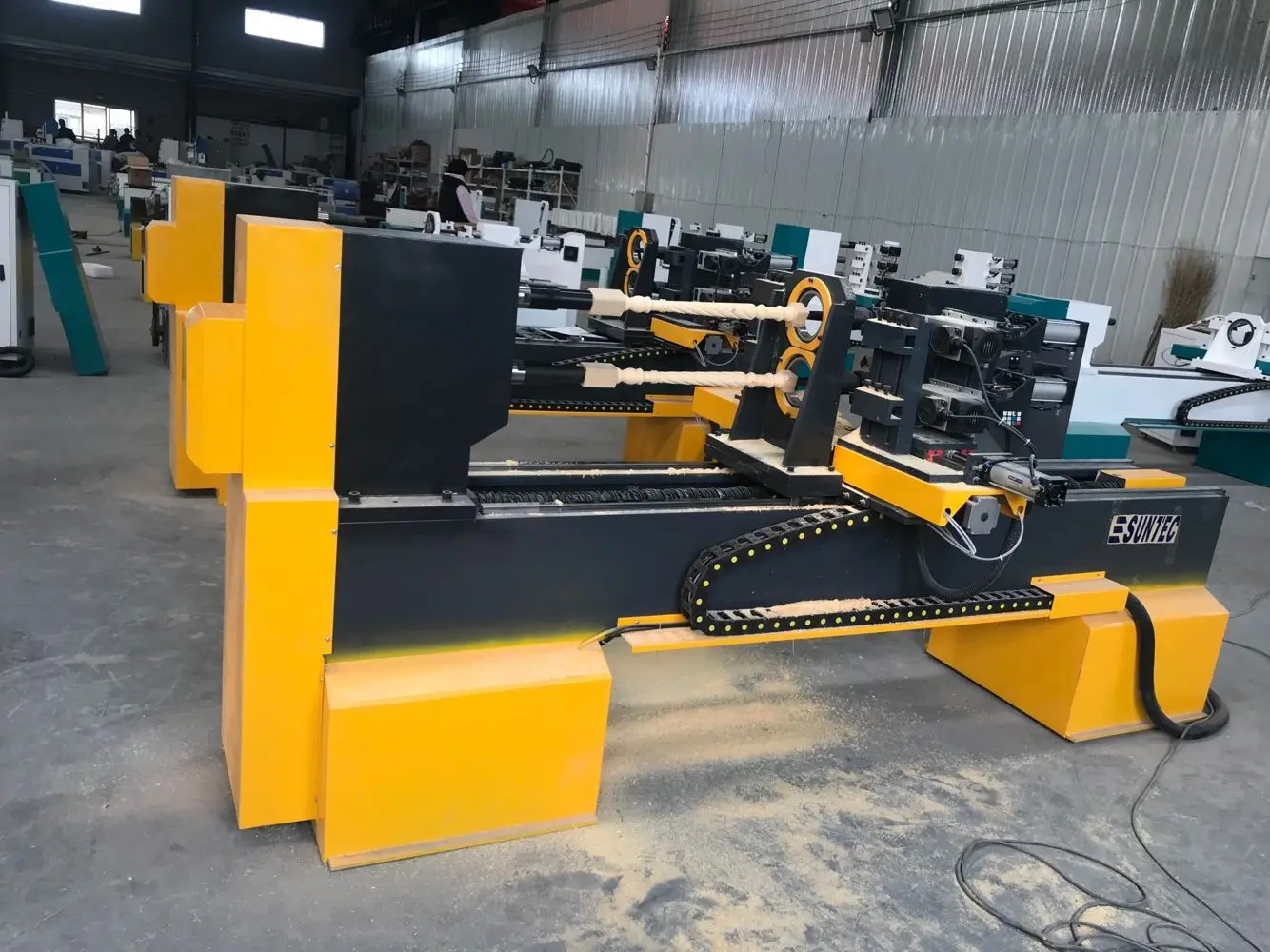

ST1530 4 four function wood lathe machine automatic feeding baluster columns making lathe machine

Product Overview

Description

 ST1530 4 four function wood lathe machine mutifunction automatic feeding  baluster columns making lathe machine



Main specification

1. heavy duty structure frame weight 2000kgs to make sure no vibrating when working especaill for big columns legs.

2. automatic feeder can for square wood feeding saving labor cost .just allign cutter one time , it can continue feeding to work .

3.Two fast cutter , one cutter for rought milling ,another for fine milling .

4. 3.5kw engraving spindle for twisting engraving broaching any shape on wood .

5.autocad software can support DXF format ,easily to make drawing .

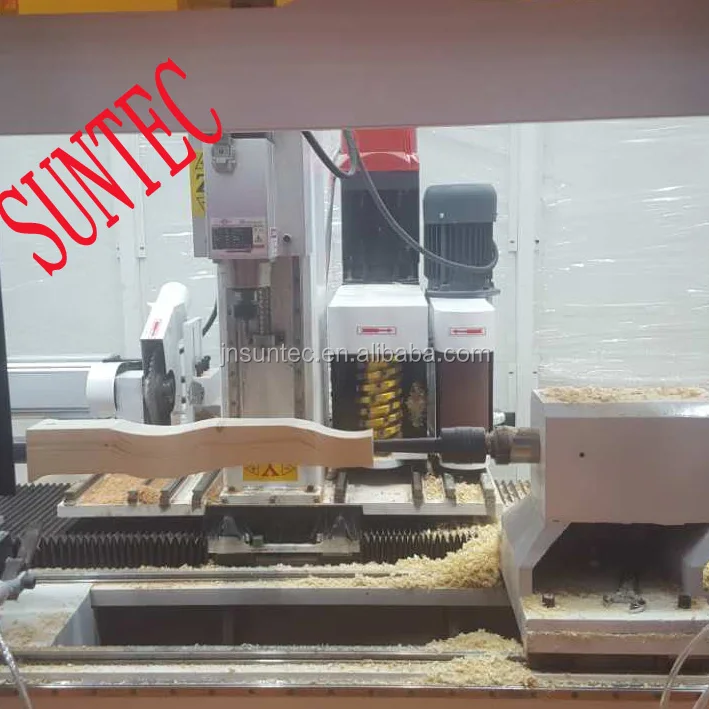

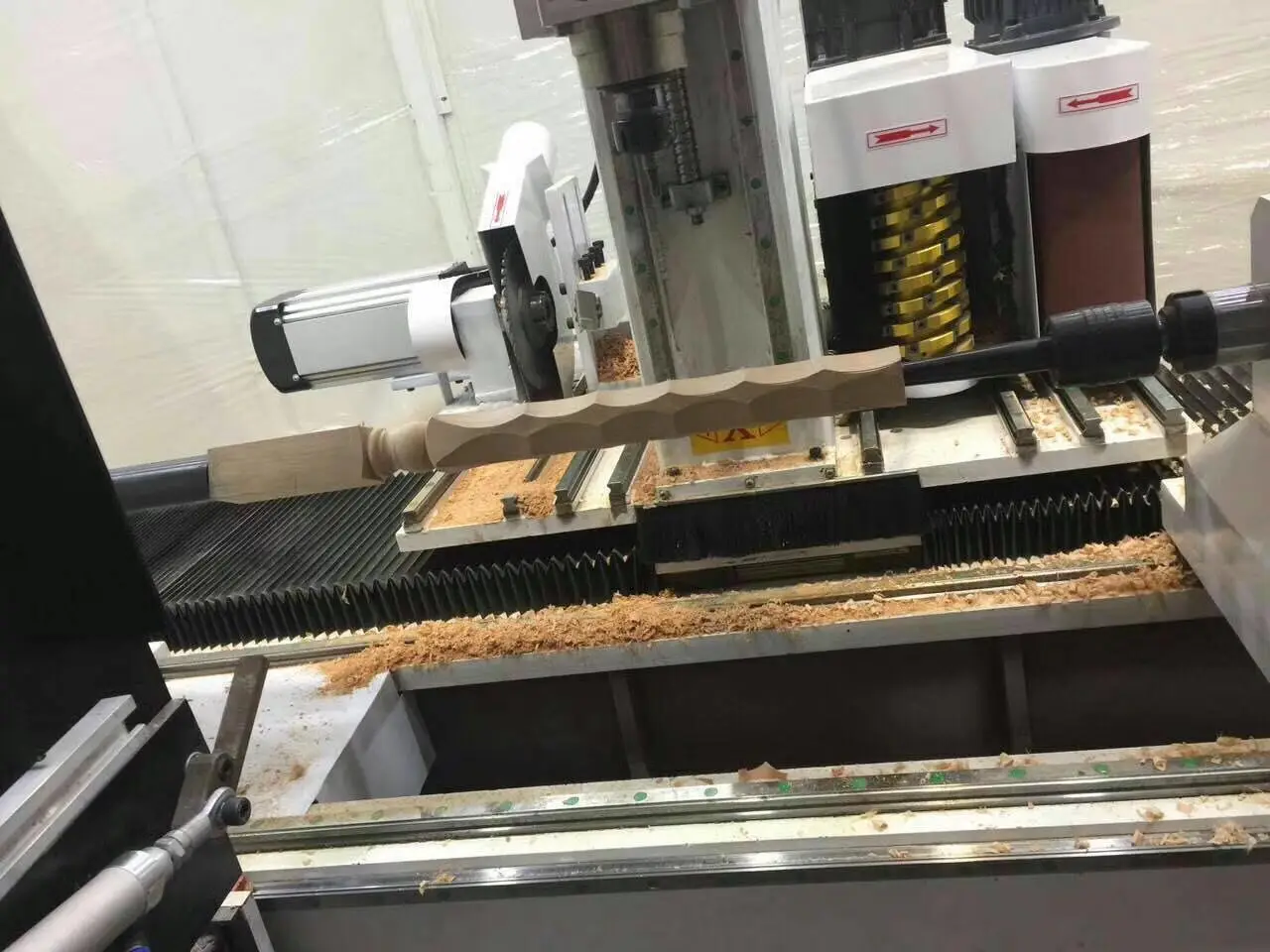

This wood lathe machine combined cutter blade, spindle and planer, can make milling, turning, grooving, twisting line, engraving and planing together.

Auto feeding cnc turning milling carving lathe wood lathe center machine with below functions:

1) Wood lathe cutter: for wood turning, make all regular wooden legs

2) Wood router spindle: Milling+Twisting line+Hollowout+Engraving+Pulling groove+Cylinder engrave

3) Wood Planer: make the irregular furniture wooden legs, chair legs with fast speed and high efficiency

4) Sander optional for polishing

5)Automatic feeding device : for automatic feeding square wood material just set one time , which can automatically feeding saving labor.



Model:	ST-1530(1500*300mm) _1 axis with planner with 3.5kw spindle with one cutter one planner
Structure:	Cast iron
Spindle shaft:	Sturdy spindle, NSK deep groove ball bearing, P5 grade.
Drive system:	-   Three phse current of 380V, 50HZ. 4 Kw. , 1 set -   Stepper motor: 450B 2 sets -   Stepper driver: YKAO2811MA 2 sets -   Servo motor is optional 5.5kw 220v/3ph/220v/1ph for optional
Inverter:	Best inverter 5.5 kw (Fuling brand is optional)
Guide rail:	Taiwan HIWIN/PMI linear square guide rail.
Spindle speed:	3000 r/min
Material size:	300*1500 mm (length: 2000mm, 2500mm, 3000mm are optional)
Center  Sleeve ID:	1.414 times the side length of material (no need sleeve if material diameter is more than 60mm)
Weight – bearing:	500 kg
Engraving speed:	4 m/min
Max. feed	15 mm/r
Max. feed rate:	700 mm /min
Min. setting unit:	0.1 mm
Pivoting device:	Pneumatic air connection within 6-8 bar.
Tailstock:	Precisely and easily movable, with quick clamping with pneumatic
Electric system:	Air break switch protection
Dimensions(L*W*H):Machine (without operation box)	3100 *1280*1780 mm
Packing dimensions:Machine (with operation box)	3200*1380*1980 mm
Weight:	1700 kg
Software	AUTOCAD (DXF format )
Control system:	LCD control with screen show
Planner	for optional







































































































































































                          check our other cnc wood lathe

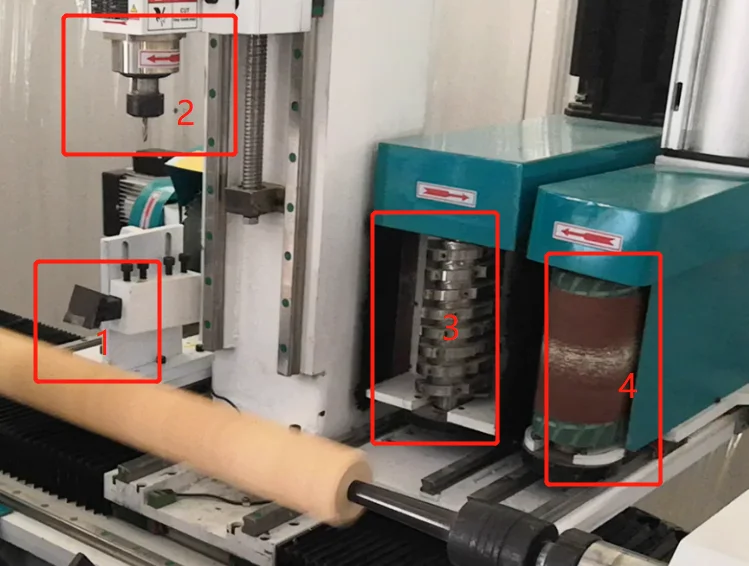

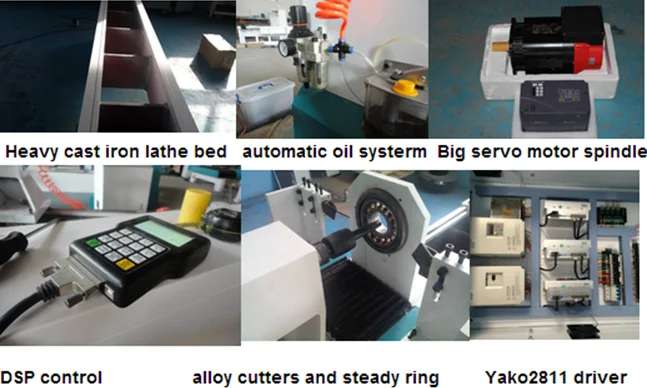

Main parts

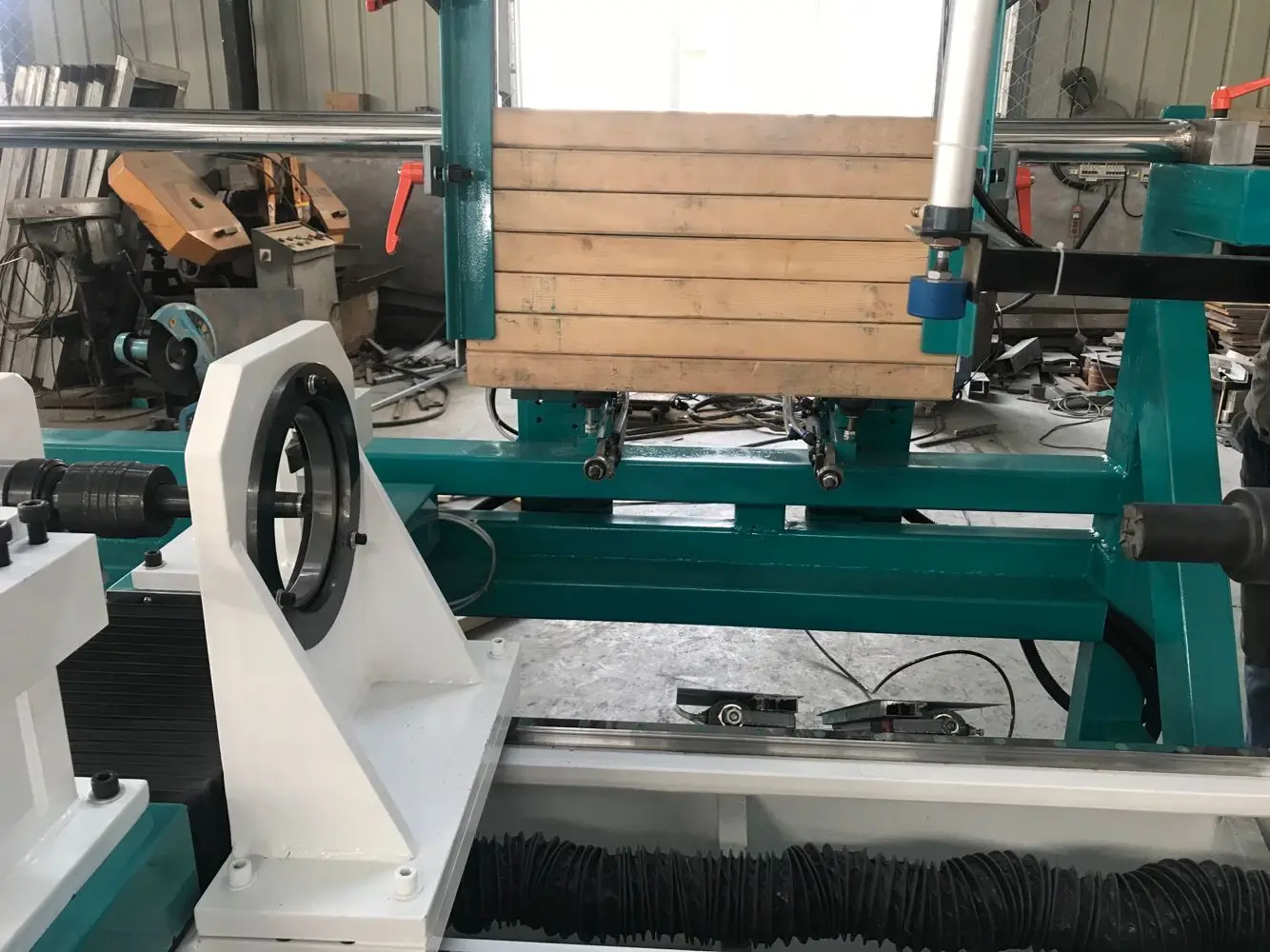

automatic feeding device for optional





 1 one knife for turn suqare wood to round simple columns shape with DXF files

2. cnc router spindle can engrave mill pulling line hollow on wood .

3. planner for irregular wood for any shape .

4. sanding tools for sanding polishing dust

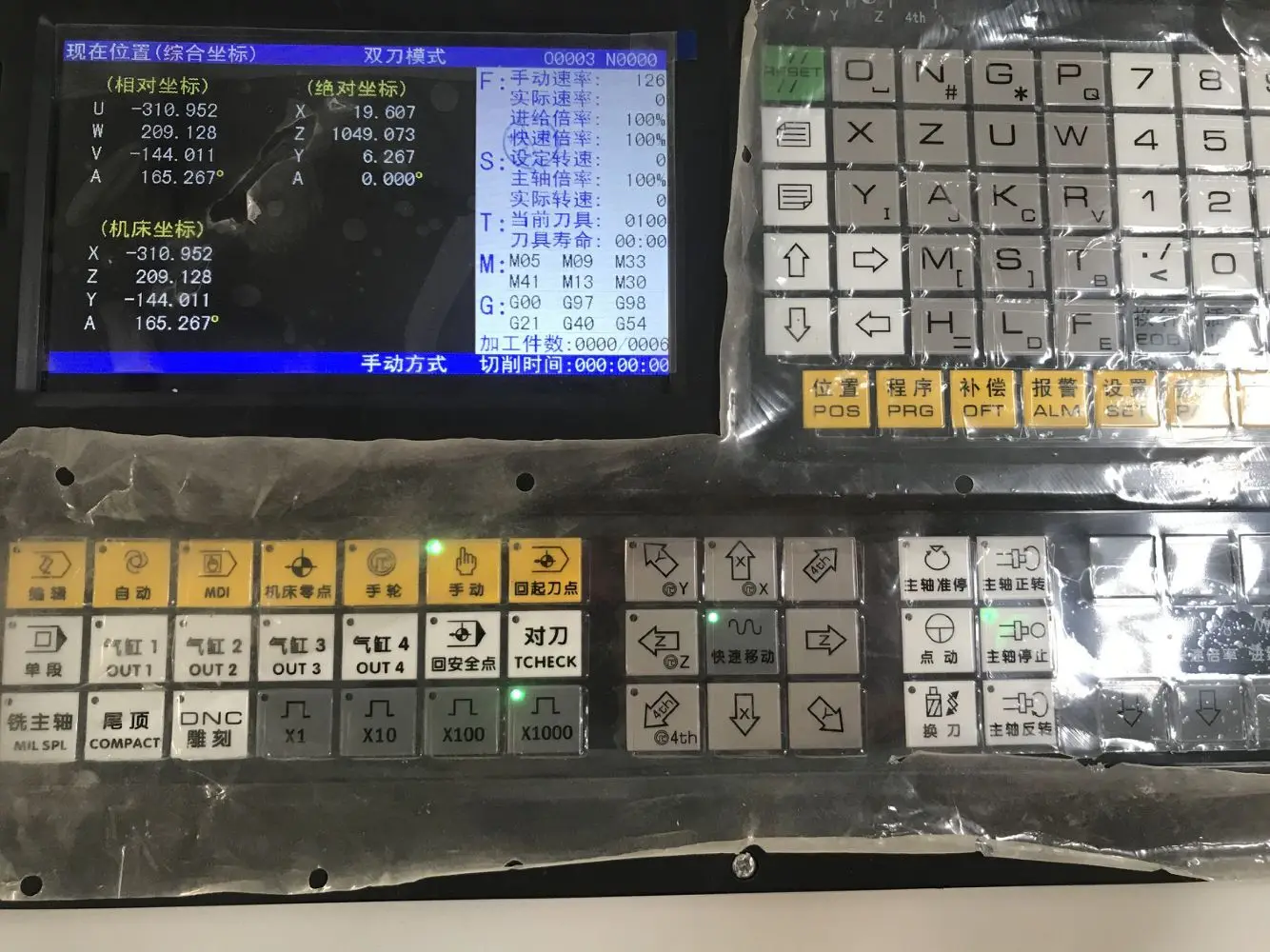

PLC control which can visual shape on screen . easily to operate . just copy dxf file to this control .

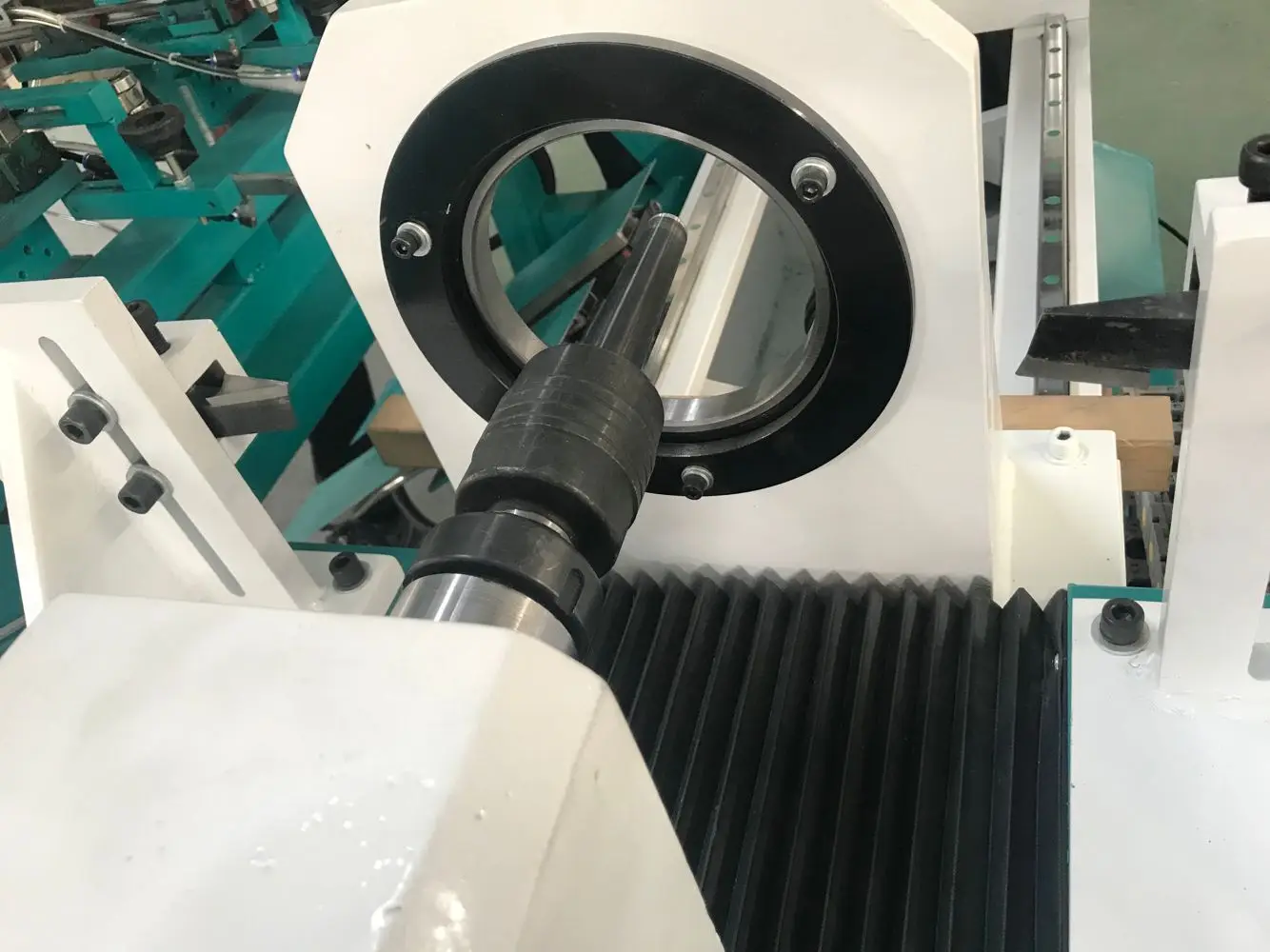

Center bearing for small and think square wood ,in case of vibrate when turning .



working sample









service

1.Service before order: our salesman will try to know more about your demands ,  including the max working size, main processing materials and the thickness , so we will offer you suit machine.

2.Service during production : we will send the production the machine pictures for customer in time , customer can know more the detailed machine parts.

3.Service before shipping : the machine parts will be installed and tested by our professional.

technician, send the test video according to customer’s processing materials for customer confirmations.

4.Service after shipping : we will check when the machine arrive your sea port or the approximate arrival date, so that the customer can know the arrival date and to prepare to pick the machine up

5.Service of training : the English manual and operating video will be sent to customers with the machine together, it will help customer how to operate the machine , it there is any question about the operation , we will have the professional technician to help them how to operate by online ,until the customer can use it freely.
