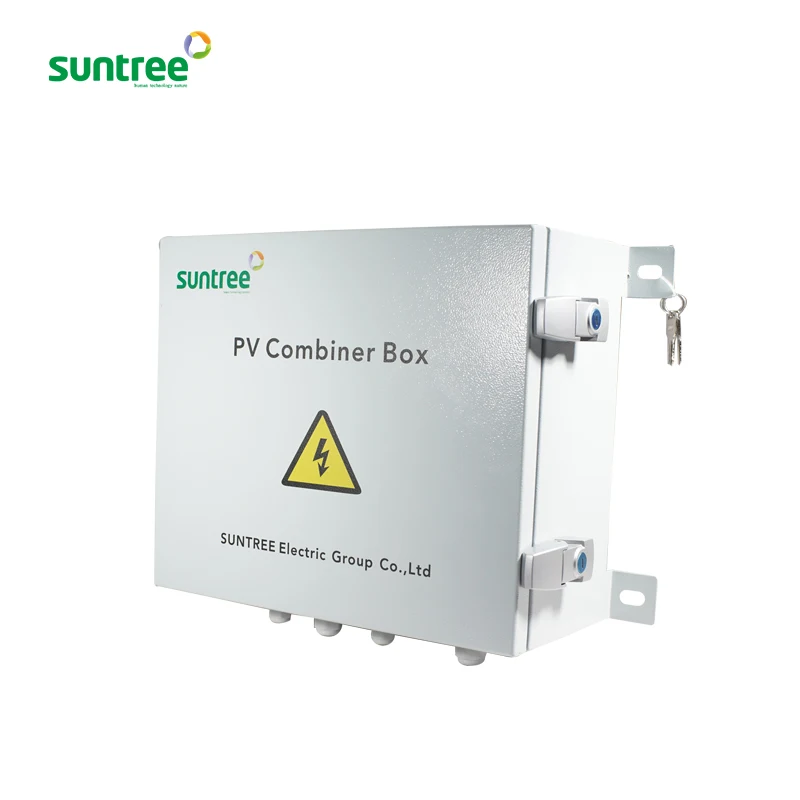

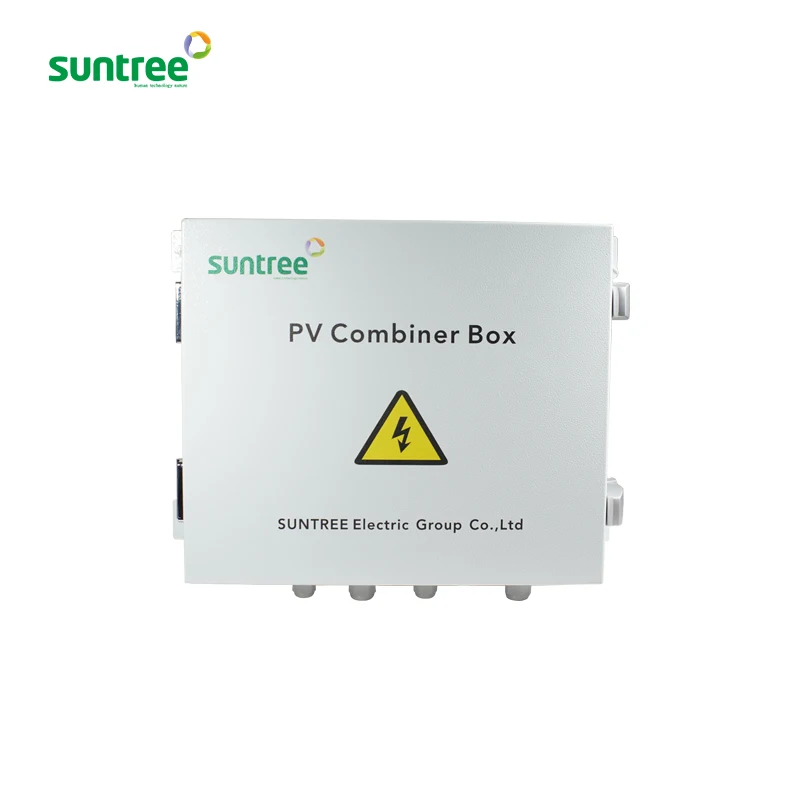

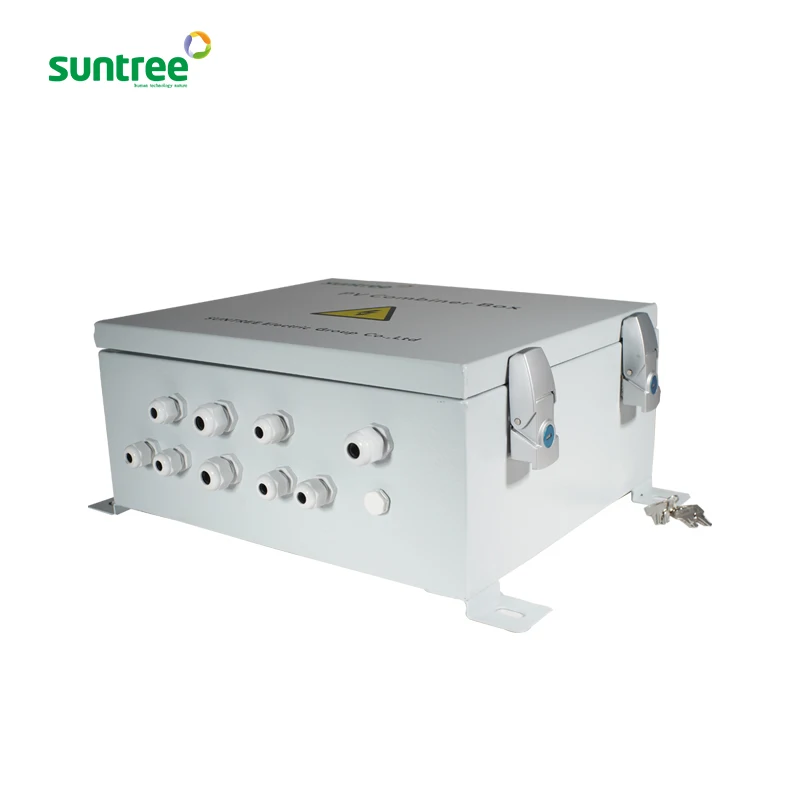

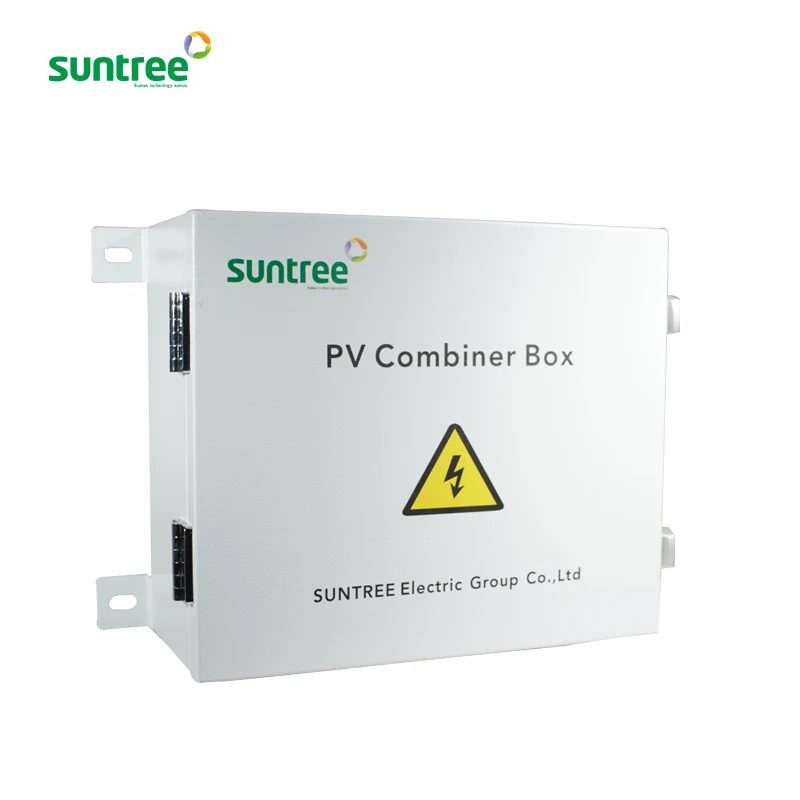

Photovoltaic iron shell pv solar power convergence combiner box wite 2 string
- Category: >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd.
Share on (1600188865930):
Product Overview
Description
Product Paramenters
Name | SHLX-PV2/1 | ||||||
System maximum dc voltage | 1000 | ||||||
Maximum input current for each string | 15A | ||||||
Maximum input strings | 2 | ||||||
Maximum output switch current | 20A/32A | ||||||
Number of inverter MPPT | 1 | ||||||
Number of output strings | 1 | ||||||
Category of test | ‖ grade protection | ||||||
Nominal discharge current | 20ka | ||||||
Maximum discharge current | 40ka | ||||||
3.8Voltage protection level | 3.8kv | ||||||
Maximum continuous operating voltage Uc | 1050V | ||||||
Poles | 3P | ||||||
Structure characteristic | Plug-push module | ||||||
Protection grade | IP65 | ||||||

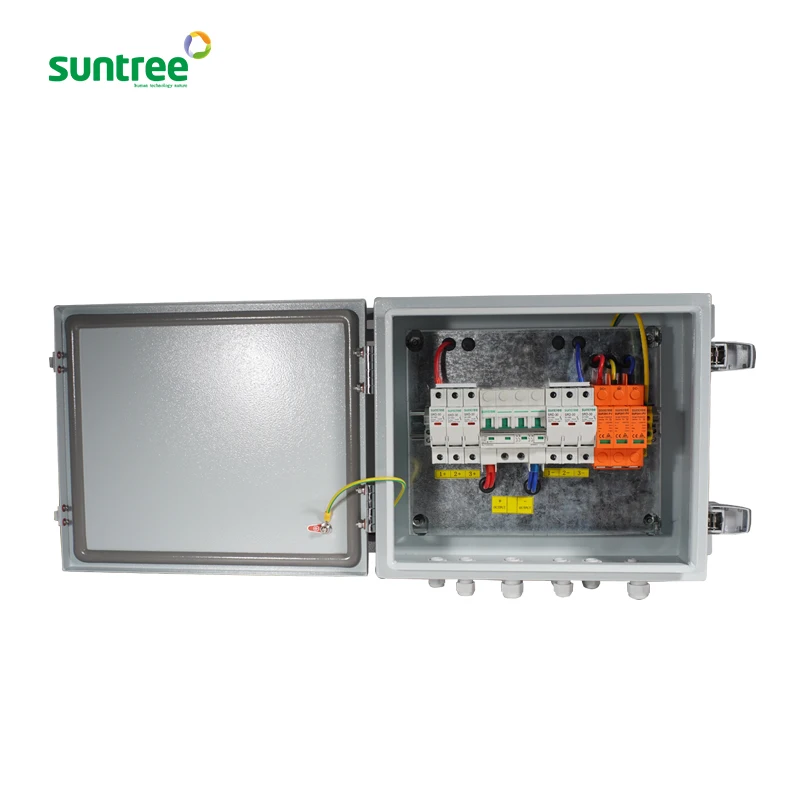

Output switch | DC isolation switch(standard)/DC circuit breaker(optional) | ||||||
SMC4 Connectors/dc fuse/dc surge protector | Standard | ||||||
Monitoring module/Preventing diode | Optional | ||||||
Box material | Plastic | ||||||
Installation method | Wall mounting type | ||||||
Operating Temperature | -50℃--+120℃ | ||||||
Elevation of temperature | 2km | ||||||
Permissible relative humidity | 0-95%, no condensation | ||||||
WidthxHighxDepth | 300x260x140 | ||||||
Product Details
Packing and Shipping
More Products
Company Information
FAQ
Q:Do you accept customized design ?
A:Yes ,we offer custmized design through client different system request .
Q:How about cusytomzied design MOQ ?
A:Our MOQ is very flexible for customized design .depend on your system demand .
Q:The combiner box can connect with MC4 Connector
A:Yes ,you can request connect MC4 Connector ,or cable glands ,both is ok for us to do
Q:The Plastic box is waterproof ?
A:Our distribution is IP65 for waterproof protection ,so when you use our box outdoor ,there is no risk for worry rainy .
Q:Do you have any certificate for this combiner box ?
A:Yes ,we got TUV CE approved for our box .
Q:After I place order ,when can I receive goods ?
A:We'll ship goods out in 7 working days .
Q:How about the warranty policy ?
A:All of our products offer 18 months for warranty
Q:How many years experience you have for this electric products?
A:We are 14 years factory for produce electric products in Liushi city .We have our own engineer for design and offer after sales services .
Q:How will you ship goods to me ?
A:For small quantity goods we usually ship by TNT ,DHL,door to door shipping services .For big quantity and urgent goods as you confirm we can ship by air .and ship by sea FOB,or CIF price is acceptable too .We have our own forwarder or ship by your forwarder is ok too .
Q:Do you offer any document for clearance ?
A:Yes ,we can offer original PL CI BL for clearance .and we also can help apply CO or Form E ,Form F to help save import tax cost
A:Yes ,we offer custmized design through client different system request .
Q:How about cusytomzied design MOQ ?
A:Our MOQ is very flexible for customized design .depend on your system demand .
Q:The combiner box can connect with MC4 Connector
A:Yes ,you can request connect MC4 Connector ,or cable glands ,both is ok for us to do
Q:The Plastic box is waterproof ?
A:Our distribution is IP65 for waterproof protection ,so when you use our box outdoor ,there is no risk for worry rainy .
Q:Do you have any certificate for this combiner box ?
A:Yes ,we got TUV CE approved for our box .
Q:After I place order ,when can I receive goods ?
A:We'll ship goods out in 7 working days .
Q:How about the warranty policy ?
A:All of our products offer 18 months for warranty
Q:How many years experience you have for this electric products?
A:We are 14 years factory for produce electric products in Liushi city .We have our own engineer for design and offer after sales services .
Q:How will you ship goods to me ?
A:For small quantity goods we usually ship by TNT ,DHL,door to door shipping services .For big quantity and urgent goods as you confirm we can ship by air .and ship by sea FOB,or CIF price is acceptable too .We have our own forwarder or ship by your forwarder is ok too .
Q:Do you offer any document for clearance ?
A:Yes ,we can offer original PL CI BL for clearance .and we also can help apply CO or Form E ,Form F to help save import tax cost
