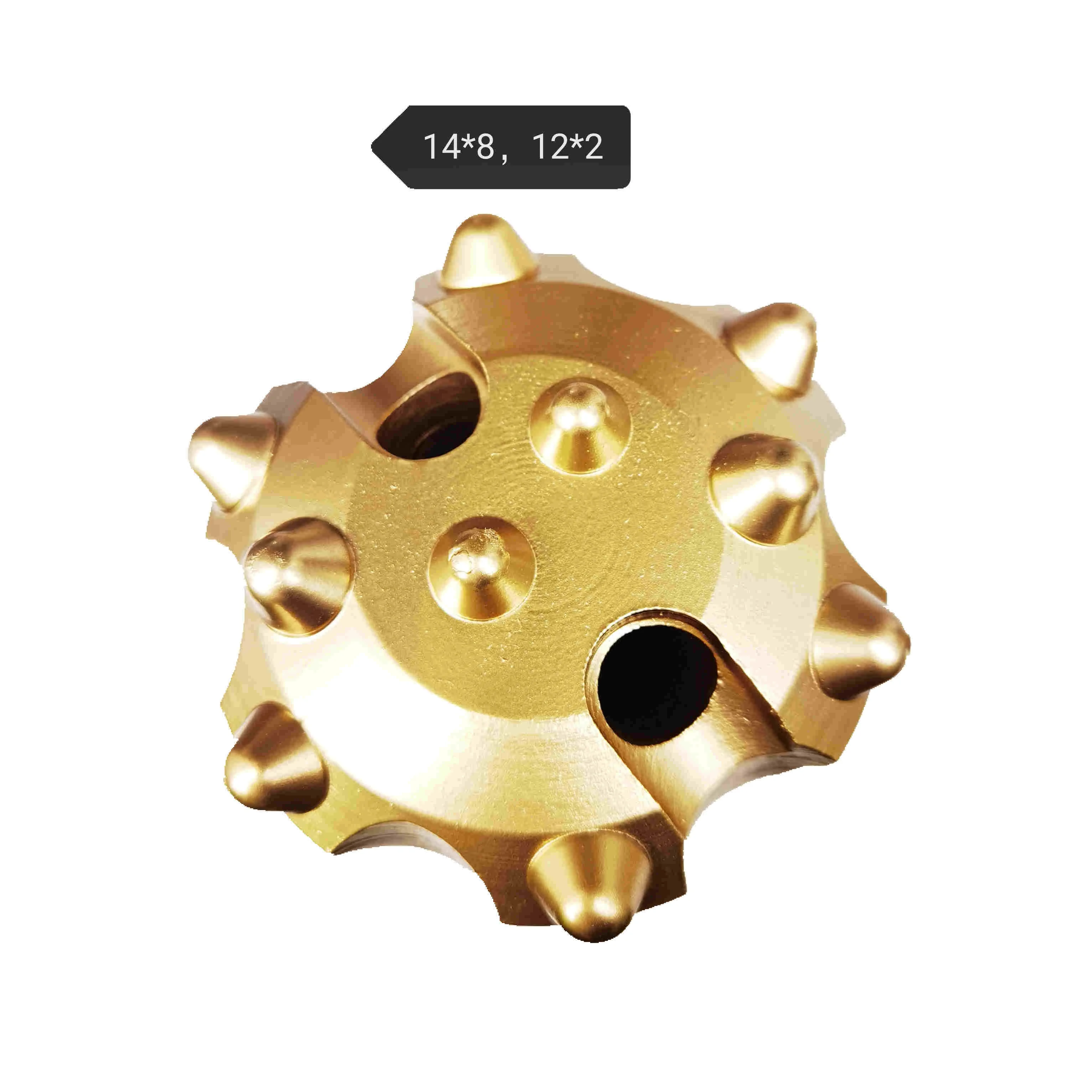

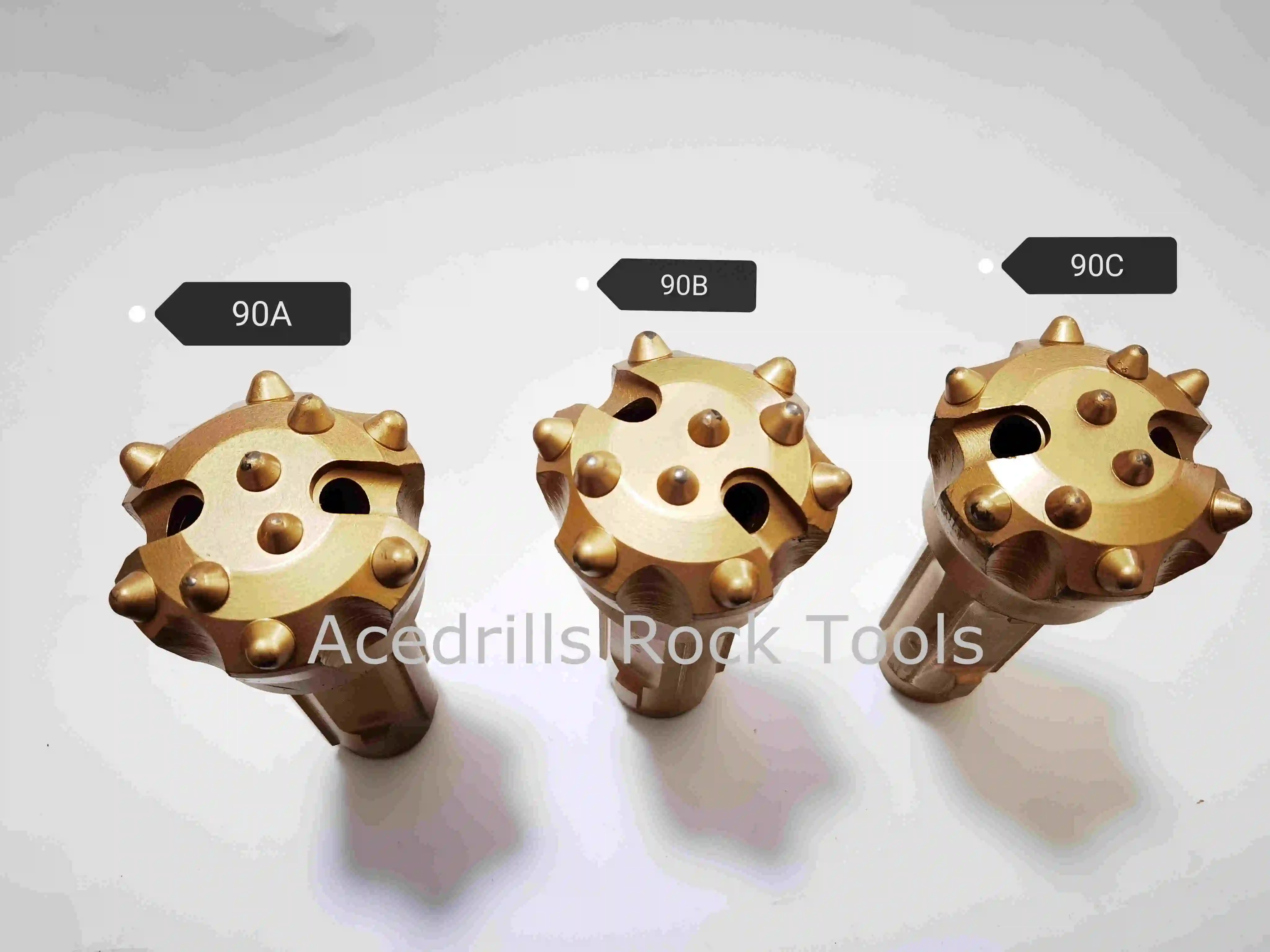

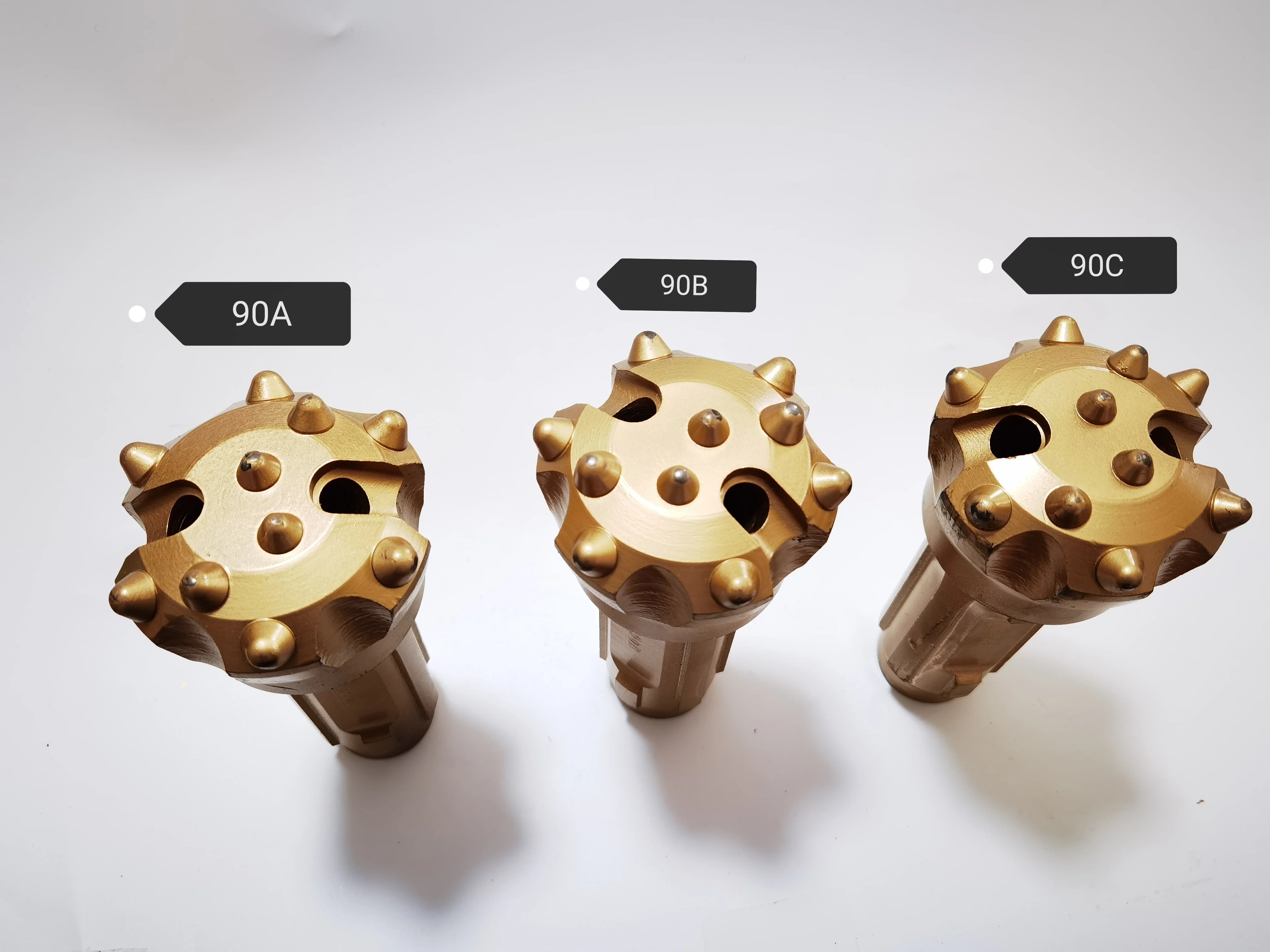

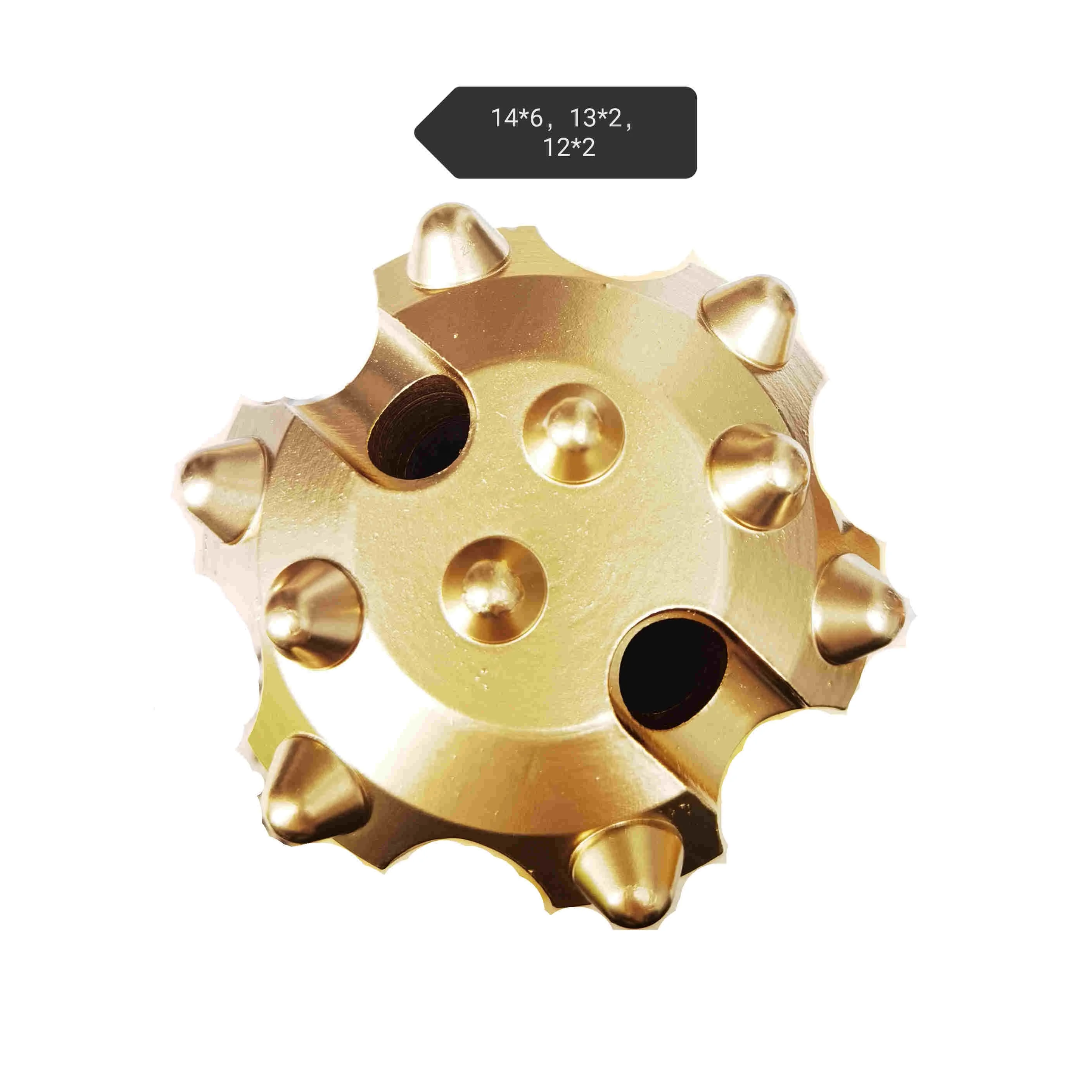

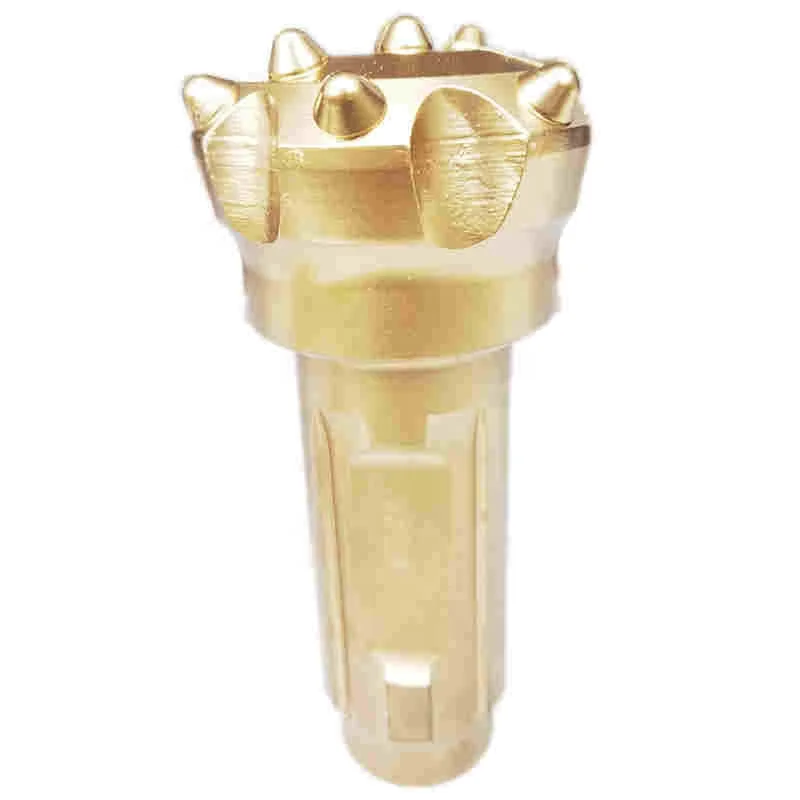

Acedrills Low Pressure CIR 90 DTH Hammer Drill Bit for Granite or Water Well Drilling

Product Overview

Description

Acedrills Low Pressure CIR 90 DTH Hammer Drill Bit for Granite or Water Well Drilling

DTH Button Bits: All our DTH drill bits are also CAD designed, CNC manufactured for perfect bits body, and multiple heat-treated to enhance hardness, surface-compressed for fatigue resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions. Moreover, all these bits are also made from high quality alloy steels and fitted with premium quality tungsten carbide tips for superior penetration rate.

	Hammer Size
	2”~3.5”
	4”~8”
	10”~32”
Hammer Shank Style
BR, AHD, Cop, Mission...
Mincon, Numa, QL, TD...
SD, DHD, XL, ACD, Mach...
	Face Design        Flat, Concave, Convex

PRODUCT SPECIFICATION

Medium and High Pressure Hammer Bits:

Hammer Size	Hammer Shank Style	Bit Diameter		Face Design	Insert Shapes
		mm	inch

2	BR1	64~76	2 1/2 ~ 3	FF, CV	S, P, B, C
2.5	BR2, Minroc 2, AHD25	76~90	3 ~ 3 1/2	FF, CV	S, P, B, C
3.5	BR 3, Minroc 3, Mach33/303, DHD3.5, TD35, XL3, Mission 30, COP32, Secoroc3, COP34	85~105	3 3/8 ~ 4 1/8	FF, CV	S, P, B, C
4	DHD340A/DHD4, COP44, Secoroc4/44, Numa4, Mincon 4, SD4(A34-15), QL40, Mission 40, COP42, Mach 40/44, Dominator 400, XL4	105~130	4 1/8 ~ 5	FF, CV, CC	S, P, B, C
5	DHD350R, COP54, Secoroc5/54, Mach 50, SD5(A43-15), BR5V, COP54 Gold,  QL50, TD50/55, HP50/55, Patriot 50, Mission 50/55, COP52, XL5/5.5	137~165	5 3/8 ~ 6 1/2	FF, CV, CC	S, P, B, C
6	DHD360, DHD6/6.5, SF6, COP64, Secoroc 6, Challenger/Patriot 6, XL61/PD61, Mach 60, COP64 Gold, QL60, SD6(A53-15)/PD6, ADEC-6M, TD60/65/70, HP60/HP65, Mission 60/60W/65, COP62, XL6	152~203	6 ~ 8	FF, CV, CC	S, P, B, C
8	DHD380, COP84, Secoroc 84, Mach 80, Challenger/Patriot 80, SD8(63-15), XL8, QL80, Mission 80/85	203~305	8 ~ 12	FF, CV, CC	S, P, B
10	SD10, Numa100	241~356	9 1/2 ~ 14	FF, CC	S
12	DHD112, XL12, Mach132, Mach120, SD12(A100-15), NUMA120, NUMA125	305~419	12 ~ 16 1/2	FF, CC	S
14	ACD145	381~470	15 ~ 18 1/2	FF, CC	S
18	ACD185	445~660	17 1/2 ~ 26	FF, CC	S
20	ACD205	495~711	19 1/2 ~ 28	FF, CC	S
24	ACD245	711~990	28 ~ 39	FF, CC	S
32	ACD325	720~1118	28 1/2 ~ 44	FF, CC	S

Specification Notice

Notes: Face Design:  FF=Flat Front, CV=Convex, CC=Concave;   Button Configurations:  S=Hemi-spherical (Round), P=Parabolic.      How to order?    Shank Type + Diameter + Face Design + Button    Configuration       For brochure and more product information, please click here  to tell us the detail.

To Chose the Right Products

When selecting the right bit for optimum performance you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life. Acedrills commonly has three basic bits head designs: Flat Face, Convex and Concave. These are designed for specific applications for all rock types, hardness’s and conditions:
