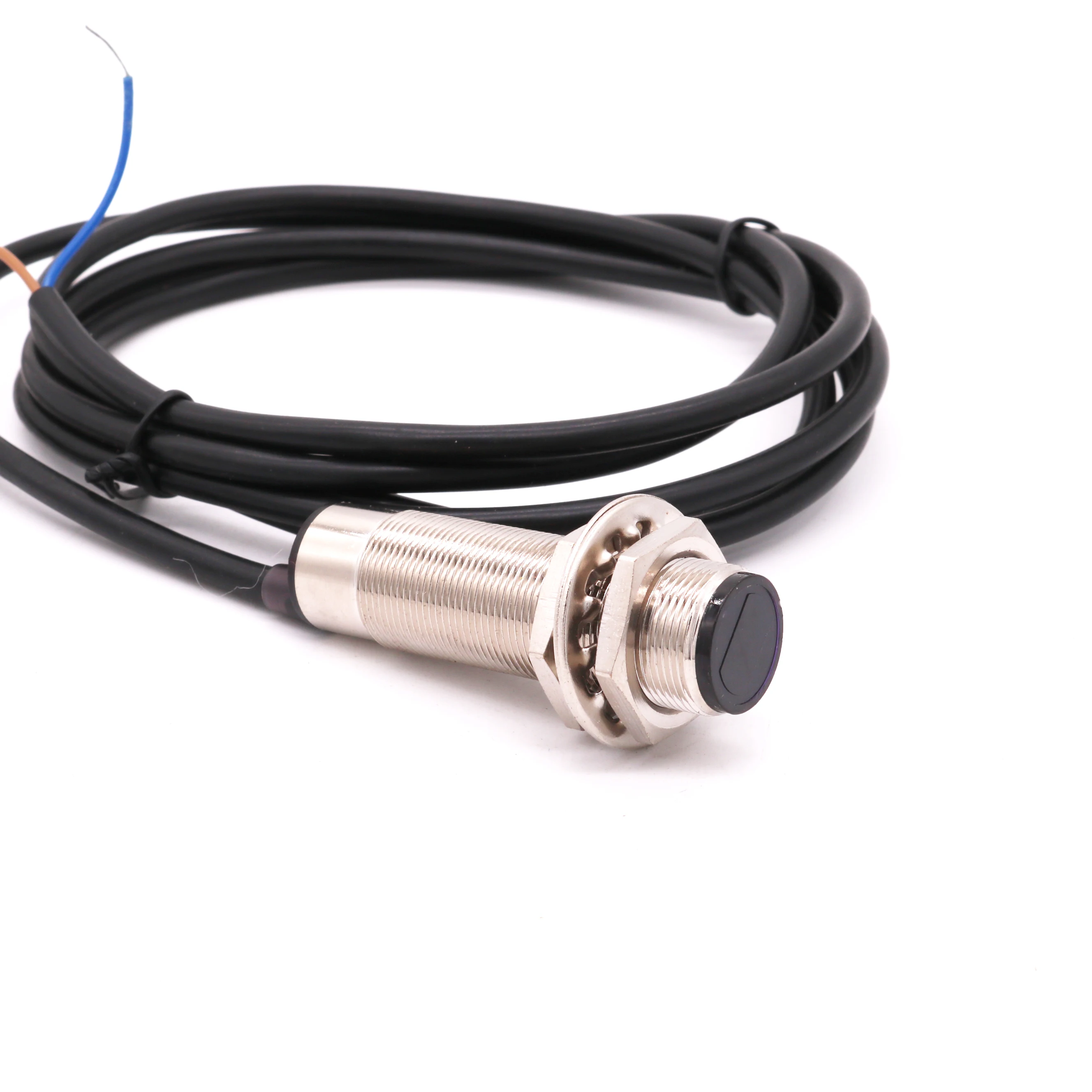

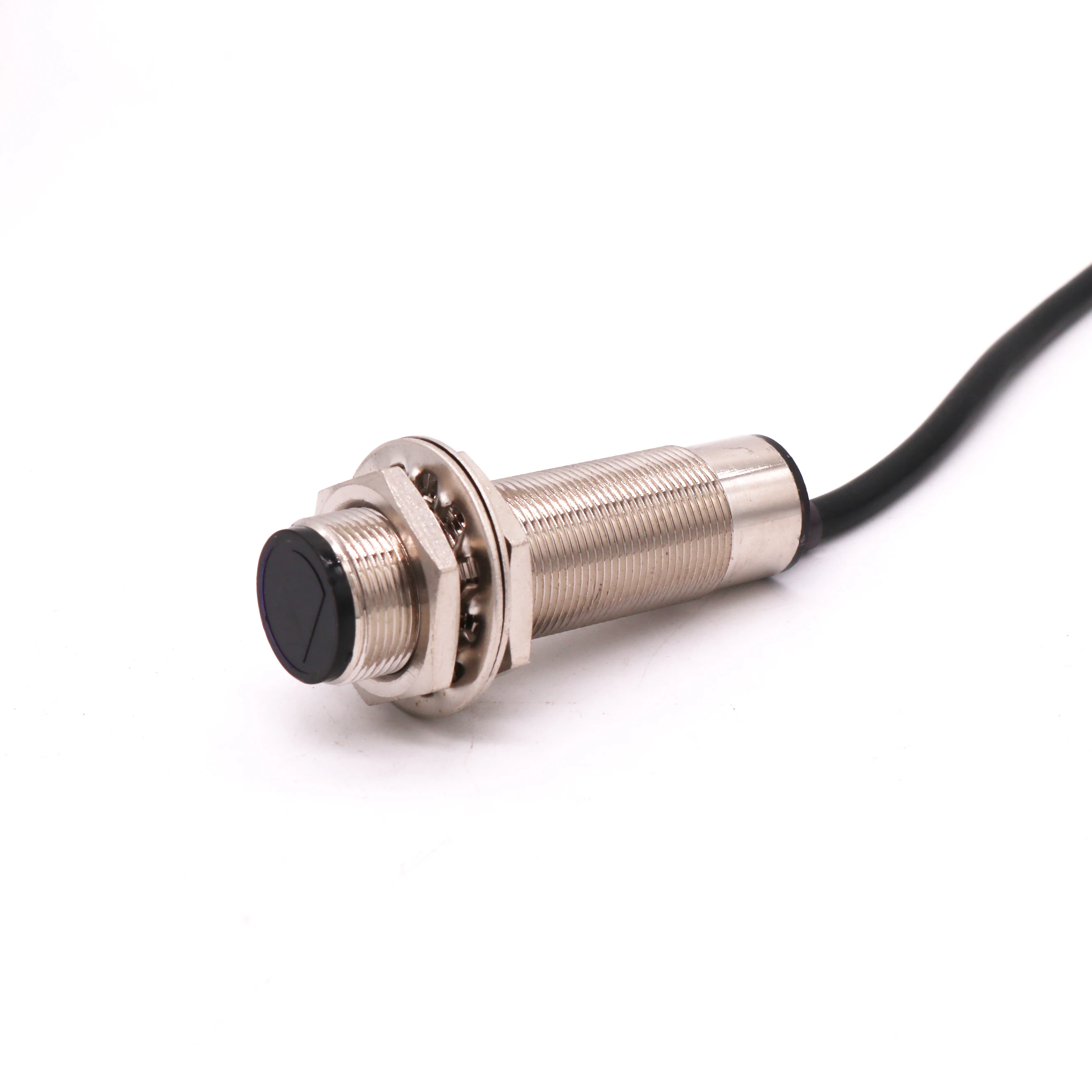

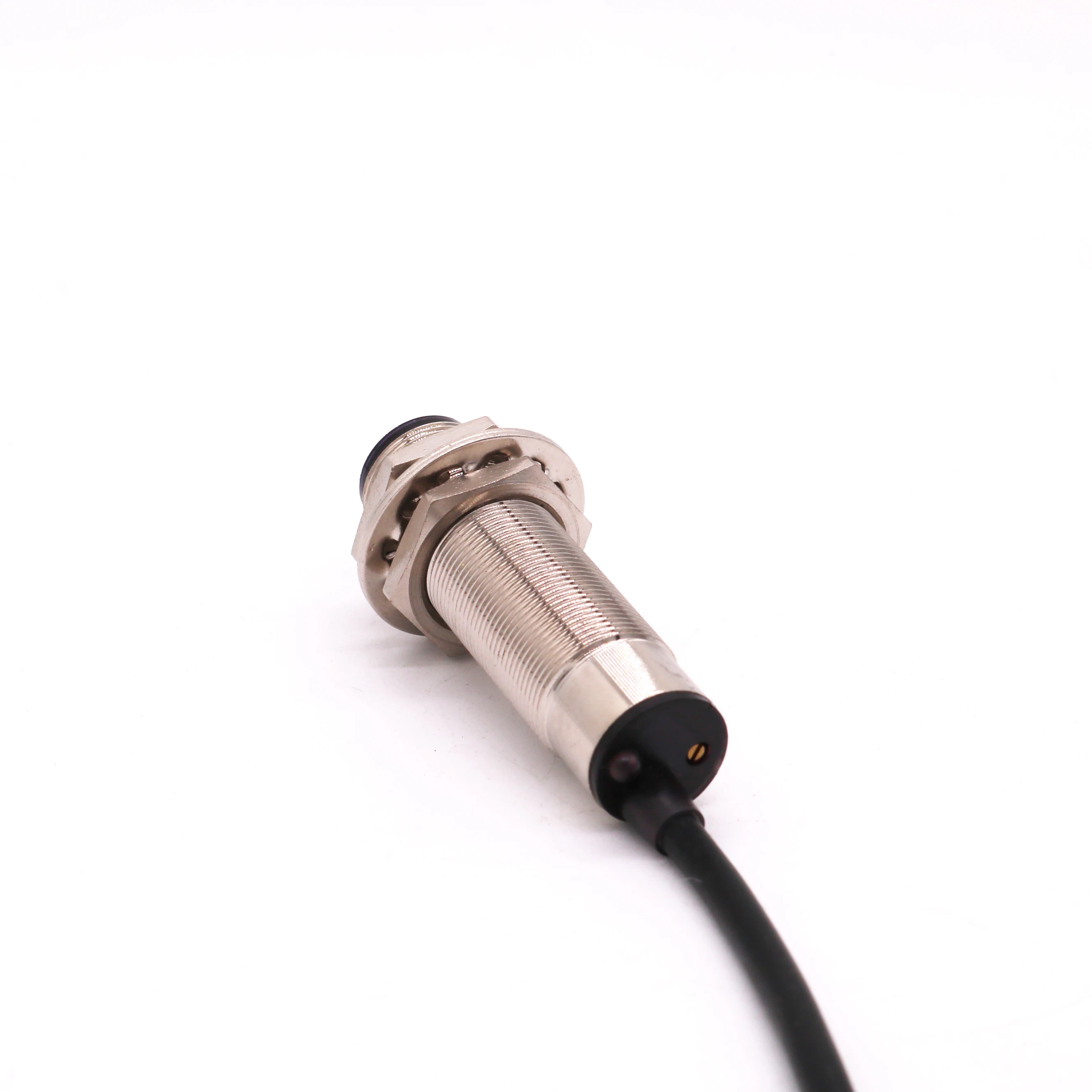

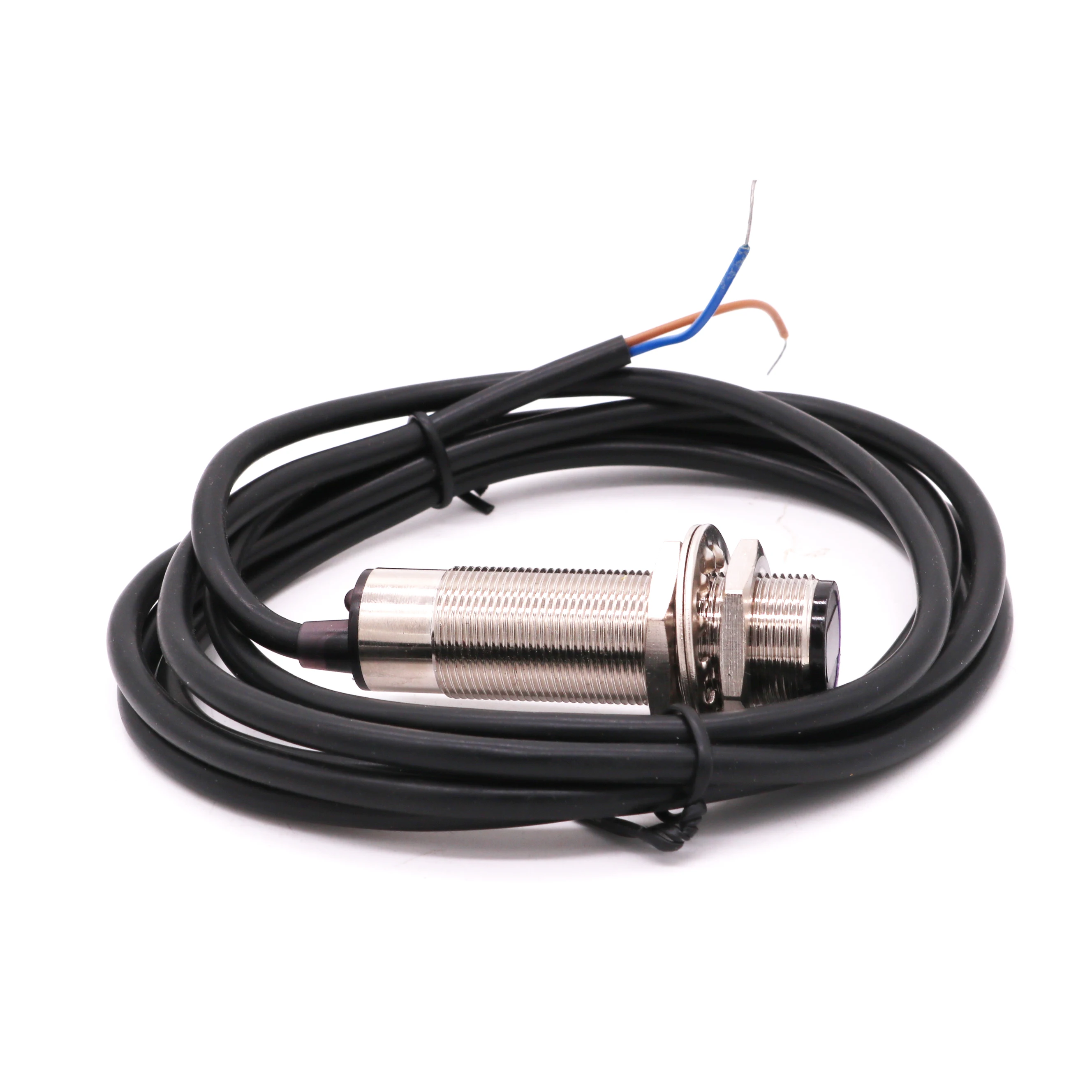

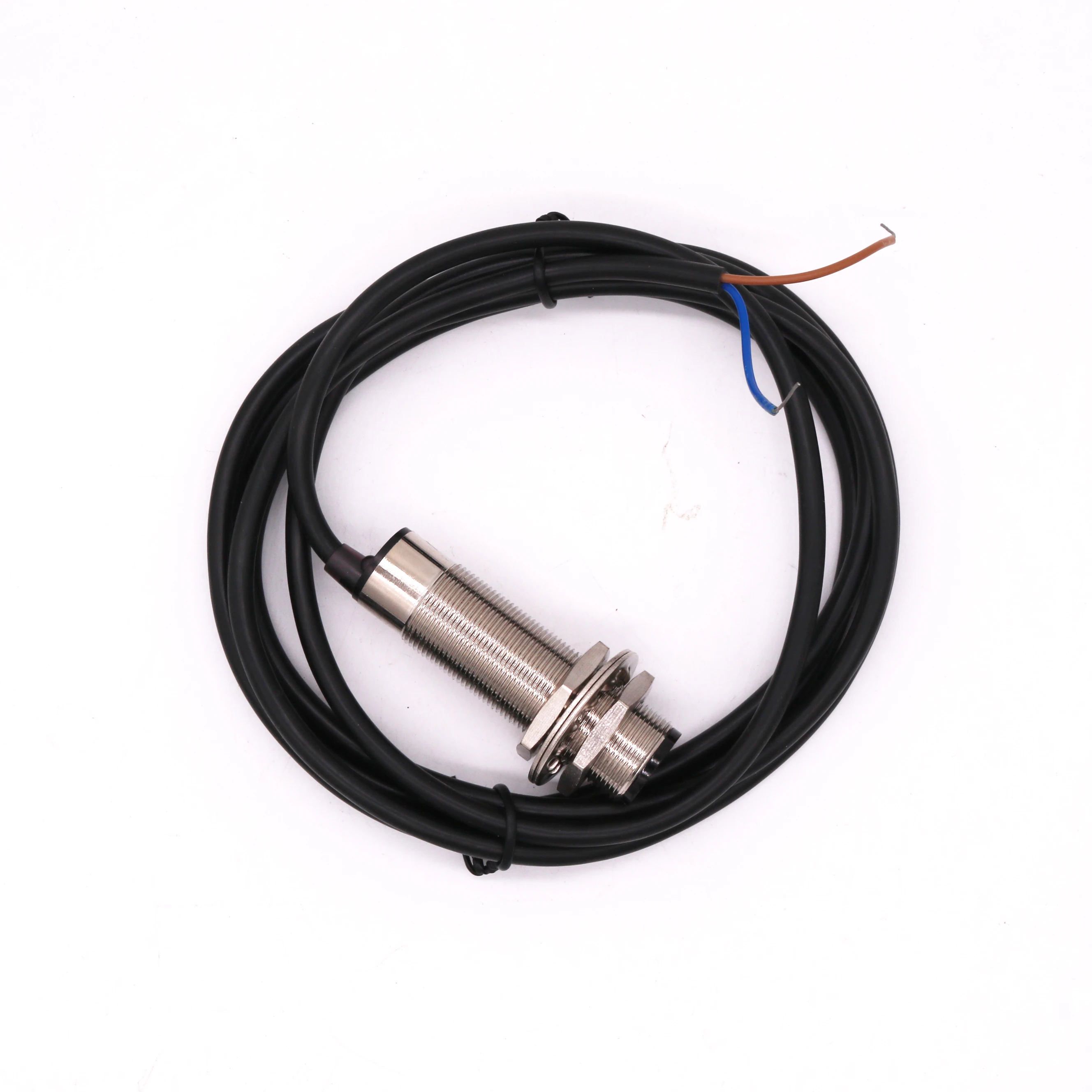

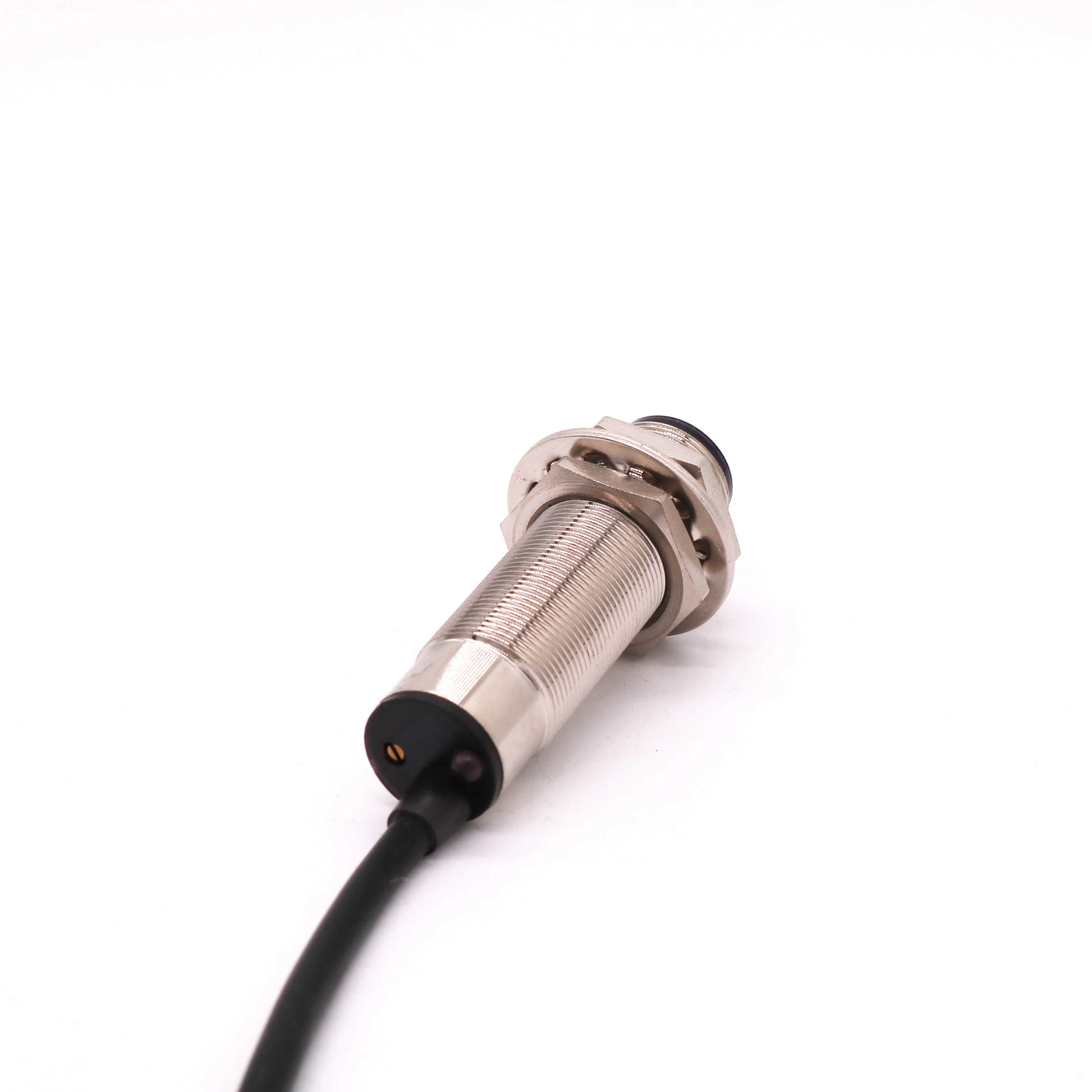

DINGGAN M18 photoelectric sensor diffuse reflection PTC18 series 30cm sensing distance 30VDC metal housing with 2m PVC cable
- Category: Sensors >>>
- Supplier: Hangzhou Dinggan Technology Co. Ltd.
Share on (1600191600525):
Product Overview
Description
Product Description
Specification
Part number | ||

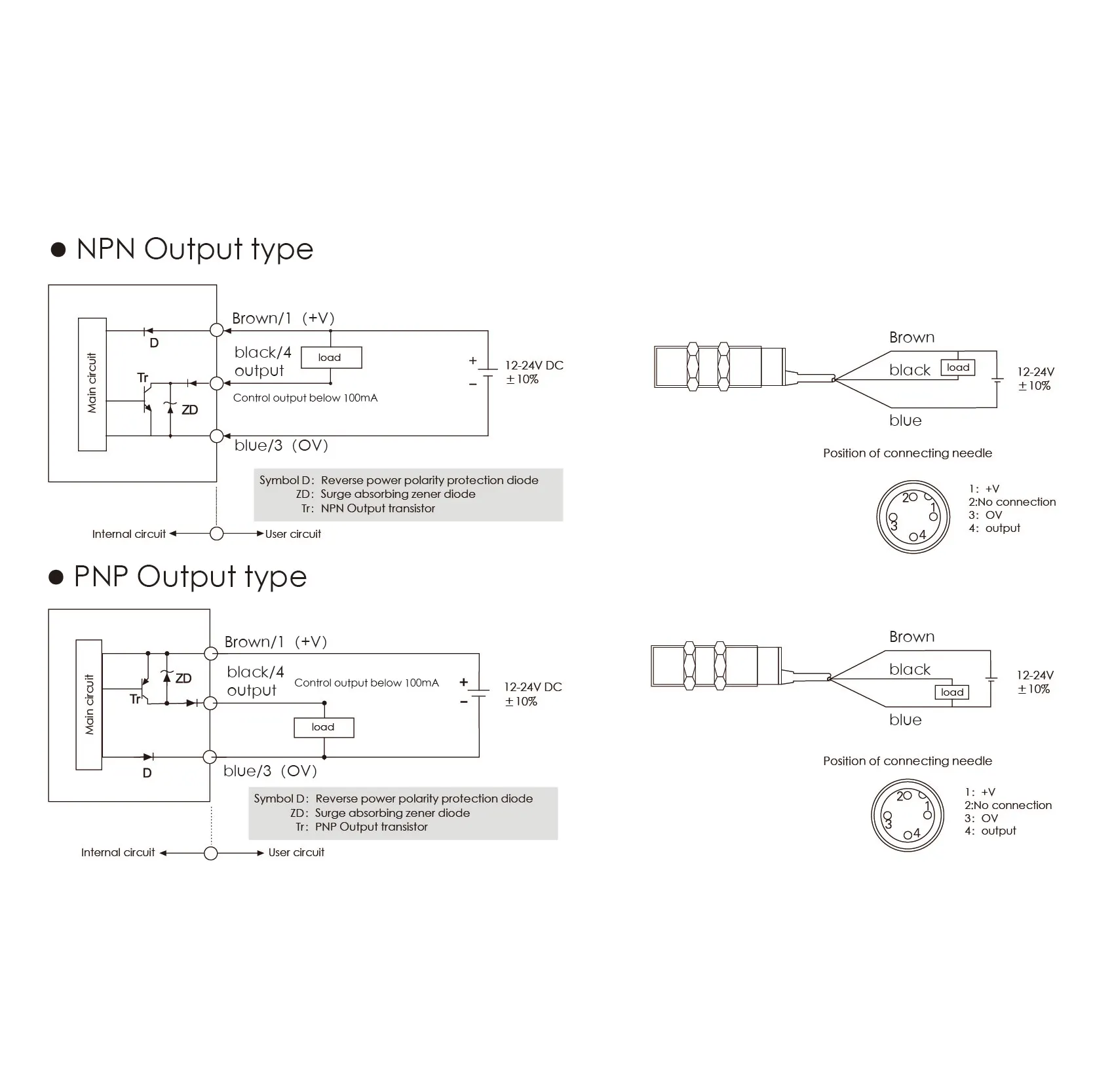

NPN NO | PTC18F30DNO | |
NPN NC | PTC18F30DNC | |
PNP NO | PTC18F30DPO | |
PNP NC | PTC18F30DPC | |
Technical specifications | ||
Sensing type | Diffuse reflection | |
Sensing Range | 10...30cm | |

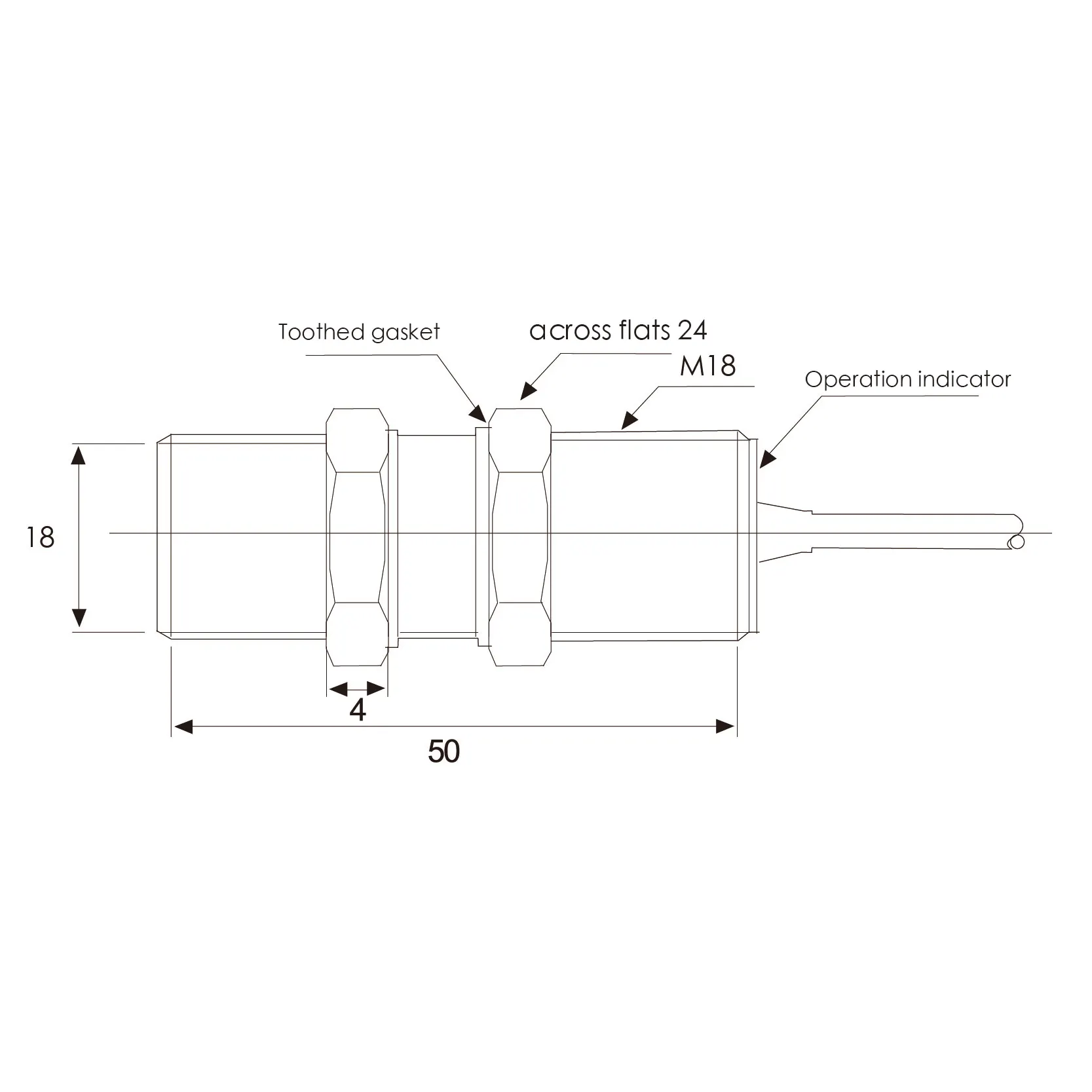

Dimensions | M18*50mm | |
Output | NO/NC(Depends on above part number) | |
Supply voltage | 10...30 VDC | |
Light source | Infrared (880nm) | |
Switch point drifts(%/Sr) | ≤±10% | |
Hysteresis range(%/Sr) | 3...20% | |
Repeat accuracy(R) | ≤5% | |
Load current | 200mA | |
Residual voltage | ≤1.5V | |
Leakage current | ≤10mA | |
Protection circuit | Short-circuit, overload, reverse polarity | |
Indicator | Red LED | |
Ambient temperature | -10℃... 55℃ | |
Response time | ≤3ms | |
Switching frequency(F) | 400Hz | |
Insulation resistance | ≥500MΩ(500VDC) | |
Vibration resistance | 10...50Hz(1.5mm) | |
Protection degree | IP67 | |
Connection type | 2m PVC cable | |
Housing material | Nickel-copper alloy | |
Packing & Delivery

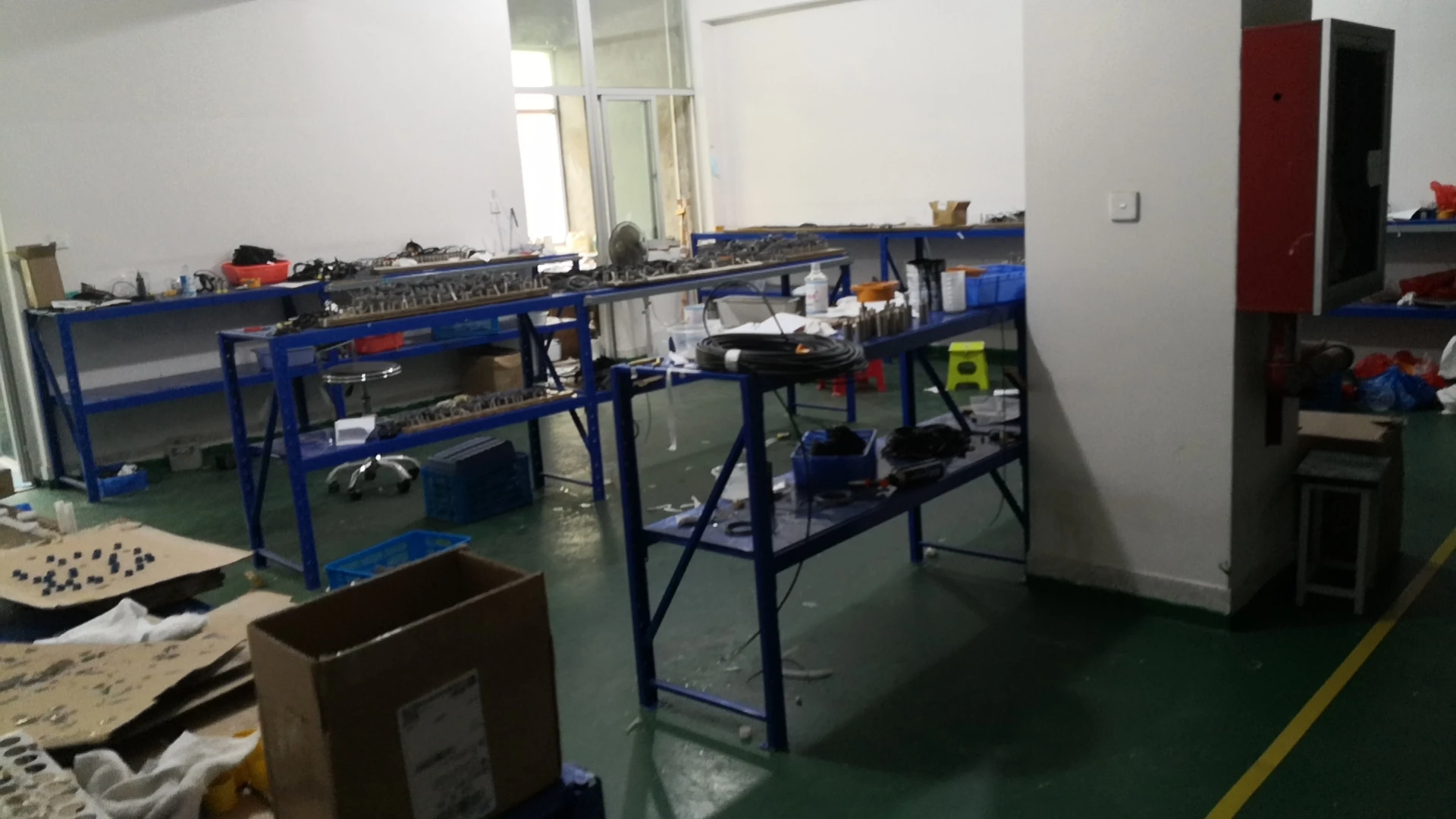

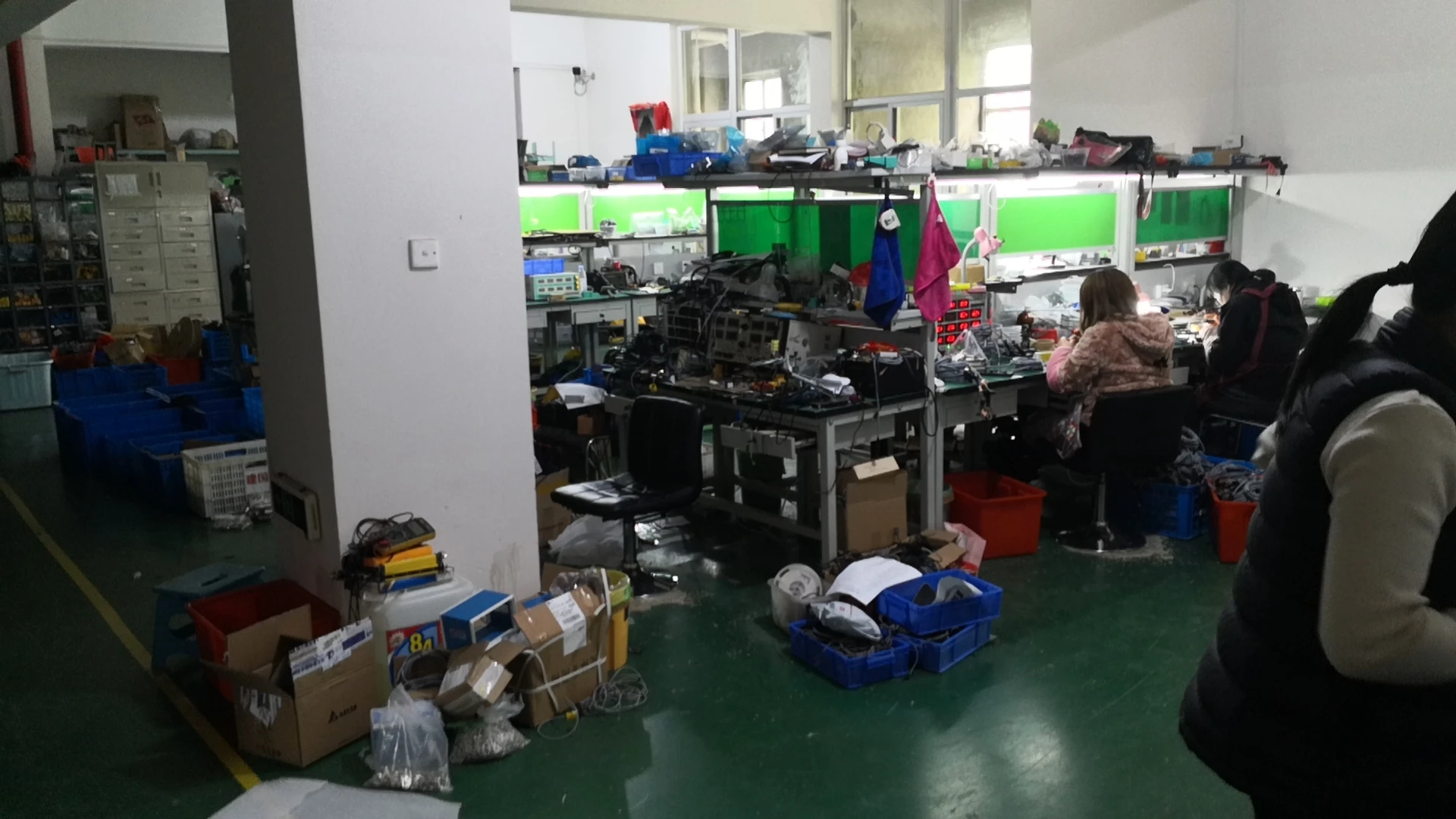

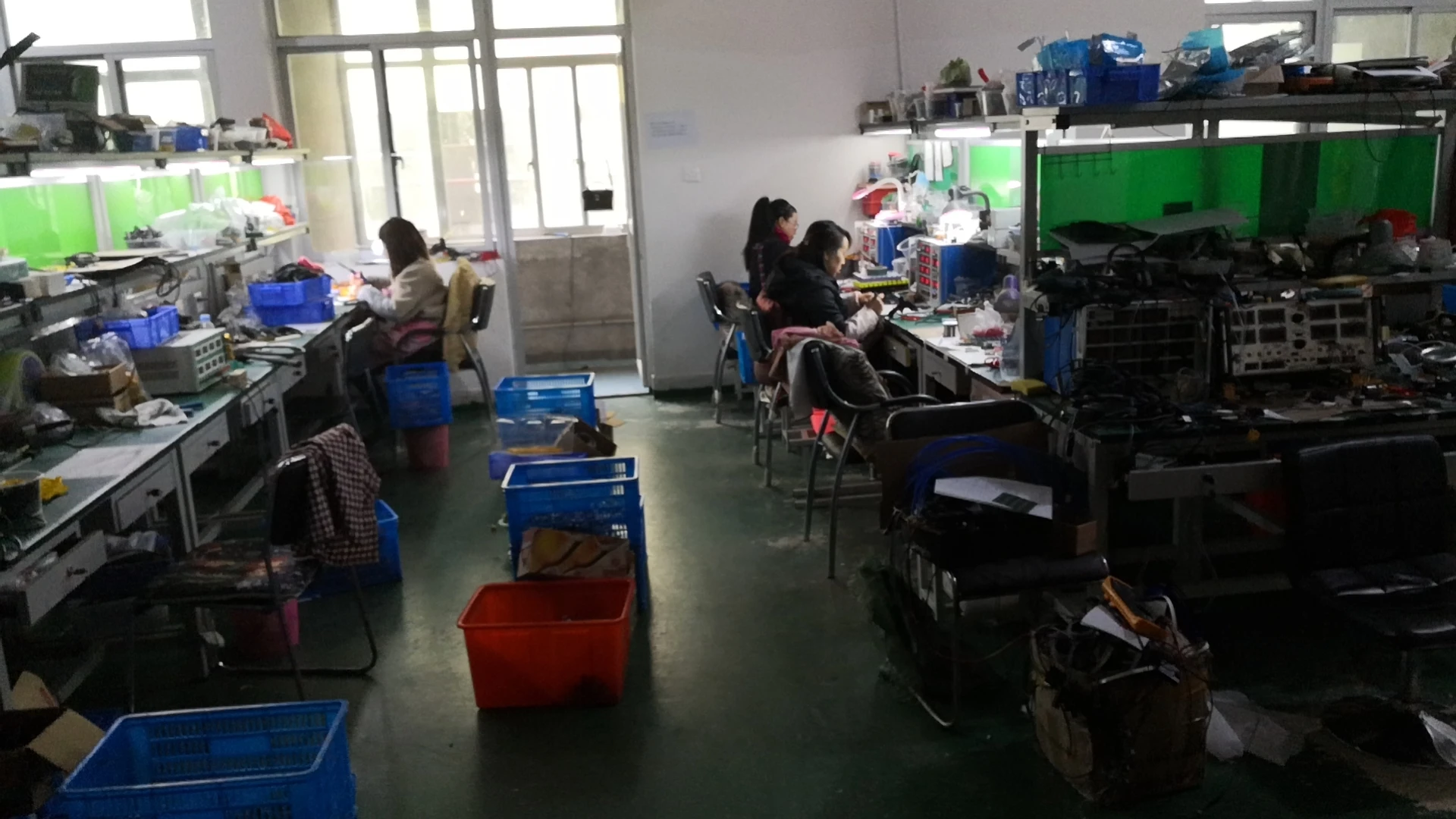

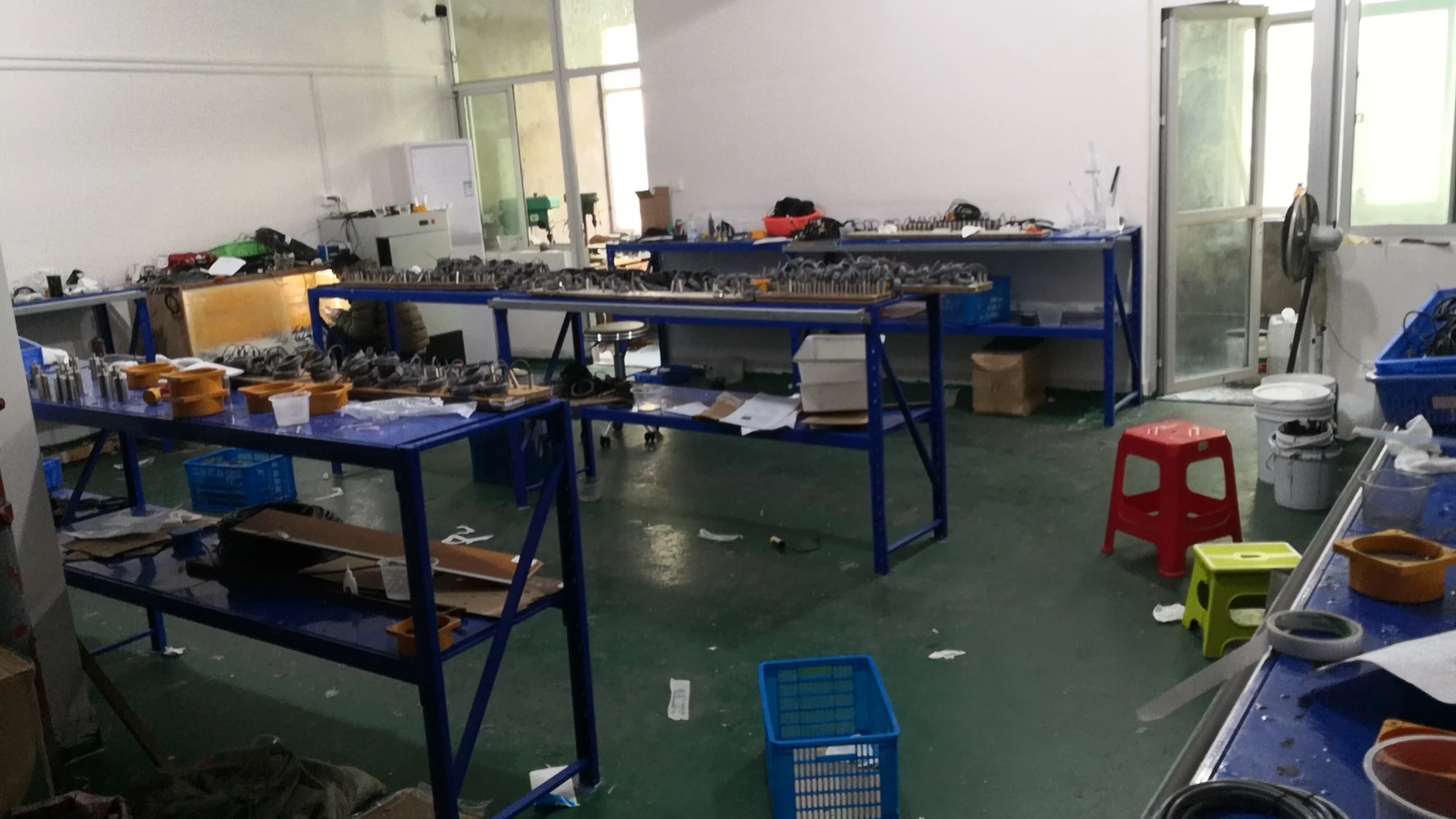

Company Profile
