High density storage pallet racking radio shuttle rack system for 1200*1000 pallet
- Category: Store & Supermarket Supplies >>>
- Supplier: Fuyi Intelligent Logistics Equipment (Nanjing) Co. Ltd.
Share on (1600192385151):
Product Overview
Description
Product Description
Characteristics
1. Radio shuttle pallet rack is one of the high density storage racks.
2. Its storage ability is better than drive in pallet rack and share similar cost per pallet position with push back pallet rack.
3. It is suitable for the storage of goods with small varieties and large quantity.
4. The rack takes both "first-in-last-out" and “first-in-first-out” pick-up mode.
5. It could be used in logistics center, distribution center, food industry, chemical industry, furniture and wood industry, electronic industry, cold storage, etc. Its space utilization ratio is up to 80%.

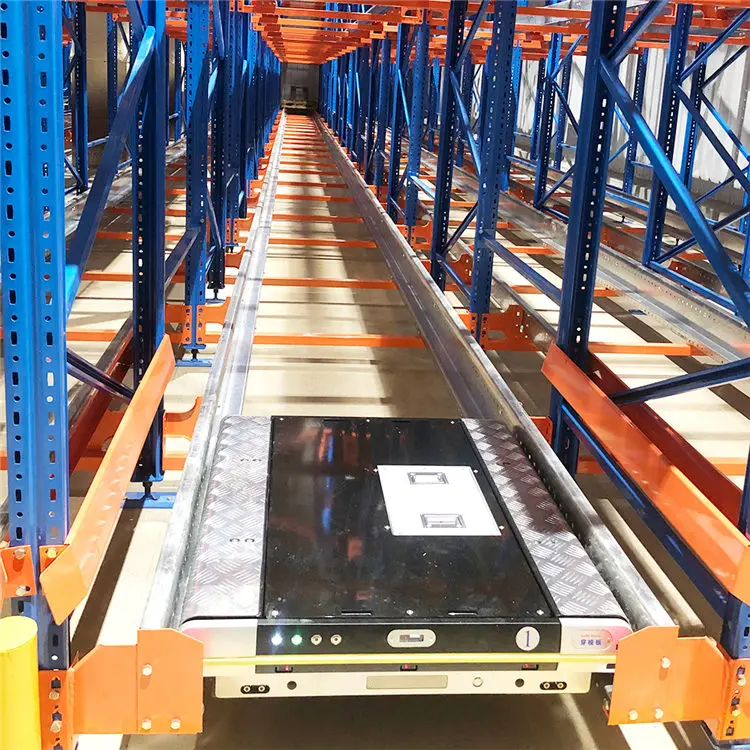

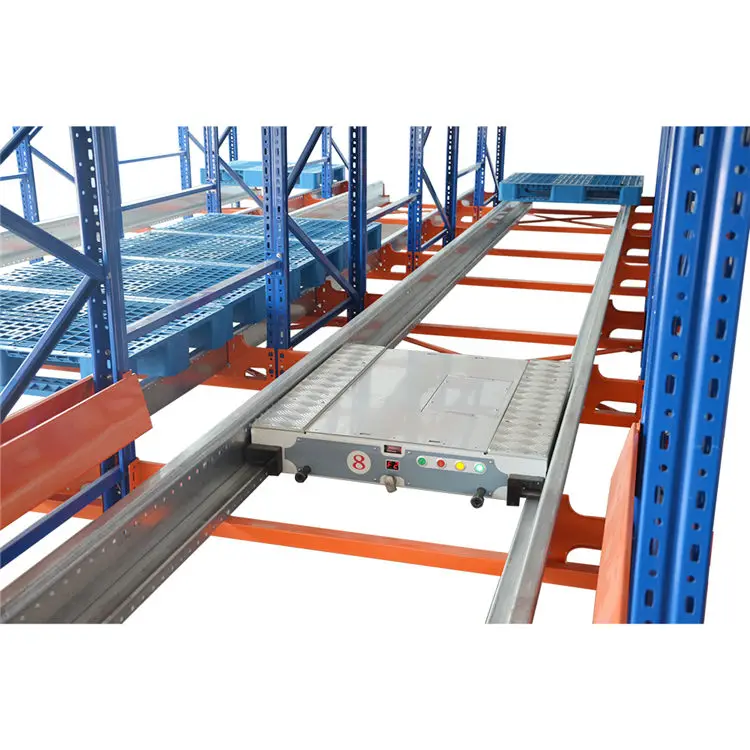

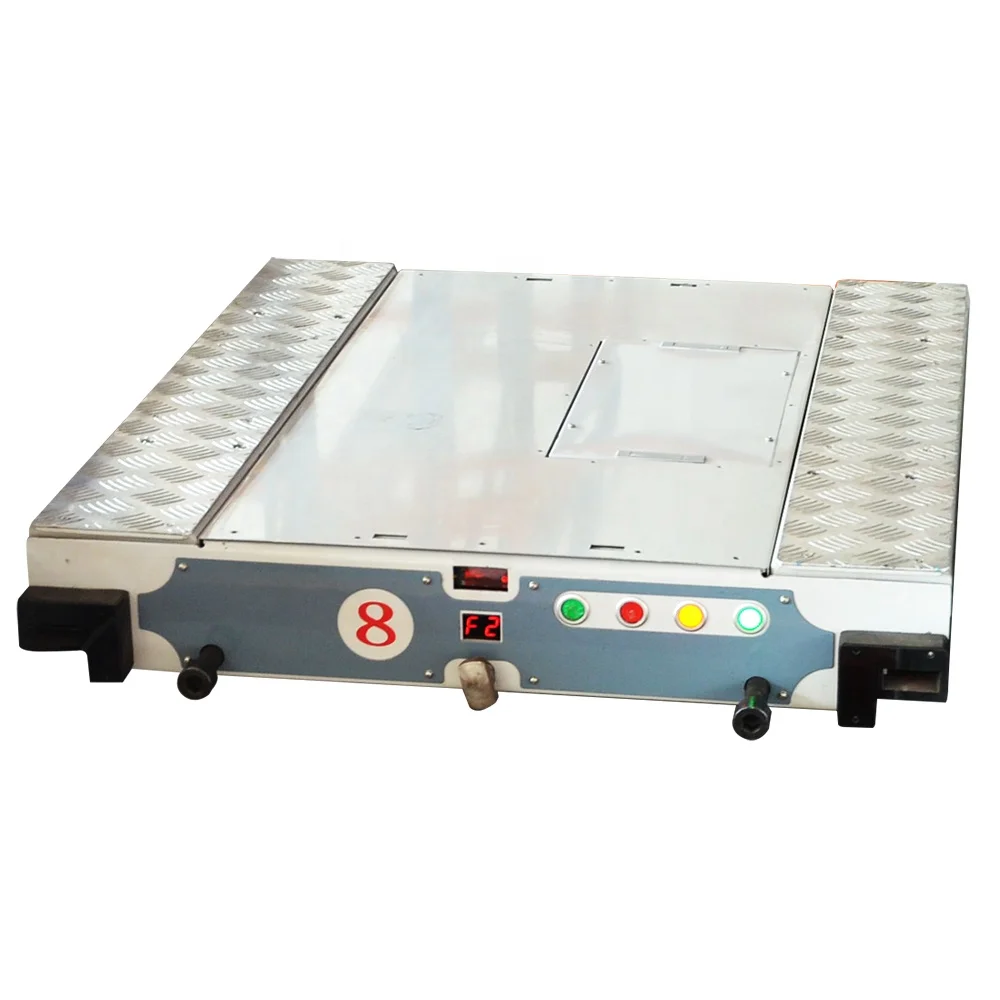

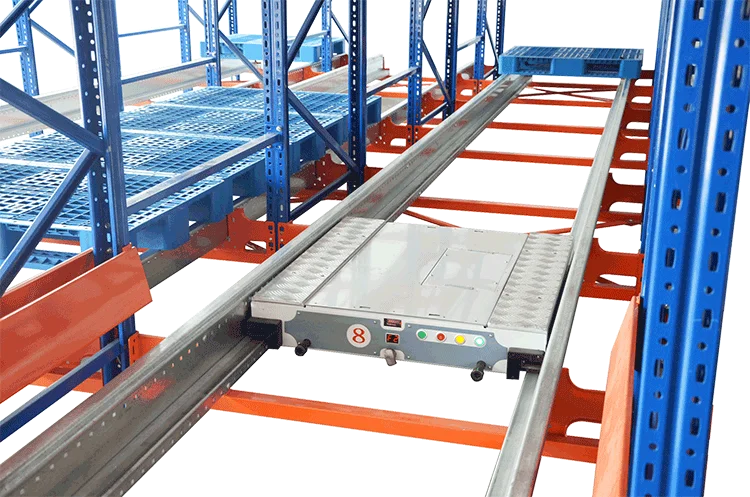

Radio shuttle cart runs along the support rail. When store goods, remote controller gives order, radio shuttle follow order and carry pallet to its position automatically. Radio shuttle cart could count pallet quantity on the rail and show it on its screen.
Components

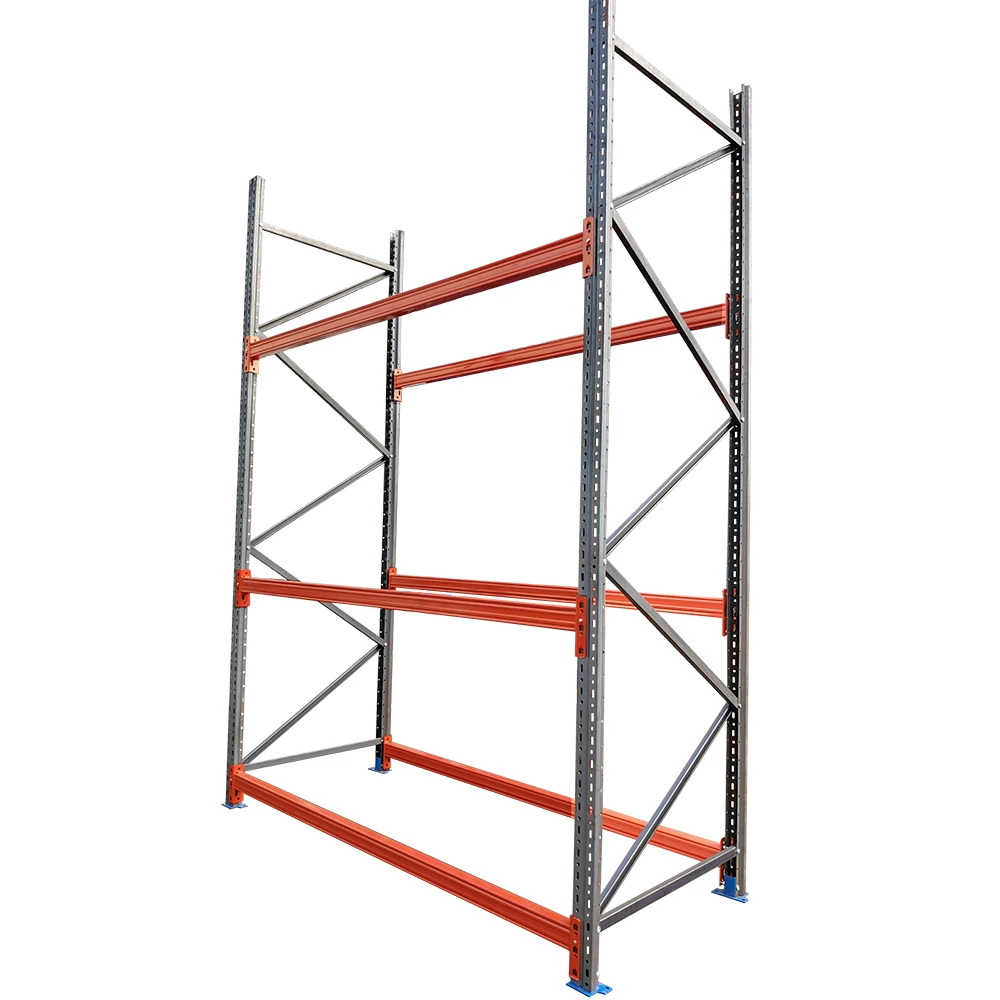

The main components are upright frames, spacer, beam, rail support, rail, horizontal bracing,pallet guide, adjusting foot plate, and radio shuttle car. Other optional components, such as forklift stopper, upright protector, frame protector, horizontal bracing make the system more safe.
 |  |  |  |

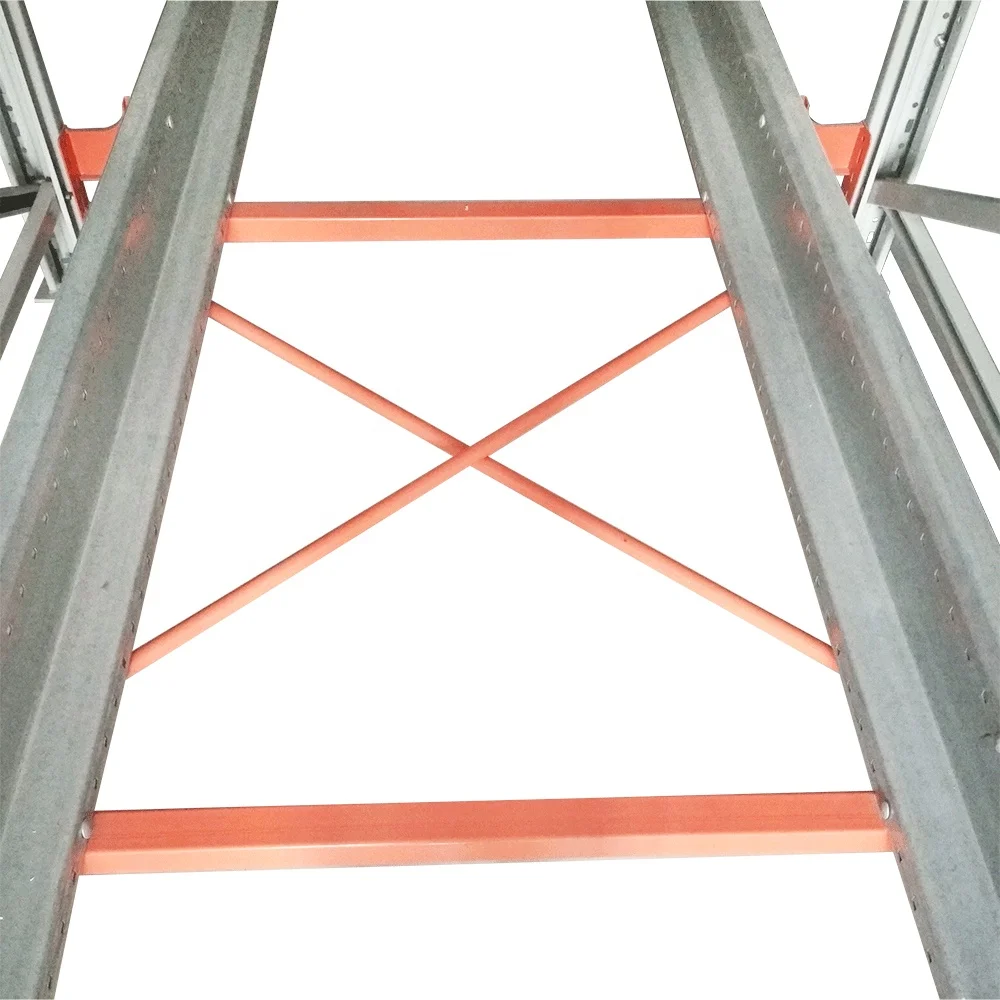

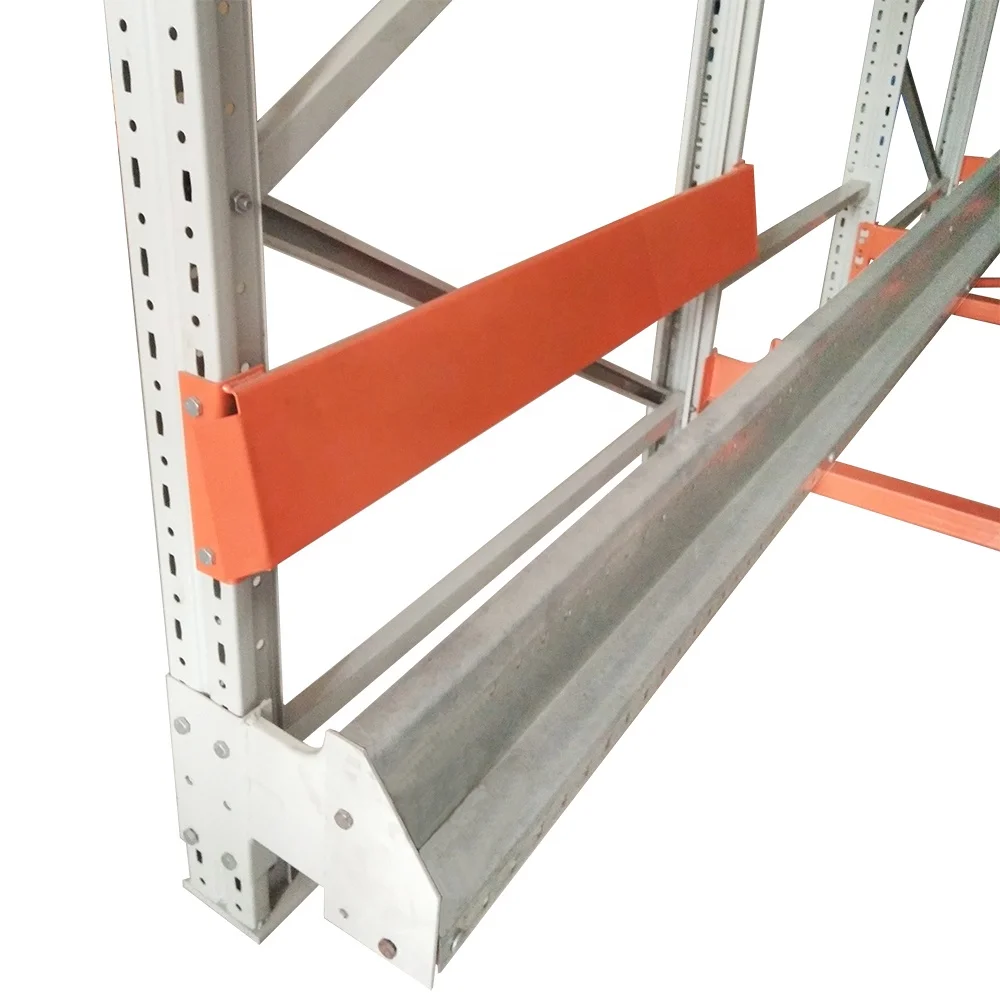

| Frame | Rail( grey part) Horizontal bracing(x part) Beam(orange part) | Pallet guide(orange part) | Radio shuttle car |
 |  |  |  |
| Spacer | Adjusting foot plate(without finish) | Frame protector | Upright protector |
You may have something important from following table.
Rack Type | radio shuttle pallet rack | ||
Rack Cost | Low, Medium Low,Medium,√Medium high,High,Higher | ||
Access Style | first in first out (FIFO); first in last out(FILO) | ||
Structure | knock down or assembled,welded structure available | ||
Forklift Asile | around 3200mm,depends on customer's forklift parameter | ||
Load Capacity & Dimension | Load capacity | ≤1500kgs/pallet | |
length | 950mm~1700mm | ||
depth/width | ≤50000mm | ||
height | ≤12000mm | ||
level | ≥2 | ||
Components | core components | frame(upright,also called column or post,bracing,base plate,fasteners),beam, spacer support rail, radio shuttle cart | |
highly recommended components | upright protector,frame protector,etc. | ||
Core Components Specification | upright section | face | 80mm,90mm,100mm,120mm |
height | 60mm,67mm,70mm,95mm,135mm | ||
thickness | 1.5mm,1.8mm,2.0mm,2.3mm,2.5mm,3.0mm | ||
adjust step | 75mm | ||
beam section | height | 50mm,60mm | |
width | 40mm,50mm | ||
thickness | 1.5mm,2.0mm | ||
support rail section | thickness | 2.3mm,2.5mm,2.75mm | |
Material | Q235(ss400),Q355(S355B,S355JR) | ||
Finish | Epoxy resin electrostatic spraying(powder coating),galvanized | ||
Coating thickness | no less than 60um for average thickness for | ||
Color | ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey) | ||

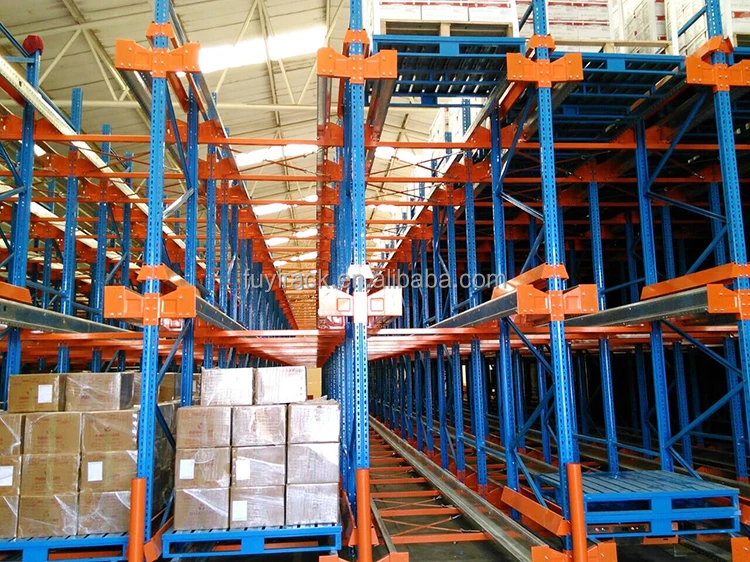

Radio shuttle pallet racking has bigger depth for high density storage

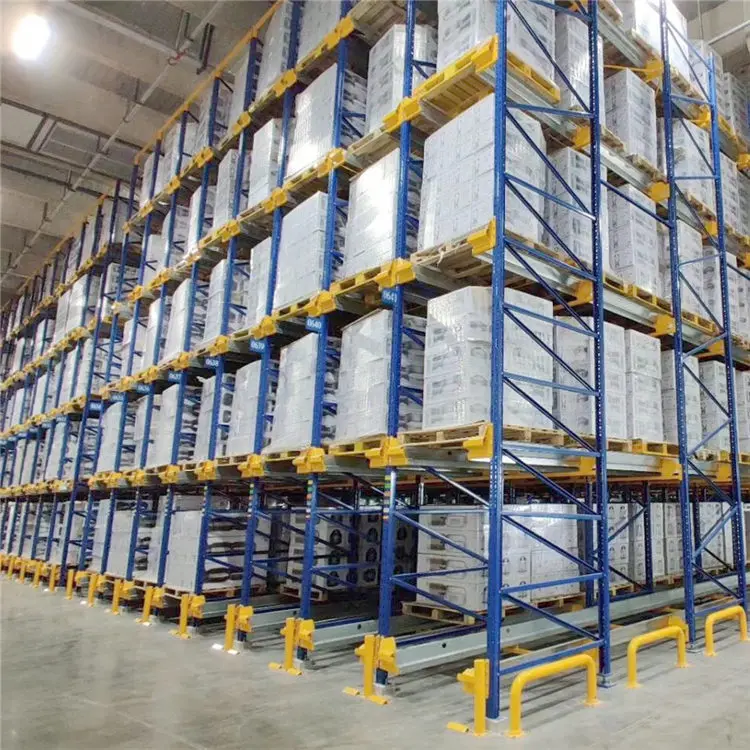

5 layer storage radio shuttle pallet racking with upright protector( made of round pipe) and forklift stopper( stop forklift from going too far into the rack and cause damge to the rack) in front, frame protector at side.

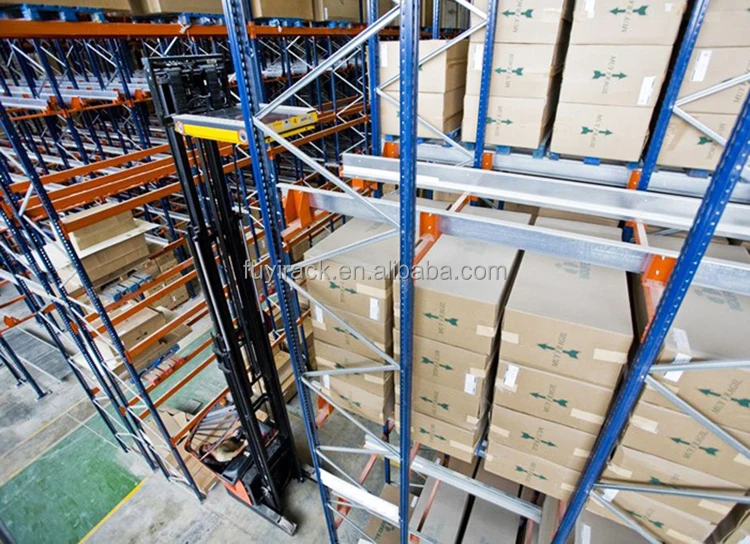

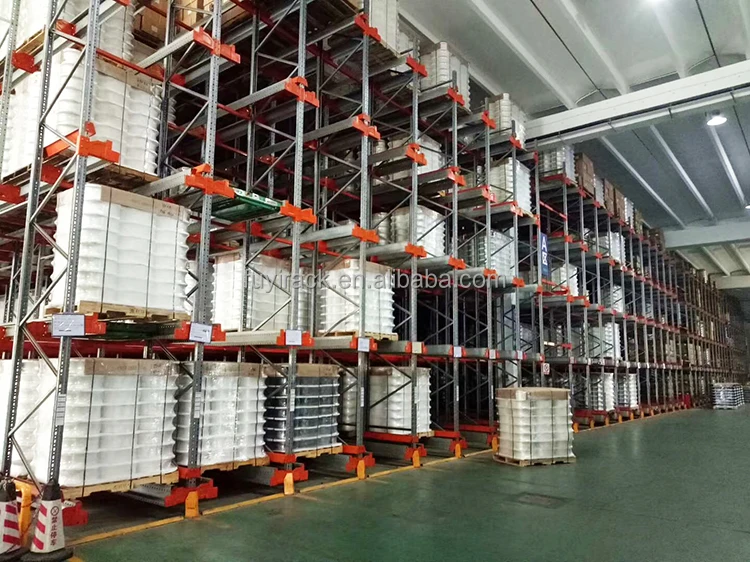

5 layer radio shuttle pallet racking, making full use of the warehouse
3 layer storage radio shuttle pallet racking
Forklift lift the radio shuttle car to the rail for picking pallets.
Related Products
You may be interested in following products.Click to find its page on Alibaba.
 |  |  |  |

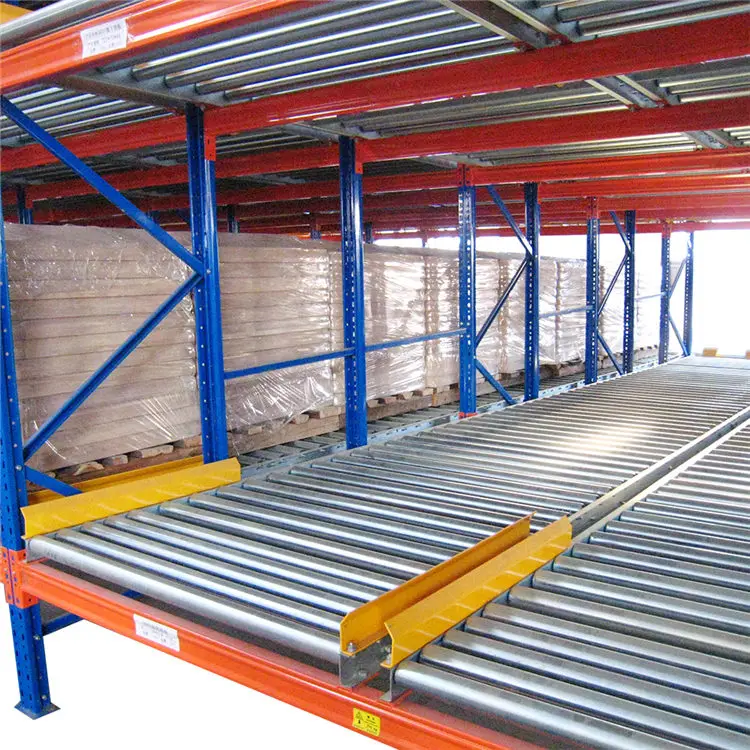

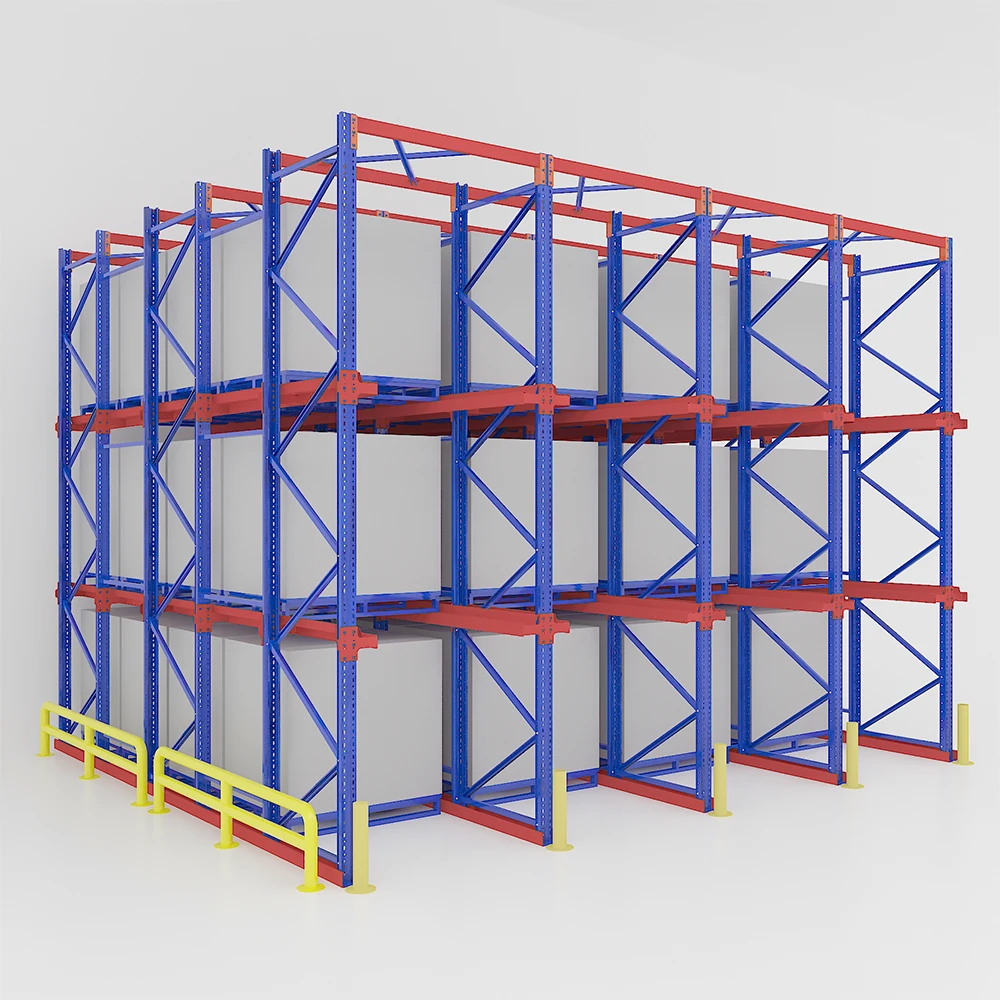

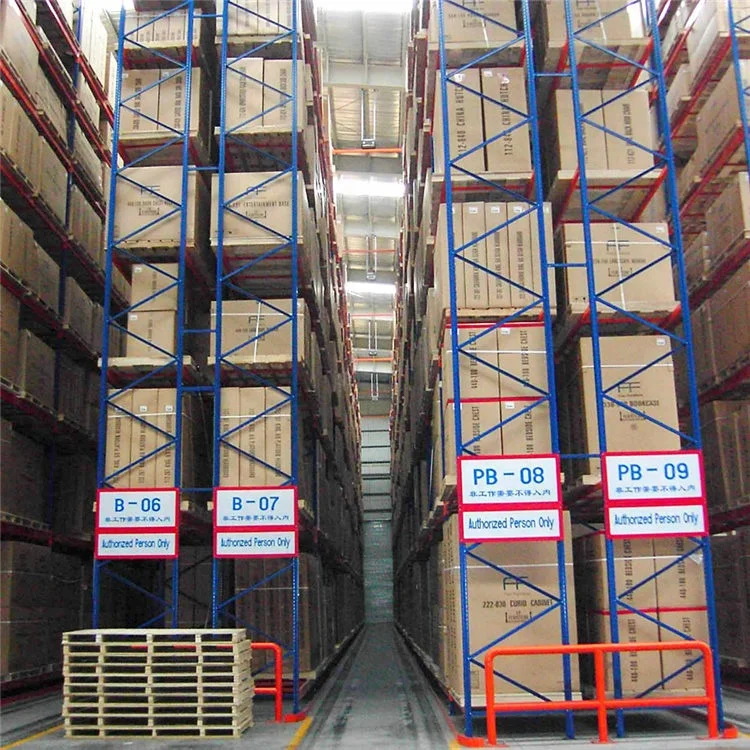

| selective pallet racking | very narrow aisle pallet racking | drive in pallet racking | pallet flow roller racking |
Our Services
 |  |  |
| 1.Quick Response response no more than 12 hours | 2.Offer free design | 3. Offer flexible order quantity |
 |  |  |
4.Accept different payment terms Trade via Alibaba is acceptable.Client's money is more safety.
| 5.Pre-installation and test before shipping. Make our clients more assured of the product loading capacity. | 6.Offer installation drawing & guidence. |
Packaging & Shipping
To protect the racks from damage during transportation,we offer different packing for diffferent rack types and order quantity.
1. For container load quantity:
Packing method:export plywood+cardboard+stretch film+steel or reinforced plastic belt
2. For less than container load quantity:
Packing method 1:eport plywood+cardboard+stretch film+bubble film+steel or reinforced plastic belt(more than container quantity)
Packing method 2:export carton box
Following shows some packing and shipping pictures for reference.
