Product Features:

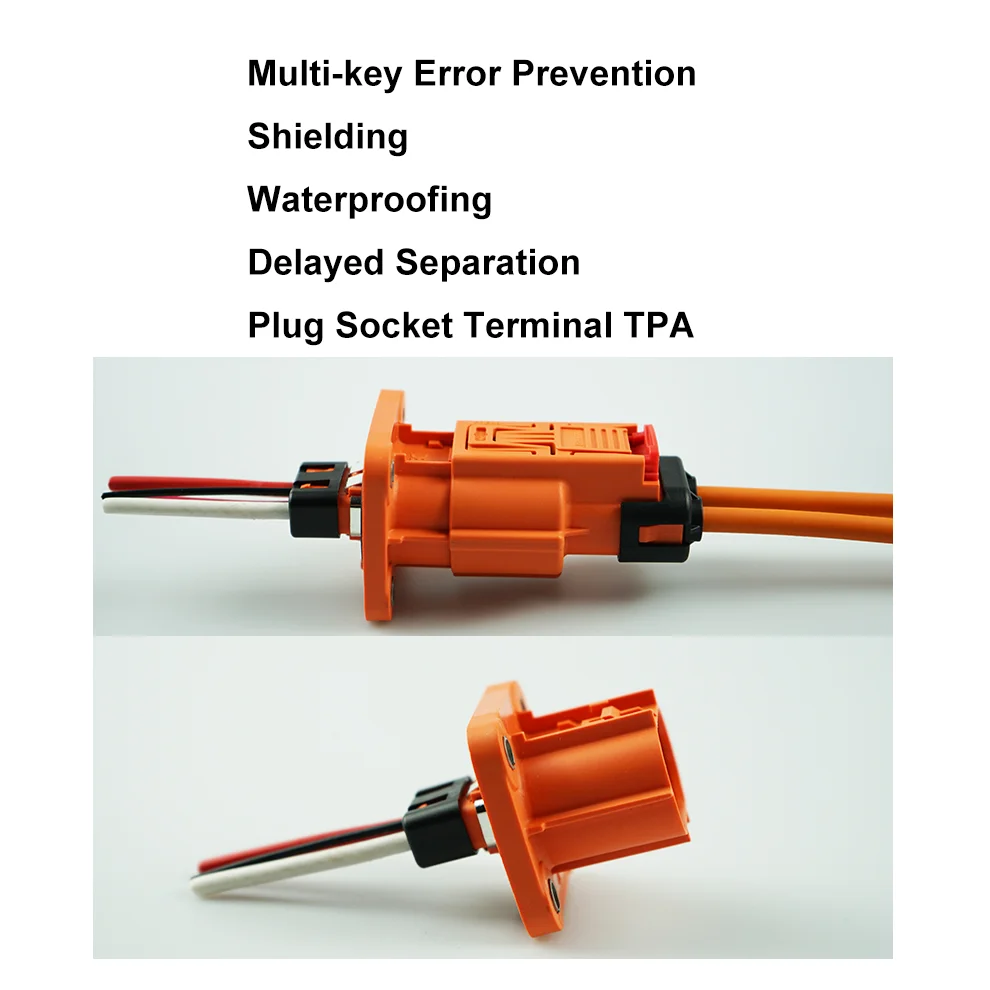

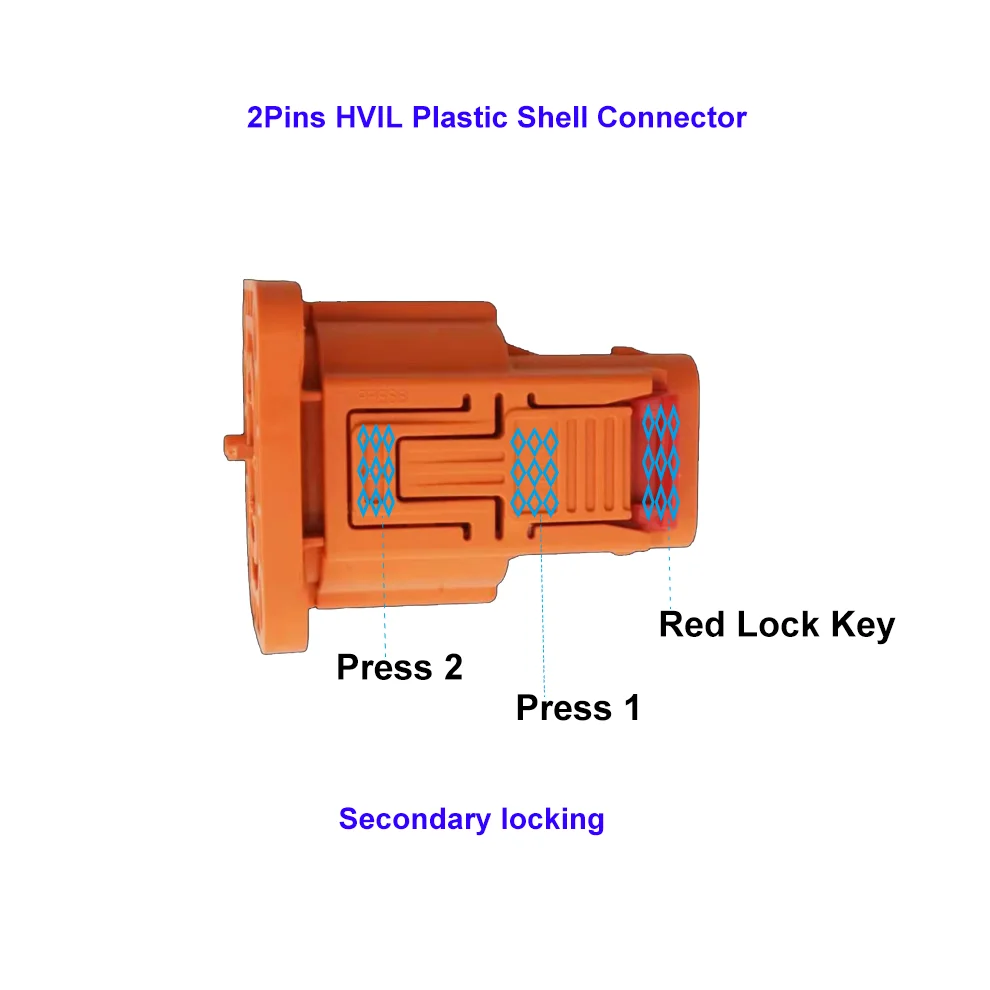

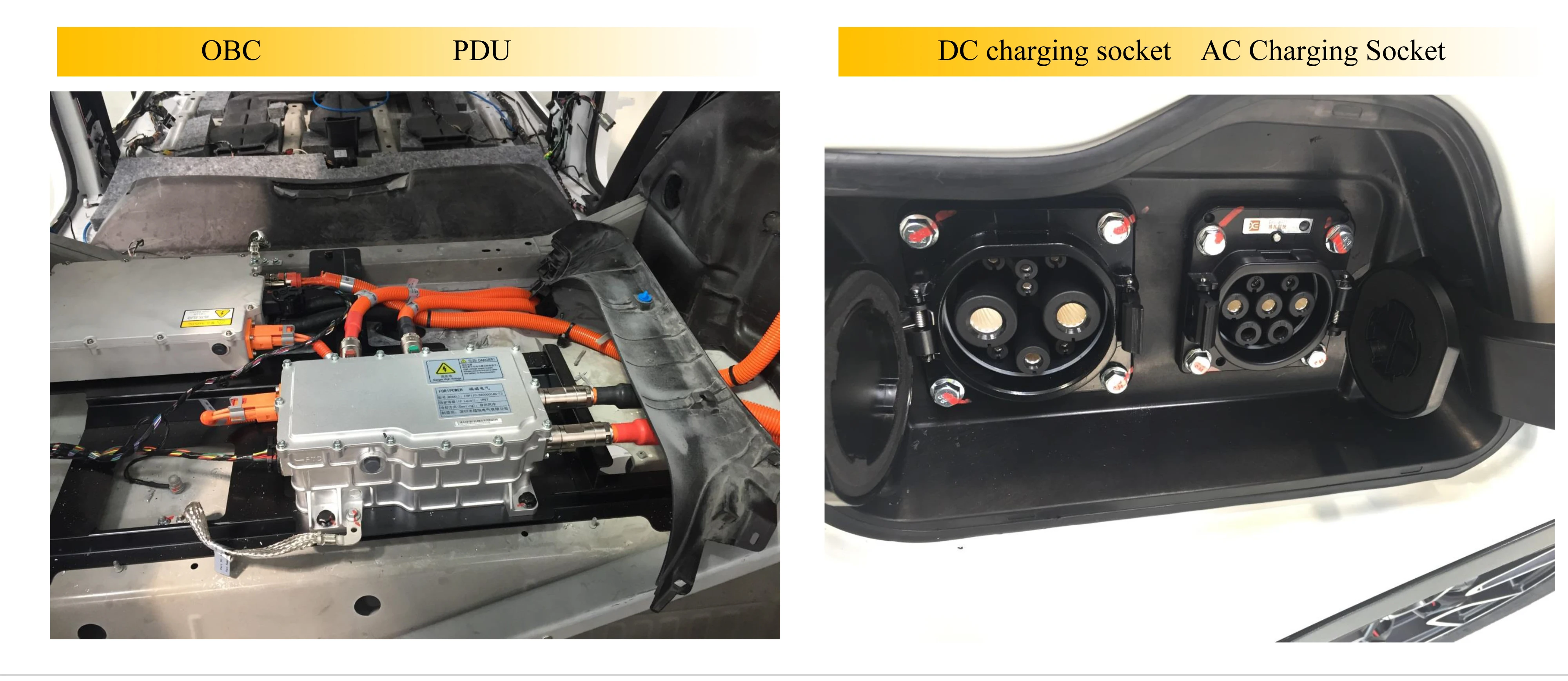

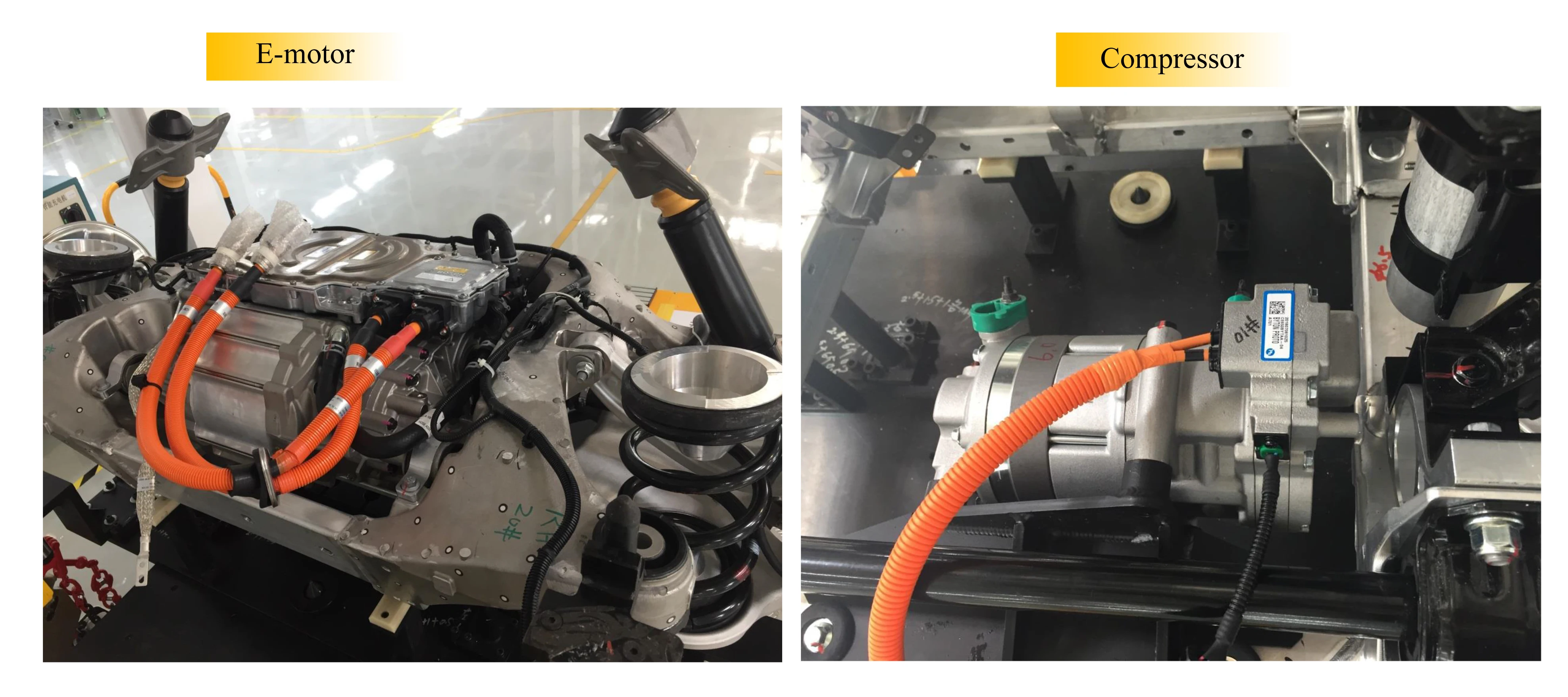

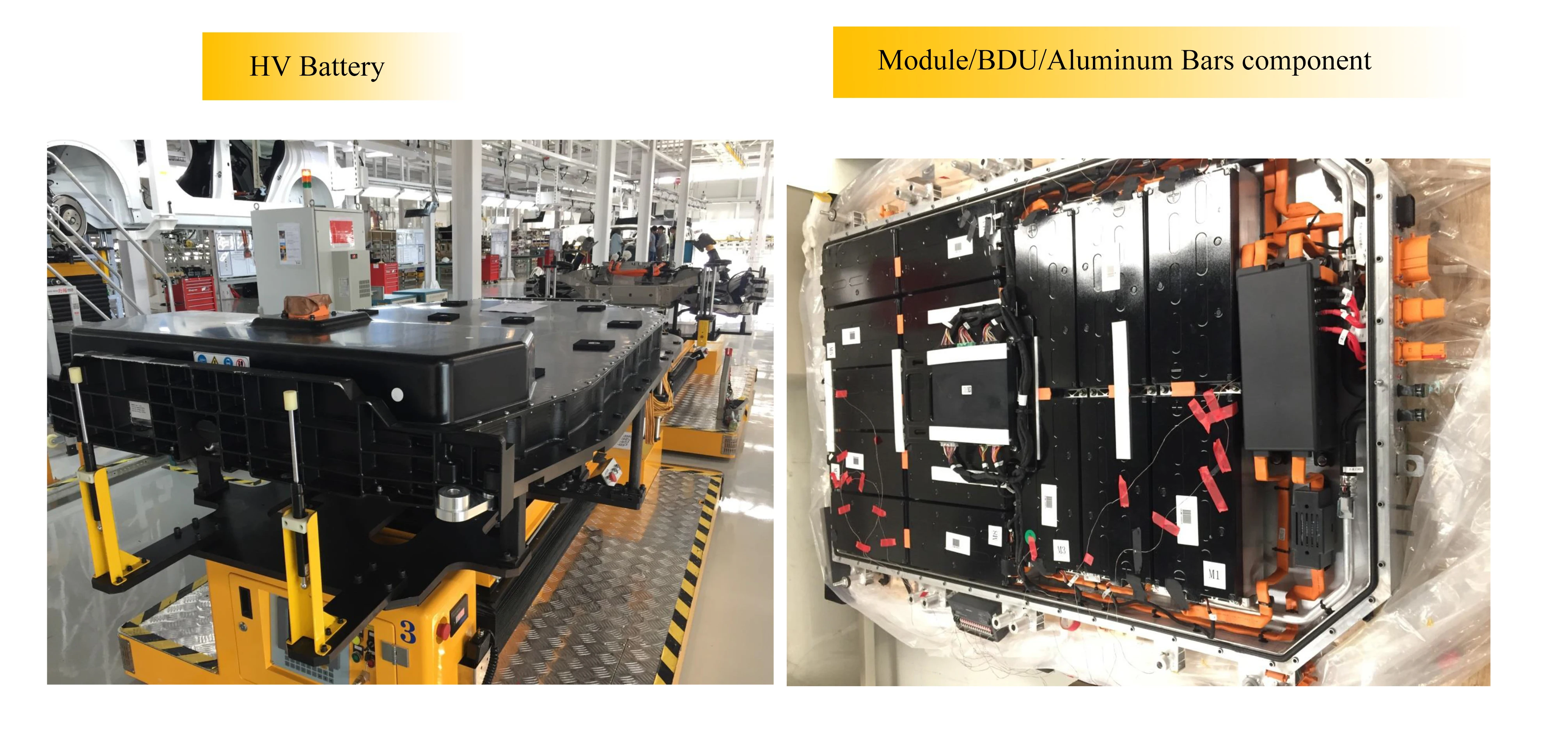

SH1 series products are high-voltage interlocking low-current plastic connectors, which are suitable for electrical connection between motor controllers, PDUs, all-in-ones, PTC and other on-board equipment. The product adopts a plastic shell. In addition to the functions of high-voltage interlocking, secondary locking, multi-key error prevention, shielding, and waterproofing, it also has functions such as delayed separation (segment unlocking), plug and socket terminal TPA.
Product name

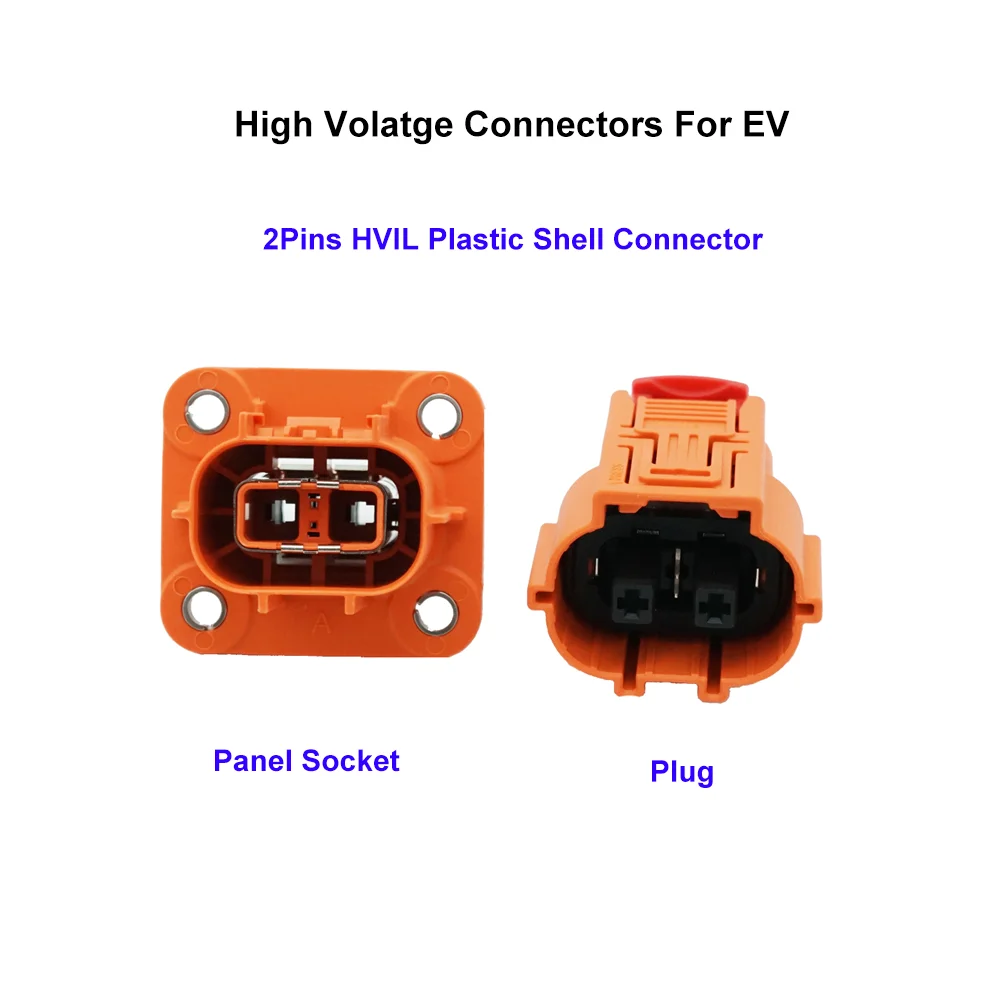

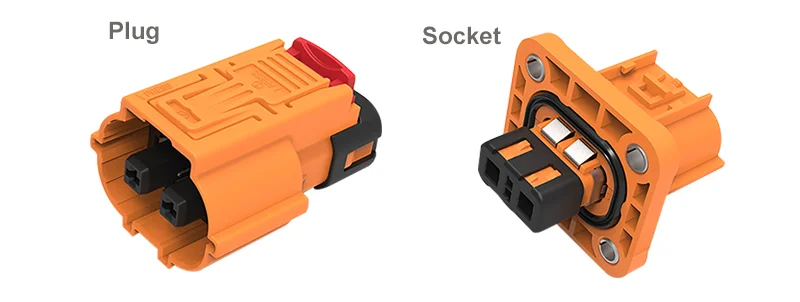

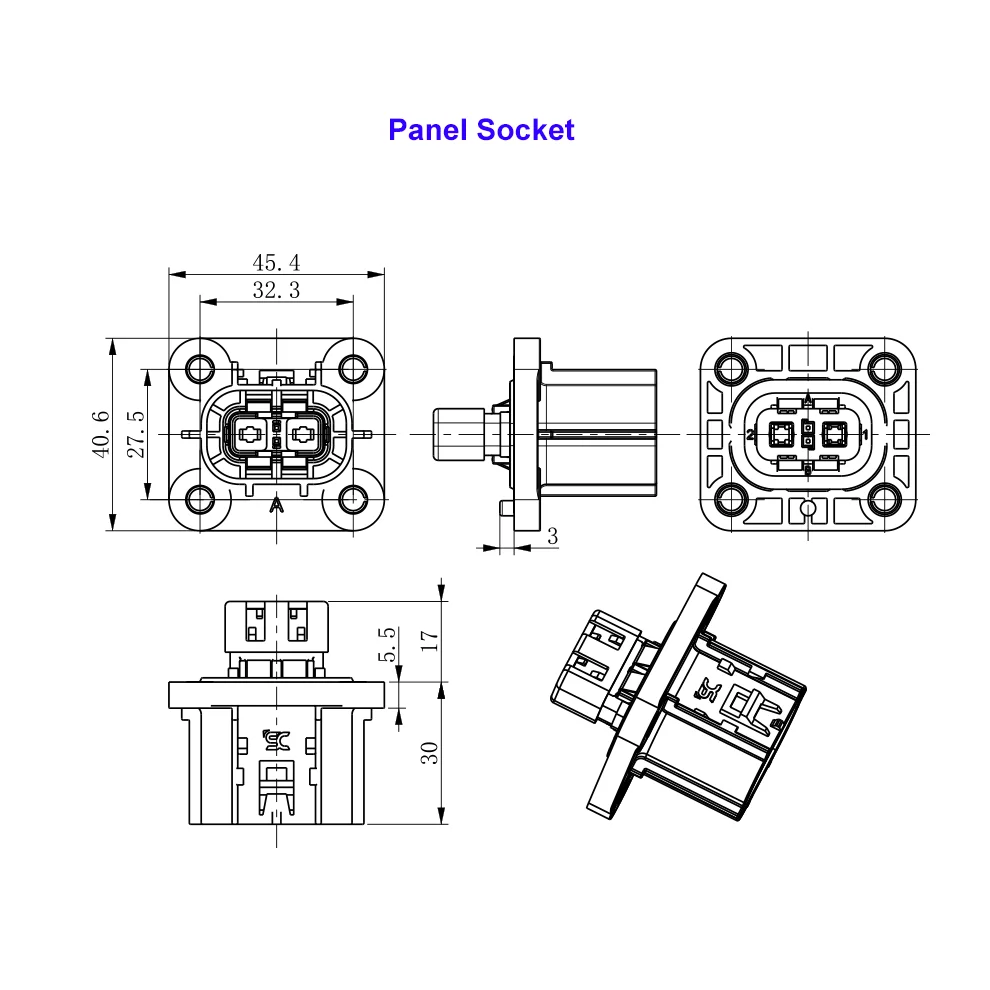

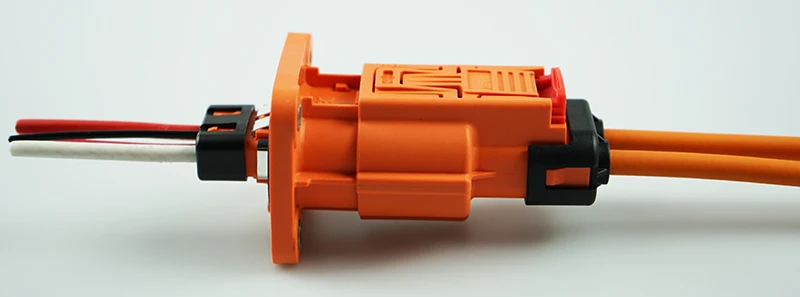

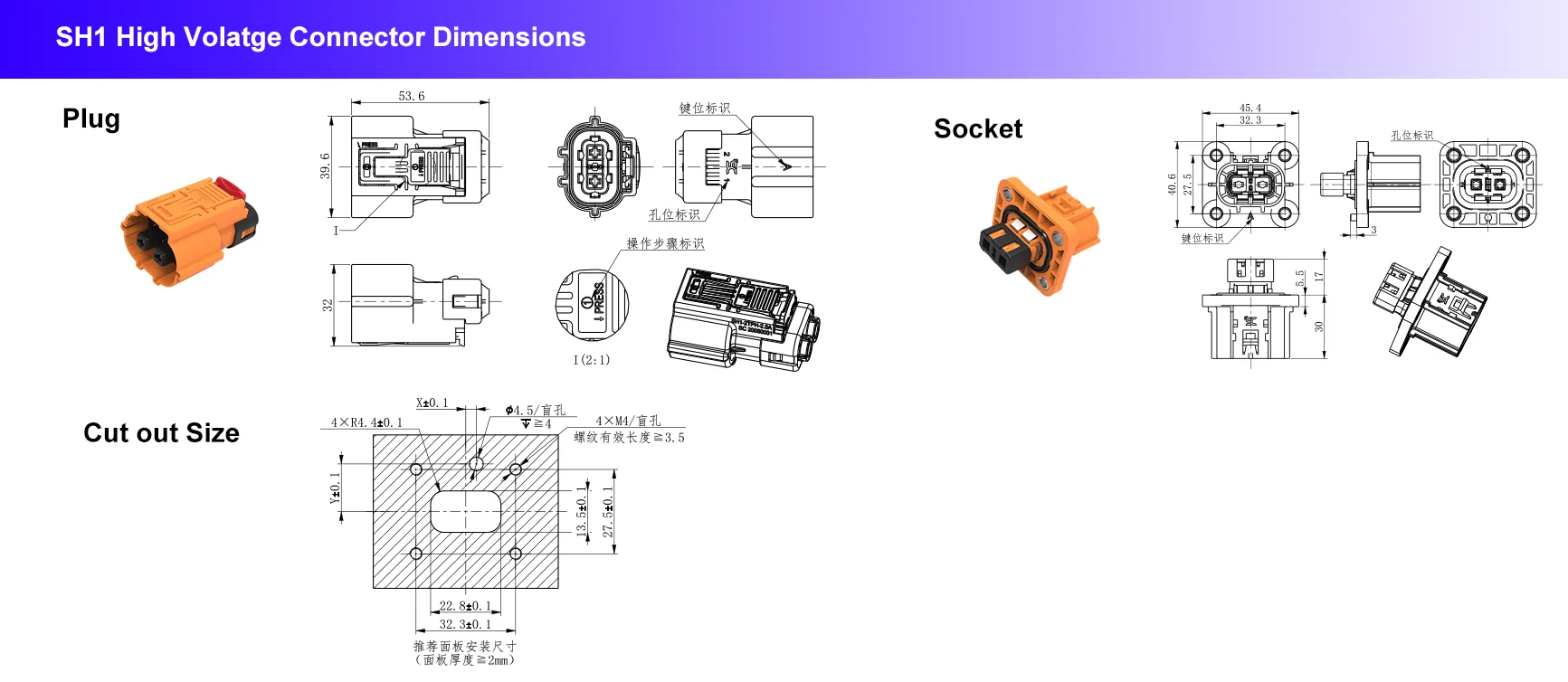

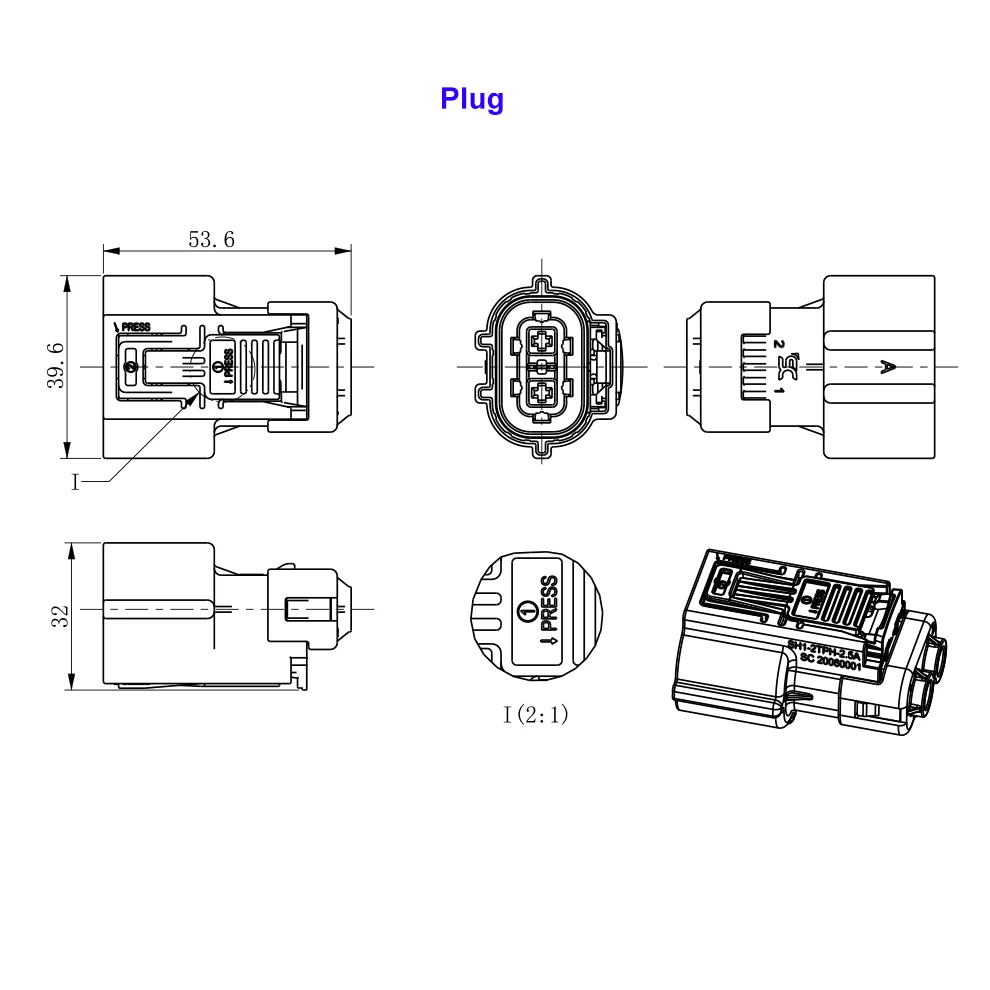

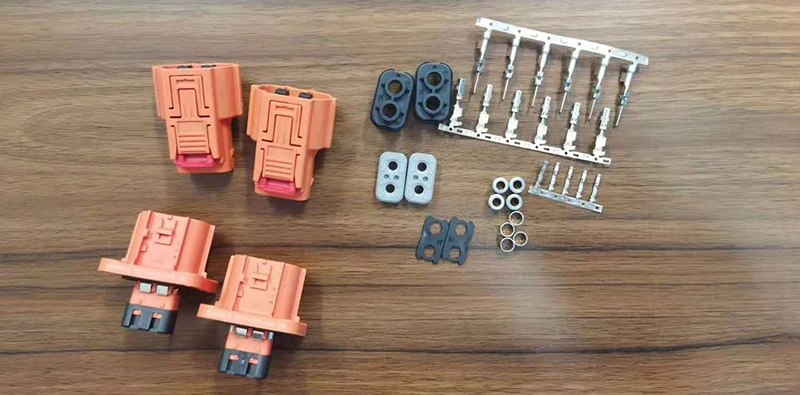

HV Connector 20A 2pins HVIL plastic Plug and Socket
Main performance index
Mechanical performance | ||
Mechanical life | 100 times | |
Mechanical life | 100 times | |
Vibration/mechanical shock | USCAR V2 level | |
Electrical performance | ||
Rated current | 20A | |
electric shock | 40A，2min | |
Rated voltage | 1000V | |
Withstand voltage | 4000V AC | |
Insulation resistance | 5000MΩ | |
Environmental resistance | ||
Protection level | IP68B、IP69K（After the header is inserted） | |
Operating temperature | -40℃～+140℃ | |
Flammability rating | UL94 V0 | |
Salt spray grade | 504h | |
Main material | ||
case | nylon | |
Insulator | nylon | |
Seals | Silicone Rubber | |
Shield | Copper alloy | |
Contact | Copper alloy silver plated | |
To ensure that the product is fully adapted, please confirm the connector voltage, current, contacts positions , and the related technical parameters before placing the order !!!
HOW TO ORDER
No. | Item No. | Name | Rated Current | contact （ordered separately） | Remark | ||
Full order | Spare parts order | ||||||
1 | SH1-2TPH-2.5A | 2pins plug | 20A | 9322-01364-1 | 9322-01364-2（2pcs） | Power pin | |
2 | SH1-2ZPH-2.5A | 2pins socket | 20A | 9322-01315-1 | 9322-01315-2（2pcs） | Power pin | |
9322-01365-1 | 9322-01365-2（2pcs） | Signal pin | |||||
