7 1/2' ( 190mm ) symmetric overburden casing drilling system casing drill bit
- Category: >>>
- Supplier: Ksq Technologies (beijing) Co. Ltd.
Share on (1600193045252):
Product Overview
Description
Products Description
Symmetric is a system comprised of an ingeniously simple concentric method of drilling through overburden with casing. Symmetric
can drill straight holes at any angle (including horizontal) and to depths beyond 100 meters. Working together as one efficient

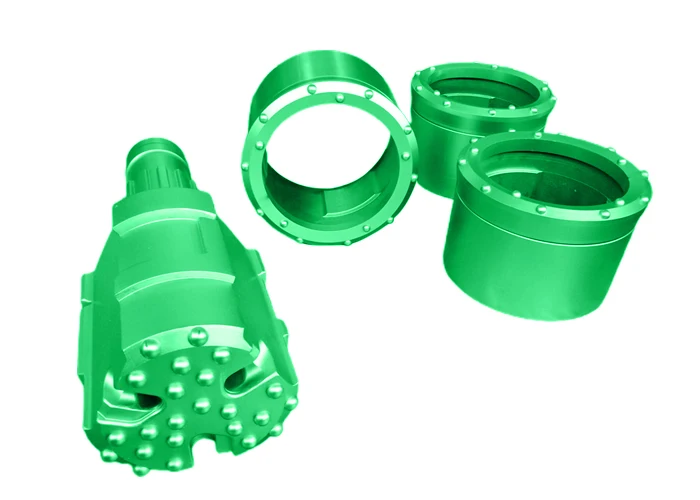

drill bit, the components are made up of:

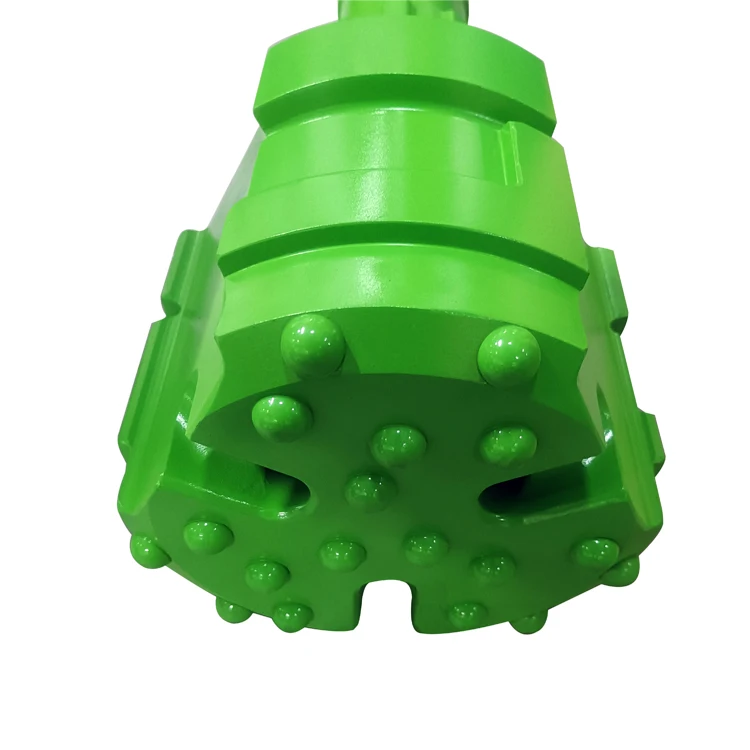

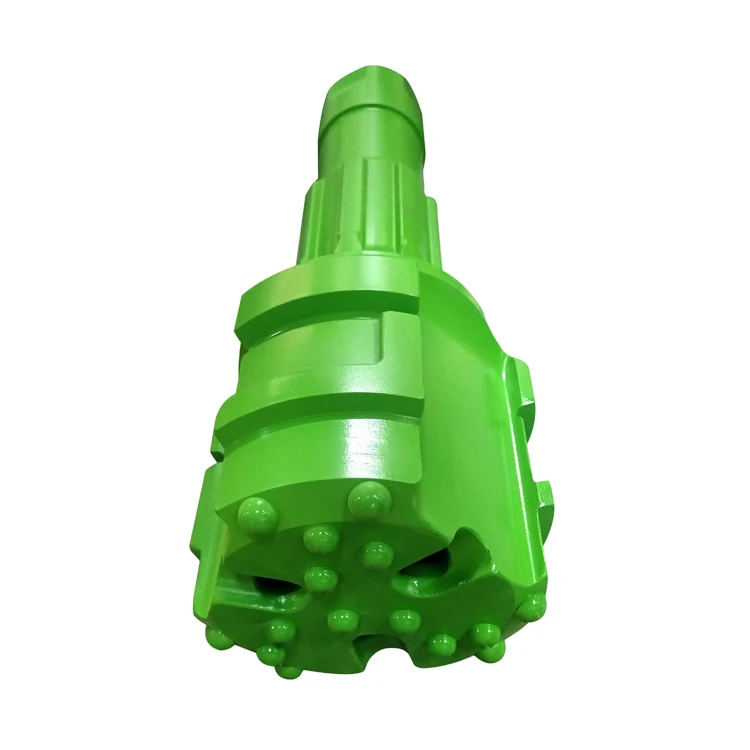

A pilot bit with large internal flushing holes and external flushing grooves.

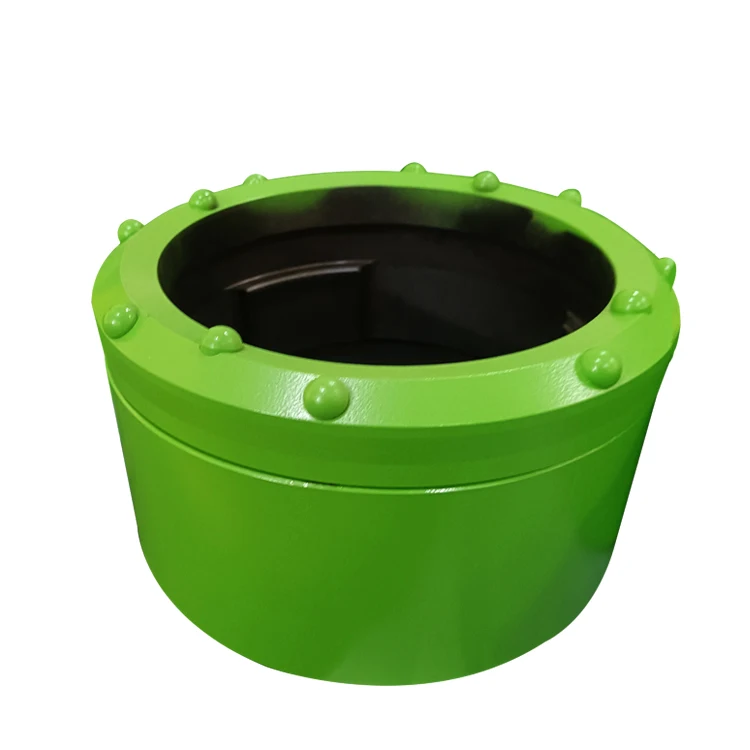

Symmetrical ring bit (reamer) with internal bayonet coupling
Casing shoe for driving of casing.

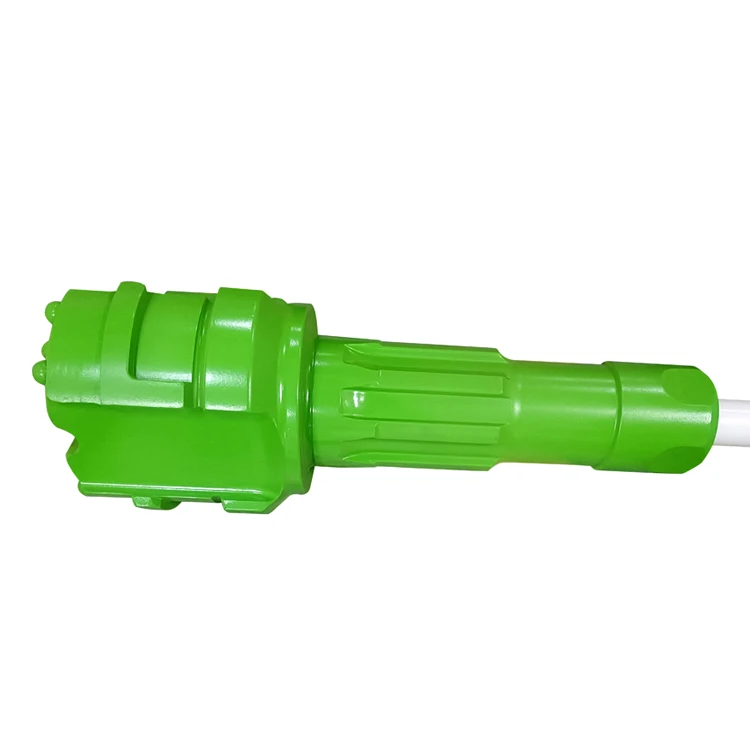

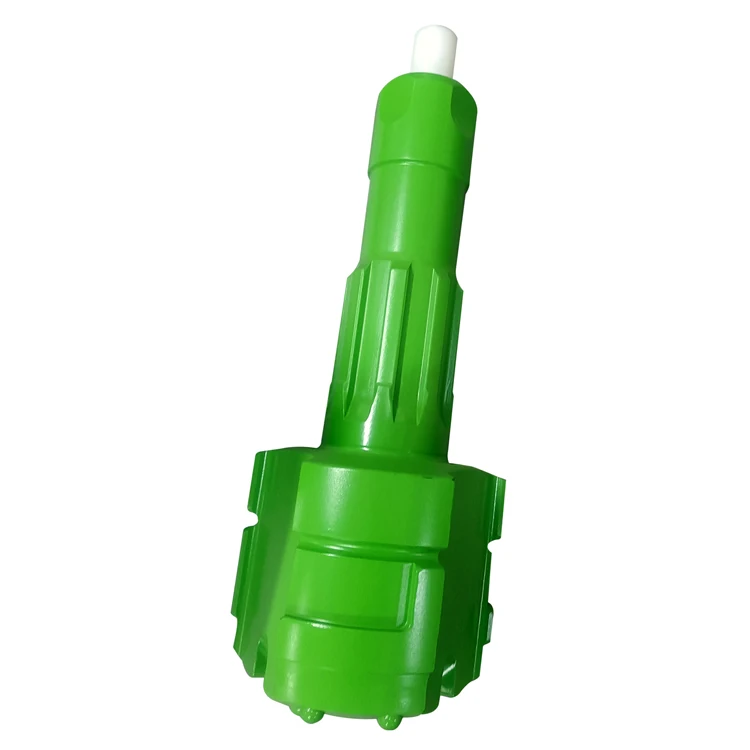

The pilot bit is attached to any common DTH hammer shank or top hammer rod thread.The below size of Symmetric systems which are
available, and the special design is upon customer’s requirement:
Symmetric 114, Symmetric 127, Symmetric 140, Symmetric 146, Symmetric 168,
Symmetric 178, Symmetric 195, Symmetric 219, Symmetric 243, Symmetric 273.
can drill straight holes at any angle (including horizontal) and to depths beyond 100 meters. Working together as one efficient
drill bit, the components are made up of:
A pilot bit with large internal flushing holes and external flushing grooves.
Symmetrical ring bit (reamer) with internal bayonet coupling
Casing shoe for driving of casing.
The pilot bit is attached to any common DTH hammer shank or top hammer rod thread.The below size of Symmetric systems which are
available, and the special design is upon customer’s requirement:
Symmetric 114, Symmetric 127, Symmetric 140, Symmetric 146, Symmetric 168,
Symmetric 178, Symmetric 195, Symmetric 219, Symmetric 243, Symmetric 273.
Casing outer dia.(mm) | Casing thickness(mm) | Ring bit dia.(mm) | Max.dia. of normal bit(mm) | Suitable hammer (inches) | Retrievable |
114 | 10 | 126 | 84 | 3.5 | No |
122 | Yes | ||||
127 | 10 | 142 | 93 | 3.5 | No |
135 | Yes | ||||
140 | 10 | 161 | 97 | 4 | No |
148 | Yes | ||||
146 | 10 | 165 | 110 | 4 | No |
154 | Yes | ||||
168 | 12 | 188 | 127 | 5 | No |
180 | Yes | ||||
178 | 12.7 | 196 | 131 | 5 | No |
185 | Yes | ||||
194 | 12.7 | 214 | 145 | 6 | No |
202 | Yes | ||||
219 | 12.7 | 243 | 170 | 6 | No |
228 | Yes |
Company Profile
Factory
Why choose us
Certifications
Exhibition
Packing and delivery
FAQ
1. Q：Are you manufacturery or trade company?
A:We are manufacturer, has more than 10 years of professional production experience .Products including DTH Hammer and Bit、Drill Pipe Casing System、Tricone Bit、Top Hammer Drill Rod、 Drill Bit、Tapper Button Bit and Rod、 Integral Drill Rod etc.
2.Q: Do you offer warranty on your products?
A: Yes. For different products we offer different warranty that cover all manufacturing defects in materials and workmanship. The longest period of warranty is 6 months after shipping date.
3、Q: How is your quality control?
A: We have our own experienced quality control. There will be strict inspection and testing for every order before shipping out.
4.Q: How long is your delivery time?
A: 1-5days for the products in stock； regular order delivery in 2-3weeks.
5.Q: After Services:
A:(1) Our sales team will response for your question within 24 hours (Holidays included).
(2) Technical Support will be available in any time.
(3)Free replacement will provide once the failure confirmed caused by our product quality.
6.Q:Methods of Payment:
A:We offer different payment terms, including T/T, D/A, D/P, L/C and O/A, etc. You can choose your preferred payment methods before we shipping the goods.
7Q: Do you offer OEM service?
A:Yes, we can offer OEM service if you have regular requirement.
8Q: Where did you export ?
A:Till 2023 we have exported to 60+ countries.
