Wireless Communication, Modbus TCP , Cheap Network Communication PLC Controller
- Category: PLC >>>
- Supplier: Shenyang Guangcheng Technology Co. Ltd.
Share on (1600193207828):
Product Overview
Description
Hot product
Product Description
Dear! Before payment, please confirm your detail requirement, GCAN-PLC-400 itself doesn't include any IO points, if you want different IO modules, please contact us.

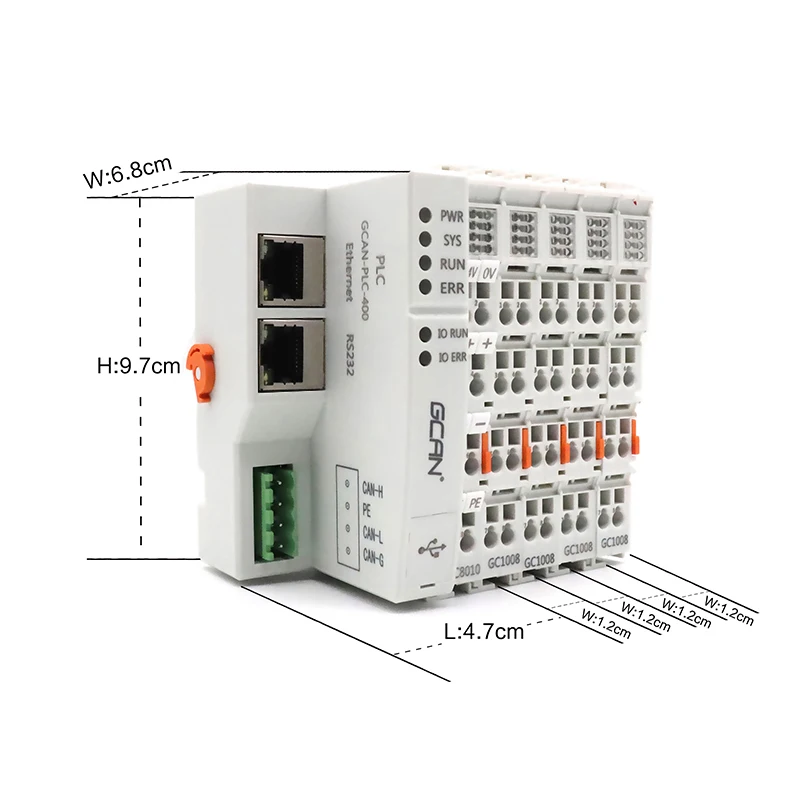

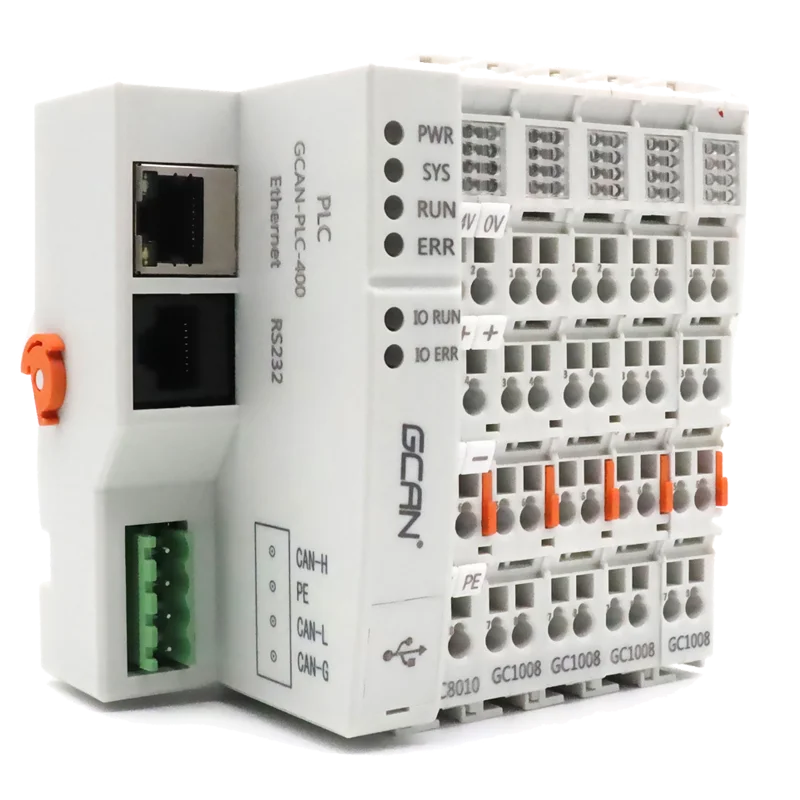

GCAN-PLC is a modular and expandable PLC module. The main control module of the PLC module uses a high-speed CPU, with powerful computing and processing capabilities, and can respond to signals and control commands in real time. The main control module also has a fieldbus communication interface. Users can use these communication buses to access the corresponding network to communicate with other devices, and easily connect it to the communication control network.

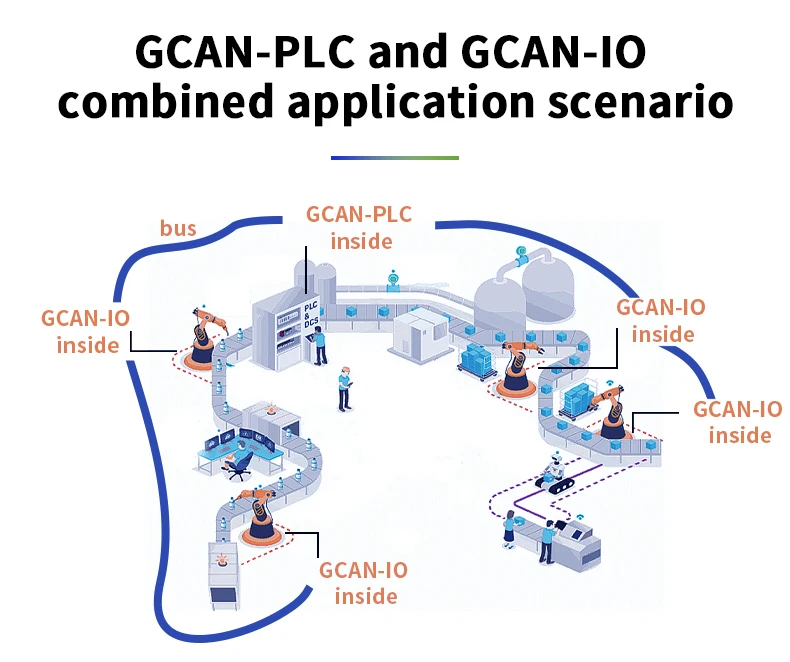

GCAN-PLC consists of a programmable main control module, several I/O modules and a terminal terminal module. Each module uses internal bus to communicate with each other, so users can program and control each I/O module independently. The compact appearance structure and flexible programmable function make this PLC can be used in almost any industrial field control and acquisition system, providing a very effective and economical solution for automation control.
GCAN-PLC consists of a programmable main control module, several I/O modules and a terminal terminal module. Each module uses internal bus to communicate with each other, so users can program and control each I/O module independently. The compact appearance structure and flexible programmable function make this PLC can be used in almost any industrial field control and acquisition system, providing a very effective and economical solution for automation control.
GCAN-PLC can be programmed in five programming languages that comply with the IEC61131-3 standard, including: SFC (Sequential Function Chart), LD (Ladder Diagram), FBD (Function Block), ST (Structured Text), IL (Instruction list). A variety of standard programming languages can be used, which makes the PLC program portable and reusable. IEC61131-3 also allows multiple programming languages to be used in the same PLC, allows program developers to select the appropriate programming language for each specific task, and allows different software modules to use different programming languages in the same control program prepared by.

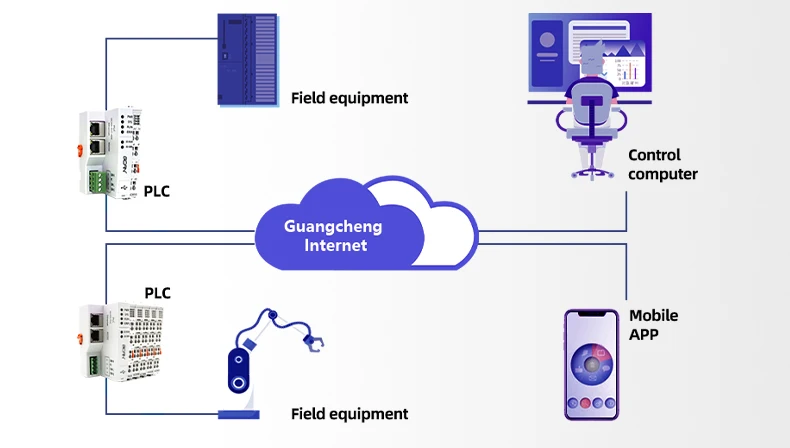

"Guangcheng Internet" industrial Internet platform is a new industrial Internet platform that integrates software services, attachment services and other services. Our company can design a set of digital monitoring and control that meets the user's own needs through the platform. System, users can also use the platform to remotely access field devices to achieve high-end functions such as status monitoring, remote control, fault diagnosis, and unified management of field devices
"Guangcheng Internet" industrial Internet platform is a new industrial Internet platform that integrates software services, attachment services and other services. Our company can design a set of digital monitoring and control that meets the user's own needs through the platform. System, users can also use the platform to remotely access field devices to achieve high-end functions such as status monitoring, remote control, fault diagnosis, and unified management of field devices
Specification
Model table | ||||||||||
Controller master station | Controller slave station | |||||||||
GCAN-PLC-400 | GCAN-PLC-510 | GCAN-IO-8000 | GCAN-IO-8000 | GCAN-IO-8100 | GCAN-IO-8100 | |||||
Frequency 168M | Frequency 400M | CANOPEN Coupler | Modbus Coupler | |||||||
CAN,CANOPEN,RS232/485,Etherent,Modbus | CAN,CANOPEN | RS232/485,Ethernet | ||||||||
Digital Input Output Modbus | ||||||||||
GC-1008 | GC-2008 | GC-2204 | GC-1502 | GC-2302 | ||||||
8-ch DI | 8-ch DO | 4-ch relay DO | 2-ch counter DI | 2-ch PWM DO | ||||||
4-channel Analog Input Module | ||||||||||
GC-3604 | GC-3624 | GC-3664 | GC-3674 | GC-3644 | GC-3654 | |||||
-5V ~5V | -10V ~10V | 0V ~5V | 0V ~10V | 0 mA~20 mA | 4 mA~20 mA | |||||
2-channel Analog Output Module | ||||||||||
GC-4602 | GC-4622 | GC-4662 | GC-4672 | GC-4642 | GC-4652 | |||||
-5V ~5V | -10V ~10V | 0V ~5V | 0V ~10V | 0 mA~20 mA | 4 mA~20 mA | |||||
PT100 Anglog Input Module | ||||||||||
GC-3804 | GC-3822 | |||||||||
4-ch PT100 2 Wire 16 bits | 2-ch PT100 3 Wire 16 bits | |||||||||
4-channel Thermocouple Analog Input Module | ||||||||||
GC-3844 | GC-3854 | GC-3864 | ||||||||
K Type | S Type | T Type | ||||||||
Field bus extension Module | ||||||||||
GC-6101 | GC-6201 | GC-6301 | GC-6301 | GC-6401 | GC-6501 | |||||
RS232/485 | GPRS (2G) | Bluetooth | Bluetooth | Zigbee | WIFI | |||||
PLC development Module | ||||||||||
GCAN-PLC-M7 | GCAN-PLC-M7-EVAL | |||||||||
PLC core board | PLC core development board | |||||||||
Feature
GCAN-PLC can be programmed with German OpenPCS software. OpenPCS is a powerful PLC software programming tool.

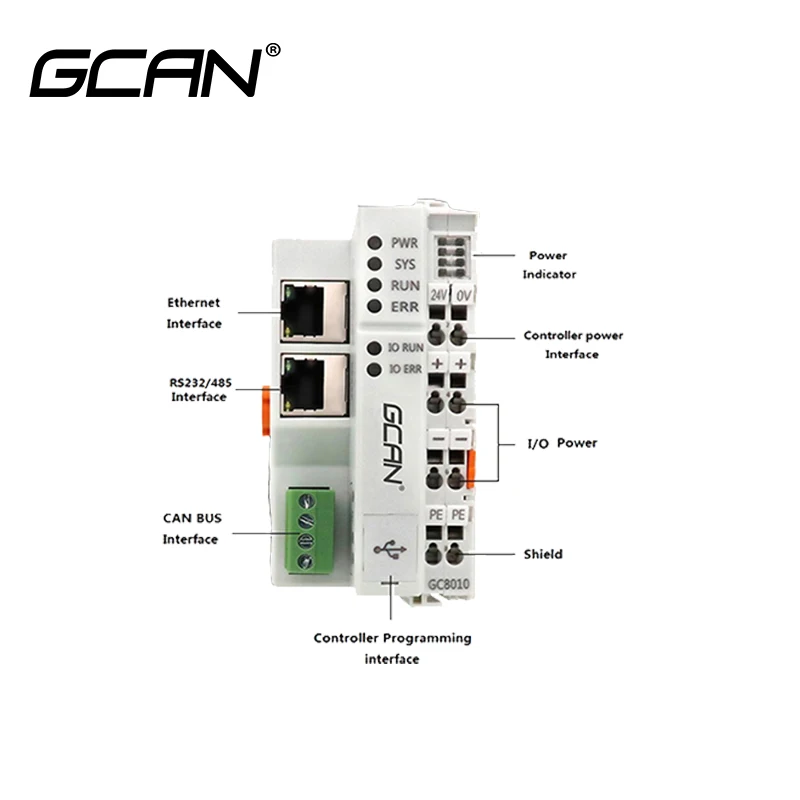

3 kinds of interface
CAN, Ethernet, RS232/485 Follow ISO 11898, support CANopen/ Modbus RTU/ Modbus TCP , can be used as master or slave
IO freely expand
Planty of IO modules optional Including digital input, digital output, analog input, analog output.
5 programming language
Support SFC (Sequential function chart),LD (Ladder diagram), FBD (Function block), ST (Structured text), IL (Instruction List)
CAN, Ethernet, RS232/485 Follow ISO 11898, support CANopen/ Modbus RTU/ Modbus TCP , can be used as master or slave
IO freely expand
Planty of IO modules optional Including digital input, digital output, analog input, analog output.
5 programming language
Support SFC (Sequential function chart),LD (Ladder diagram), FBD (Function block), ST (Structured text), IL (Instruction List)
Free Program software
Support OpenPCS software Follow IEC 61131-3, The software is free with GCAN-PLC.
After-Sales Service
7 days every week after-sales technical support with our prefessional engineers to solve your problems.
Support OpenPCS software Follow IEC 61131-3, The software is free with GCAN-PLC.
After-Sales Service
7 days every week after-sales technical support with our prefessional engineers to solve your problems.
Without specialized downloader
GCAN-PLC can use common micro usb to complete debugging and downloading.
GCAN-PLC can use common micro usb to complete debugging and downloading.
Fonction
Contact US

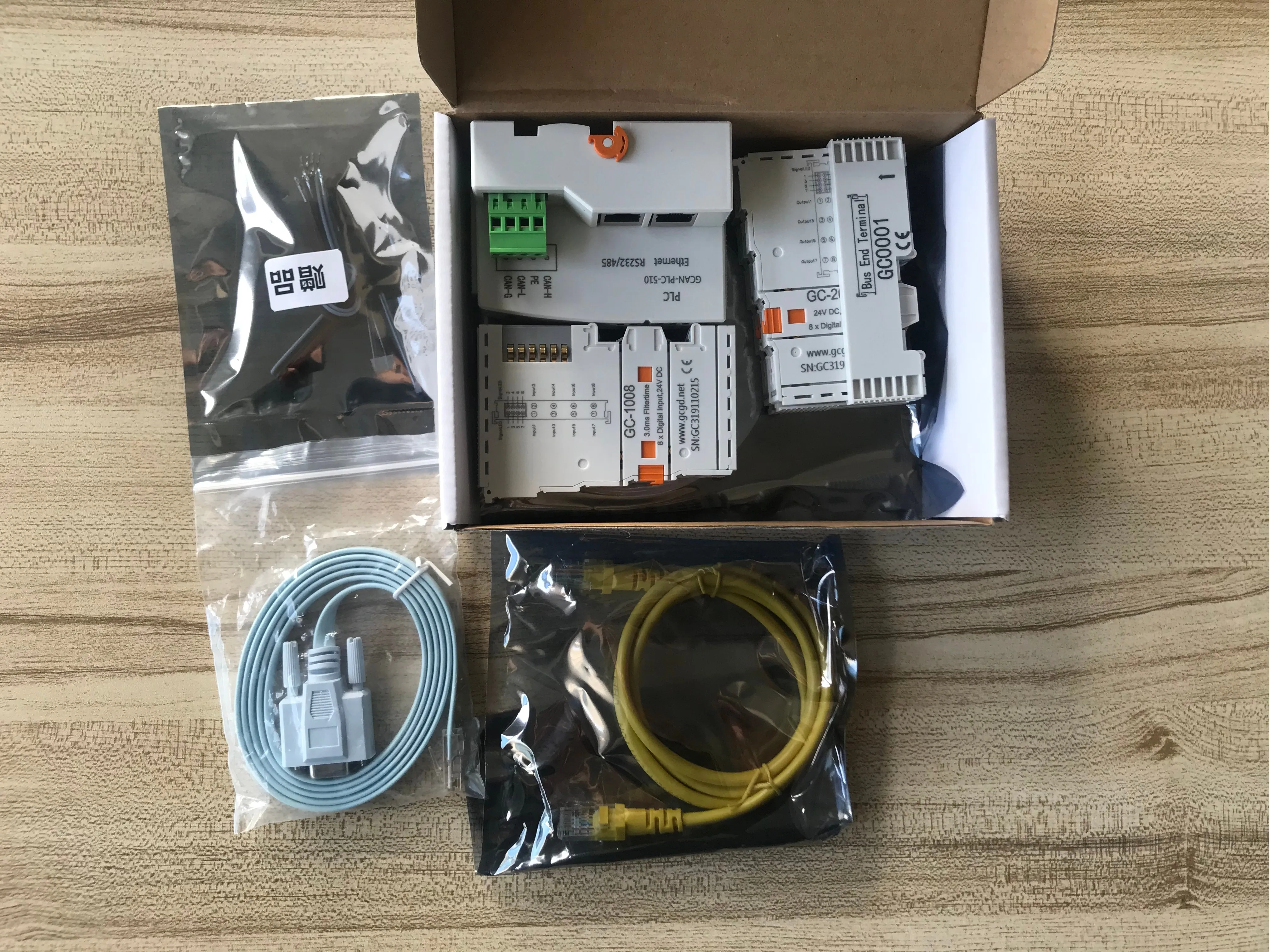

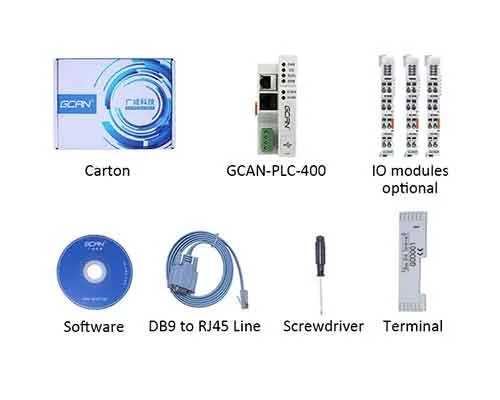

Packing & Delivery
2~5 days after receipt of your payment by air express.
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question，our after-sales engineer will answer for you,please feel free to purchase.
Company Profile
Shenyang Guangcheng Technology limited company is national certified high-tech enterprise. Our company has more 20 own intellectual-property rights with all of main products developed by ourselves, which is a leading supplier and service provider of industrial interconnection equipment in the country. We major in development, production, sales of industrial communication equipments and automatic equipments. The products cover CAN-Bus analyzer, ECU downloader, industrial gateway, remote IO, PLC core-board, and servo driver, software and hardware of industrial communication and providing for comprehensive solution. Since founded in 2010, our company has been on a mission to "promote the progress of industrial interconnection technique, offer competitive product and service" for customer to create value constantly. Now, we have served 10 billion customers, involving traffic, electric power, energy, medical apparatus, ship, military industry, and automatic, multiple industries.
