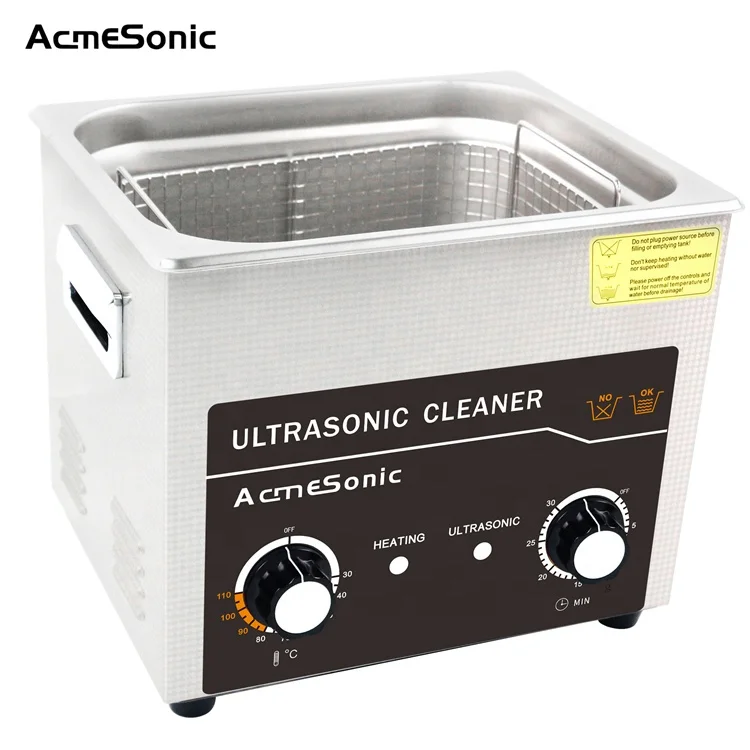

Features of the ultrasonic machine 15L:
•Easy operate the machine
•Heavy duty cleaning systems
•Chemical friendly- SS Rust proof body
•Industrial transducer, build to last
•One year warranty on any manufacturing defect
•Completely customized to suit the cleaning requirement
•Accurate and uniform cleaning everytime
Packing:

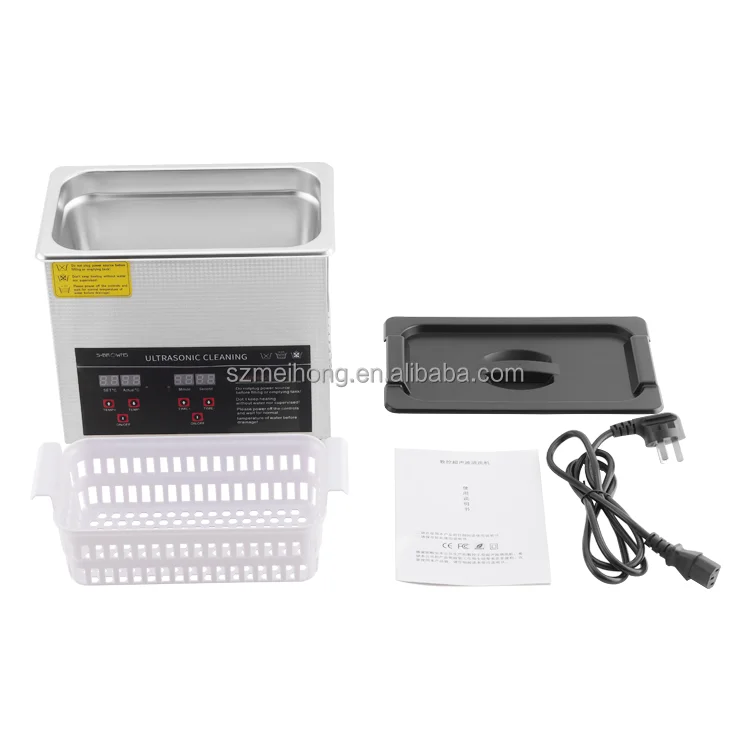

1 x ultrasonic cleaner 1 x SUS basket 1 x SUS lid 1 x power cord 1 x English instruction manual
Model
MH-060HJ 15L
Tank material
SUS304
Tank size
330 x 300 x 150 mm ( L x W x H )
Frequency
40khz
Ultrasonic power
360W
Heating power
450W
Timer
0-30min adjustable
Heater
20-80c adjustable
Voltage
110V/220V
How is Ultrasonic Cleaner Working
Ultrasonic cleaners use high frequency pressure waves to cause cavitation to agitate a liquid (usually cleaning solution and/or water, which in turn creates tiny bubbles that loosen and remove debris.
This action is highly effective for removing all traces of product
Ultrasonic cleaning works on the principle of cavitation.
High frequency sound waves are generated and introduced in the cleaning liquid as mechanical energy through a series of transducers fitted on the outside bottom of the Mini Tank and radiating upwards.
The process of ultrasound creates numerous tiny vacuum bubbles
on the cleaning solution, which consequently implode. The energy released when tiny bubbles implode on the surface of the parts exposed to the cleaning solution causes an extremely effective cleaning force to the surface of the parts.
As the temperature of the cleaning solutions is directly related to the cavitational effect of the ultrasonic energy the Ultrasonic cleaners are delivered with built-in electrical heating elements complete with thermostatic controls. In this way an optimum combination of cleaning product (solution), temperature and ultrasonic power can be reached.
WHY YOU SHOULD BE USING
ULTRASONIC CLEANING
Clean punches and dies are essential to maintaining the integrity and efficiency of your tooling investment, as well as the quality of your product. Ultrasonic cleaning has long been considered the most effective, nondestructive way to clean tools – from medical instruments to tablet tooling. The Specification Manual (TSM) states,
“An ultrasonic bath is ideal for cleaning tooling.”
This high-tech cleaning process also saves time, reduces cost and is better for the environment.
Multi Tank Ultrasonic Cleaning Machine For Vehicle Radiators And Accessry
WHY CLEANING IS IMPORTANT
Dirty tools can cause tool binding, which can result in damage to the tooling and the tablet press. Keeping tools clean will decrease the chance of premature tool wear, allow lubrication to be more effective, and the machine to
run more efficiently – which will increase product yield.
Can ultrasonic cleaning damage my parts?
With certain cautions, ultrasonic cleaning is considered safe for most parts. While the effects of thousands of implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level. The most important cautionary consideration is the choice of cleaning solution. Potentially adverse effects of the detergent on the material being cleaned will be enhanced by the ultrasonics.
