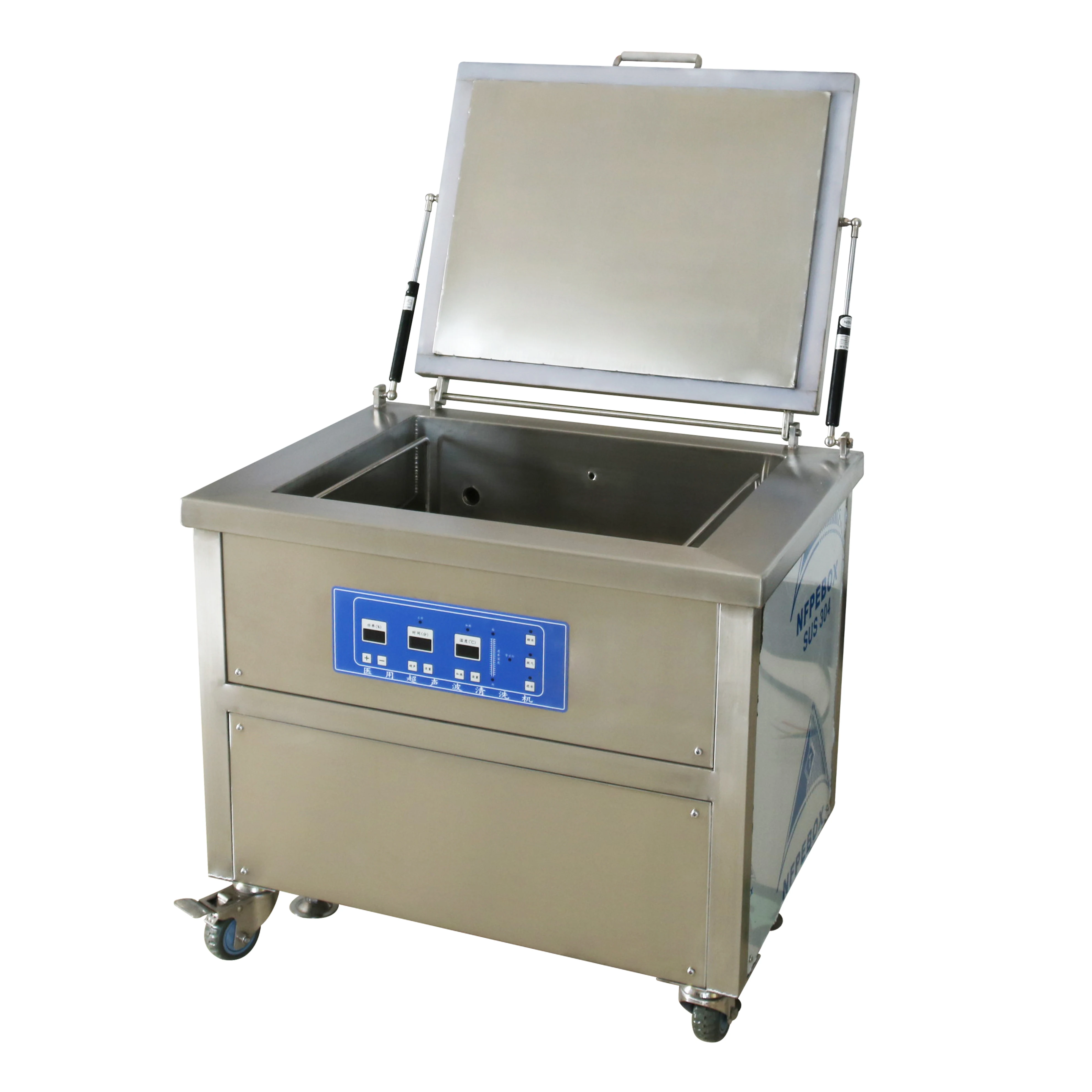

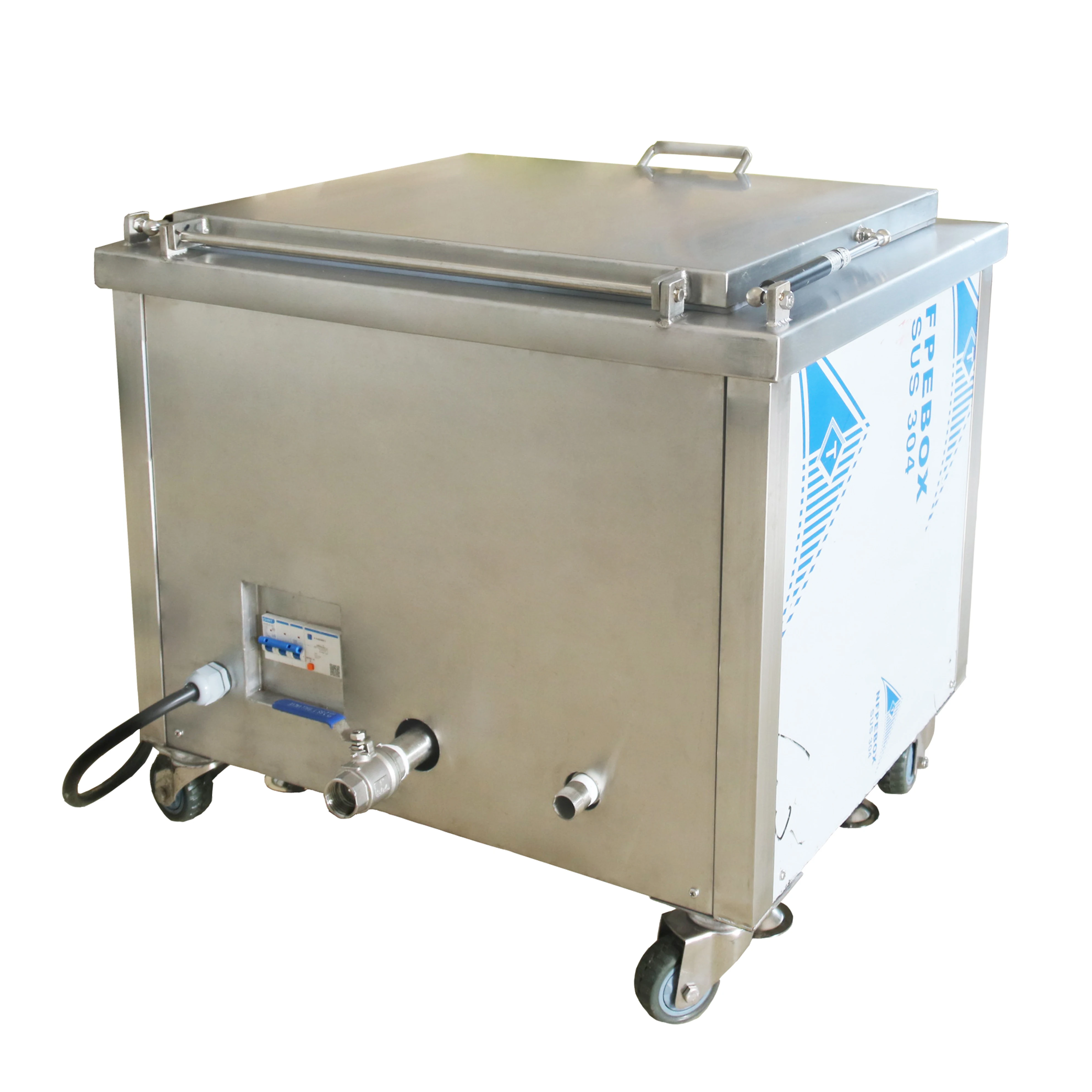

High Quality Single Tank Industrial Ultrasonic Cleaner Automatic Industrial Ultrasonic Vibrator Carburetor Cleaner

Product Overview

Description

High Quality Single Tank Industrial Ultrasonic Cleaner Automatic Industrial Ultrasonic Vibrator Carburetor Cleaner





Description:

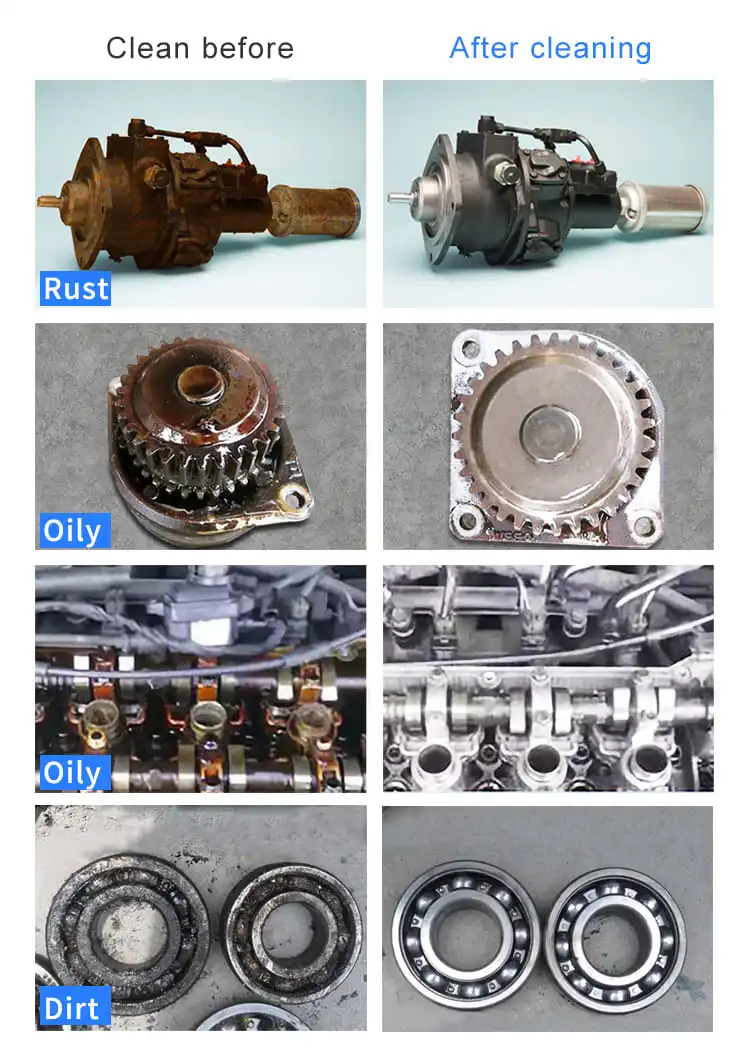

The single tank medical ultrasonic cleaner can be used for cleaning the utensil medical instructments with high efficiency. Besides, for stripping oil, carbon and corrosion from small engine cases and other parts, such as coating parts, clock and watch parts, mechanical and hardware parts, spinneret filtration assemblies, semiconductor wafers, optical lenses, spectacle frames, jewelries, glassware and many others.





Features:

1.Automatic frequency tracking generator MCU-SWEEP drive, modular design of the whole machine, easy to operation, convenience to maintenance

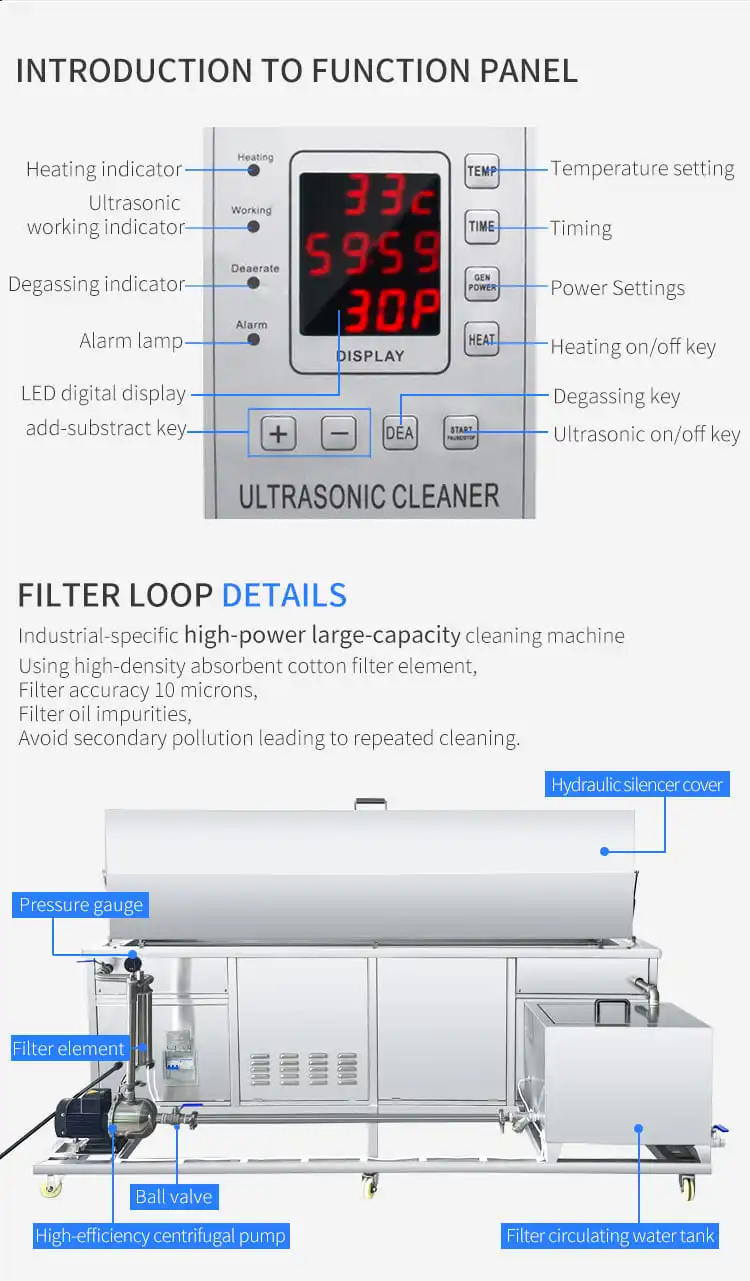

2.Digital controlled Dispaly, one-button to start degassing, can quick remove the air in water,and have strong ultrasonic effect,

3.20-100 ℃ heating temperature adjustable, 0-100% ultrasonic power adjustable, cleaning time can be adjusted in minutes or hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong,

4.High Q ultrasonic transducers, high strength glue bonding,have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment, when the machine has no liquid level protection, the ultrasonic work will have abnormal alarm function

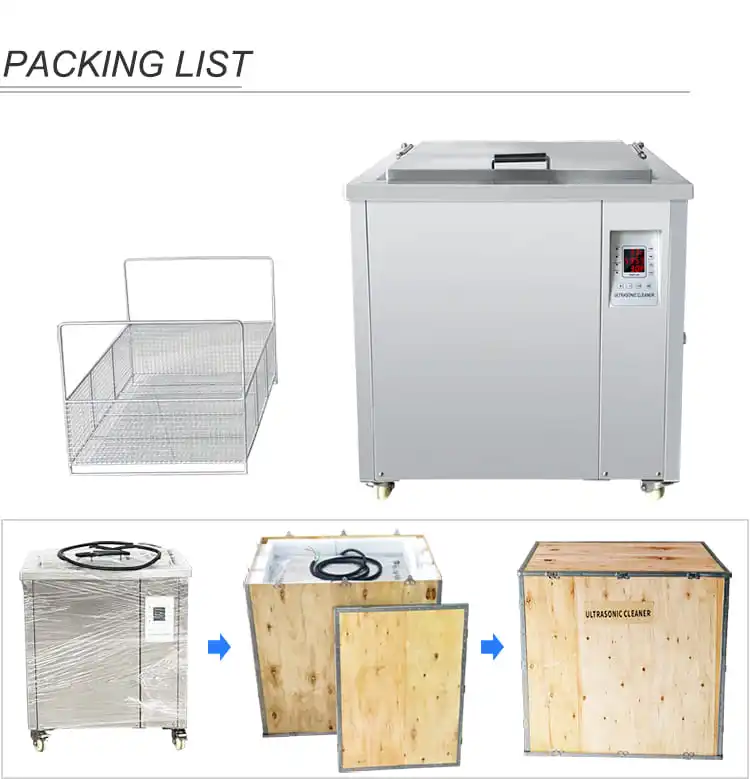

5.Pass 2500V high voltage test, strict production process and aging process,have mute cover/ 304 stainless steel washing basket, etc.and certificated by CE/ROSH/FCC

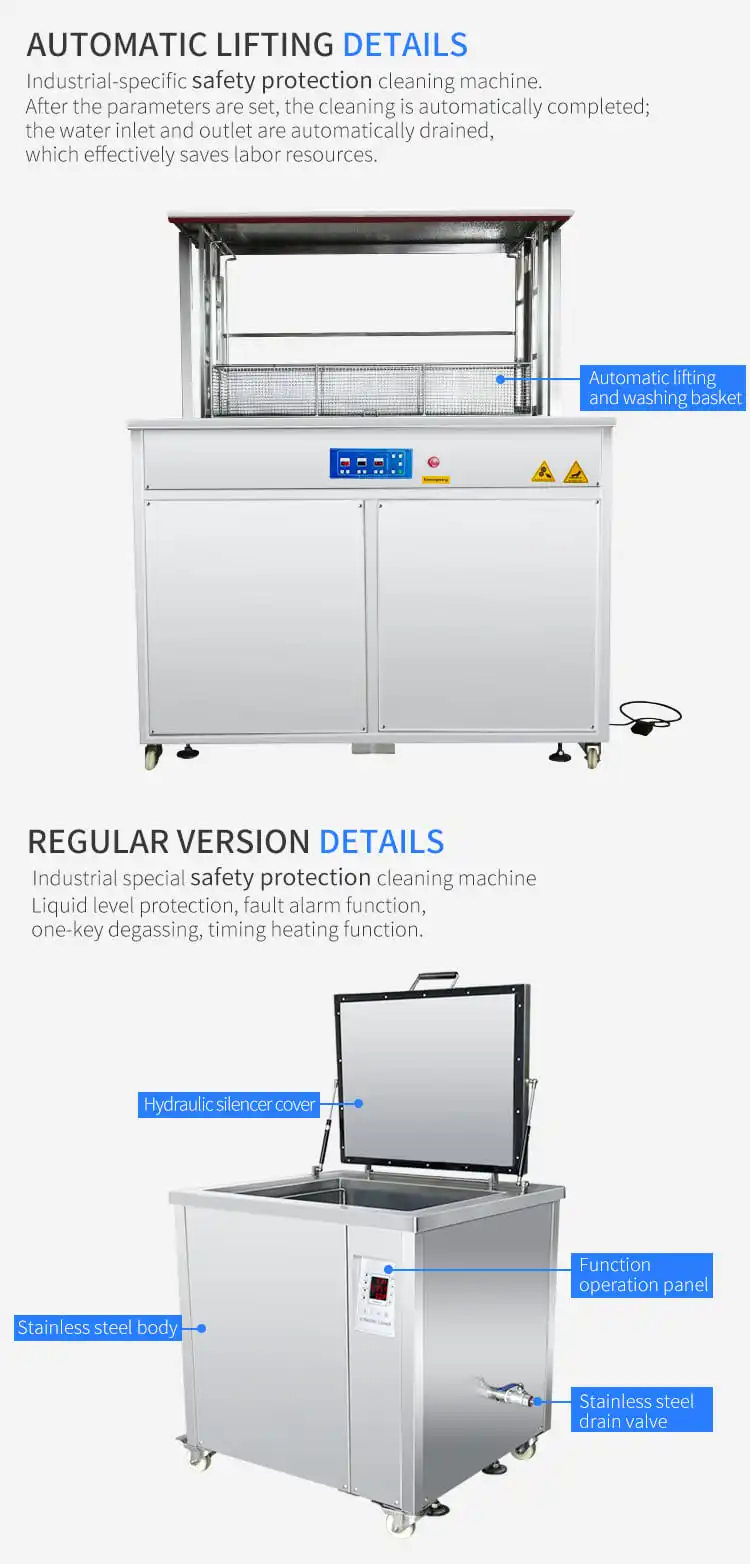

6. Additional automatic enter drainage system, filtration and circulation, basket lifting system can be added too.





Application:
Golf club: Golf clubs,irons,grips;
Automotive: engine block,engine parts,fuel injector, carburetor,spark plug and other target car parts.
Others: printing, marine, medical, pharmaceutical, electroplating, disk drive components, engineering and weapons industries.



Name	Industrial ultrasonic single tank cleaner
Frequency	17/20/25/33/40/68/80/100/132/170/200Khz.(customizable)
Max Temperature	20-100℃
Material	SUS304 stainless steel, thickness 2.0-3.0mm or SUS316L, thickness 2.0-3.0mm
Voltage	AC 220V/110V±10%(50/60KHz)



Model	Capacity(L)	Ultrasonic Power	Heating Power	Tank Size (customizable)
JYD-1012SG	36	600W	1500W	500*300*250mm
JYD-1018SG	61	900W	2000W	500*350*350mm
JYD-1024SG	88	1200W	3000W	550*400*400mm
JYD-1030SG	108	1500W	3000W	650*450*400mm
JYD-1036SG	147	1800W	6000W	650*500*450mm
JYD-1048SG	175	2400W	6000W	700*550*500mm
JYD-1060SG	240	3000W	9000W	800*600*500mm
JYD-1072SG	300	3600W	9000W	1000*600*500mm
